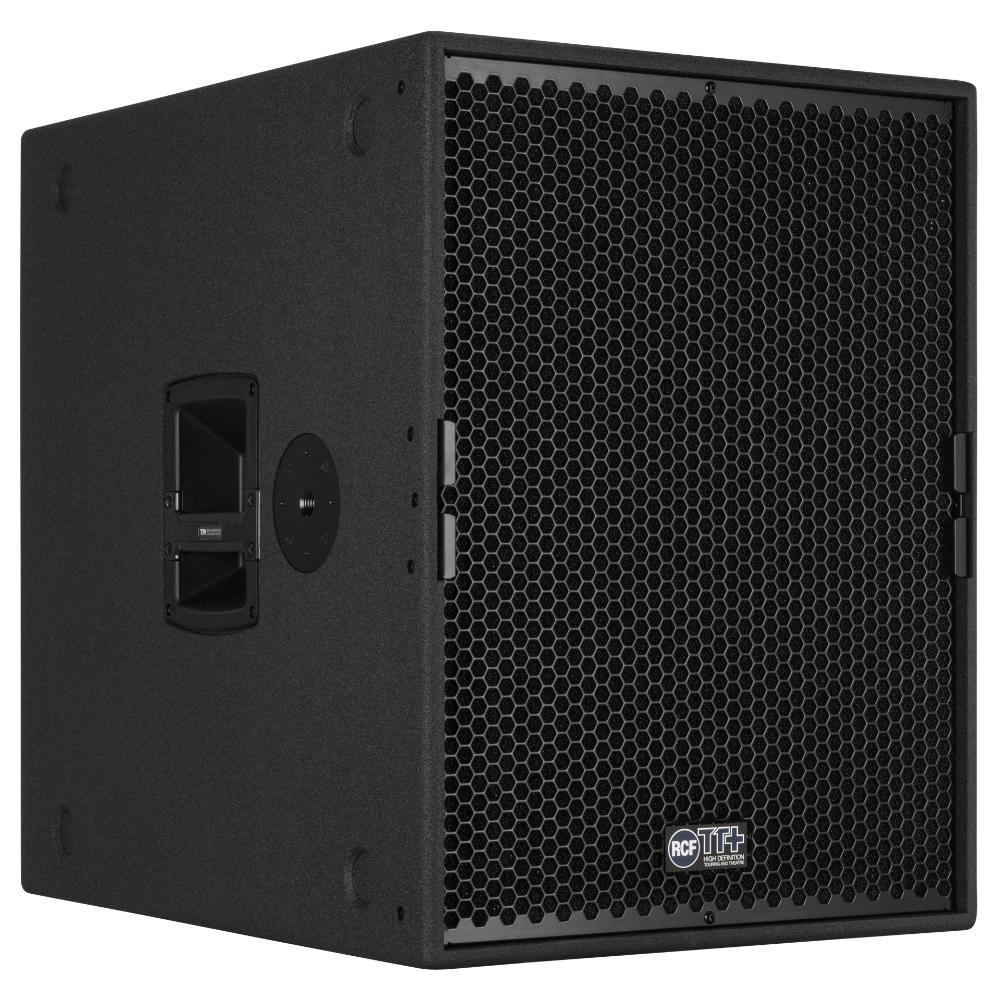

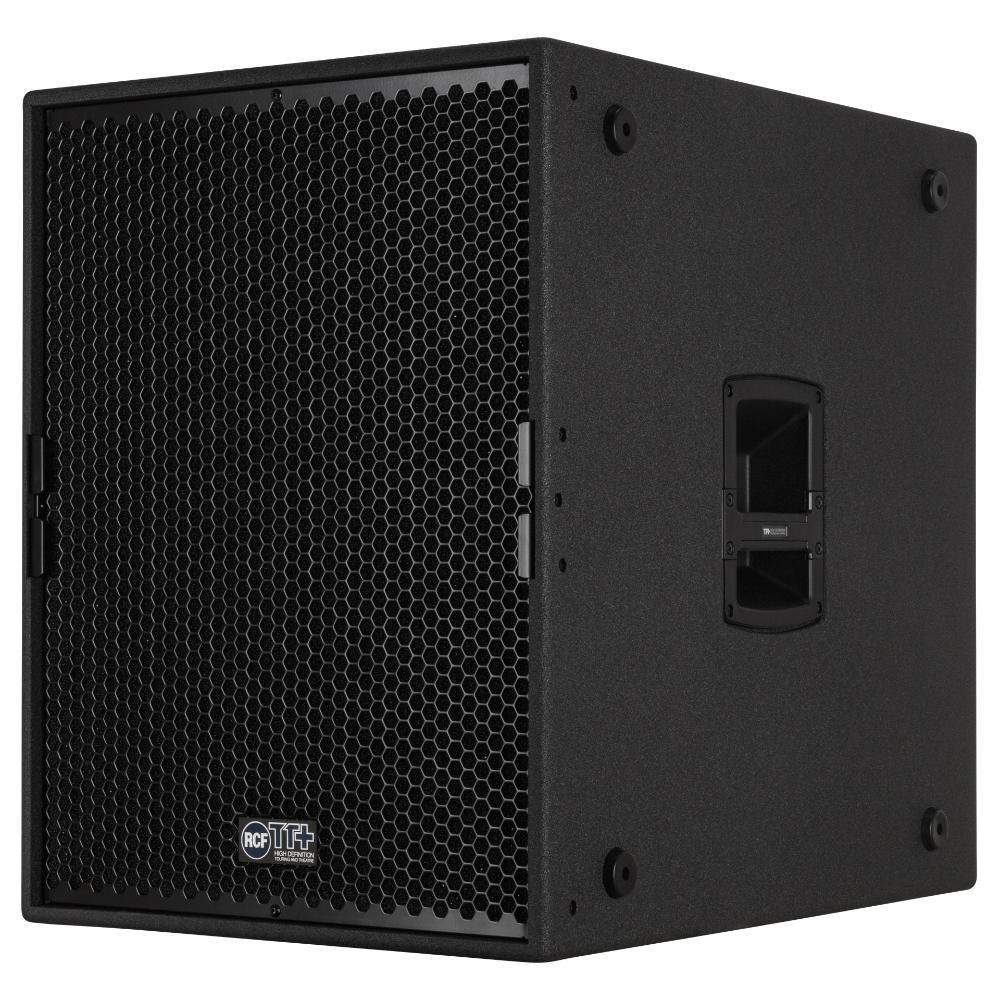

RCF TTS 18-A II Active High Power Subwoofer 18" 2800W

£4,295.00
£4,295.00
The RCF TTS 18-A II is a compact, high output subwoofer module ideal in combination with TT+ two way systems. The RCF TTS 18-A II woofer features lightweight neodymium magnet, inside-outside copper voice coil; silicon double spiders; water resistant treated cone; magnet assembly with minimum power compression.
Vendor: RCF
SKU: 13000545
Icon In Stock In Stock
Icon Delivery Time
iFrame
×

Description:

The RCF TTS 18-A II is a compact, high output subwoofer module ideal in combination with TT+ two way systems. The RCF TTS 18-A II woofer features lightweight neodymium magnet, inside-outside copper voice coil; silicon double spiders; water resistant treated cone; magnet assembly with minimum power compression. The amplifier section features 1400 watt RMS SMPS class-D Amplifier with full DSP and RDNet network capabilities.
RDNET SOFTWARE

Features:

137 dB SPL Max
30-400 Hz Frequency Range

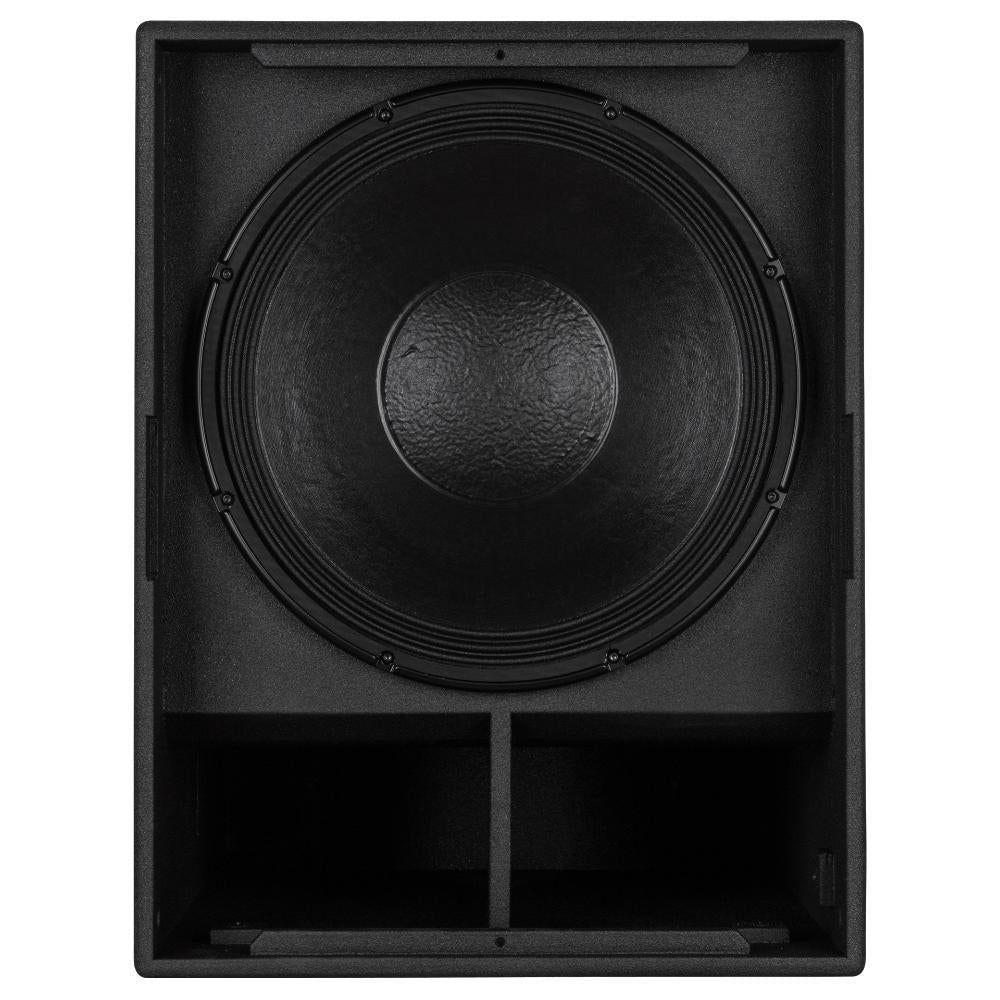

1 x 18" Hyper Vented woofer, 4" Voice Coil
DSP Controlled Input Section with selectable presets (e.g.cardioid)
1400W RMS Class-D Amplifier
RDNet remote monitoring and control

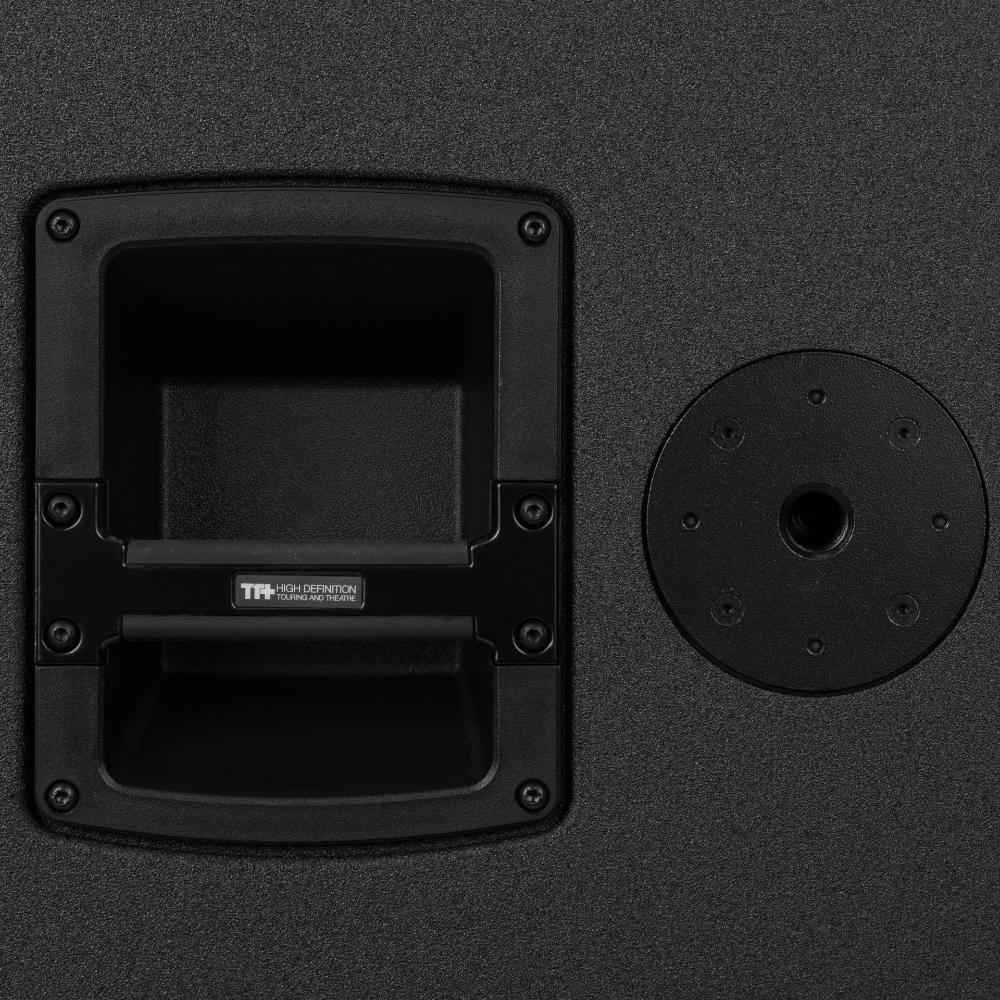

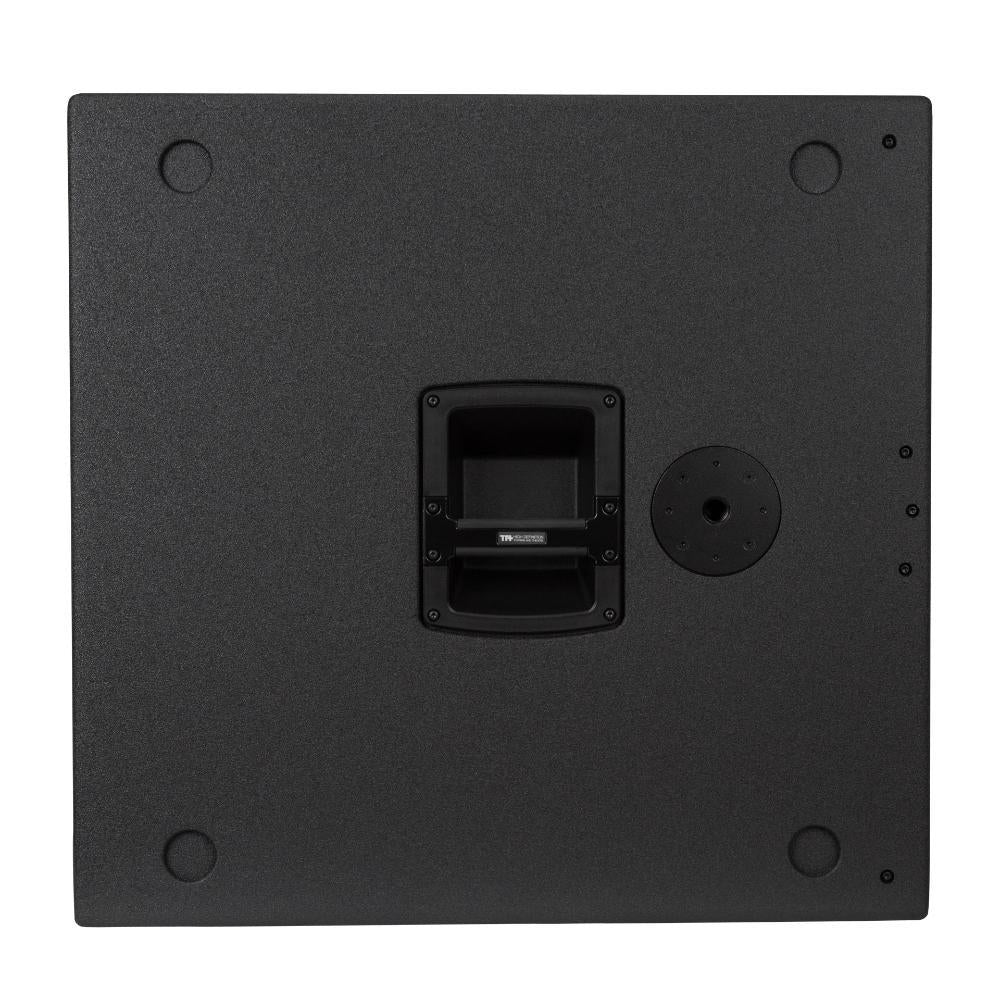

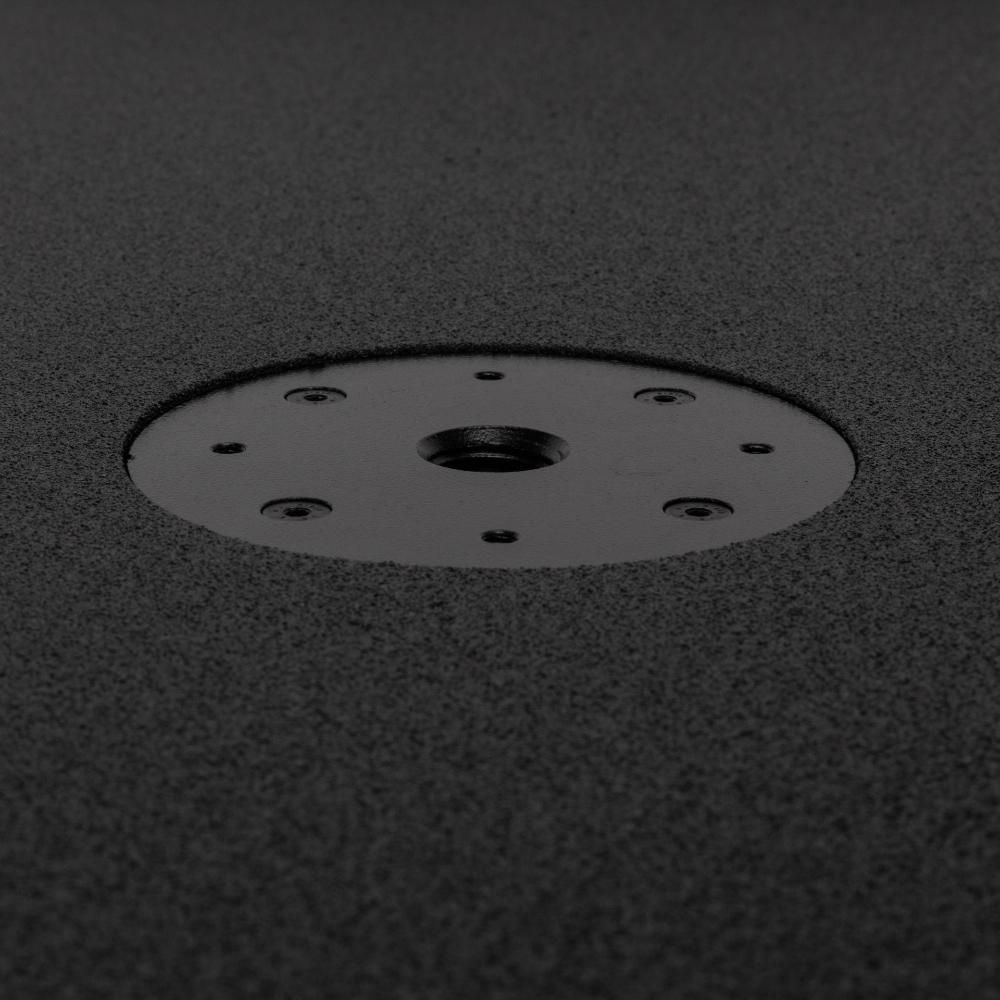

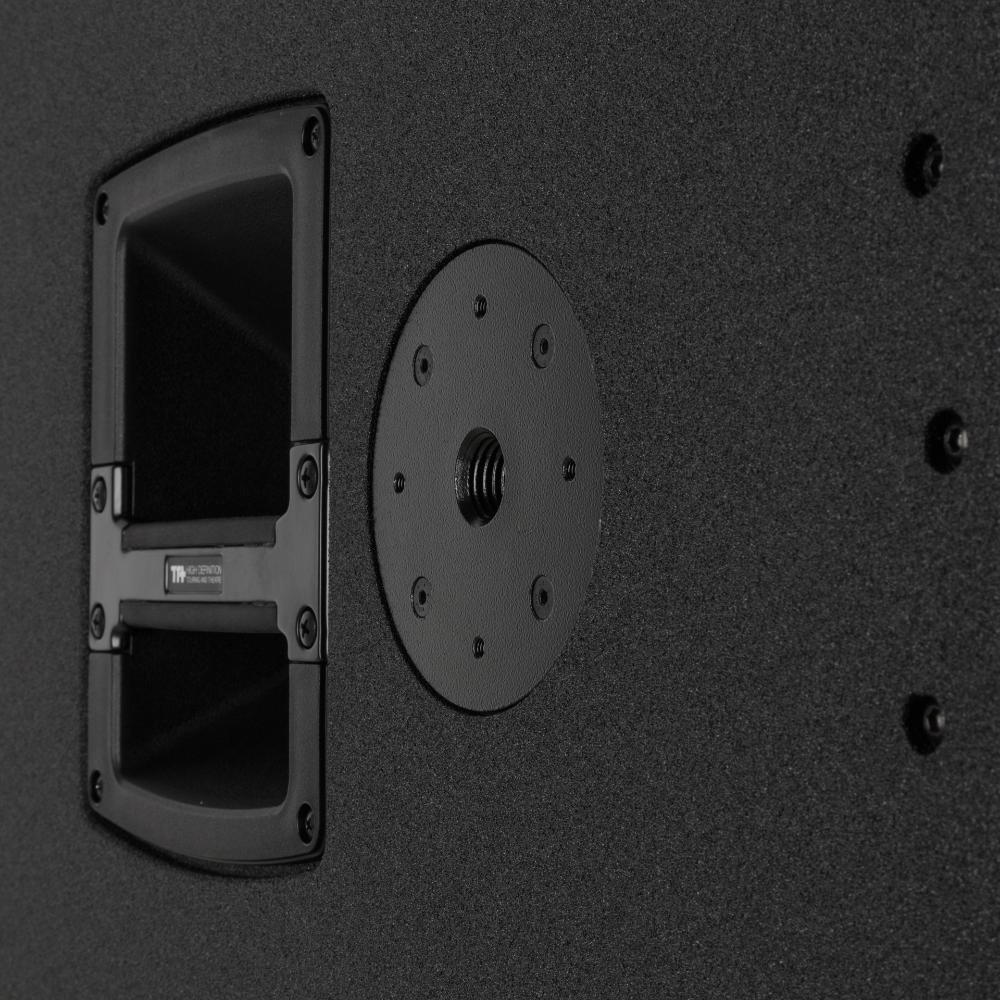

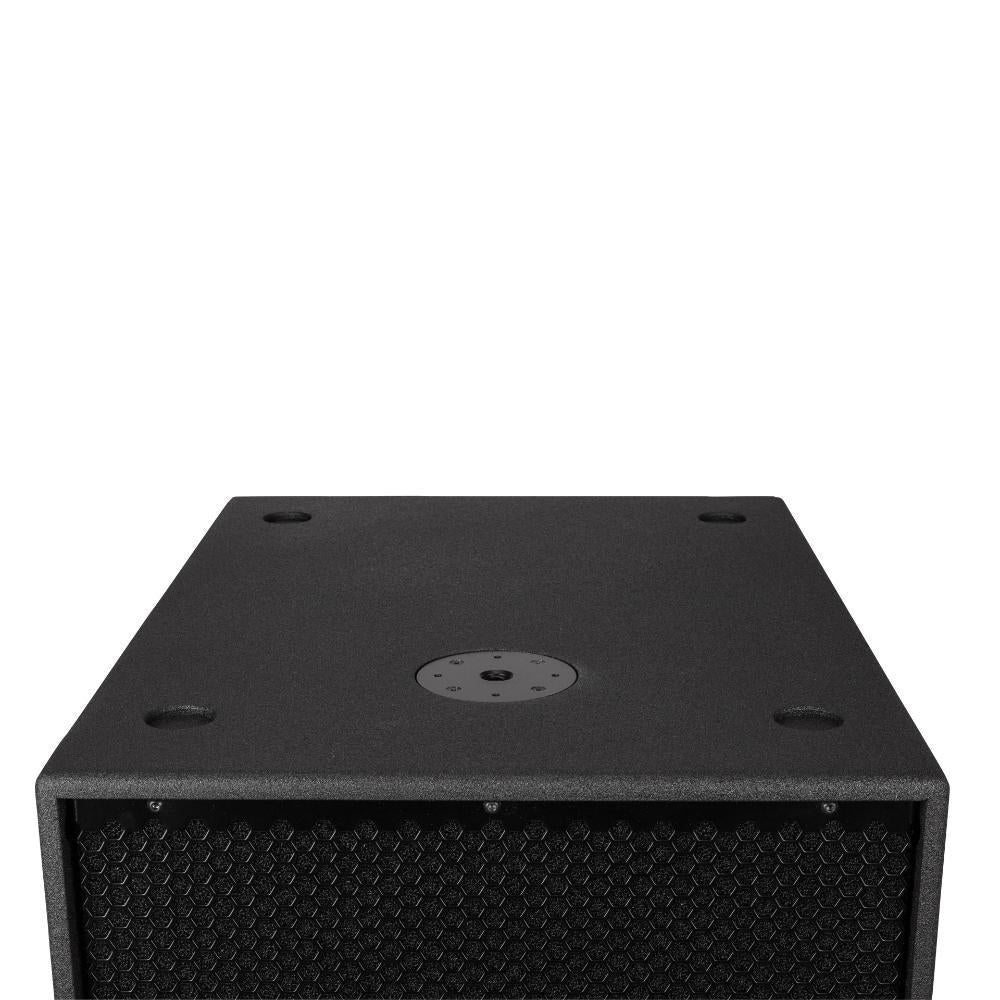

Vertical and horizontal placement with M20 pole receptacle on top and side
Baltic Birch Cabinet


RCF RDNet
Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.


Cabinet
The RCF TT+ cabinets are made of high-quality birch plywood with weatherproof treatments. The subs are stackable and light-weight, for easy set-up and tear down. The polyurea coating and the rugged structure of the cabinet withstand long-term use and transportation and the separate housing for the amplifier guarantee the best components efficiency and reliability. A pole receptacle on the top and side allows the woofer to be used in various configurations. Transportation is fast thanks to the detachable Kart kit, a dolly caster-board with rugged tour grade casters and rotating cam mechanism.


High performance hypervented
RCF manufactures these components to deliver the cleanest, punchiest, and undistorted low frequencies reproduction. The cone is composed of 30% carbon fibre, 20% fibreglass and 50% cellulose pulp. This particular chemical composition has been carefully developed to improve the robustness and rigidness of the cone avoiding any deformation that would result in a loss of efficiency. RCF engineers have developed the unique Hyper Ventilation system with very low power compression. The cone is water resistant.

Active advantage
An active sound system means having the power amplifier on-board of the cabinet. This brings some advantages:Reduced setup time
Daisy chain signal and power connection of the entire system or by groups
No additional amplifier rack(s), saving space in the truck
The sound quality and performance are optimized to the individual components inside the speaker
The RDNet Networked Control can monitor each component of the system

Top and electronics

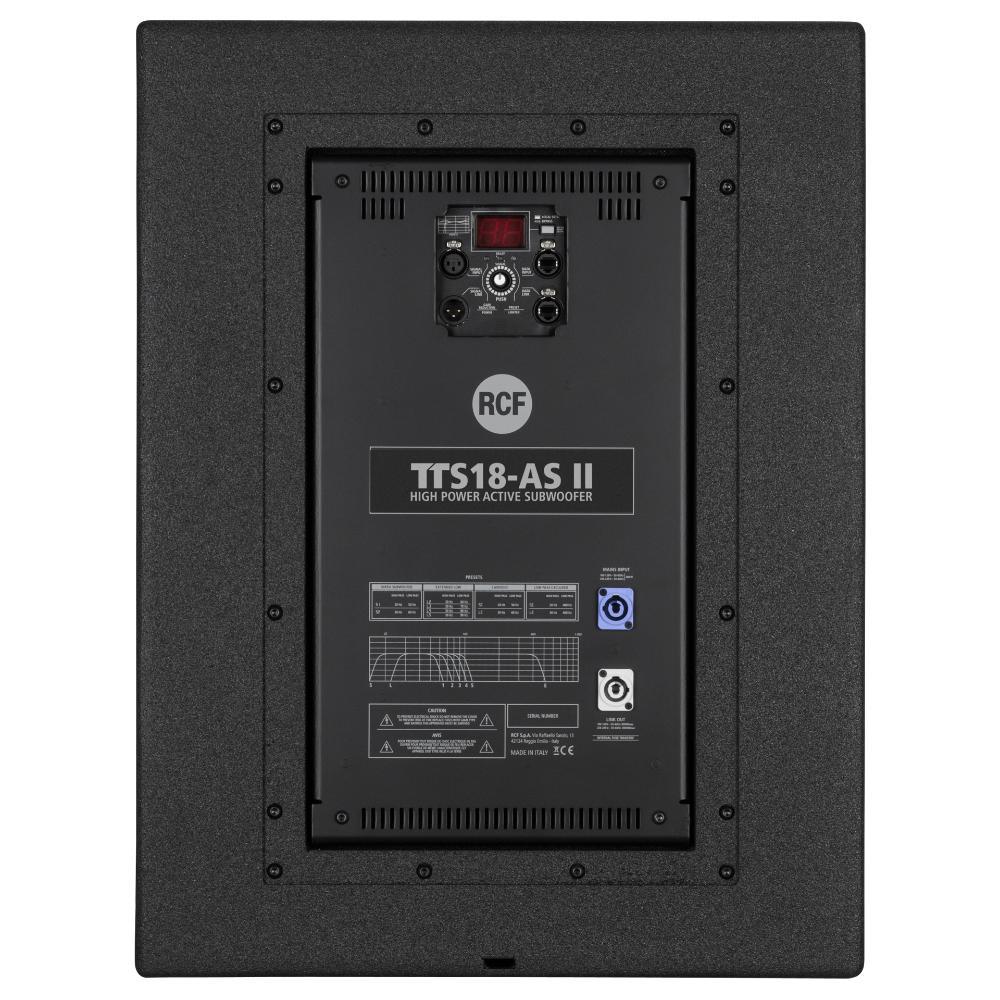

The amplifier integrates a low-noise 32 bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle the soft clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All the settings, monitoring, and advanced features are available inside the integrated RDNet Networked Management software. The control panel on the back adjusts volume, bypass, delay, presets and advanced functions.

The good flow
It’s common knowledge in fluid dynamics that the turbulent airflow is reduced with a smart design of the port.

The improved vented port is a proprietary solution that helps to achieve a good aerodynamic behaviour of the air (laminar), gaining efficiency and reducing distortion.

ACOUSTICAL SPECIFICATIONS
Frequency Response: 30 Hz ÷ 400 Hz
Max SPL @ 1m: 137 dB

TRANSDUCERS
Woofer: 18'' neo, 4.0'' v.c

INPUT/OUTPUT SECTION
Input signal:  bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: +4 dBu

PROCESSOR SECTION
Hi-Pass Frequencies: 30 Hz, 40 Hz
Low-Pass Frequencies: Variable from 50 Hz to 100 Hz
Protections: Thermal, RMS
Limiter: Fast Limiter
Controls: Gain, Eq, Preset Switch, Output Delay
RDNet: Yes

POWER SECTION
Total Power: 2800 W Peak, 1400 W RMS
Cooling: Forced
Connections: Powercon IN/OUT

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Baltic birch plywood
Hardware: 2 x M20

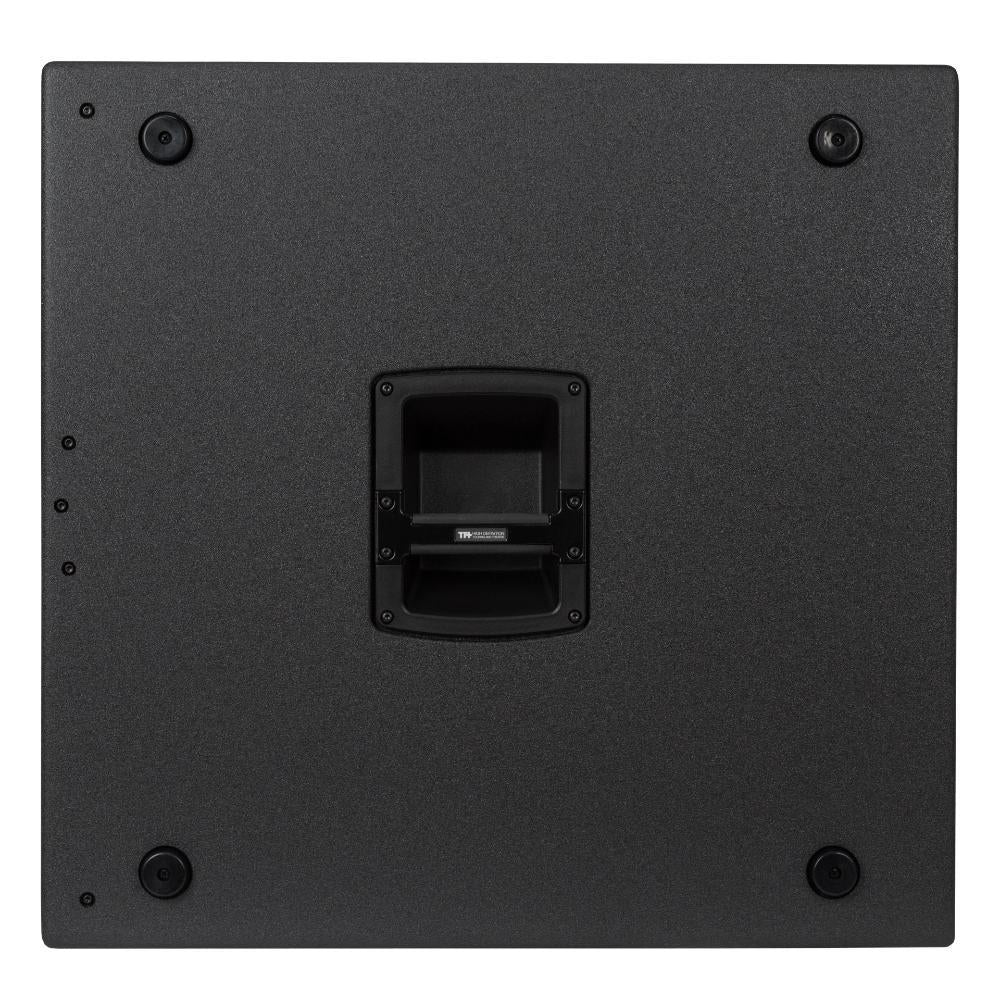

Handles: 2 x Side

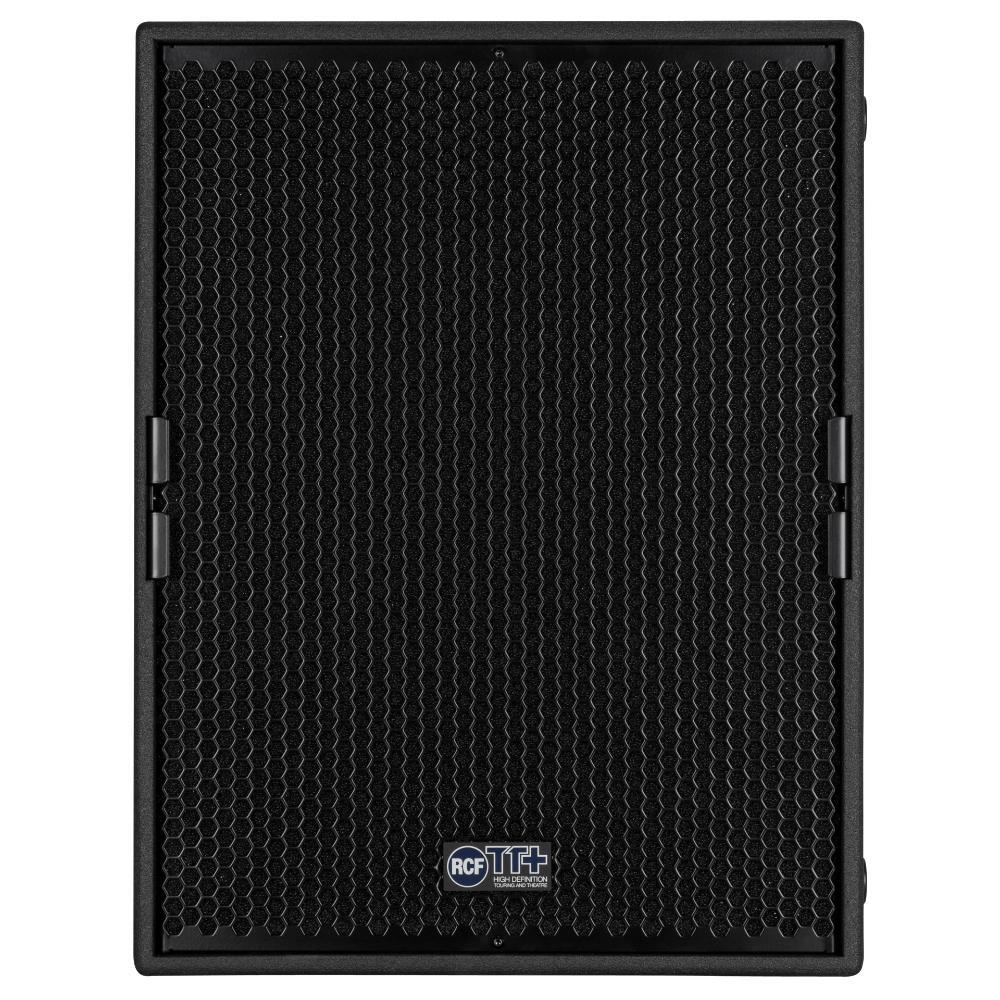

Grille: Steel
Color: Black

SIZE
Height: 708 mm / 27.87 inches
Width: 540 mm / 21.26 inches
Depth: 732 mm / 28.82 inches
Weight: 52 kg / 114.64 lbs
SHIPPING INFORMATION
Package Height: 780 mm / 30.71 inches
Package Width: 800 mm / 31.5 inches
Package Depth: 610 mm / 24.02 inches
Package Weight: 56.8 kg / 125.22 lbs
