Monacor PA-704 Mono PA Mixing Amplifier 1 x 35W

1 x 35 W

2 low-impedance microphone inputs

1 aux input, 1 phono input

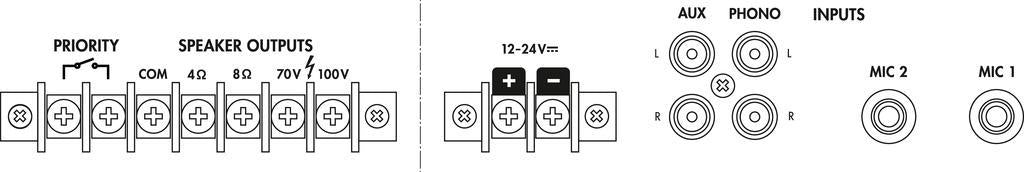

Speaker outputs via screw terminal contacts

Input and output level controls

2-way tone control for the output

Connection for a microphone talk button to switch off the other sources during announcements

Mains operation and 12-24 V emergency power operation

Specifications:

Peak output power 70 W
Power rating 35 W
Channels 4
Inputs 5 mV (mic),210 mV (aux), 5 mV (phono)
Frequency range 100-18,000 Hz
Equalizer bass ±10 dB/150 Hz
Equalizer treble ±10 dB/6 kHz
S/N ratio > 55 dB
THD < 1%
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 100 VA
Operating voltage (possible alternative) DC 12-24 V
Power supply (possible alternative) DC 2.5 A
Admiss. ambient temp. 0-40 °C
Width 320 mm
Height 85 mm
Depth 230 mm
Weight 4.97 kg
Connections 2 x 6.3 mm jack (mic),1 x RCA L/R (aux),

1 x RCA L/R (phono),

screw contacts (speakers)
Packing dimensions (W x H x L) 0.37 x 0.14 x 0.28 m
Gross weight 5.33 kg
Net weight 4.97 kg
