Laserworld CS-2000RGB FX MK3 Laser

Description

A compact laser projector designed for professional application of entertainment lighting, including live stages, concerts, TV shows and productions, music festivals, discoteques, Djs, clubs, nightclubs, bars, private parties and rental companies. The Laserworld CS-2000RGB FX MK3 is an analog modulated, full color RGB laser system with a total output power of up to 2000 mW and a guaranteed output power of 1600 mW. The red laser source has an output power of 250 mW / 635 nm, the green of 250 mW / 532 nm and the royal-blue of 1100 mW / 445 nm. The laser sources ensure powerful laser beams. The projector has good beam specifications with a beam diameter of about 3 mm and beam divergence of 1.4 mrad. The galvo system has a scan speed of up to 28 kpps @ 8° ILDA.

The Laserworld CS-2000RGB FX MK3 has three grating effects built-in in addition to the graphics capable scanners: line grating, burst grating and radial grating. Together with the ca. 200 patterns stored on the laser, these effects offer a variety of combinations for impressive illumination of small to medium-sized locations. The grating effects make the projected patterns appear as if they were displayed by many projectors at the same time. The resulting extensiveness allows for effects that could not be achieved in any other way. pattern size and the sensitivity of the microphone can be set by two rotary buttons on the rear side of the housing. Through DMX, in the stand-alone mode as well as in the sound-to-light mode about ca. 130 patterns (layers, tunnels, fences, waves, etc.) can be projected in different colors and in various speed. If the stand-alone mode is active the pre-programmed patterns run without assistance and in the sound-to-light mode the laser system projects according to the sound. Next to the modes mentioned above, this laser projector provides a Master/Slave-mode. Show lasers of the same series (slave projectors), connected via DMX cable to a main projector (master projector) project the same patterns like the master projector.

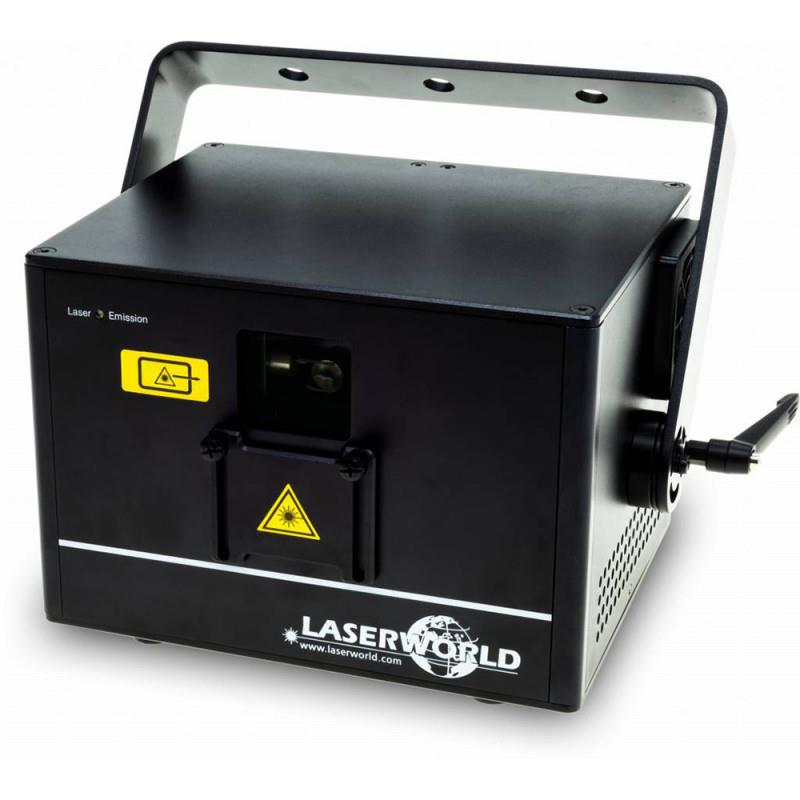

The Laserworld CS-2000RGB FX MK3 is computer controllable through a professional ILDA interface. Thus own or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software (e.g. Showeditor or Showcontroller). There are safety features like a key switch, an interlock and an on-off switch. The Laserworld CS-2000RGB FX MK3 show laser projector comes with a completely new designed compact housing, which is light weight and has a stable bracket. The bracket allows for different mounting positions: a hanging as well as a standing installation is possible, ideal for mobile laser shows as well as for fixed installations at a truss or at the ceiling.

With semiconductor diodes, analogue modulation and a total power of up to 2000 mW and a minimum power of 1600 mW
Red: 250 mW / 635 nm
Green: 250 mW / 520 nm
Blue: 1100 mW / 450 nm
Includes three switchable grating effects: Line Grating, Burst Grating and Radial Grating
Control: Auto, Music, DMX, ILDA
Beam diameter: approx. 3 mm
Beam divergence: 1.1 mrad
Scanning speed up to 28 kpps @8°.

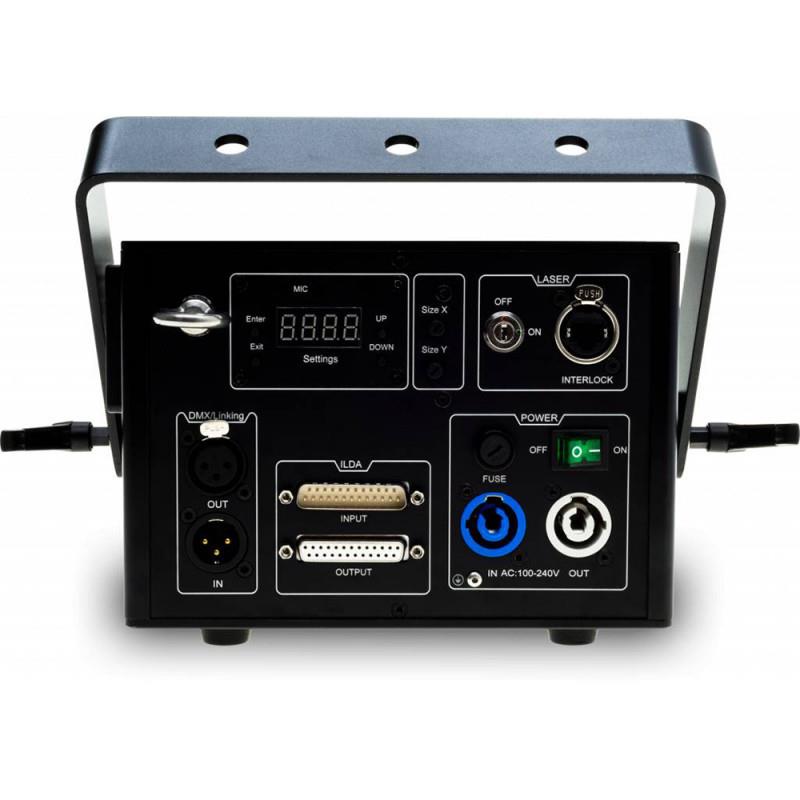

Interlock IN via RJ45 connector
Power supply: Power Twist In / Out
Trim Poti for X/Y size
New menu with various settings, including axis invert / DMX values / internal effects etc.
Laser class 4
Power supply: 85V - 250V AC
Incl. power cable, interlock, key
