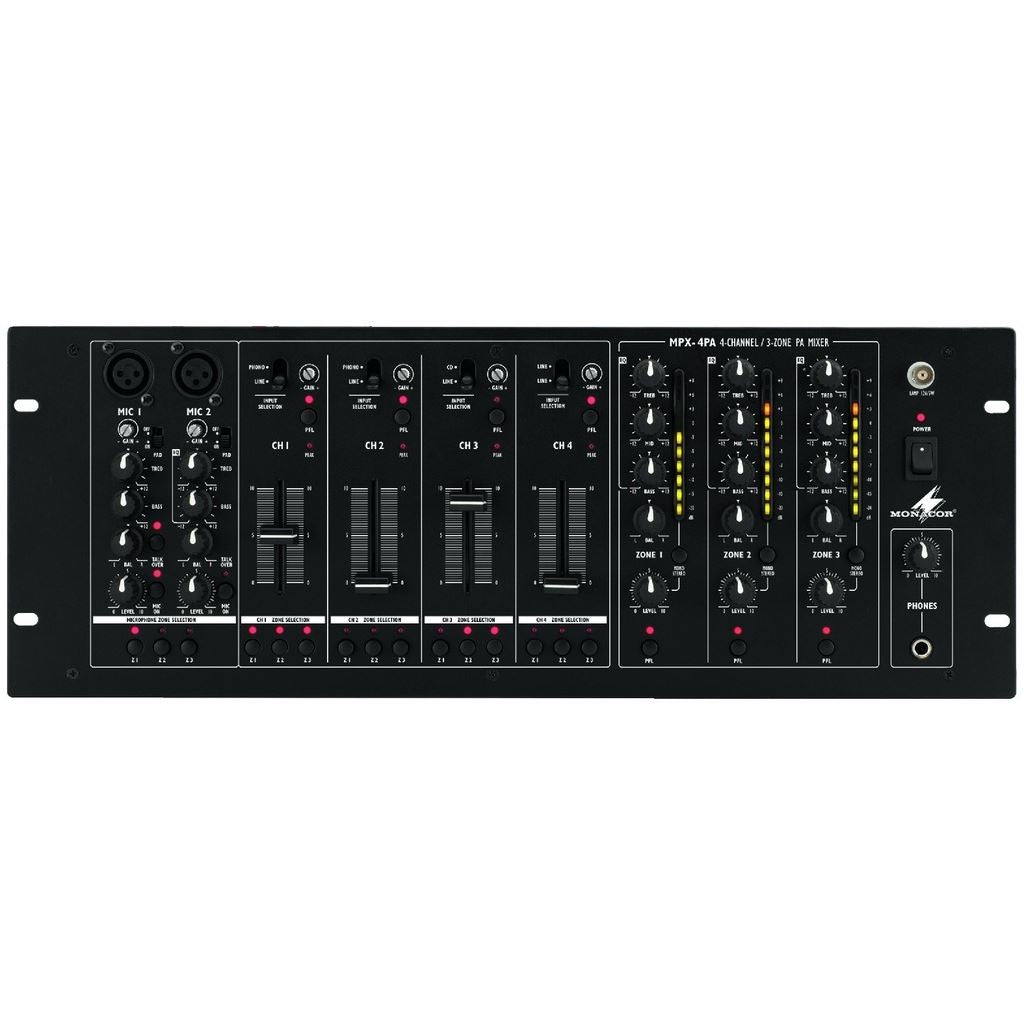

Monacor MPX-4PA Stereo 3 Zone Live Mixer

3 zones with user-defined routing of all input channels
XLR and RCA zone outputs
6 input channels (4 stereo ways, 2 microphone ways)
Both microphone ways can only be routed together
Recessed gain control for each input channel
Microphone ways, each with 2-way tone control, talkover and PAD switch
Stereo channels, switchable 2 x phono/line and 2 x line/line
Zone outputs, each with 3-way equalizer, LED level display of the stereo master, balance control, pre-fader listening (PFL) and mono/stereo selector switch
Adjustable headphone output with pre-fader listening (PFL) to the stereo input channels and zone outputs
Connection for gooseneck light GNL-204

Specifications
Mic input: 1.5 mV
Phono input: 3 mV
CD input: 150 mV
Line input: 150 mV
Master output: 1 V/600 Ω
Headphones: ≥ 8 Ω
Frequency range: 20-20,000 Hz
THD: 0.1 %
S/N ratio: 61 dB, unweighted
Equalizer, bass: +12 dB, -12 dB/50 Hz
Equalizer, midrange: +12 dB, -12 dB/1 kHz
Equalizer, treble: +12 dB, -12 dB/10 kHz
Talkover: -16 dB
Gooseneck light: 12 V/5 W, BNC
Power supply: 230 V˜/50 Hz/20 VA
Admiss. ambient temp.: 0-40 °C

Dimensions
482 x 177 x 105 mm

Weight
3.75 kg
