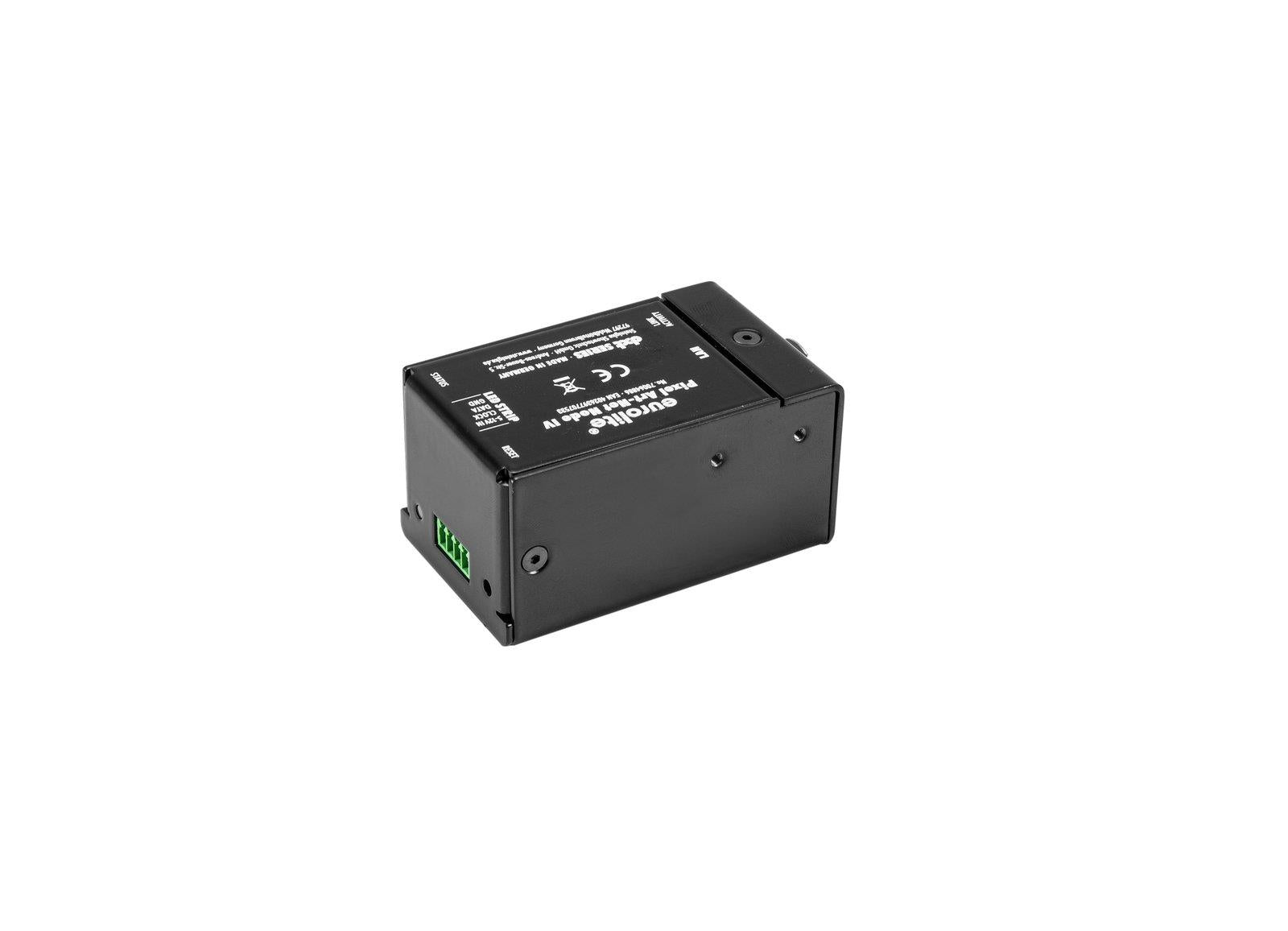

Eurolite DXT Pixel Art-Net Node IV LED Interface for 50000 Channel

£146.00
£146.00
Art-Net interface for control of 50000 digital LED channels
Vendor: Eurolite
SKU: 154-70064886
Icon In Stock In Stock
Icon Delivery Time
Icon Delivery Time
iFrame
×

Description:

Art-Net interface for control of 50000 digital LED channels

Can receive and process up to 2048 DMX channels
1 to 6 colors per pixel
Supports pixel groups (1 - 9999)
Control via ArtNet; sACN
Configuration with website or Art-Net
Useable for WS2801; WS2811, WS2812, SK6812; APA102 LED´s
Does not require a separate adapter - power supply is via LED strip (5-12 V)
Rugged metal housing
Desktop console housing
Made in Germany
The device can be connected via RJ-45 etherCON (F) mounting version to the PC in connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
Built with NEUTRIK connector

Specifications:

Power supply: 5-12 V DC
Pin configuration: Pin1 (GND) / Pin2 (DATA) / Pin3 (CLOCK) / Pin4 (VIN)
Power consumption: 1 W
IP classification: IP20
Power connection: Mains input via 4-pin screw plug connector (M) mounting version
DMX channels: Input 2048
Network connection:
Protocol: Ethernet TCP/IP via 1x RJ-45 etherCON (F) mounting version, 10 Mbit/s
Standard: IEEE 802.3u
Control: ArtNet; sACN
Control channels: 50000
Housing color: Black
Status LED: Signal, link

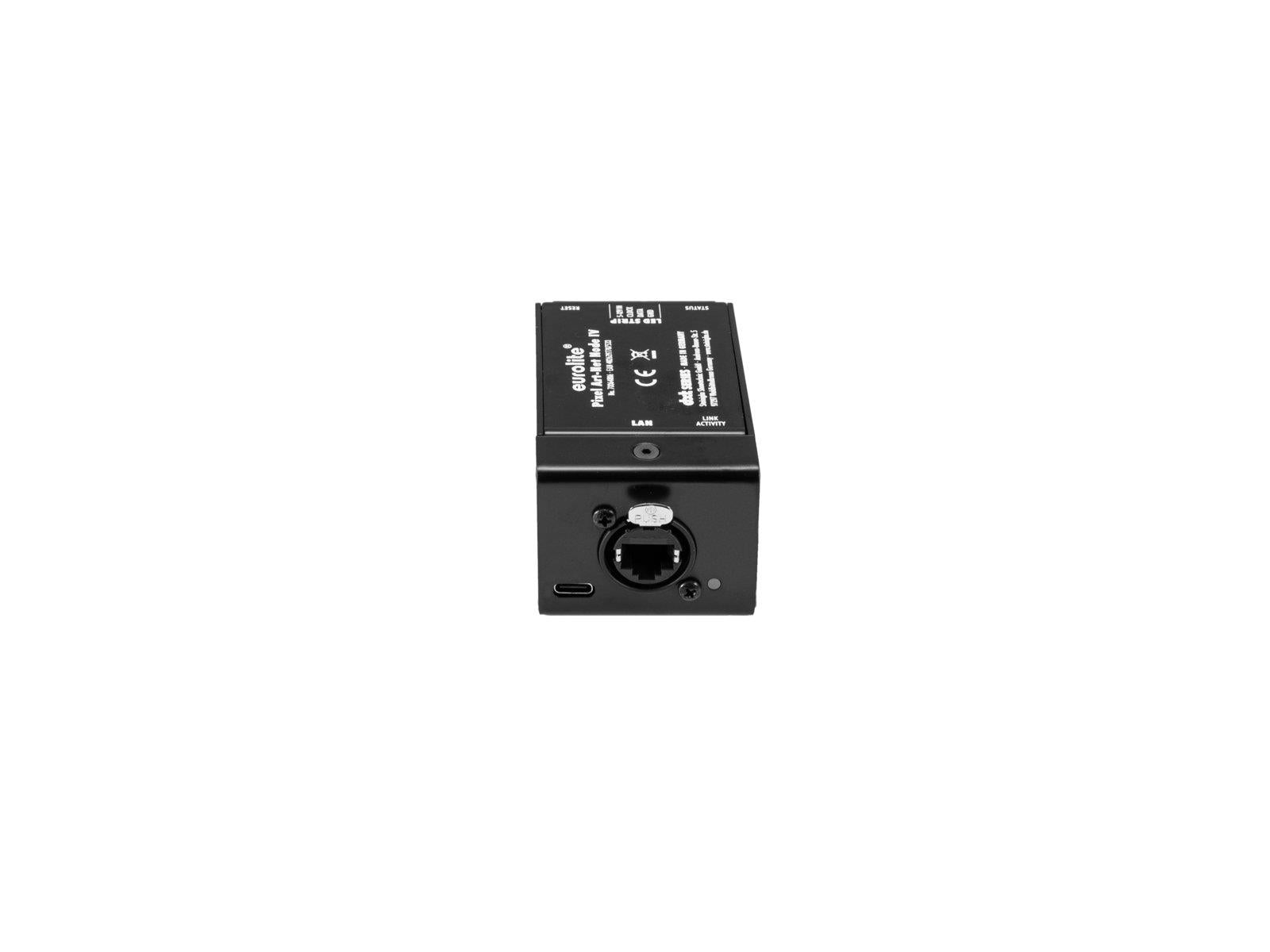

Connections: Input: 1 x RJ-45 etherCON (F) mounting version

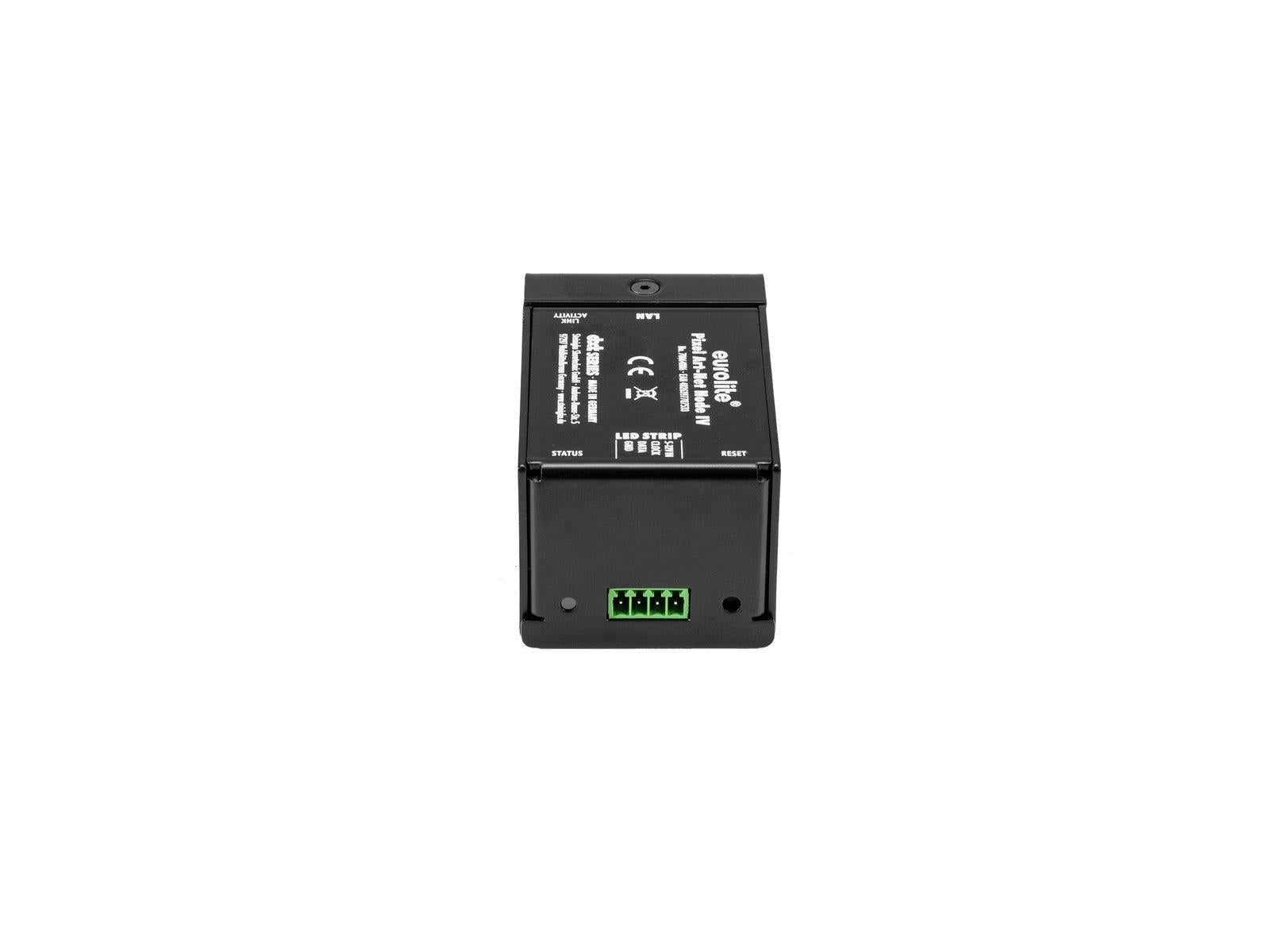

Output: screw plug-in terminal
Use of brands: Built with NEUTRIK connector
PC connect: F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) via RJ-45 etherCON (F) mounting version
Housing design: Desktop console housing
Dimensions:
Length: 7,8 cm
Width: 5,0 cm
Height: 4,2 cm
Weight: 250 g
