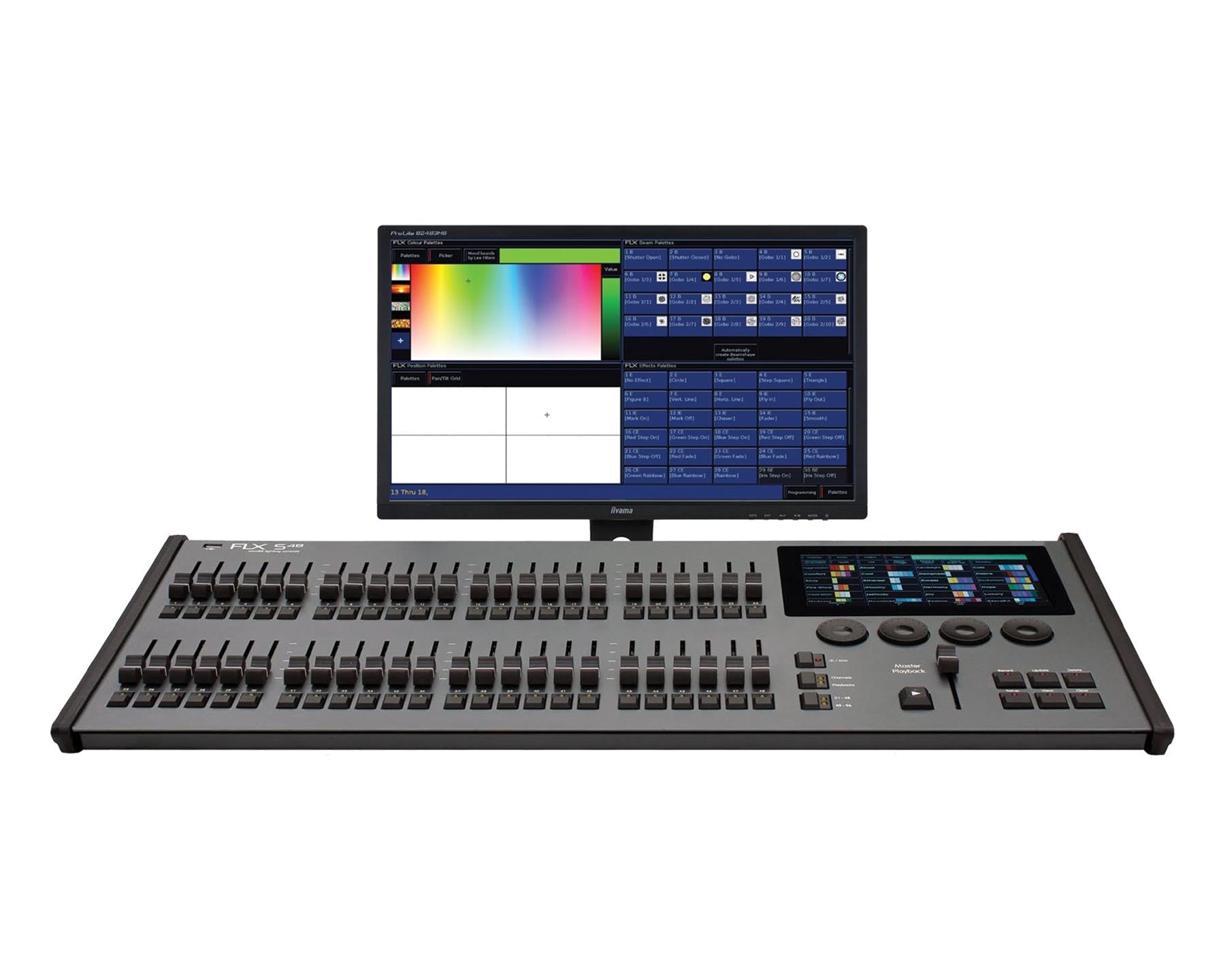

Zero 88 FLX S48 1U One Universe DMX Lighting Console

Description

The FLX S 48 is easy to learn and simple to use - delivering all the features you need at an affordable price. FLX S48 has double the power of the FLX S24 with intuitive and hands-on control of up to 96 fixtures, and a touch monitor output to provide quick access to palettes and an overview of the show.

Quickly and accurately control colour changing lights using the multi-touch colour & image picker, the encoder wheels or by selecting colours contained within a“mood” using Mood Boards by Lee Filters, and quickly record it straight onto any fader or one of the 96 instant-access colour palettes to recall later. Moving lights can be controlled using the multi-touch pan/tilt grid, the encoder wheels or with automatic effects like “Figure 8”, “Rainbow” and “Fly-In”.

From design to manufacture, the FLX S48 has been developed to work in a wide range of applications, with specific considerations for education, houses of worship, fringe theatre, community venues, corporate events, concerts, rental, fashion, festivals, holiday parks, cruise ships, TV and many more...

Built in tools such as Patch Wizard and Auto Palettes do all the prep work, getting you ready to operate quicker than ever before. Programming time is reduced with a simple three-step programming method for moving lights, colour changing and conventionals - what you want, how you want it, where you want it. And for all those really important features you need over and over again – you always have direct instant access via the dedicated Z button.

Control up to 96 LED, moving lights and conventionals
48 multi-function faders
97 playbacks (each with submaster & full cuestack functionality)
96 groups, 4 x 96 palettes (Colour, Beamshape, Position, Effect)
DVI-D output for optional external touch screen (1024 x 768)
Multi-touch interfaces for Colour and Moving Lights
Dedicated GO button & playback fader for theatrical control
Hands-on intuitive control via 4 encoder wheels
Free mobile apps for wireless control of your ZerOS console on iOS and Android devices
Multi-lingual step-by-step touch screen guidance
Art-Net 4 and sACN for network output & wireless connection to smart phone / remote monitors
7” multi-touch screen
Automatic Groups, Palettes, Effects and Macros
Colour picking, mixing & image capture
Mood Boards by LEE Filters
Additive, subtractive and HSV control
Store single or mulitple cues on each of the playbacks
Built-in fixture library
RDM compatability
Showfile compatability with other ZerOS consoles
Quiet, dust free, fanless operation
One DMX universe
Two XLR Outputs (1 x 5 pin + 1 x 3 pin)
3 year warranty

Hardware - Front Panel
48 Multifunctional Faders (channels or playbacks, with select or go buttons)
Internal 7” multi-touch screen
Master Playback with Go Button playback and master intensity
4 embedded encoder wheels with select buttons
Dedicated buttons for key functions

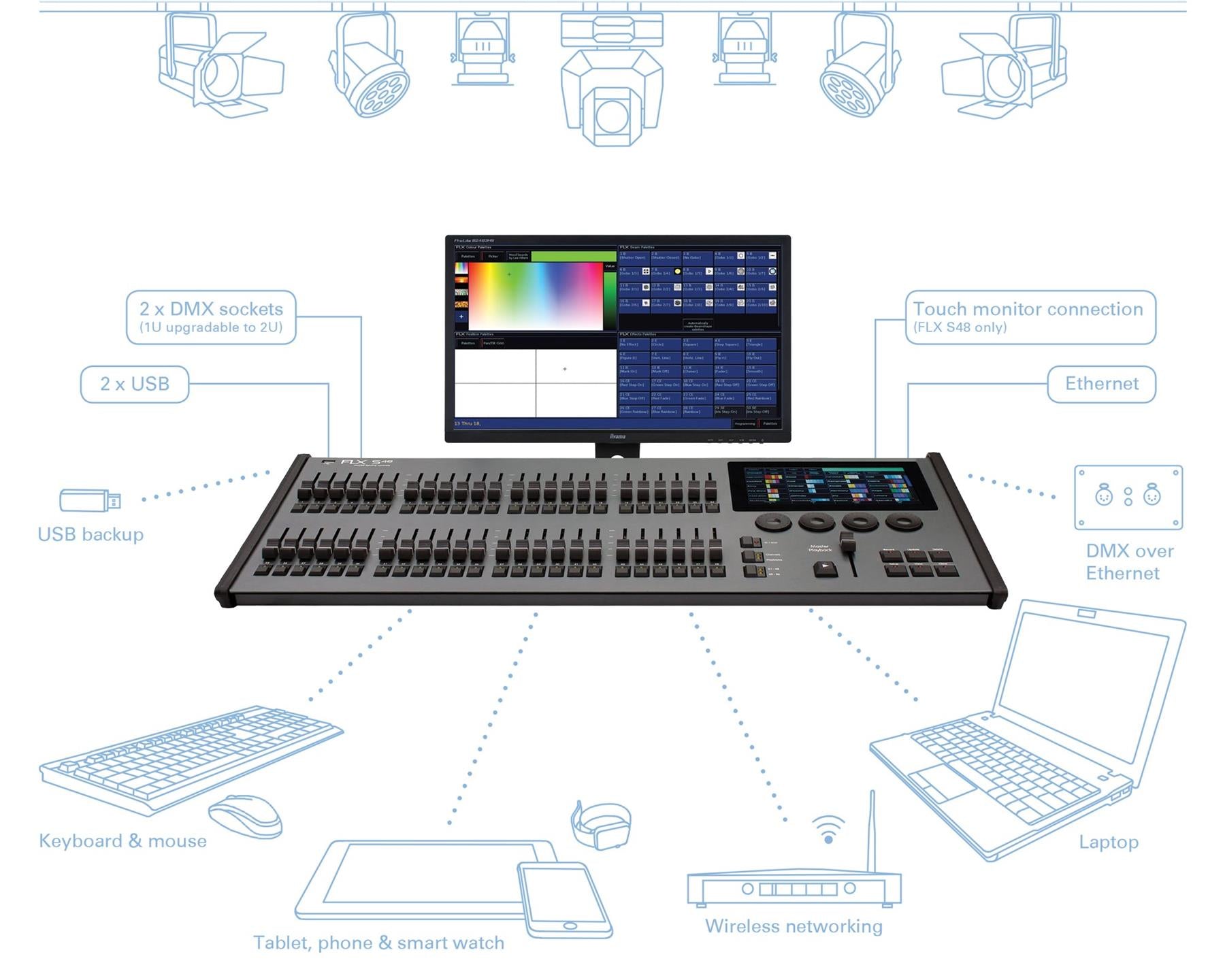

Hardware - Inputs/Outputs
1 5-pin XLR connector for DMX and RDM
1 3-pin XLR connector for DMX and RDM
Ethernet (Visualisation and Remote Apps)
1 Universe over Ethernet using Art-Net 4 or sACN
2 multipurpose USB ports (saving shows, connection of accessories & Wings, software updates)
1 DVI-D monitor output (optional touch screen control)
External power supply
Software - capacity
96 Fixture Controls (using single or multiple DMX channels)
97 Playbacks (equivalent of Cue Stacks, Submasters or Chases)
10,000 cues
4 x 96 Palettes (Colour, Beamshape, Position, Effect)
96 groups
Software - features
Integrated colour picker and “Mood Boards by LEE Filters”
Multi touch Pan/Tilt grid
Auto palettes, groups and fixture macros
Gobo previews and library
Move on Dark
Tracking and Non-Tracking modes available
Support for wireless remote control through handheld devices and remote monitors
Electrical
Supply voltage range: 100 - 240V AC; MAX 2A
Frequency: 50 - 60Hz
Operating temperature: +5 to +40°C
Physical & Dimensions
Height: 68mm
Width: 669mm
Depth: 284mm
Weight: 5.5kg
