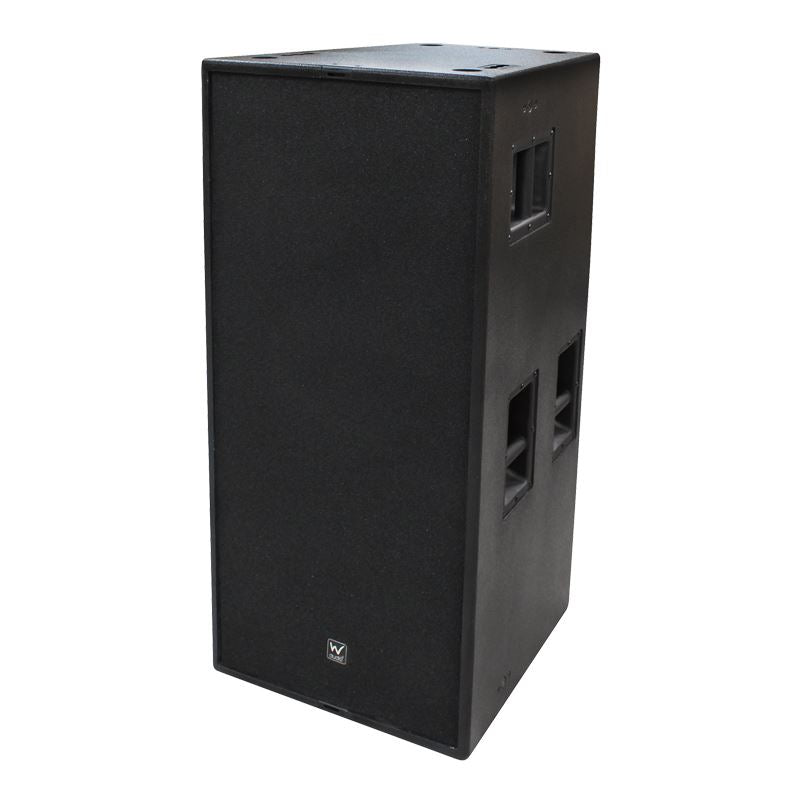

Zenith MH212 FOH Speaker 2 x 12" 3800W Sound System PA Passive

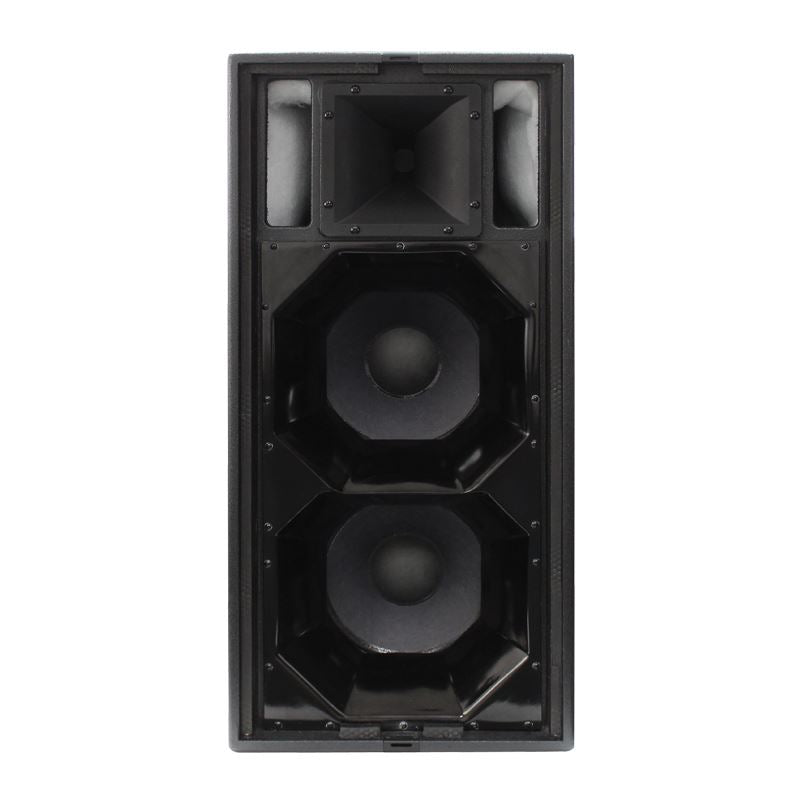

High SPL mid/high enclosure suited to FOH and side fill applications featuring two 12” die-cast aluminium chassis, mounted in a braced composite flare, together with a 1.4” titanium compression HF driver arranged in a three way, semi horn loaded configuration. The enclosure is constructed from robust birch ply coated with a hard-wearing and durable polyurethane paint finish. It is also fitted with rigging points, steel bar handles, wheel board mounting hardware, rubber feet and a recessed speakON connector plate making it ideal for rental or installation.

Specifications
Continuous power: 800W RMS
Peak power: 3200W
Maximum calculated SPL: 138dB
Sensitivity (1W/1m): 103dB
Frequency range (-10dB): 50Hz - 18kHz
Frequency range (-3dB): 60Hz - 16kHz
Crossover frequency: 600Hz and 1.6kHz
Horizontal coverage: 80°
Vertical coverage: 50°
LF transducers: 2 x 12" (75mm voice coil)
HF transducer: 1.4" (75mm voice coil)
Nominal impedance: 4Ω

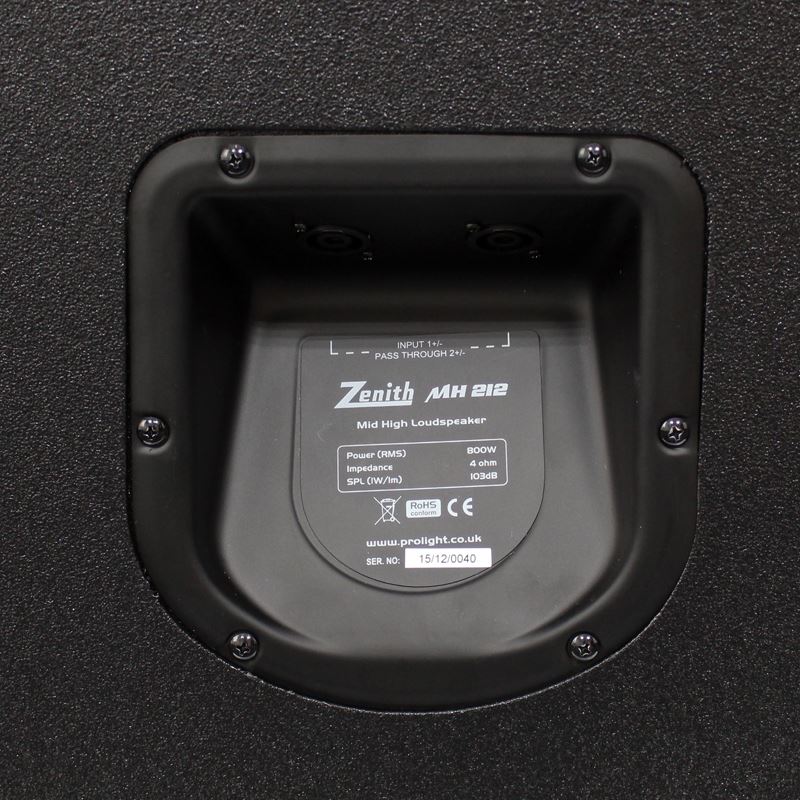

Connections: 2 x speakON connectors
Mounting options: 6 x M10 rigging points, 6 x Penn Elcom flying track rigging points

Dimensions
1021 x 490 x 535mm

Weight
57 Kg
