Yamaha TF3 Digital Mixing Console 24 Analogue Input 48ch Mixer *Box Damage*

Description

Please note this does have some box damage, the mixer inside is unused and brand new but packaging does have some marks.

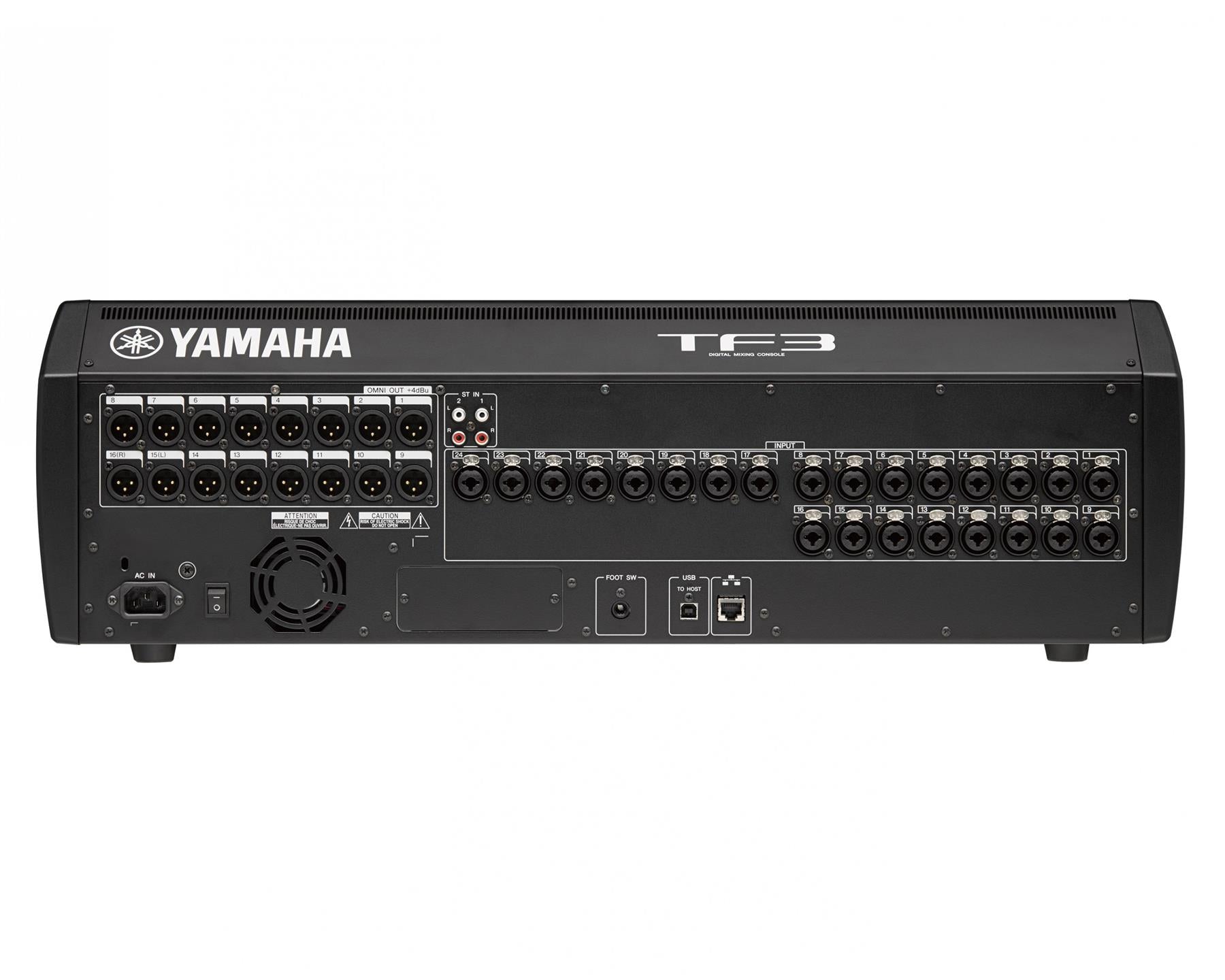

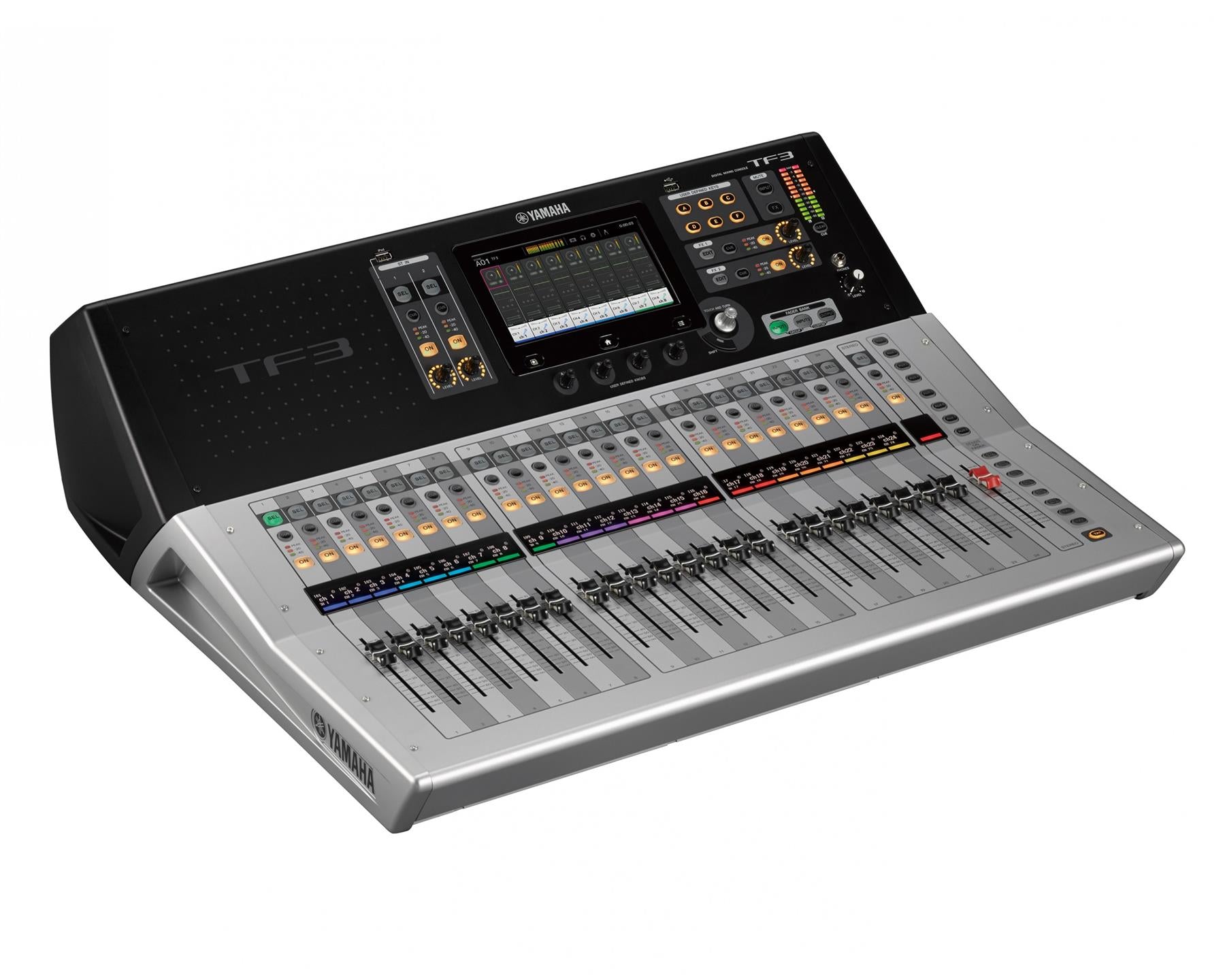

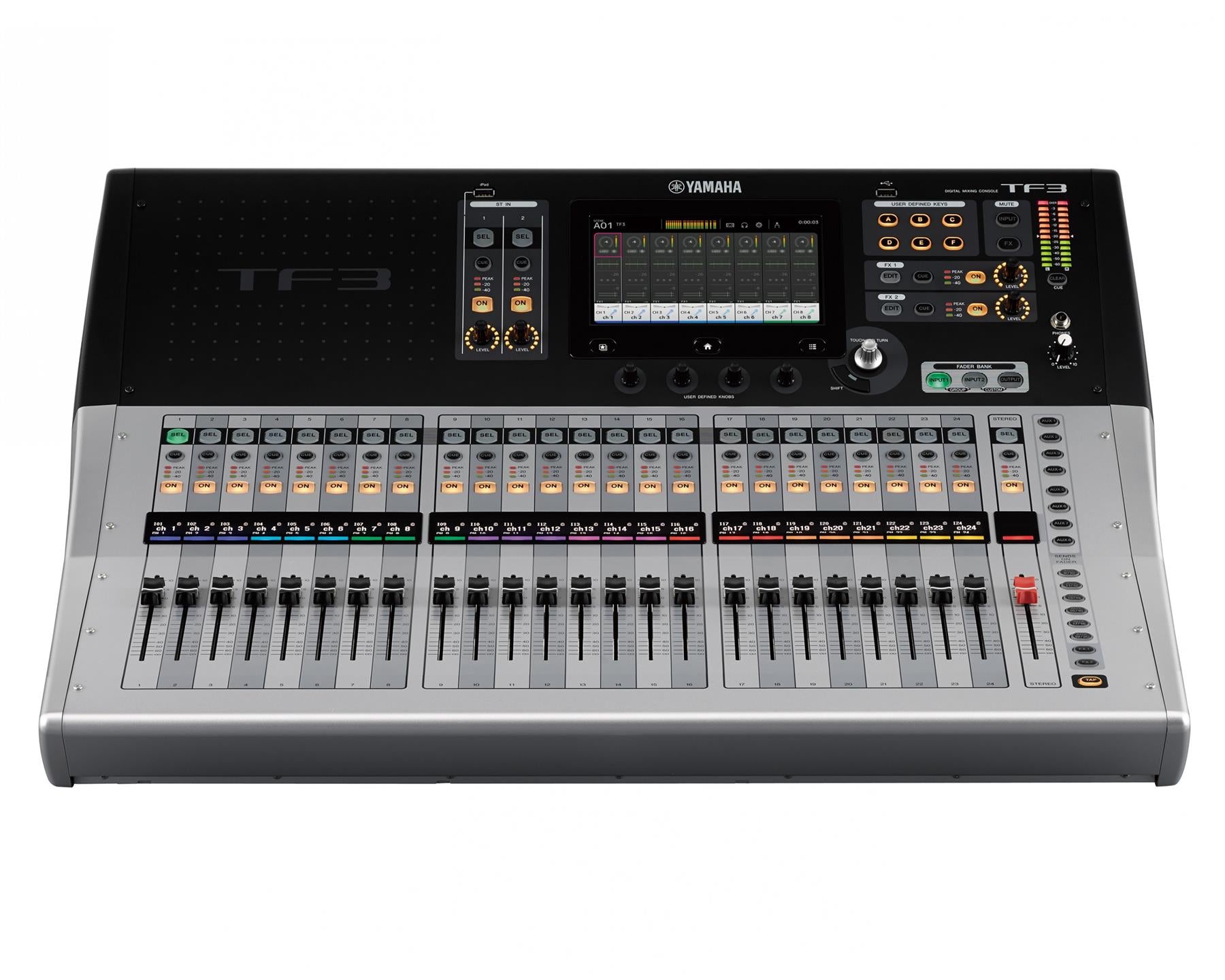

TF3 40 Mono+2 Stereo+2 Return 25 Fader Digital Console
The TF3 offers ample input capacity and hands-on control in a compact console that can handle a wide range of applications.

TF series consoles take live sound reinforcement to a new level of refinement with TouchFlow Operation™, recallable D-PRE™ preamplifiers, advanced processing, and much more.

Yamaha has created a new digital mixing console that gives the user's intuition even freer rein. TouchFlow Operation™ introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.

Product Features
TouchFlow Operation™ – Smooth, Natural Control Flow
Intuitive User Interface Optimized for Touch Panel Operation
Touch Operation for Intimate Control
Touch & Turn Knob Offers Extra Control Precision
Traditional Overview and Selected Channel Interfaces
New Features for Smooth Setup and Operation
Design for Superior Visibility and Quick Operation
Panel Layout Maximizes Workflow Efficiency
Advanced Design Promotes Smooth, Comfortable Operation
Applications that Work Seamlessly with the Console
A Versatile Live Recording and Playback Solution for Any Application

General
Sampling frequency rate Internal: 48 kHz
Signal delay: Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader: 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion: Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response: +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range: 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level
Equivalent input noise: –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise: –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk: –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements: 100–240 V 50/60 Hz
Power consumption: 120 W
Physical & Dimensions
Height: 225mm
Width: 716mm
Depth: 599mm
Weight: 17kg
