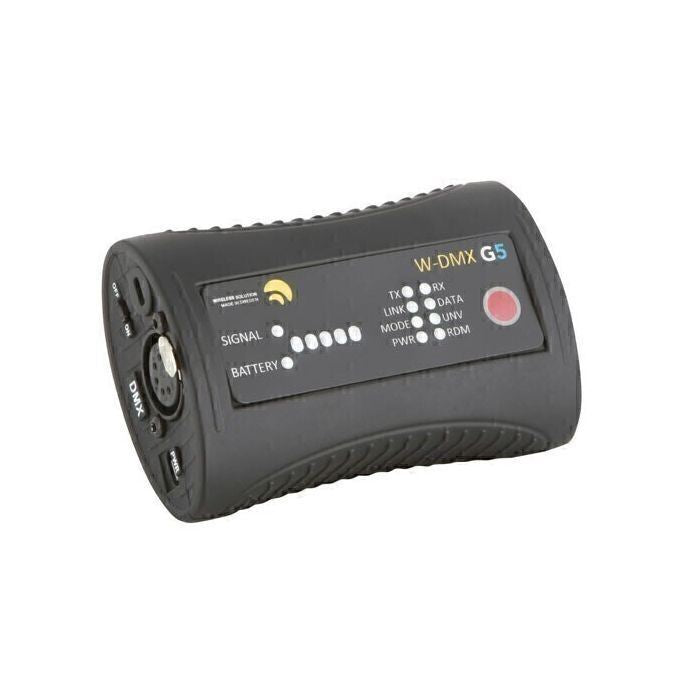

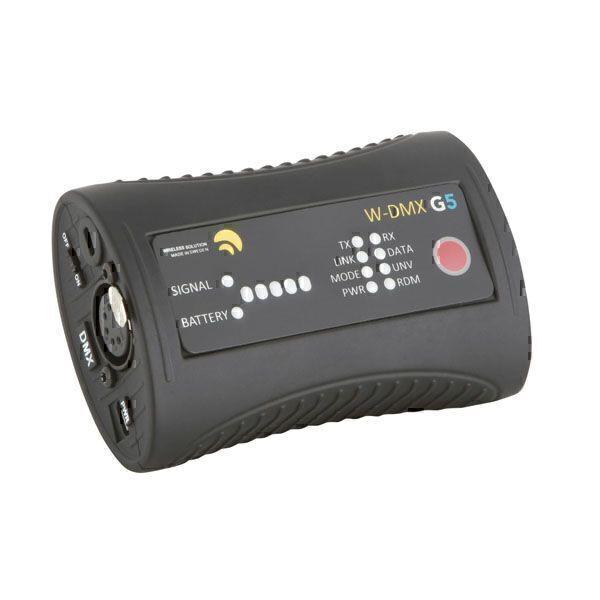

Wireless Solutions W-DMX™ Microbox R-512 G5 Receiver

Description
The W-DMX MicroBox Receiver is the smallest, most portable and flexible W-DMX unit. Using our Adaptive Frequency, Datasafe and Invisi-wire technologies, and leveraging off our G5 radio protocol, the MicroBox R-512 is reliable and easy to use.

Features
High-Speed Frequency Hopping
Mount in any location on set, scenery or truss
Battery compartment for 8 hours reception
Less Than 5ms Latency
2.4GHz radio – license-free worldwide

Specifications
Reaction Time 5 ms
Gain (mW) 100 mW
Gain (dB) 20 dB
Carrier Frequency 2,4
Battery Type AAA
DMX Channels 512
Operational Modes Receiver

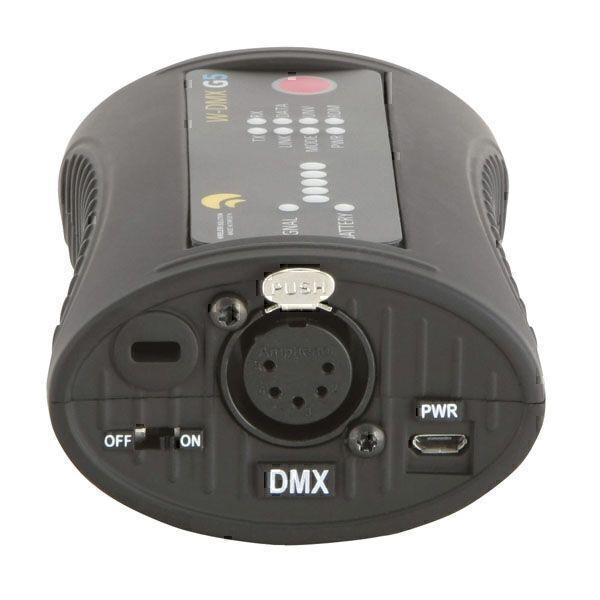

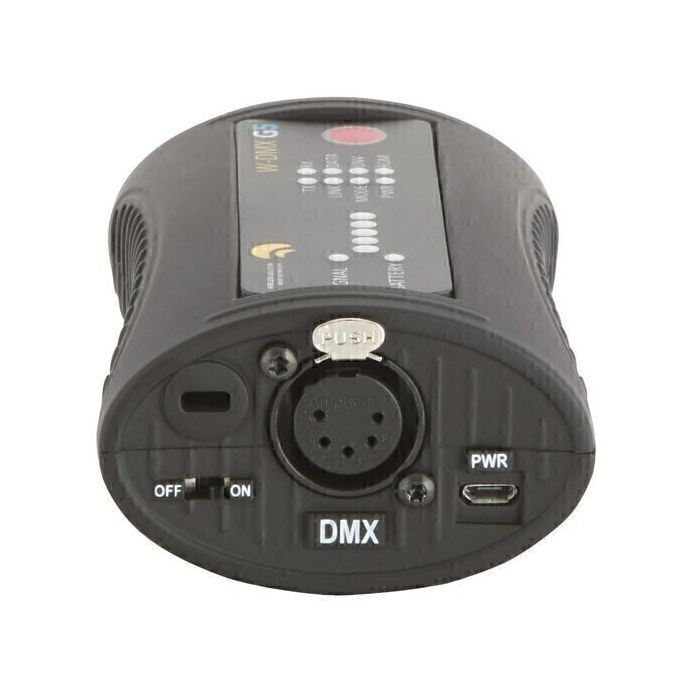

DMX Connector out XLR 5P
Power Connector in Micro USB
Power Consumption 2.5 W
Power Supply 100-240 VAC 50-60Hz
Colour Black
Housing Plastic
IP Rating IP20(indoor use only)
Weight 0,35 kg
Width (mm) 200 mm
Height (mm) 65 mm
Length (mm) 265 mm

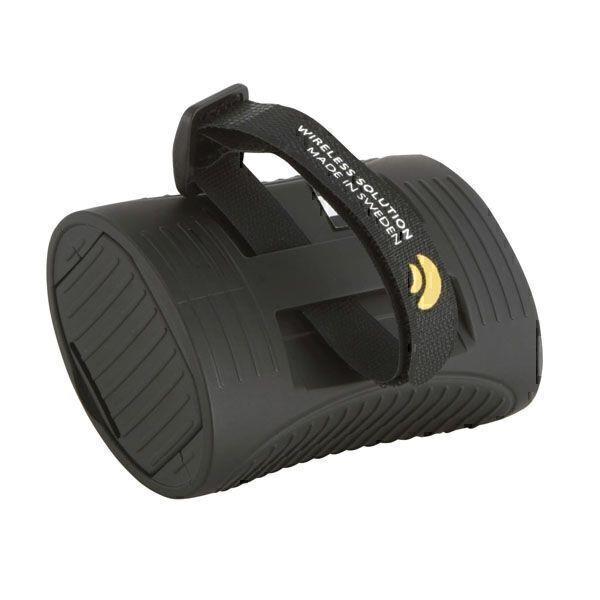

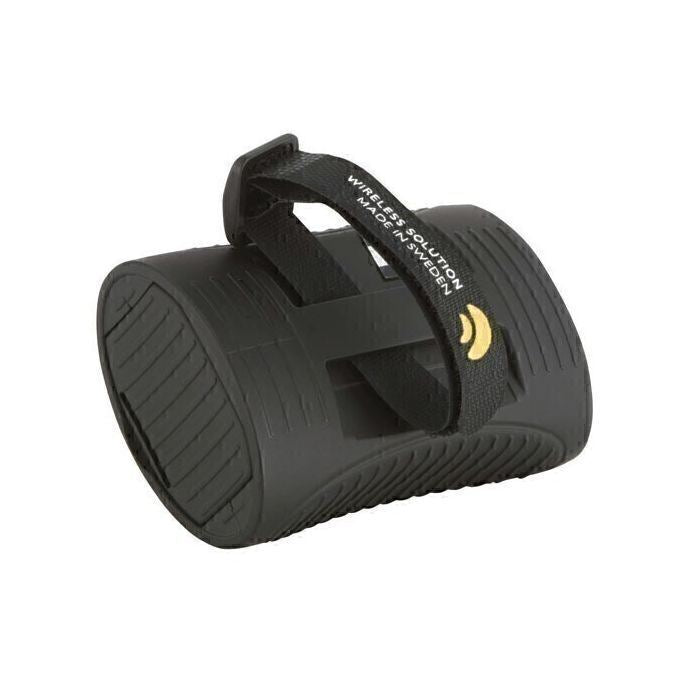

Mounting Options Velcro
Maximum Ambient Temperature 40 °C
Minimum Ambient Temperature 0 °C
Minimum Operating Temperature 0 °C
Reference Standard CE
Included Accessories Adapter
