Wharfedale Pro VERSADRIVE SC 24 Speaker Management System

Description:

TAKE CONTROL
The Versadrive speaker management system offers all the digital signal processing and detailed control that a live sound engineer needs.

Whether we like it or not, it’s a reality that PA systems are complex.  A lot of time is spent selecting the best loudspeaker and amplifier combinations, and systems can easily grow.  Its therefore essential to maintain control to ensure the best quality sound throughout the rig.

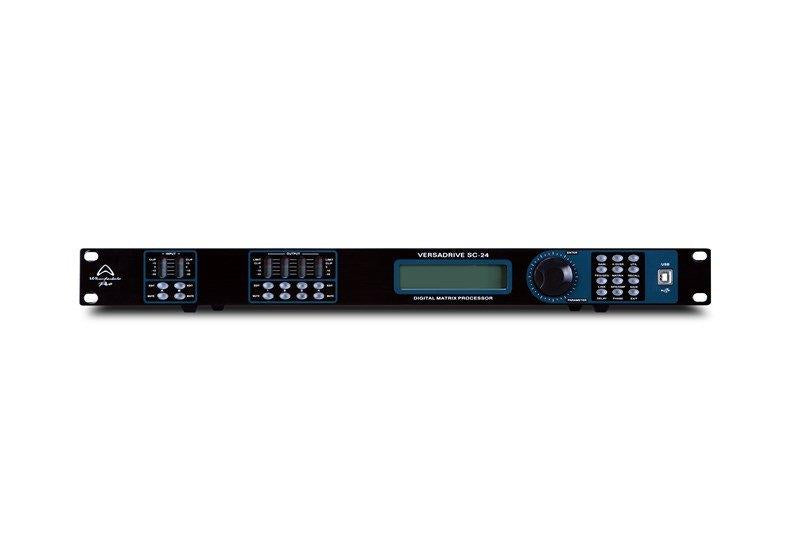

Packaged into a neat 1U rack design, an intuitive and concise front panel with LCD screen enables engineers to make essential adjustments to the speaker configuration with accuracy.

SOFTWARE CONTROL
All parameters of the Versadrive can be controlled via PC.

Not only is this extremely convenient, but a clear central graphical representation of your EQ and crossover points are displayed. This also makes light work of copying channel settings and organising your presets.

Using the PC software also allows for system backups to be made.

EFFECTS TO CONTROL YOUR RIG
A huge selection of effects are at your fingertips.

The input side includes Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase and Delay.

For the output section, make your setup using any combination of Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay and Linking.
EXPAND YOUR RIG
While one Versadrive is powerful in its own right, the RS485 connection opens up capabilities to link up to 255 units, with remote control from up-to 1500 metres.

Complete stadiums, superclubs or any multi-room install is now easily managed by one person on their laptop. The USB connection and supplied software work as another visual aid with access to update your own presets for different events.

DSP QUALITY
All Versadrive models features the highest quality 24-bit 96 KHz AD/DA convertors and the internal DSP is handled by a 40-bit processor.

From input and output phase adjustment, delay timing, compression, limiting, parametric EQ, and multiple choices of HP and LP filtering, it’s easy to tweak the parameters until the system is perfectly balanced.

Specifications:


Model Names SC-24 / SC-36 / SC-48

Input Effects Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8PEQ, 31 band graphic EQ, Phase, Delay
Output Effects Crossover, 5PEQ, Gain, Mute, Compressor / Limiter, Phase, Delay, Link

Software
Included via CD or download. Full matrix input output control. Intuitive UI.

User Presets 20

Total units linkable 255 via RS485 and optional wireless router

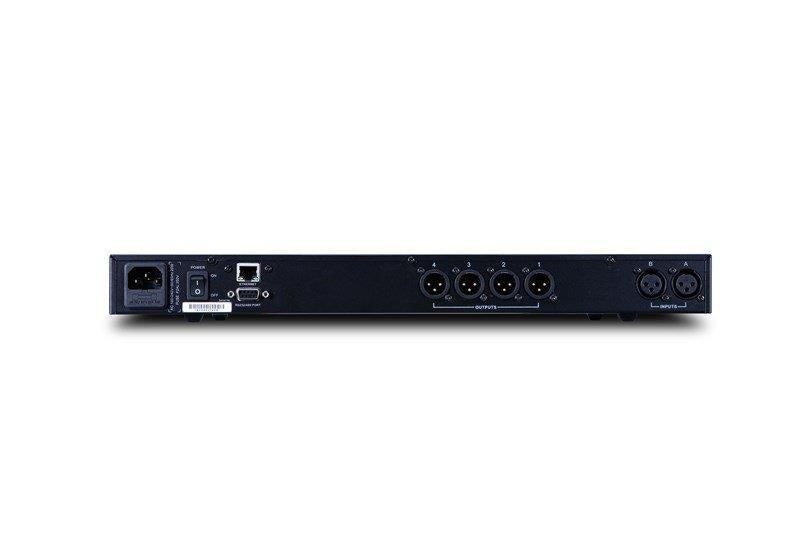

Audio Inputs

SC-24 2 x Balanced XLR
SC-36 3 x Balanced XLR
SC-48 4 x Balanced XLR Audio Outputs

SC-24 4 x Balanced XLR
SC-36 6 x Balanced XLR
SC-48 8 x Balanced XLR

USB 1 (PC Control)
Ethernet 1
RS232 Port 1
Frequency Response 20 Hz – 20 KHz
S/N Ratio >115 dB
Distortion (THD) <0.005 at 1 KHz (0 dBu)
Max output level +20 dBu
Impedance <500 Ω
D/A Convertors 24-bit Sigma Delta
Sampling Rate 96 KHz
Display 20 x 2 LCD Parameter / Function Display,
5-Segment Led Level Display
Dimensions 480 x 50 x 45 mm
Weight 2.62 kg
