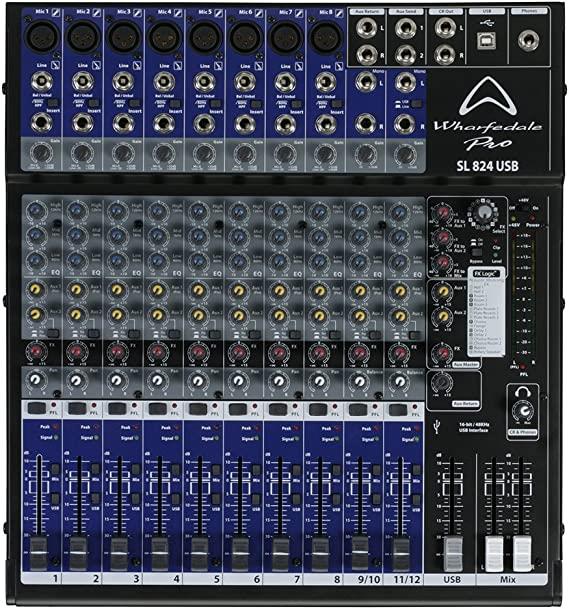

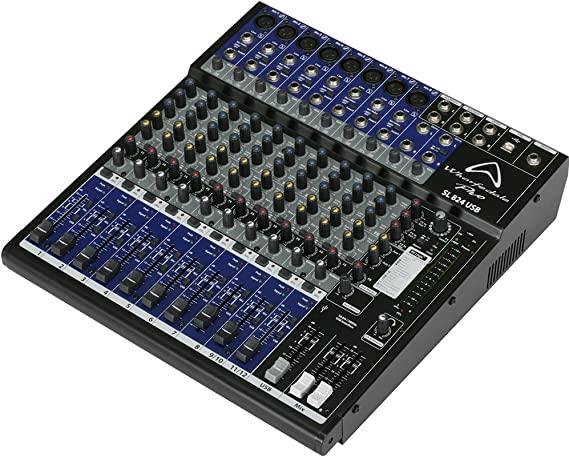

Wharfedale Pro SL 824USB Studio/Live Mixer

Description:

USB Plug and Play
When you get the SL824USB, you might think you need to download drivers for it. Nope. Thanks to its 'Class Compliant' build, you can simply plug it in and start playing.

This means amazing audio is only a few steps away form being recorded to your DAW of choice. And it truly does sound outstanding. 16-bit, 48kHz digital audio transfer ensures this, allowing you to send two channels into your computer and two channels out.

Shape your sound - your way
The SL824USB features a range of ways to get your vocals, guitar or any other instrument sounding just right. Its ultra musical EQ features three bands - high(12kHz), mid(1kHz) and low(80Hz) - simple enough for mixing on the fly, in-depth enough for subtle shaping.

 Add to that 16 digital effects, and you have enough tools to make the sound yours. Some of these 16 include a range of reverbs to add presence, chorus for thickening audio and rotary speaker for a retro effect.

Features:

High quality 16-bit / 48kHz USB recording and a dedicated USB recording bus
Twelve studio grade microphone inputs with phantom powered pre-amps
Shape your sound with ultra musical 3 band EQ and a high pass filter
Switchable line and USB return channel
Add something extra with a dedicated, digital FX bank
Two auxillary sends and a dedicated stereo return
Controls for panning, balancing, room levels and headphone levels
Uses both XLR and TRS connectors for the master outputs

Specifications:

Frequency Response: 20Hz 20kHz ±2dB
THD+N:
Maximum Input Level: Mic +4dBu ±1dBu; Channel Line +21dBu ±1dBu; Stereo Line +21dBu ±1dBu; AUX Return In +21dBu ±1dBu
AC Power Options: AC100V-240V 50/60Hz
Mono Input Channel Gain: 50dB Variable MIC (0 -50dB) Line (-20dB +30dB)
Level Meters: 12 Segment LEDx2 (Output of +4dBu = 0dBu) Main L/R
Input Channel EQ: High (±10dB) ±1.5dB 12kHz Shelving; Mid (±10dB) ±1.5dB 1kHz Shelving; Low (±10dB) ±1.5dB 80Hz Shelving
Maximum Balanced Output: Main XLR Balanced Out +26.5dBu ±1dBu
Level (1 T.H.D. at 1KHz): Main 1/4" Jack Balanced Out +26.5dBu ±1dBu
Maximum Unbalanced: Main XLR Unbalanced Out +21dBu ±1dBu
Output Level (1 T.H.D. at 1KHz): Main 1/4" Jack Unbalanced Out +21dBu ±1dBu
Hum and Noise 20HZ-20KHZ: -127dBu ±5dBu Mic Pre Equivalent Input Noise
(150R): -85dBu ±5dBu Residual Noise
S/N: 78dB ±5dB @ Fader Max
FFT: -62dBv ±5dBv @ Gain Fader Max
CMRR: 62dB ±5dB @ 1KHz
Impedances:Mic: Balanced 6KOhms, Unbalanced 3KOhms ±200Ohms
Line: Balanced 44KOhms, Unbalanced 22KOhms ±2KOhms
AUX Return: Balanced 20KOhms, Unbalanced 10KOhms ±2KOhms
All Other Unbalanced Outputs: 100Ohms
Balanced Outputs: 50Ohms
Effects:Hall 1/2
Room 1/2/3
Platereverb 1/2/3
Chorus
Flange
Delay 1/2
Chorus + Room 1/2
Bypass
Rotary Speakers
