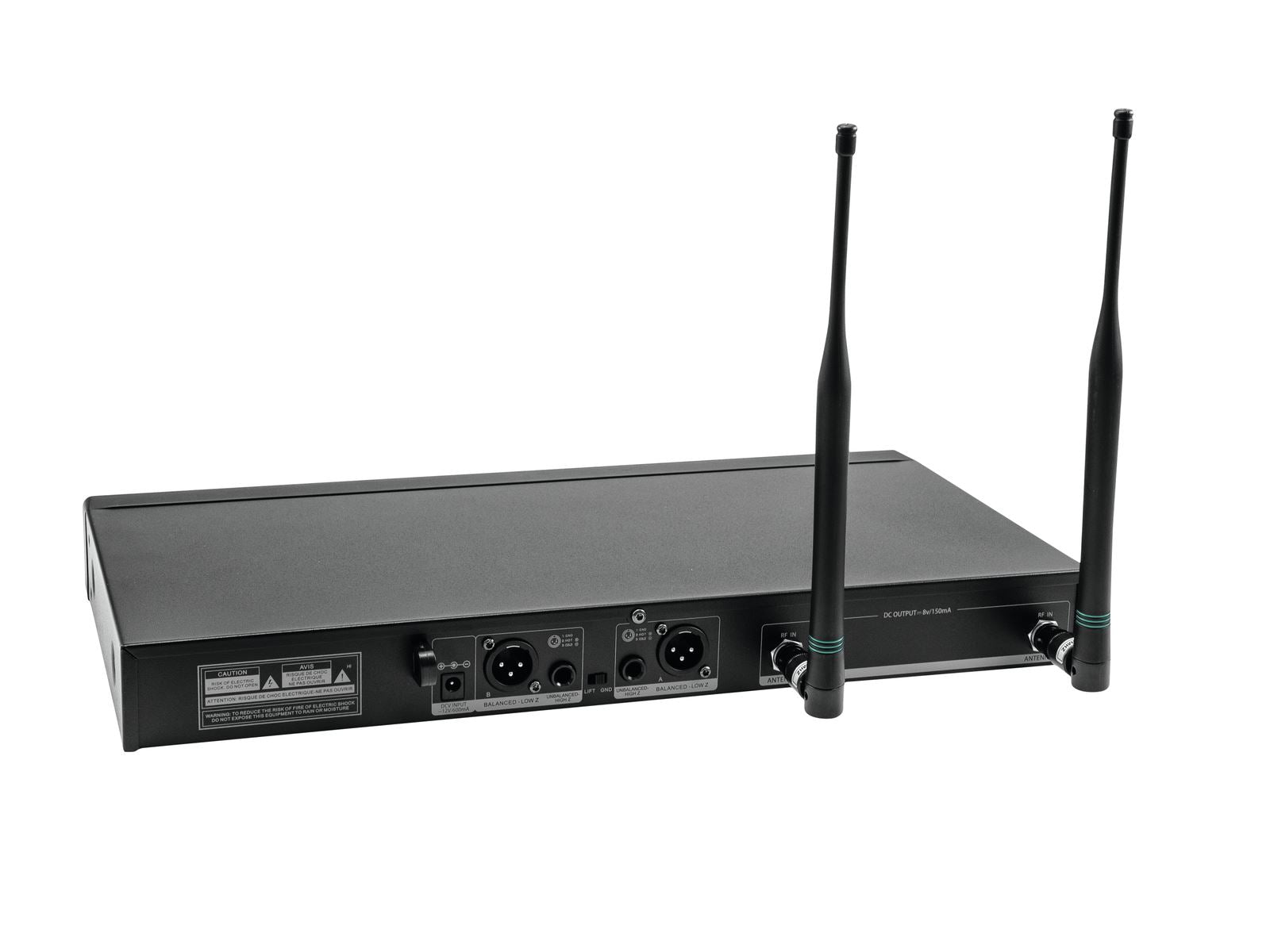

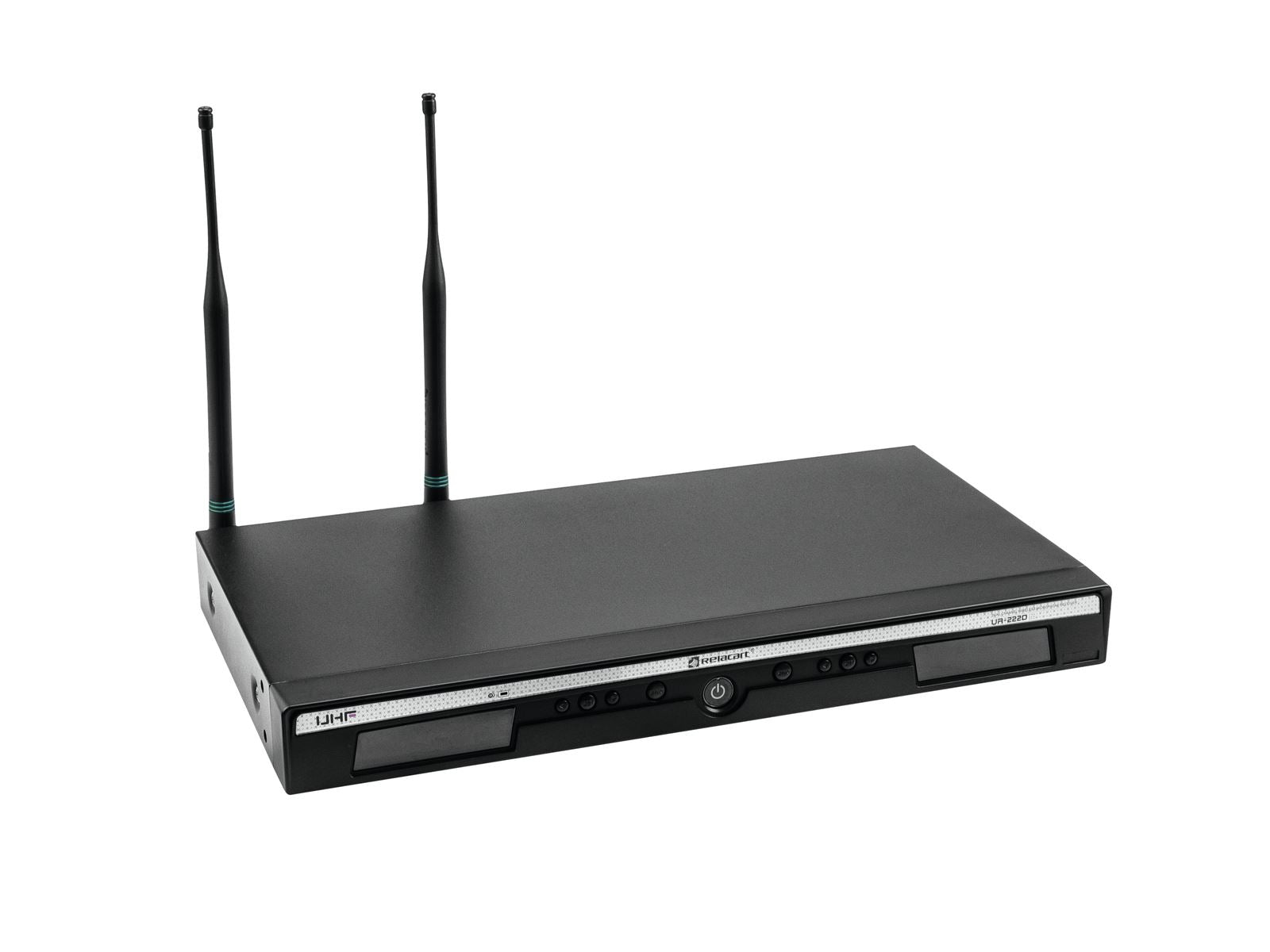

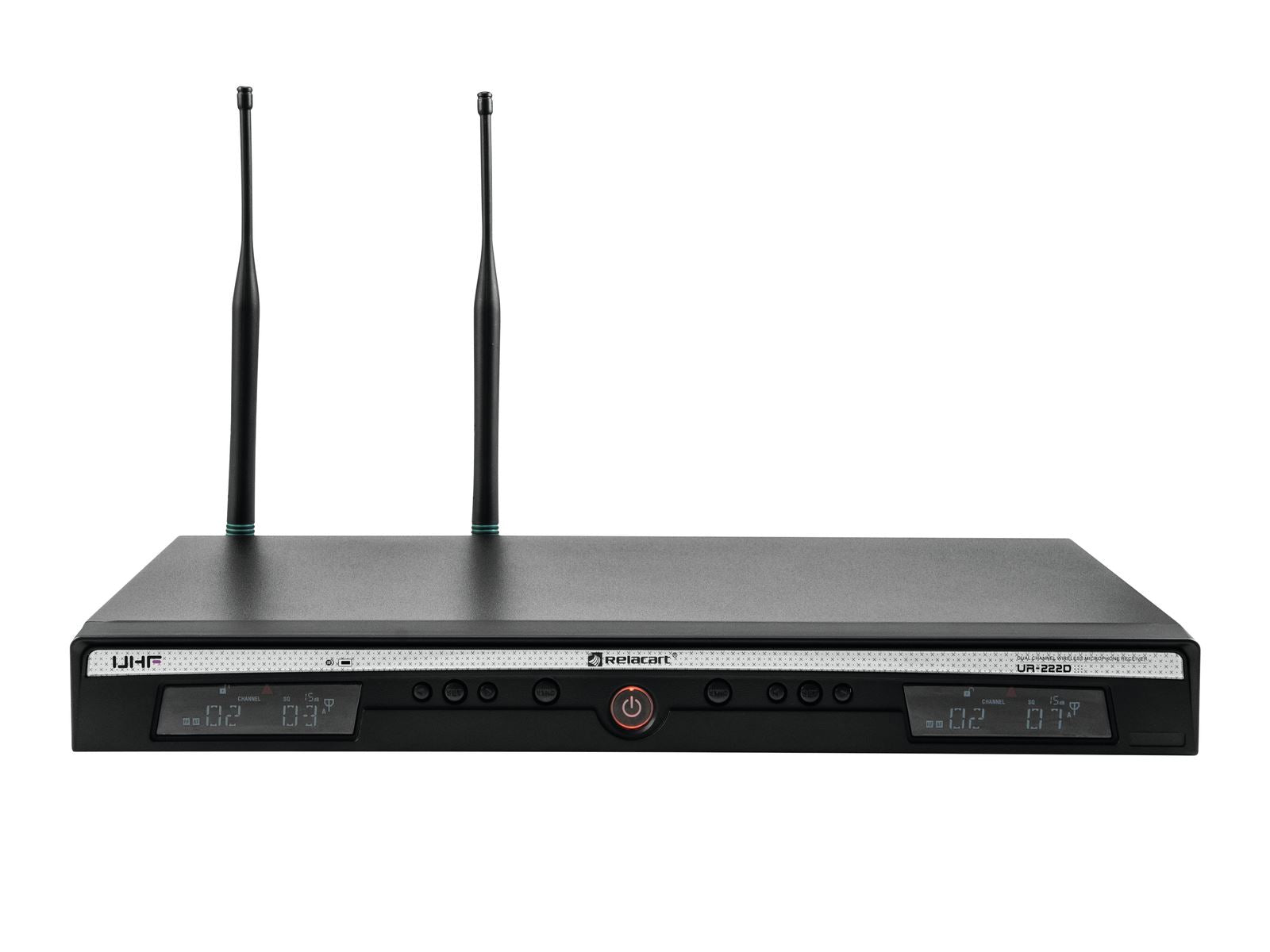

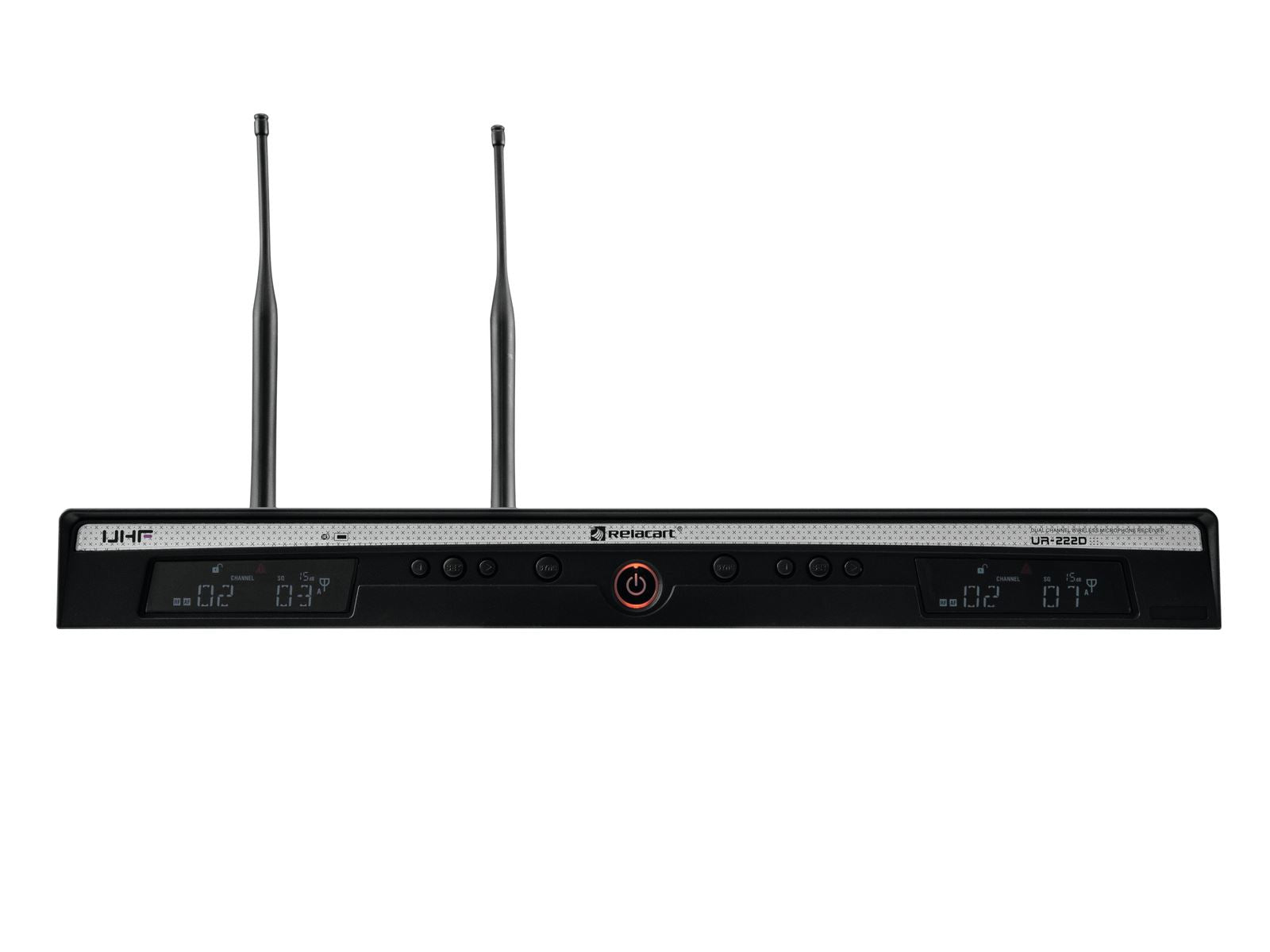

Relacart Ur-222D 2-Channel Uhf Receiver

Description
The UR-222D is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.

2-channel multifrequency wireless receiver with true diversity reception

• 2-channel multifrequency wireless receiver with high-quality true diversity reception
• 2 license-free frequency ranges: 823-832?MHz (Duplex Gap)?and 863-865?MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot tone technology (PLL) for interference-free reception
• Automatic frequency scan (AFS) finds interface-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider

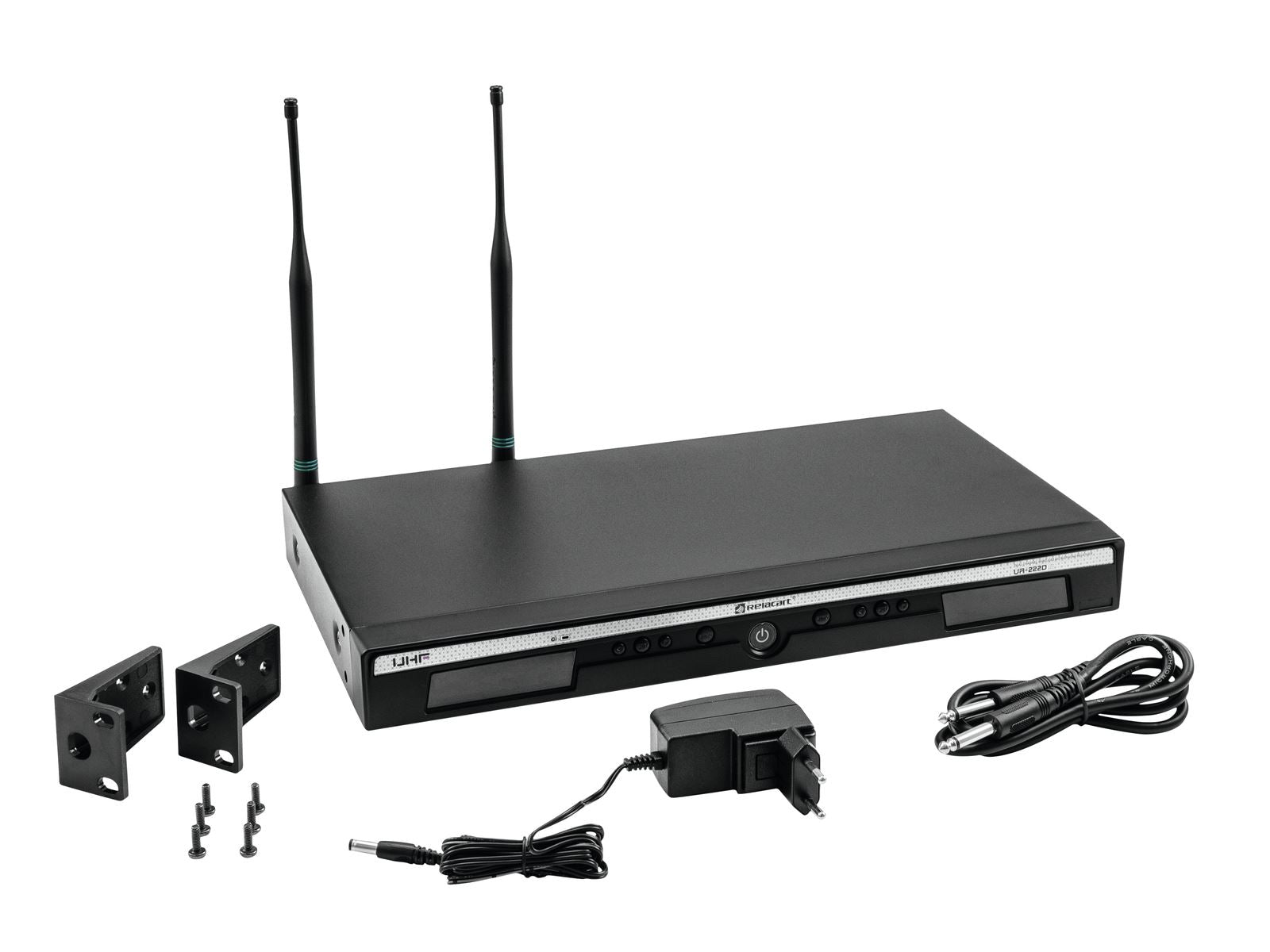

• Delivery includes practical transport bag with jack cable and power unit
• Durable metal housing
• 483 mm rack installation possible with supplied mounting brackets
• Matching transmitters optionally available: hand-held microphone (UH-222D) and pocket transmitter (UT-222)
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Use a operating range up to 80m with line of sight
• Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)
