Sync DBT-44 Premium Quality Analog / DANTE® Network Audio Bridge Touring 4 in / 4 Out

£1,009.00
£1,009.00
Premium quality analog / DANTE® network audio bridge for touring applications with 4 analog inputs + outputs
Vendor: Synq
SKU: 161-B08206
Icon In Stock In Stock
Icon Delivery Time
iFrame
×

Description

Premium quality analog / Dante network audio bridge for touring.
Converts DANTE® Network audio to 4 hi-grade balanced analog outputs.
Converts 4 hi-grade balanced analog inputs to DANTE® Network audio.
All 4 (LINE/MIC) inputs equipped with -24dB PAD & 48V Phantom power.
GIGABIT Ethernet I/O based on Hi-speed Marvell switch (no linking delays).
Built-in DSP AUDIO PROCESSING (parametric EQs, compressors, delays, ...) on all channels: perfect for use as DANTE enabled speaker management processor, but also deployable in many other applications.
8x8 AUDIO MATRIX for local premix, flexible routing, …

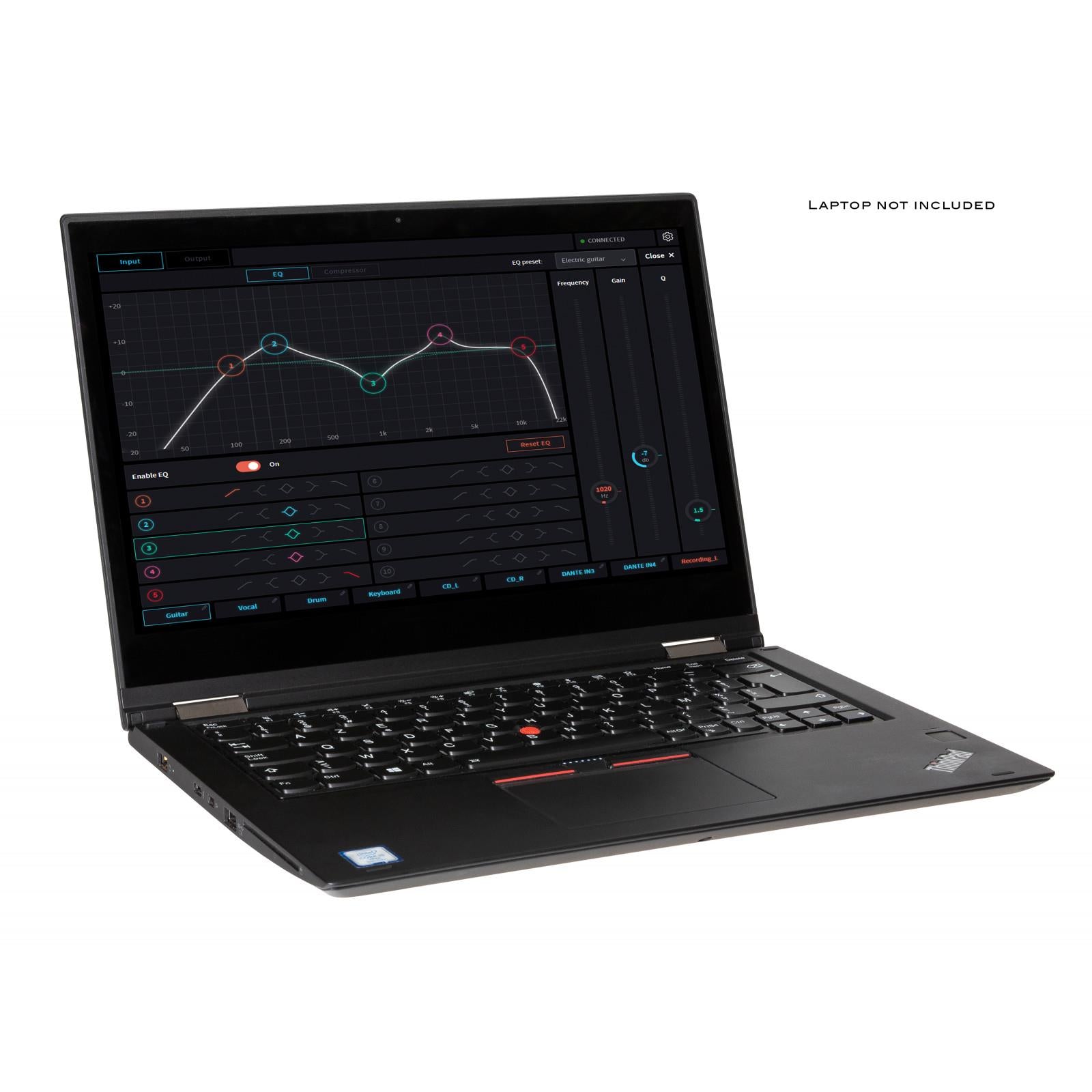

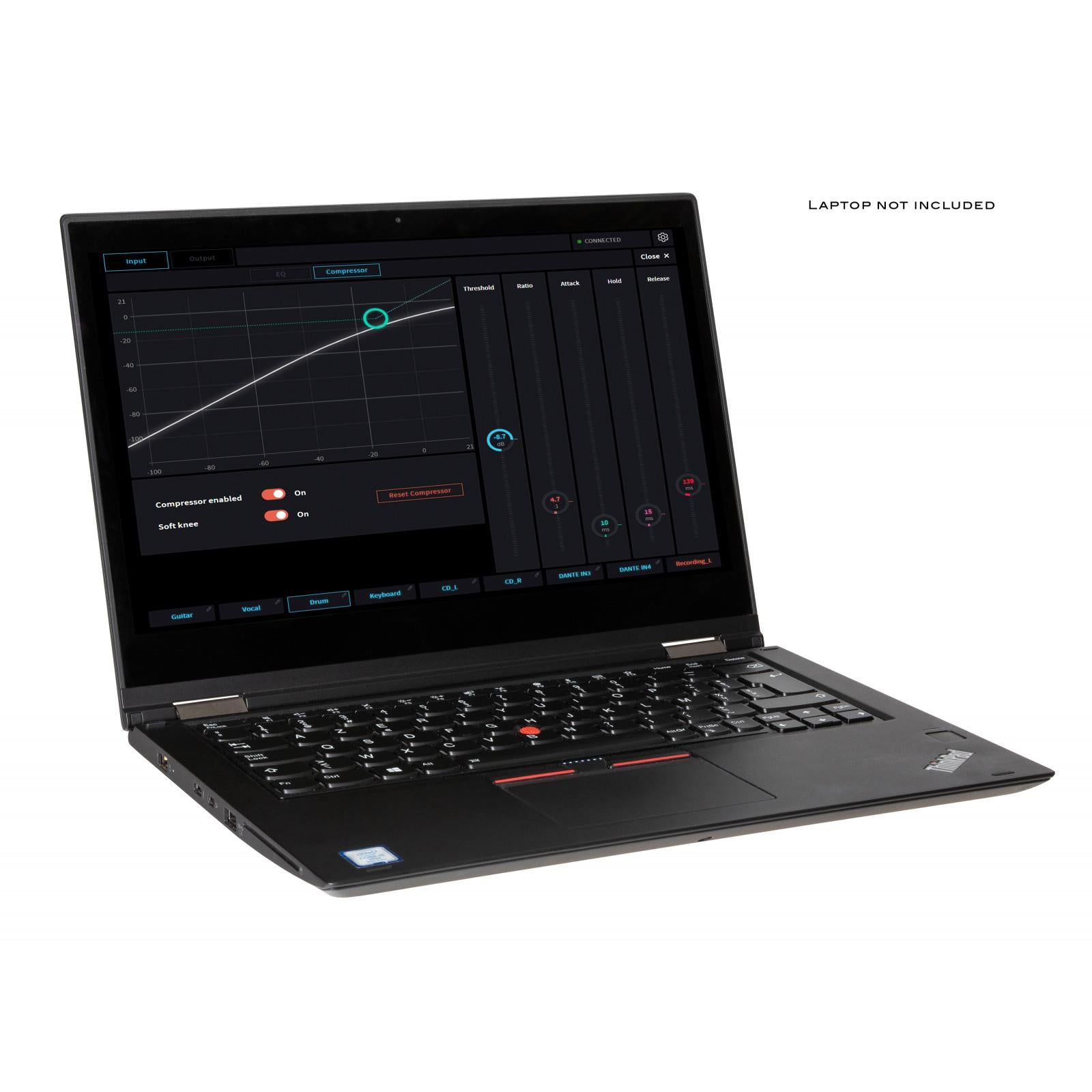

Integrated WEB SERVER: fully graphical and very user-friendly user interface for easy configuration and DSP control on any network device!
The included “SYNQ Network Discovery Tool” software makes it extremely easy to find the device(s) on a local network and open them on any desktop computer, without any knowledge of the IP-address.
Support for the OSC protocol: all functions can be controlled by user-created apps running on iPhones, Android phones, Tablets and desktop computers.
Extremely high audio quality: S/N > 120dB ~ THD: < 0.003%

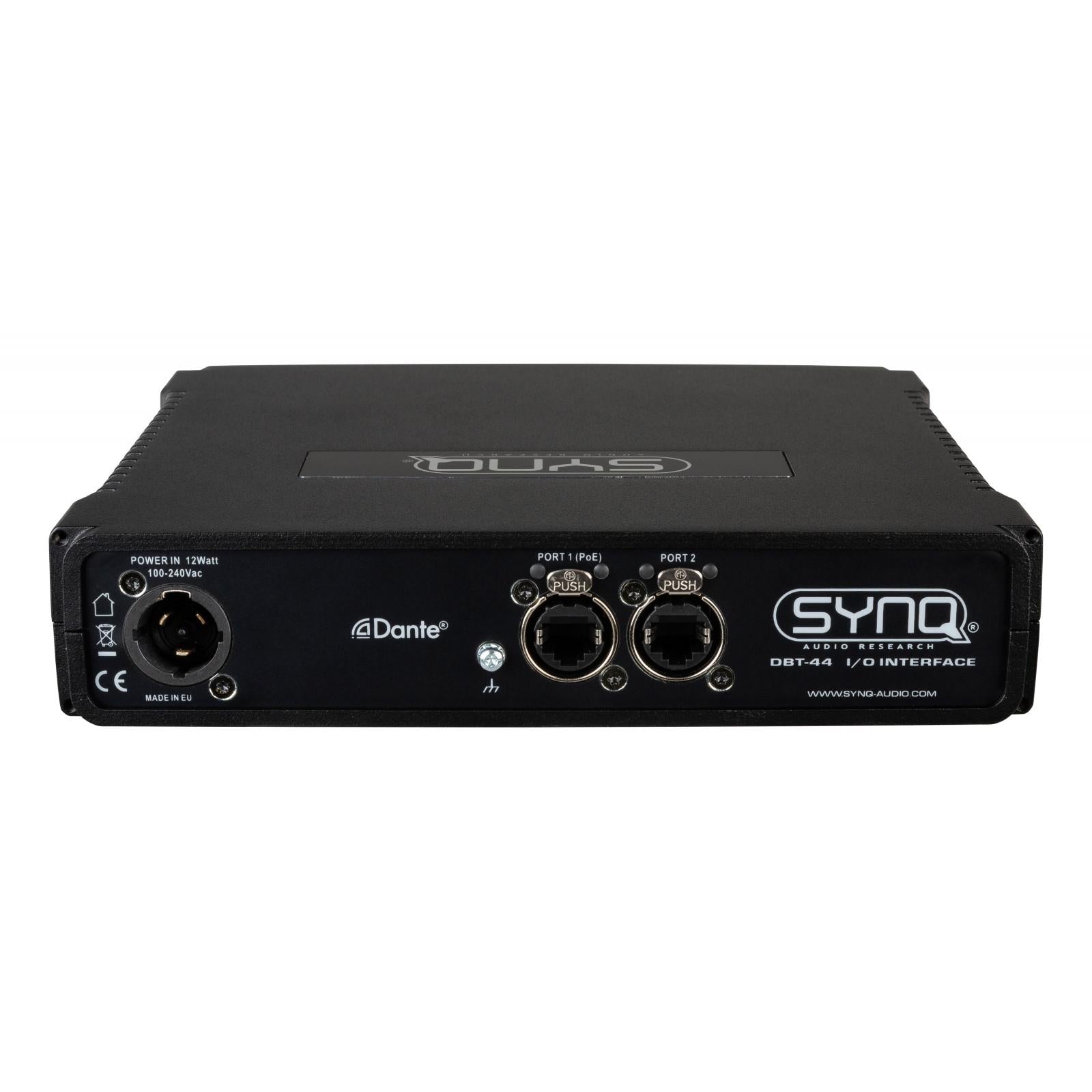

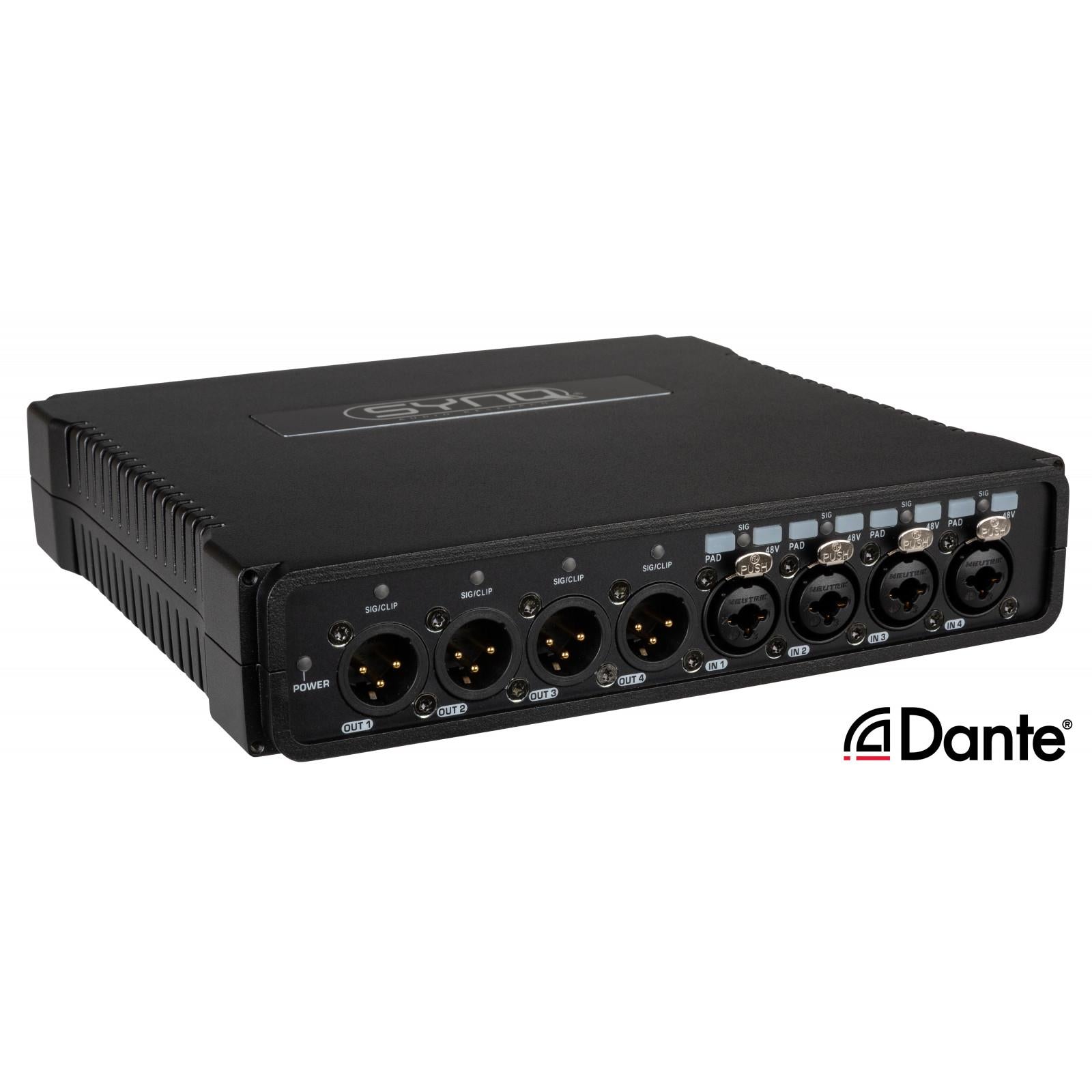

Fully equipped with original Neutrik® XLR and EtherCON connectors.
Complies with IEEE 802.3-2005 standard for Information Technology.
Extreme reliability, thanks to the exclusive use of industrial-grade components, such as: high-end Burr Brown audio DACs, AKM ADCs, Wurth electrolytic capacitors, ...
POWER options:
PowerCON TRUE1: 100-240Vac 50/60Hz
PoE: Power over Ethernet (PoE class 0)

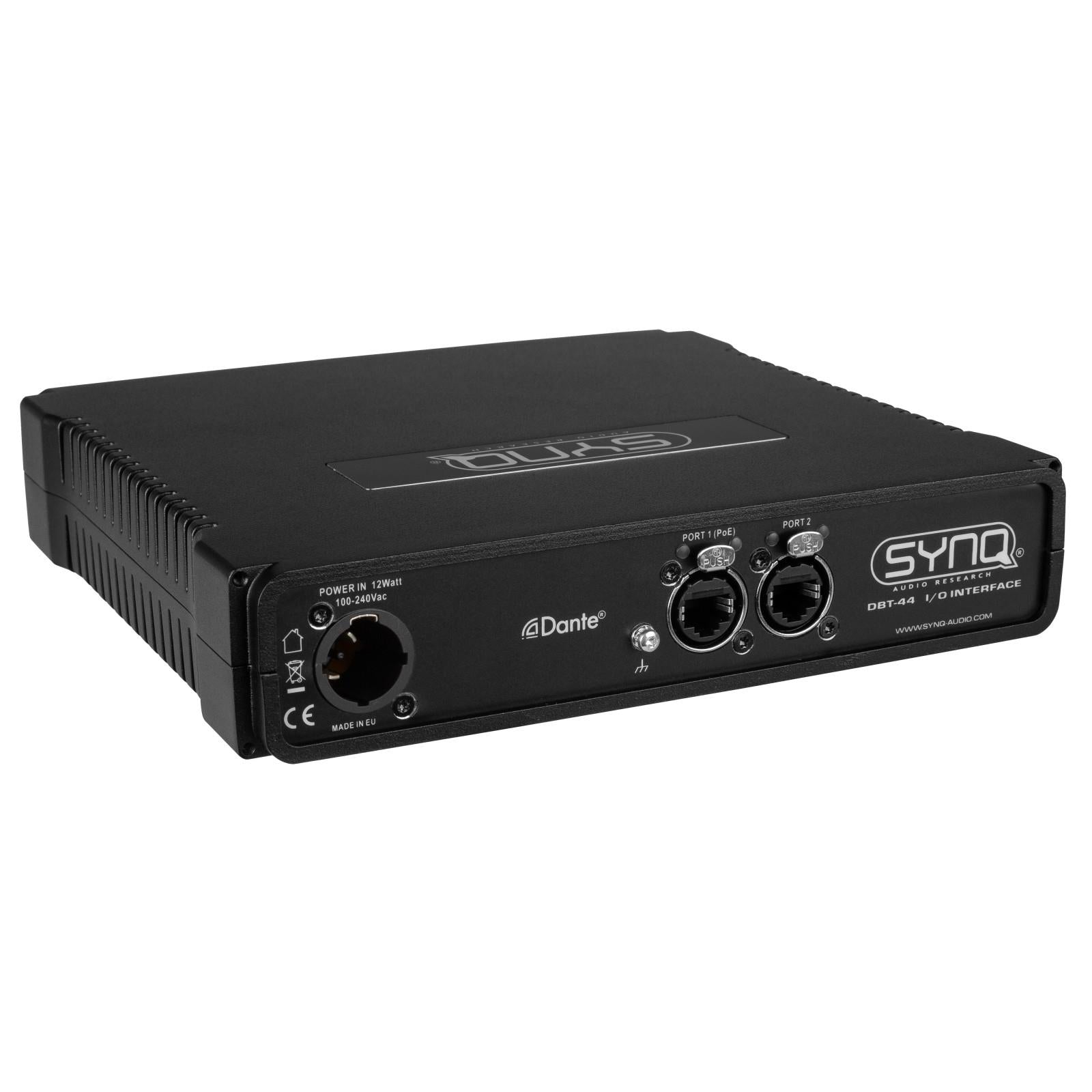

HOUSING: ½ 19” diecast housing with different installation options:
1 unit fits in a 1U 19" rack (19" adapter optional)
2 units fit together in a 1U 19" rack (adapters included)
Easy wall mounting with optional wall mount adapter
Easy truss mounting with optional truss mount adapter
Strong rubber protection adapters for use as stage box! (optional)
