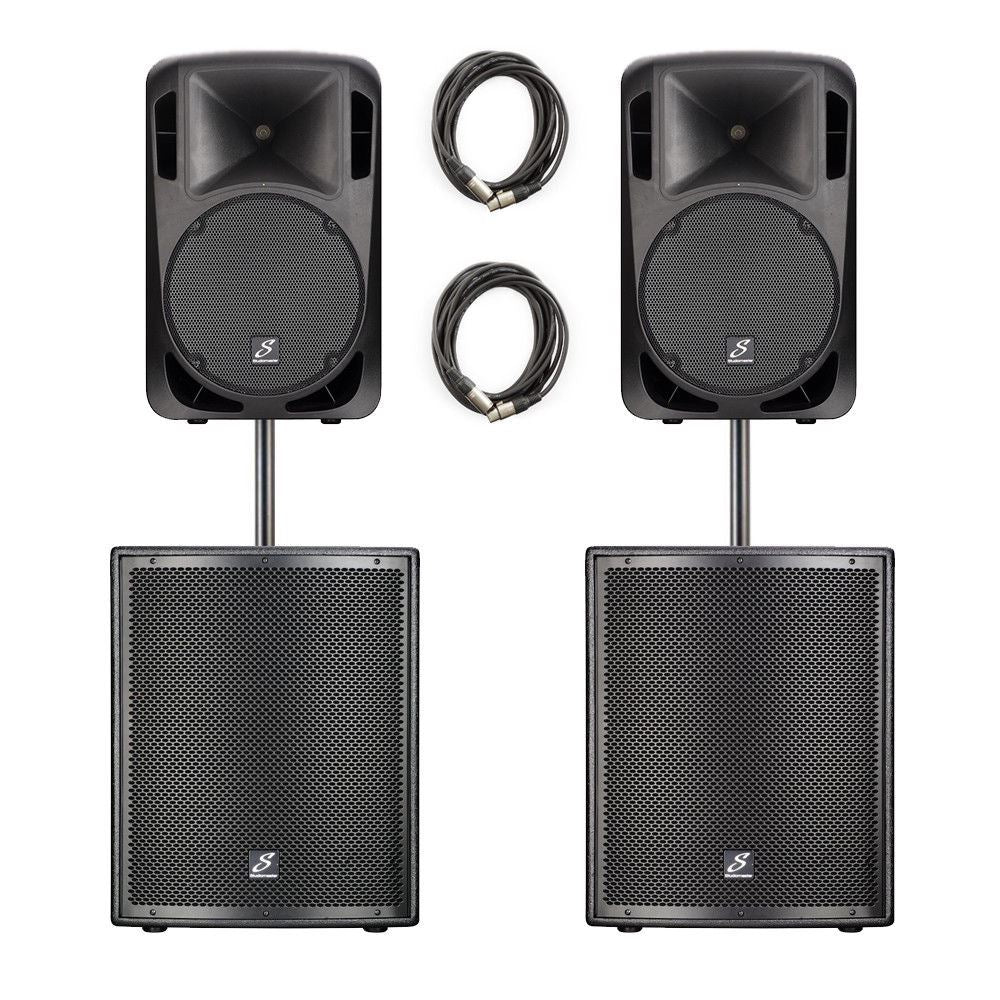

Studiomaster Drive PA Package 1620W Sound System

The new Drive series replaces the established VPX/VSX range of PA speaker cabinets with updated styling and performance. These contemporary injection moulded cabinets look great on stage, conference hall or corporate presentations and with a highly competitive price tag.

Drive is lightweight and features three integrated handles to make carrying or stand to mount easy and safe. The high-frequency horn flare has been meticulously designed to give wide dispersion and best acoustic coupling with the bass driver to improve system efficiency. Drive is available in four models, two active and two passive loaded with either 12” or 15” bass speakers.

Active versions are powered by the latest generation of class D amplifiers with combination XLR/jack socket inputs, LINK output and 3 band equalization. Passive versions are 8-ohm impendence with twin 4 pole speaker connectors. All models have 35mm poles sockets, impact absorbing feet and angled sides for use as stage monitors.

Drive ready to set a new standard in portable PA speakers.

12” and 15” models available in either active or passive variants
Lightweight, high powered components
310W RMS, CLASS D amplification in active models
Up to 1200W peak (300W RMS), high power output on passive models
1” throat compression drivers
High-quality durable injection moulded cabinet

Specifications
Format: 15inch two way active cabinet
Frequency Response（-10dB): 45Hz--20KHz
Input Sensitivity LINE: -10dBV
Input Sensitivity MIC: -40dBV
EQ, +-12dB: 12kHz, 1.5kHz, 60Hz
Max SPL: 127dB
Amplifier power, rms: LF 250W, HF 60W
Peak system power: 620W
Crossover Frequency: 2.0kHz
Woofer: 15inch dia, 50mm voice coil
Compression driver: 34mm voice coil
Coverage: Horizontal x vertical: 80 x 40
Input connections: XLR/Jack combo input, XLR LINK output
Power requirements: 175W Max, 50/60Hz
Voltage selector: 230V / 115V

Dimension
450 x 710 x 370 mm

Weight
26 kg

Studiomaster Drive15SA 500W 15" Active Subwoofer Description
The Studiomaster DRIVE 15SA Sub bass speaker cabinet is made from lightweight 15mm plywood and coated with a durable black coating. A powered 500 watt Class D amplifier module inbuilt with filtered link outputs (Crossovers) and 35mm top hat fitment.


Specifications
15 Inch Active Subwoofer
Frequency Response: 35Hz-200Hz
Rated Power: 500 (RMS) Watts
Input Sensitivity (Line): -10dB
Built-In Crossover
Max SPL: 127dB
Input Connection: XLR
Input Voltage: 100V-240V 50/60Hz
LF Unit: FB1575G-1/75.8mm Voice Coil/350/2ohms


Dimensions
480 x 609 x 550 mm


Weight
23.7 kg
