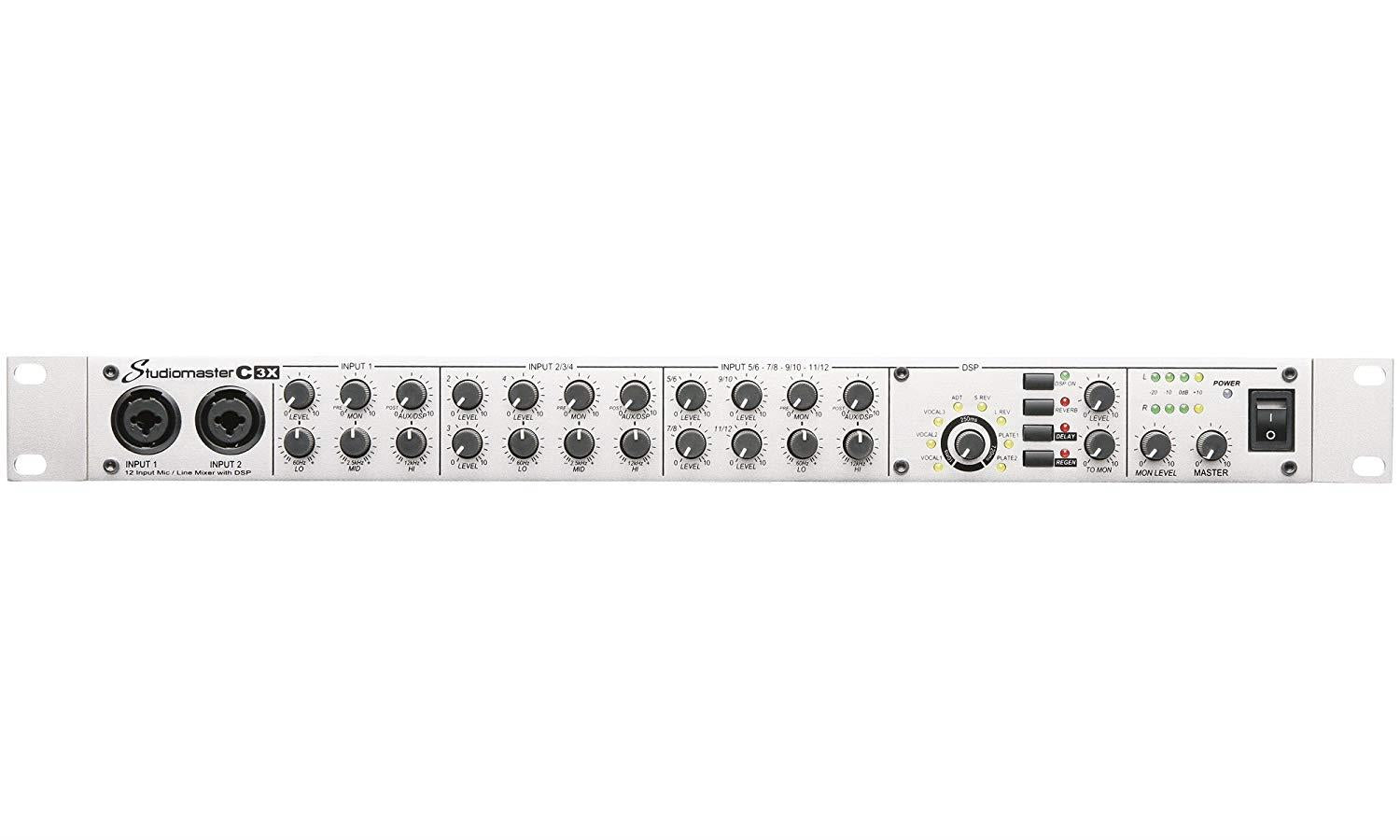

Studiomaster C3X 12 Input Compact Rack Mixer DSP Effect Mixing

£224.00
£224.00

The C3 range of mixers comprises two models, both offering you a total of 12 inputs in a compact 1U 19″ rack-mountable package. The C3X model also includes the Studiomaster custom DSP effects processor. A smaller unit that still has all the professional features you need for quality sound.

Vendor: Studiomaster
SKU: C3X
Icon In Stock In Stock
Icon Delivery Time
iFrame
×

The C3 range of mixers comprises two models, both offering you a total of 12 inputs in a compact 1U 19″ rack-mountable package. The C3X model also includes the Studiomaster custom DSP effects processor. A smaller unit that still has all the professional features you need for quality sound.

There are four balanced combination XLR and Jack inputs allowing the connection of microphones and line level equipment, for added flexibility 2 of the mic inputs are on the front panel and two on the rear. All mic pre-amps feature our studio grade design, making them ideal for all microphones even condenser mics as phantom power is available. All mic channels feature Studiomaster 3 band EQ design, providing you with maximum control across the crucial vocal range. There are four stereo inputs offering a selection of Jack and RCA/phono inputs making them perfect for most playback formats (CD, MD etc) and electronic instruments (keyboards, drum machines etc). has an individual level control and the shared two band EQ gives extra dimension.

The C3X gives you our latest generation of DSP effects, crystal clear, quality delays, reverbs and more. Three vocal settings are available along with room and plate reverbs. The delay mode is fully variable giving you an echo from 10ms up to 720ms, along with regen range of 0 to 90%, so you can control the fade time. The DSP can be switched on and off with the front panel button or with an optional footswitch.

The stereo output features LED metering on the front panel, so you can see exactly what is going on. master level control and balanced XLR and RCA/phono connectors.

12 inputs
4 microphone inputs with 3 band EQ
4 stereo channels with 2 band EQ
2 aux sends
Balanced input and output connectors
Custom high-quality DSP effects


Specifications
Inputs: 12
Mic Inputs: 4
Stereo Inputs: 4
Frequency Response: 22Hz – 40kHz (+/-0.5dB)
Distortion: THD @ 1kHz 0.008%
Residual Noise: -93dBu
Dynamic Range: >105dBu
Metering: Peak reading 4 segments 2 colour LED bar graphs
Mic EQ: Hi, Mid, Lo
Stereo EQ: Hi, Lo
DSP: 8x Reverb, Delay 10ms to 720ms, Regen 0%-90%
Maximum Output Levels: XLR+23dBu, RCA+17dBu, Aux&Mon+23dBu
Power Requirements: 115-240V ~ 50/60Hz 70-140mA max


Dimensions
482 x 44 x 265 mm


Weight
3.7 kg
