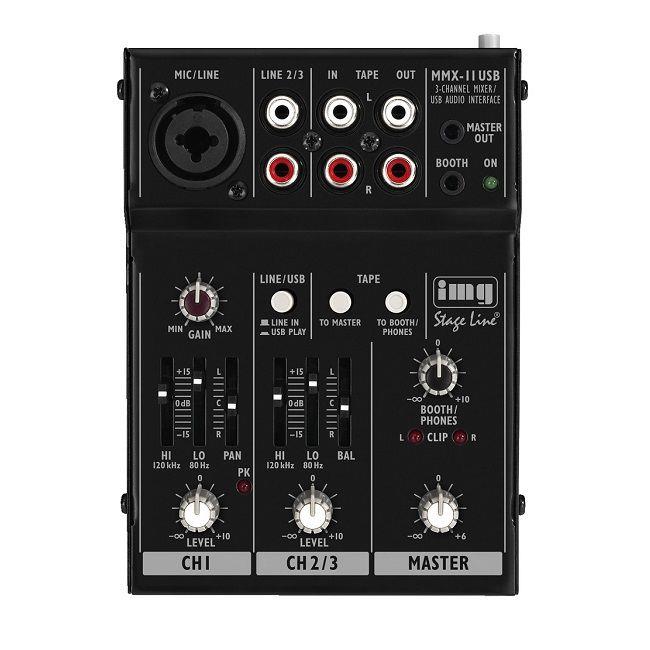

Stageline MMX-11USB Mixing Desk *B-Stock

Description
2-channel miniature audio mixer, with 3 inputs and USB interface.
Integrated USB audio interface (will be identified and addressed as an external sound card)
Full duplex USB port (allows for simultaneous recording and reproduction) for the reproduction of digital audio data from a PC and for recording mixings onto a PC
1 mono input channel with gain control, 2-way equalizer and pan pot control, peak LED
1 stereo input channel with level control, 2-way equalizer and balance control
Tape record/play connections
1 x 3.5 mm stereo output (master)
Adjustable headphone output
+20 V phantom power, permanent
Clip LED
Robust metal housing of compact size

Specification
Number of Channels: 2
Number of Inputs: 3
Mic Input: 0.5 mV, 1 x 3-pole XLR
Line Input: 150 mV (stereo), 1 x RCA L/R, 2 mV (mono), 6.3 mm jack
Tape (play): 420 mV, 1 x RCA L/R
Master Output: 6 V max., 1 x 3.5 mm jack
Booth Output: 6 V max., 1 x 3.5 mm jack
Tape (rec): 1 x RCA L/R
USB: Yes
Frequency Range: 20-20,000 Hz
THD: < 0.05%
S/N Ratio: 81 dB, weighted
Equalizer Bass: ¬±15¬†dB/80¬†Hz
Equalizer Treble: ¬±15¬†dB/12¬†kHz
Phantom Power: +20 V
Power Supply: via USB interface or via encl. power supply
Operating Voltage (possible alternative): DC 5 V
Power Supply (possible alternative): DC 500 mA
Admiss. Ambient Temp: 0-40 ¬∞C

Dimensions
102 x 140 x 45 mm (W x D x H)

Weight
0.43 Kg
