Stageline Active PA Foldback Monitor 300w

Description:

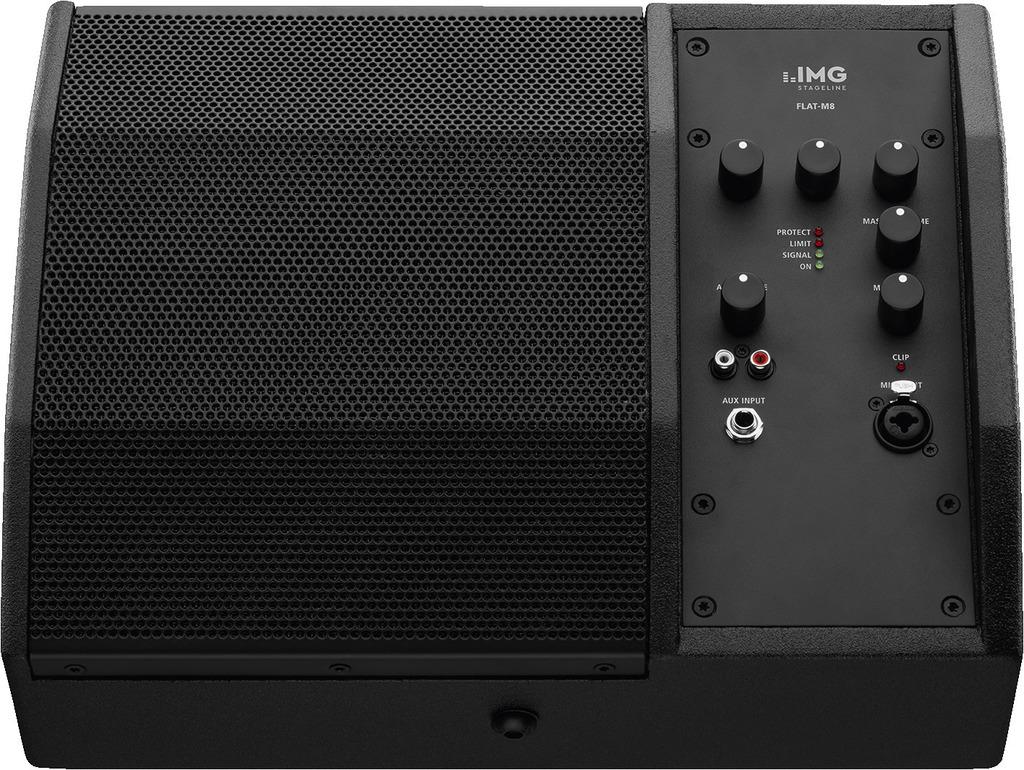

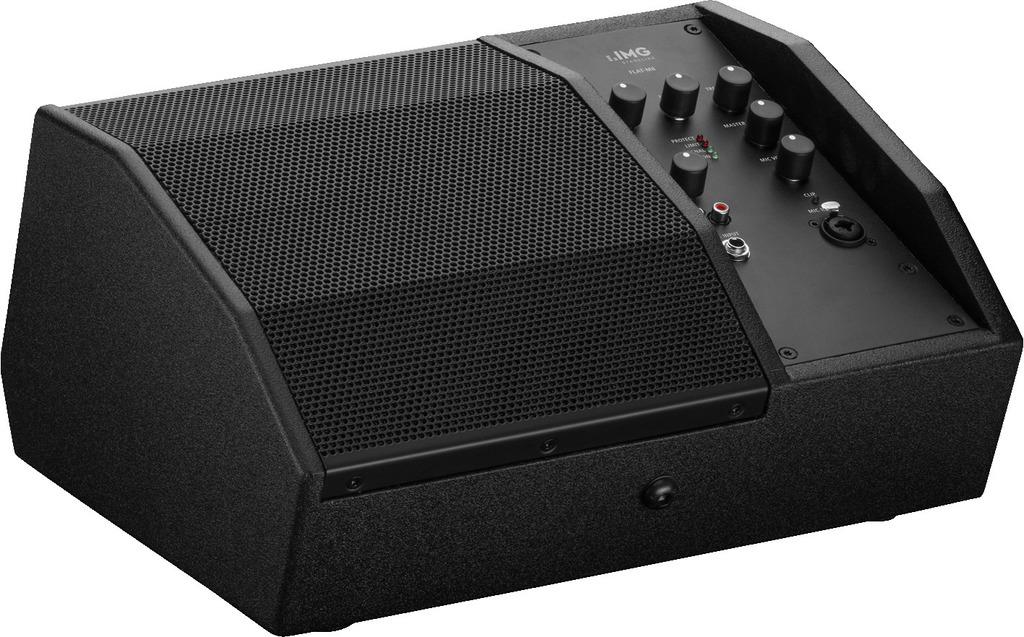

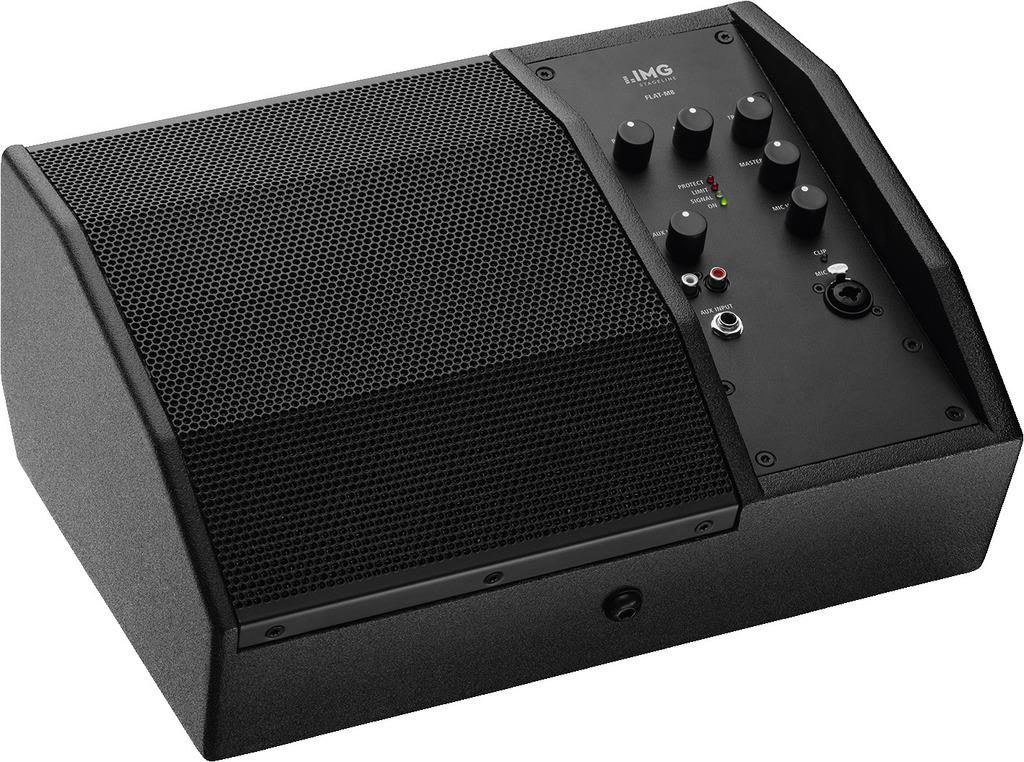

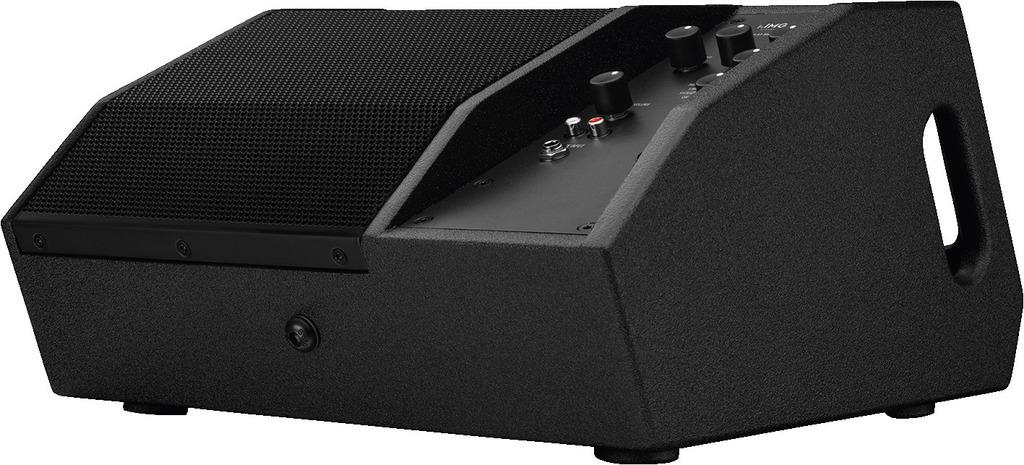

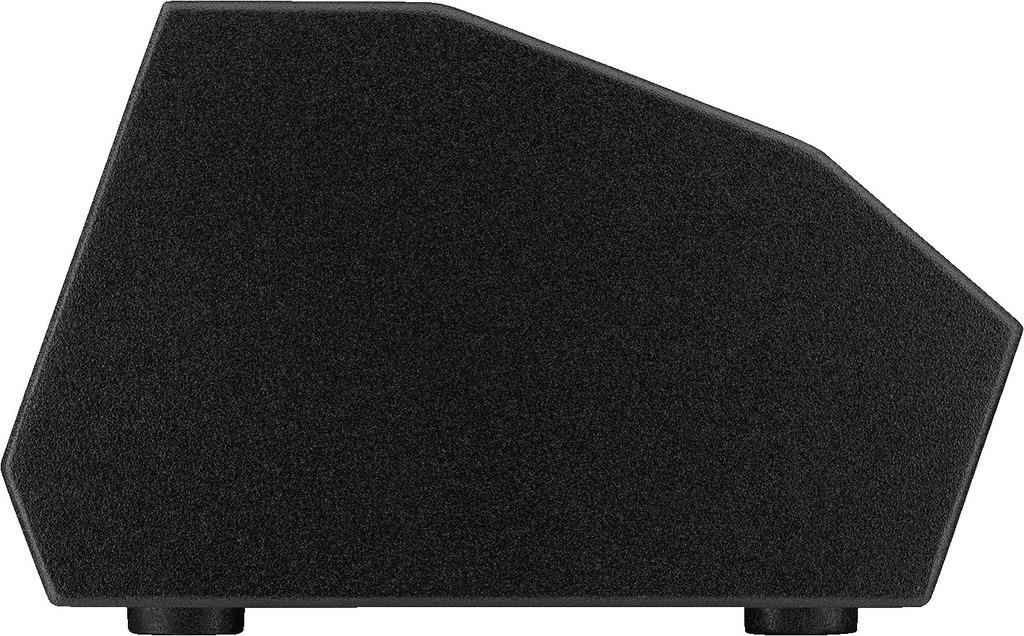

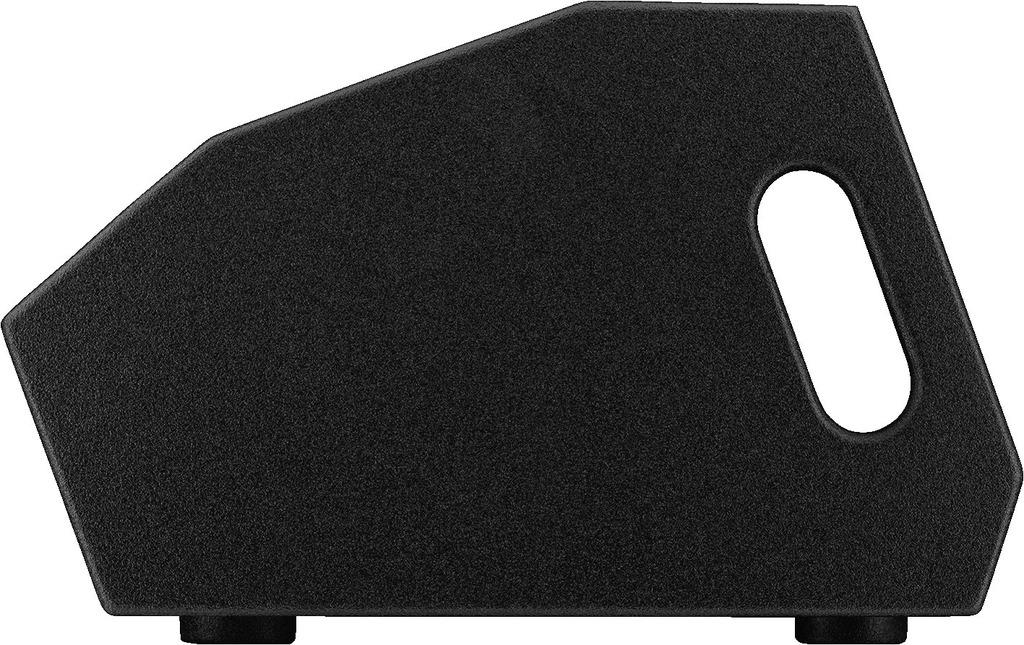

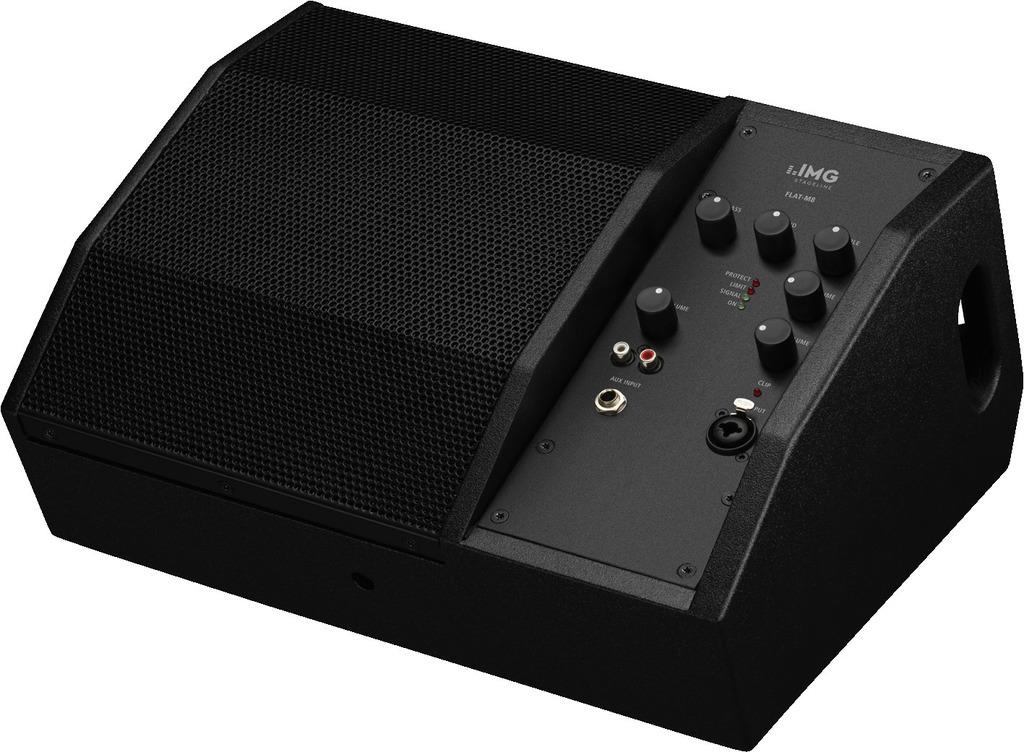

FLAT-M8 Active PA stage monitor speaker system, 300 W Flat and very compact full range system

Fitted with a 20 cm (8") coaxial speaker with horn tweeter

Class D amplifier system Sound pressure at nominal power: 121 dB Indication of protect, limiter, signal and power-on

Volume control and 3-way tone control (bass, midrange and treble) Balanced line/mic input and feed-through output

Unbalanced line input RCA L/R or 6.3 mm jack Switchable automatic power-off

High-quality plywood cabinet with protective metal grille

M10 threaded insert for stand adapter or mounting device

Specifications:

Active/passive active
Transmission technology cable
Total output power 300 W
Power rating (RMS) 100 W
Frequency range 70-21,000 Hz
Input signal:

180 mV/5,6 kΩ (line, bal.),180 mV/5,6 kΩ (aux, RCA)

1.5 mV/1.2 kΩ (mic, bal.),

70 mV/4 kΩ (aux, 6.3 mm jack, asym.)

System 1 x 2-way coaxial speaker
Bass speaker 1 x 20 cm (8")
Tweeter 1 x coaxial horn tweeter
Number of speakers 2
Speaker size 20 cm (8")
SPL 99 dB/W/m
Max. rated SPL 121 dB
Radiation angle, horizontal 70°
Radiation angle, vertical 50°
Housing material MDF
Colour black
Mounting device
1 x M10 threaded insert
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/100 VA
Dimensions 375 x 185 x 330 mm
Width 375 mm
Height 185 mm
Depth 330 mm
Weight 7.48 kg
Inputs

1 x comb. XLR/6.3 mm (mic),1 x comb. XLR/6.3 mm (line),

1 x RCA L/R,

1 x 6.3 mm stereo jack

Outputs 1 x XLR direct out

Other features limiter
Accessories FLAT-M8BAG
Packing dimensions (W x H x L) 0.43 x 0.29 x 0.47 m
Gross weight 8.82 kg
Net weight 7.48 kg
