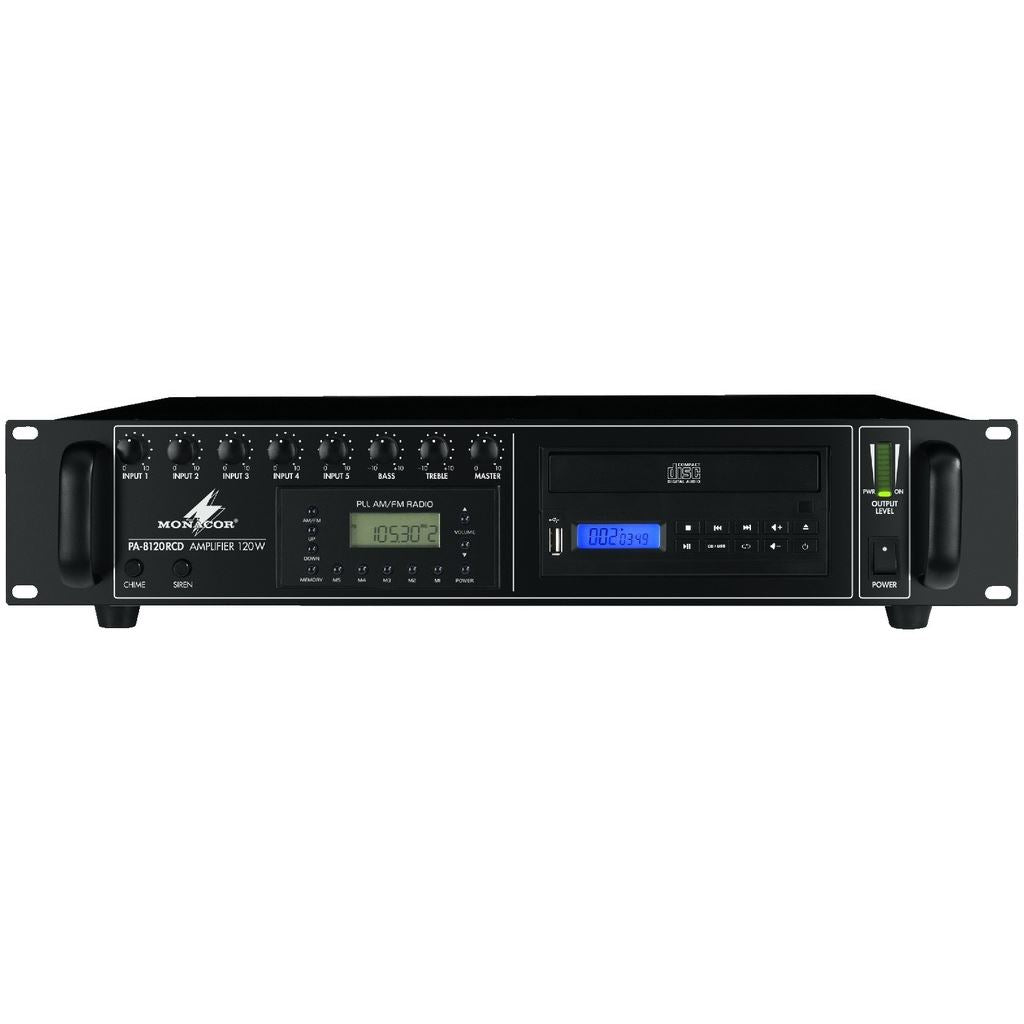

The Monacor PA-8120RCD is a 120W mono PA mixing amplifier, with integrated CD/MP3 player and radio.
The Monacor PA-8120RCD is a 120W mono PA mixing amplifier, with integrated CD/MP3 player and radio.
CD player with drawer mechanism, repeat function and random play, reproduction of audio CD/CD-R/CD-RW, MP3 CD, USB interface, separate on/off switch
AM/FM radio module with 5 programmable station buttons, scan buttons, volume control and separate on/off switch
4 mic/line inputs, to be configured via DIP switches (mic/line, phase, high-pass filter, 48 V phantom power)
2 aux inputs, to be configured via DIP switches (aux1/aux2, 10 dB attenuation, high-pass filter)
Siren function and chime function
Priority circuit
Speaker outputs via screw terminals
Line output
Insert facility, e.g. for effect units, equalizers, feedback controllers
Input and output level controls
2-way tone control for the output
482 mm (19") rack installation
Specifications
Channels 5
Power rating 120 W
Inputs 1.8 mV/5 kΩ, 300 mV/5 kΩ (mic/line),
100 mV/10 kΩ (line)
Frequency range 50-16,500 Hz, ±3 dB
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB
THD 0.5%
Power supply ~ 230 V/50 Hz/365 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 365 VA
Admiss. ambient temp. 0-40 °C
Rack spaces, RS 2
Connections:
4 x combo XLR/6.3 mm (mic/line)
2 x RCA L/R (line)
plug-in screw terminals (line)
screw terminals (speakers)
1 x RCA L/R (tape out)
Dimensions
482 x 110 x 450 mm
Weight
10.5 kg
