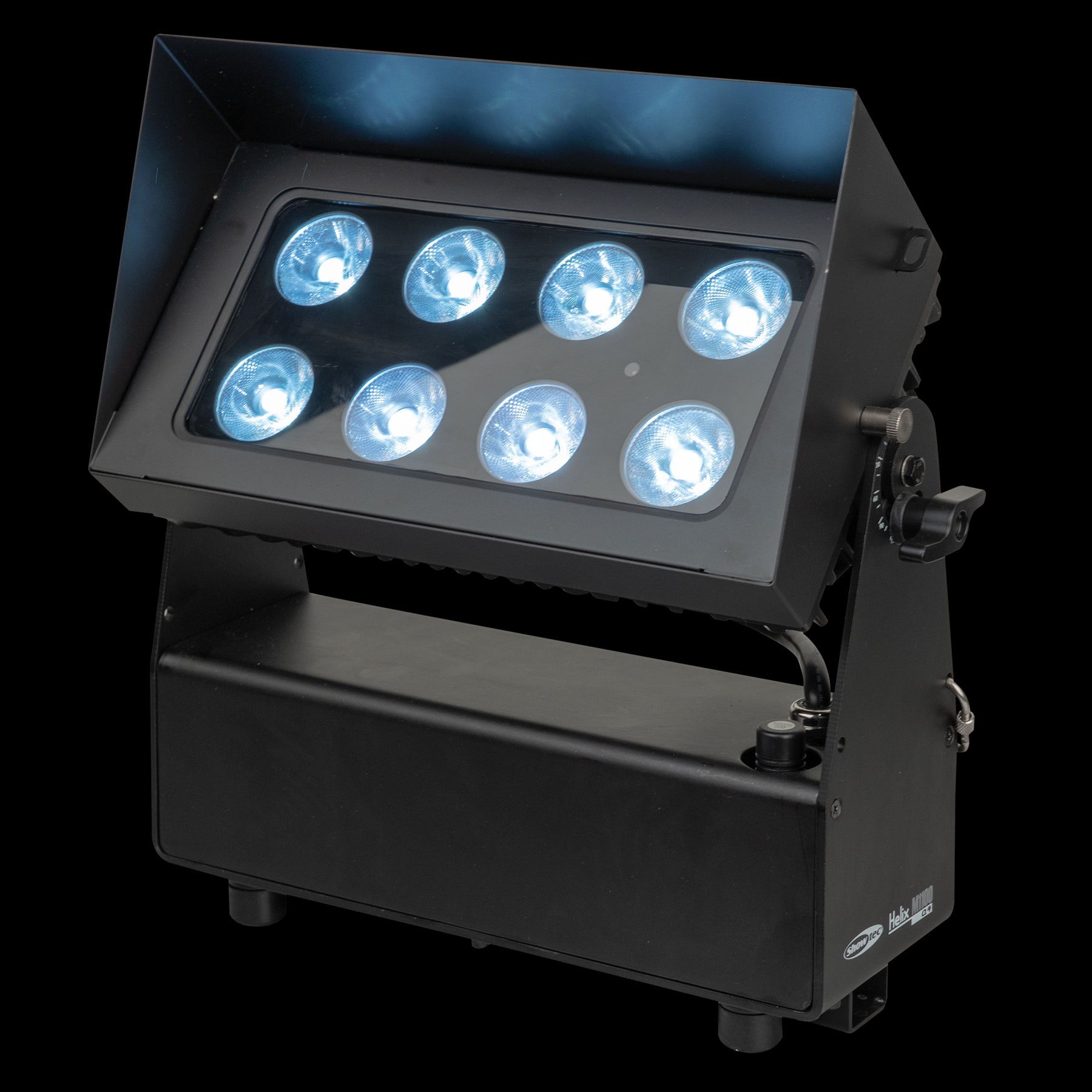

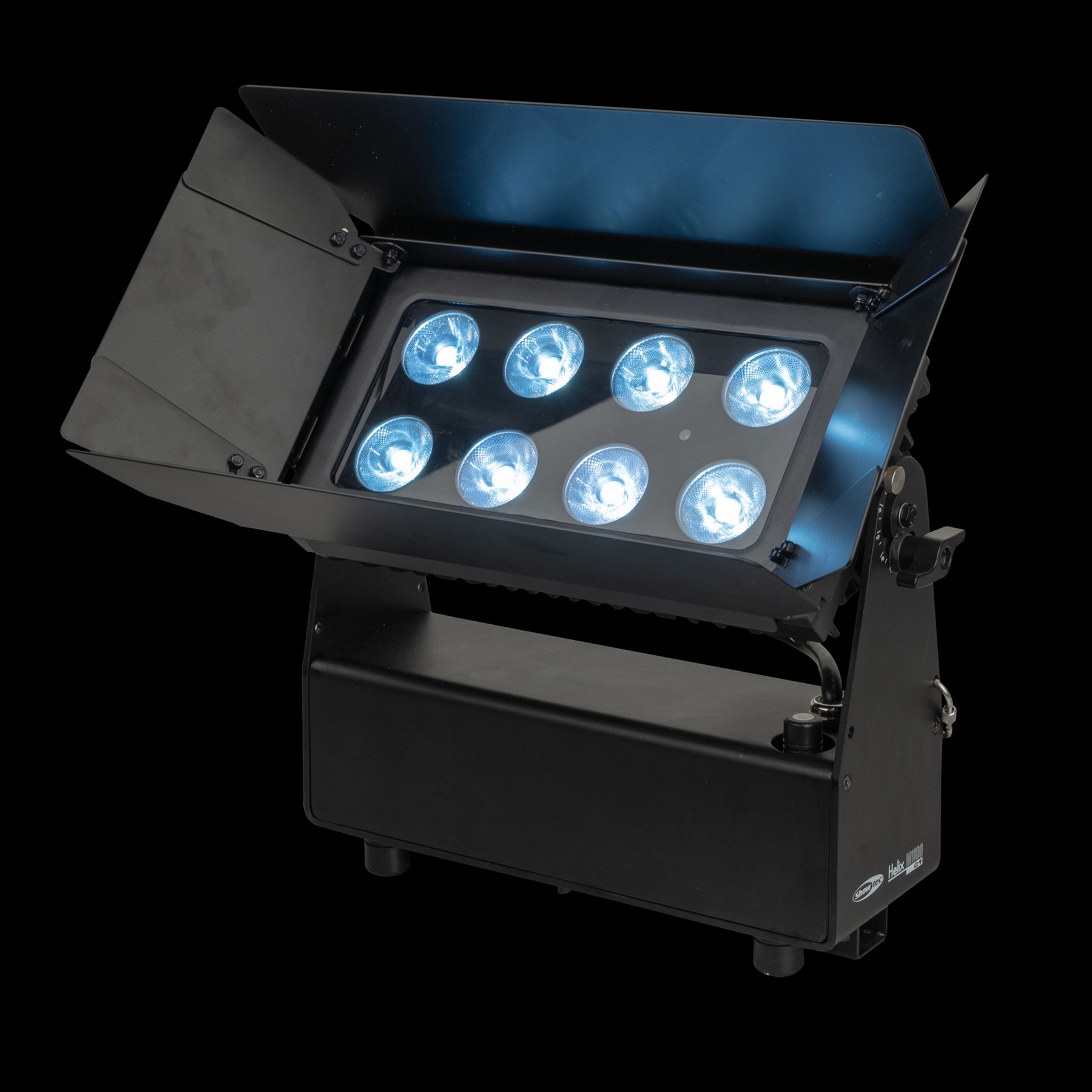

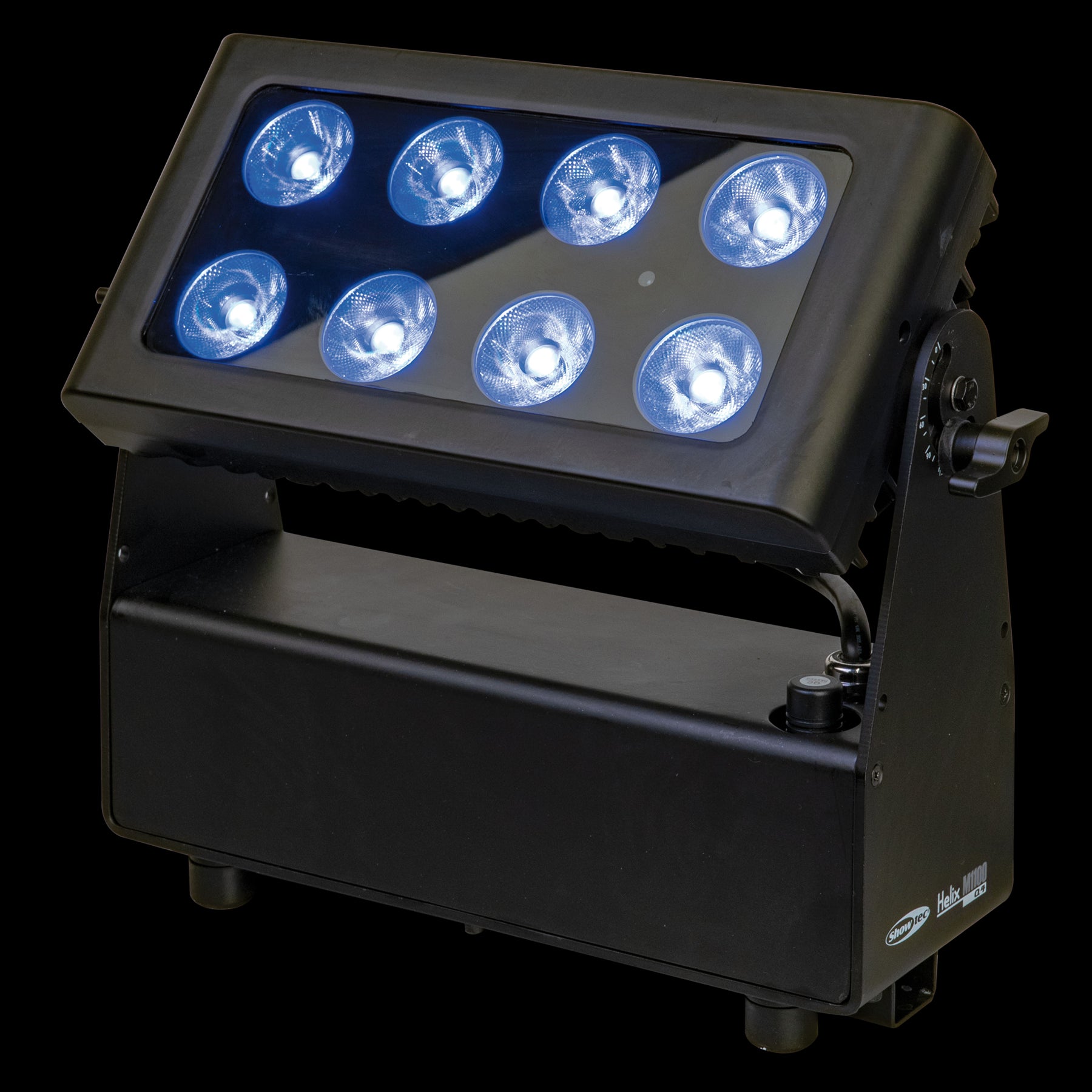

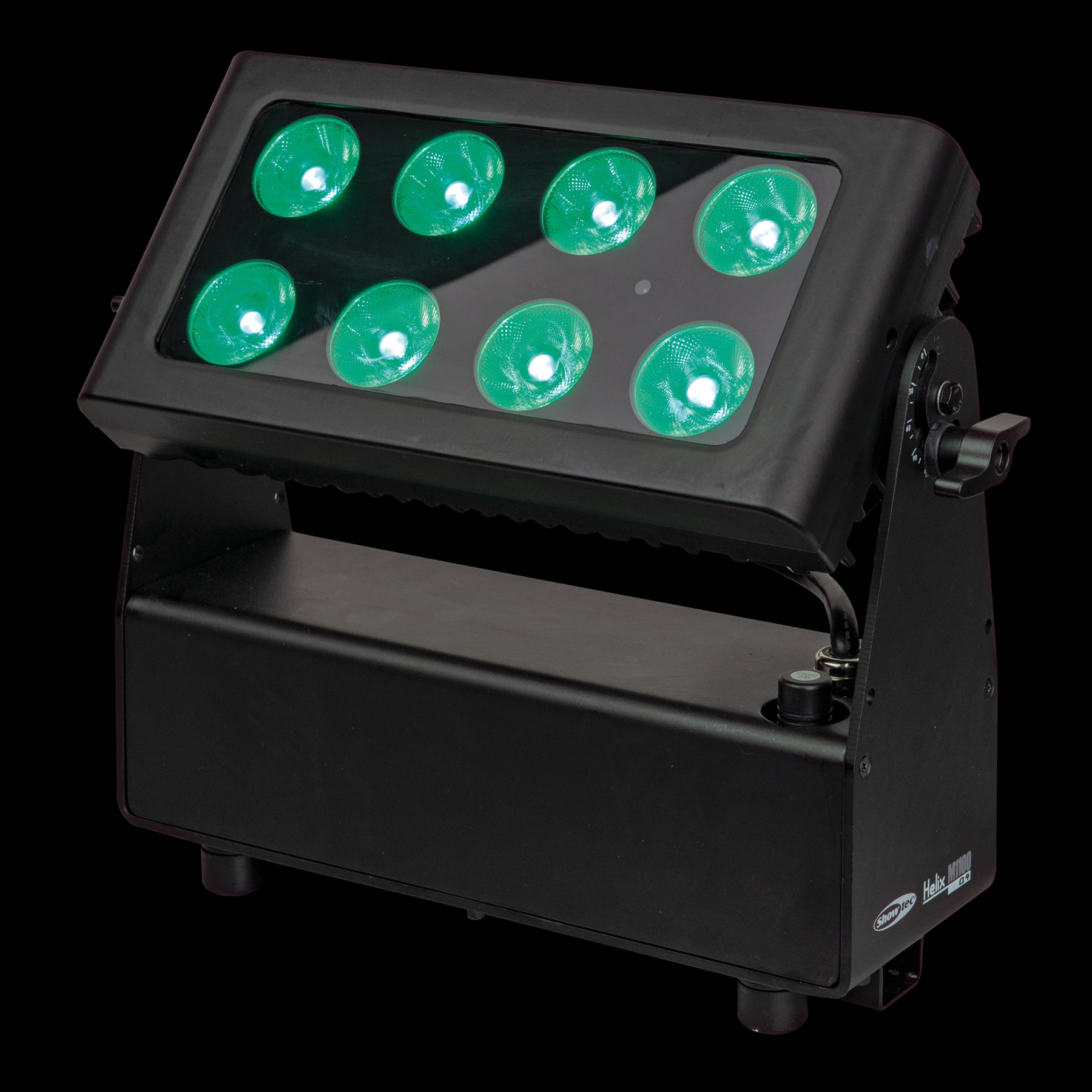

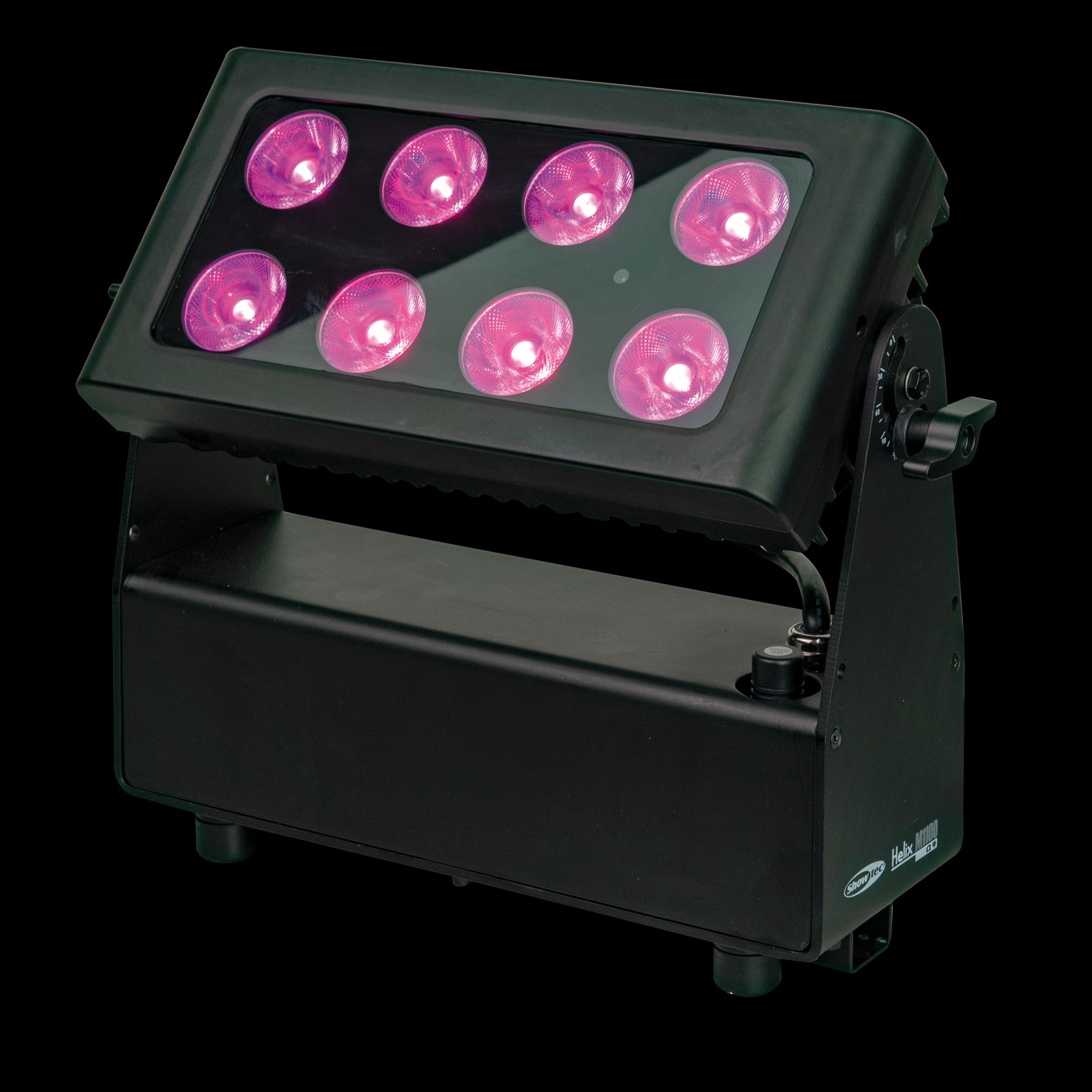

Showtec Helix M1100 Q4 Mobile 8x 10 W RGBW LED Wash (CRMX & WDMX)

Description:

The Showtec Helix M1100 Q4 Mobile is a battery-powered, 8x 10 W RGBW LED Wash with IP65 rating, suitable for mobile indoor and temporary outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60°, or 90° beam angle by using optionally available dedicated beam shapers. Equipped with a rechargeable lithium-ion battery, the Helix M1100 Q4 Mobile will operate up to 15 hours without charging. The tilt angle can be manually adjusted over 180° and the unit can be controlled via CRMX (wireless), DMX, Master/Slave, Manual, and Auto mode, and has many built-in programs. The wireless connection uses CRMX and is compatible with older fixtures using W-DMX (G3 or G4).

It has an emergency backup function, which switches the output to 4000 K white at maximum brightness in case the mains power drops. Its delayed output function allows you to program the unit and have it start later, saving precious battery runtime. This can be very helpful when setting up mid-day and having it turn on automatically at night. The Helix M1100 Q4 comes with a 1.5-metre Power Pro True cable, Quick-Lock bracket, and Safety Cable.

Specifications:

Source
Light Source Type LED
Light Source Quantity 8
Light Source Power 10 W
LED Colour Type RGBW
Refresh Rate 1200 Hz
Luminous Flux (Total) 8800 lm
Optical
Beam Angle (Horizontal) 10 °
Beam Angle (Vertical) 10 °
Wireless Specifications
Wireless Mode G3, G4, CRMX
Reaction Time 8 ms
Battery
Battery Type Lithium ion
Battery Voltage 18.5 V
Capacity 13 Ah
Runtime @Full 8 h
Runtime Average 15 h
Charging Time 6 h
Control and Programming
Control Mode Auto, Built-in Program, DMX, Manual, Master Slave
DMX Channels 4, 6, 10
Protocols DMX, RDM
Wireless LumenRadio
Display OLED
Dim Curve Linear, Square, I-Square, S-Curve
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Movement
Tilt Adjustment Up 180 °

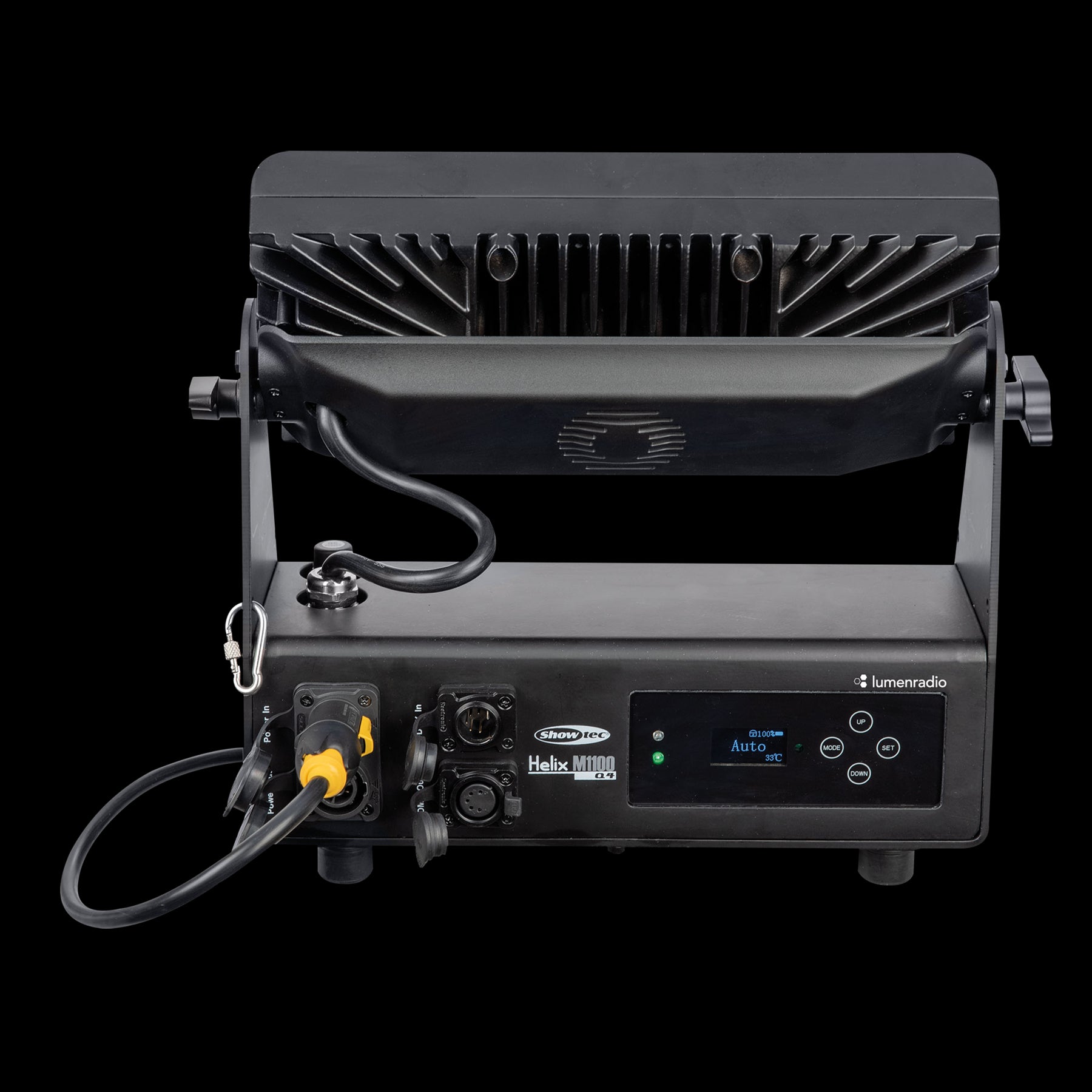

Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 75 W
Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector XLR 5P In/Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Cable Length 1.5 m
Mechanical Specifications
Length (mm) 367 mm
Width (mm) 126 mm
Height (mm) 307 mm
Weight 7.9 kg
IP Rating IP65
Housing Aluminium
Colour Black
Product Properties
Cooling Passive
Rigging
Mounting Options Bracket, Clamp
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C
Maximum Surface Temperature 55 °C
Included Items
Included Cables Power Pro True Cable
Included Rigging Quick-Lock Bracket, Safety Cable
