Showtec Easy 6 Mobile DMX Controller 6-channel - 5-pin DMX

Description:

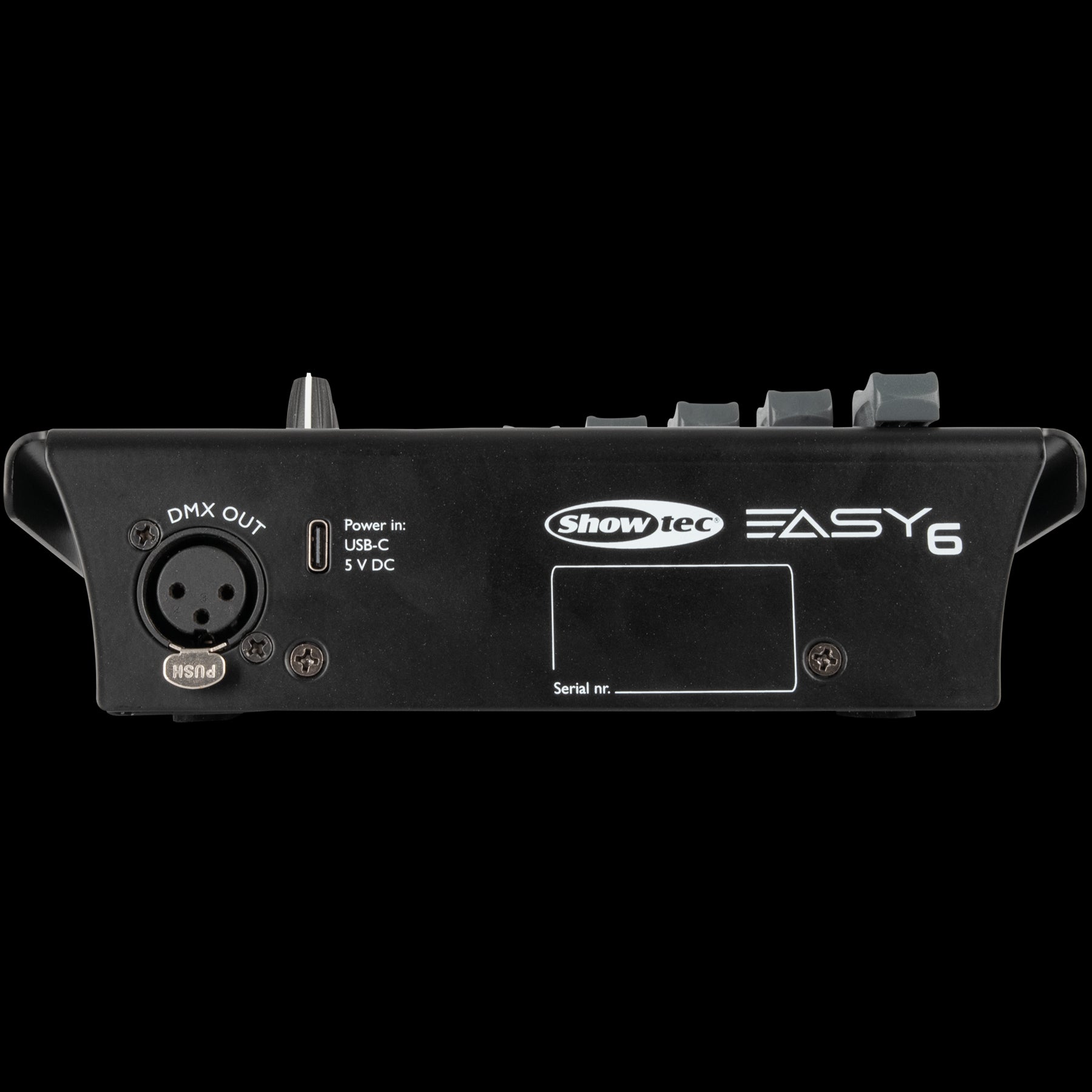

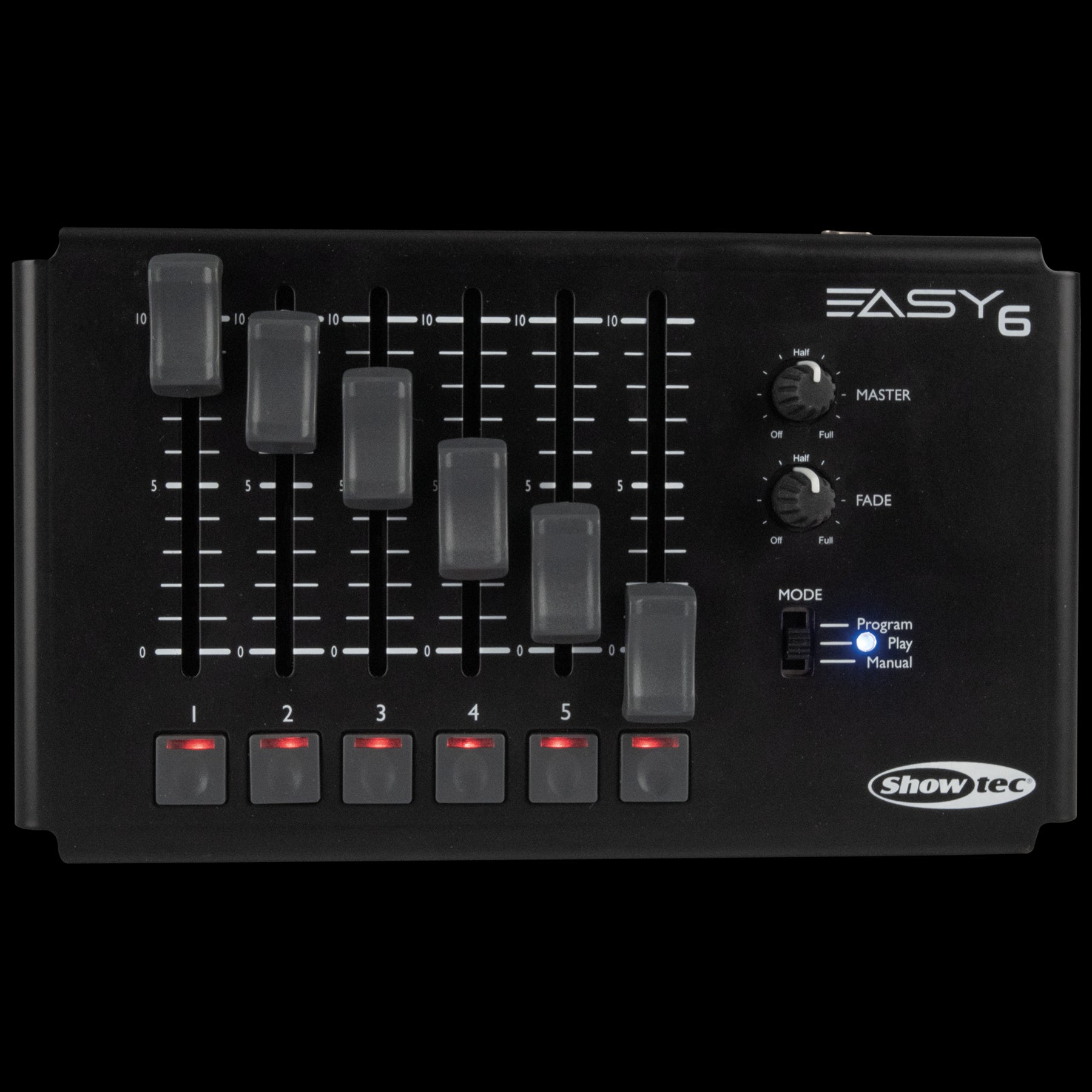

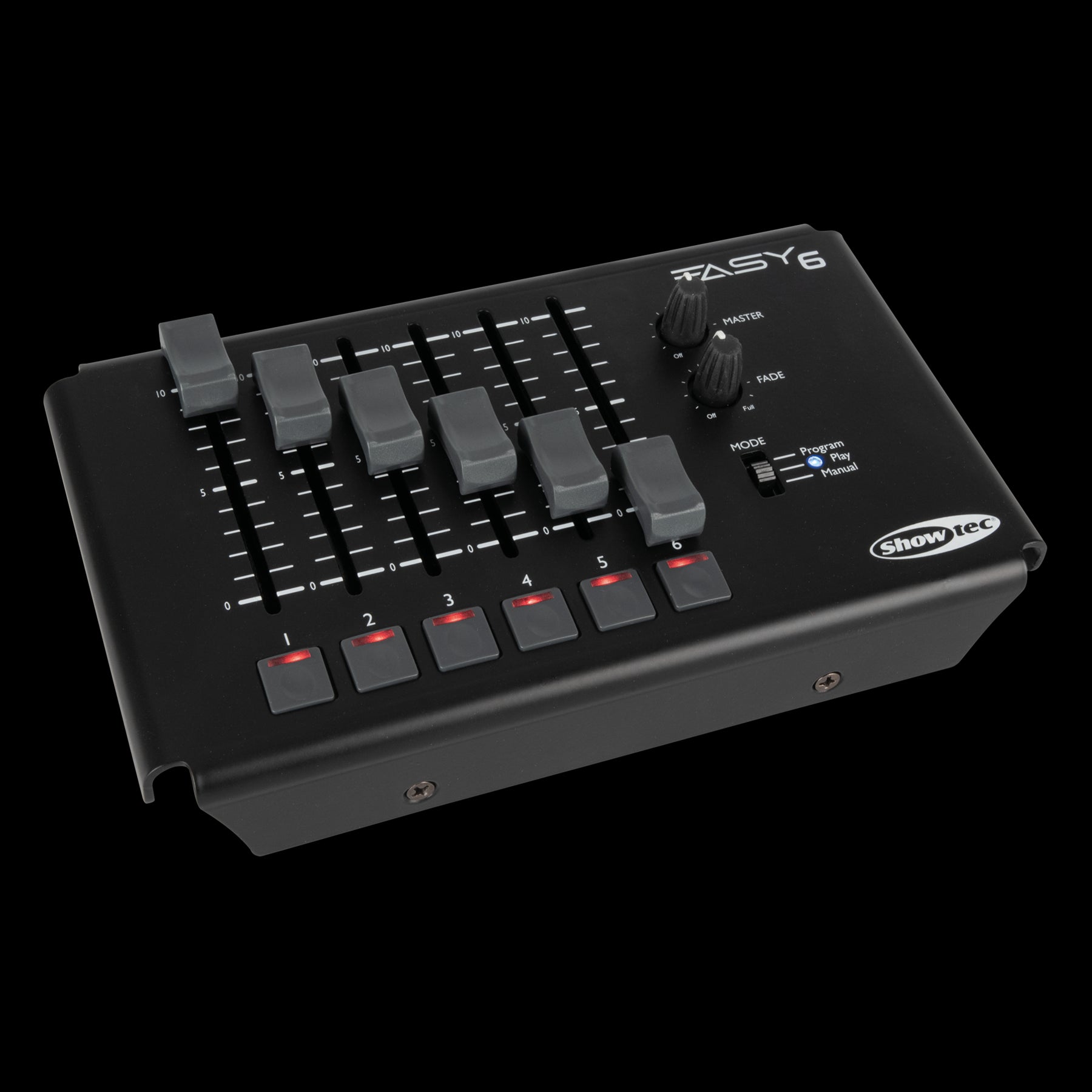

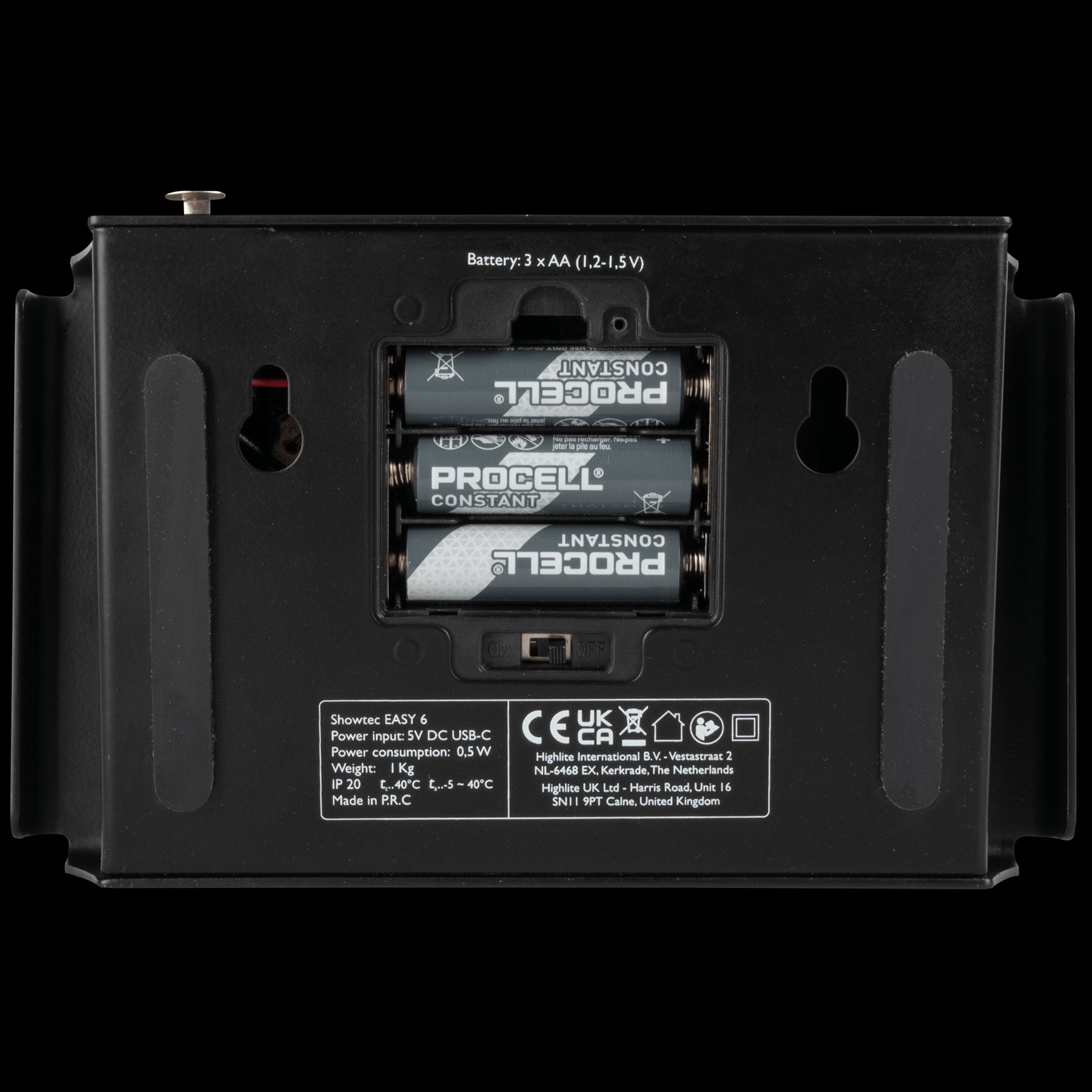

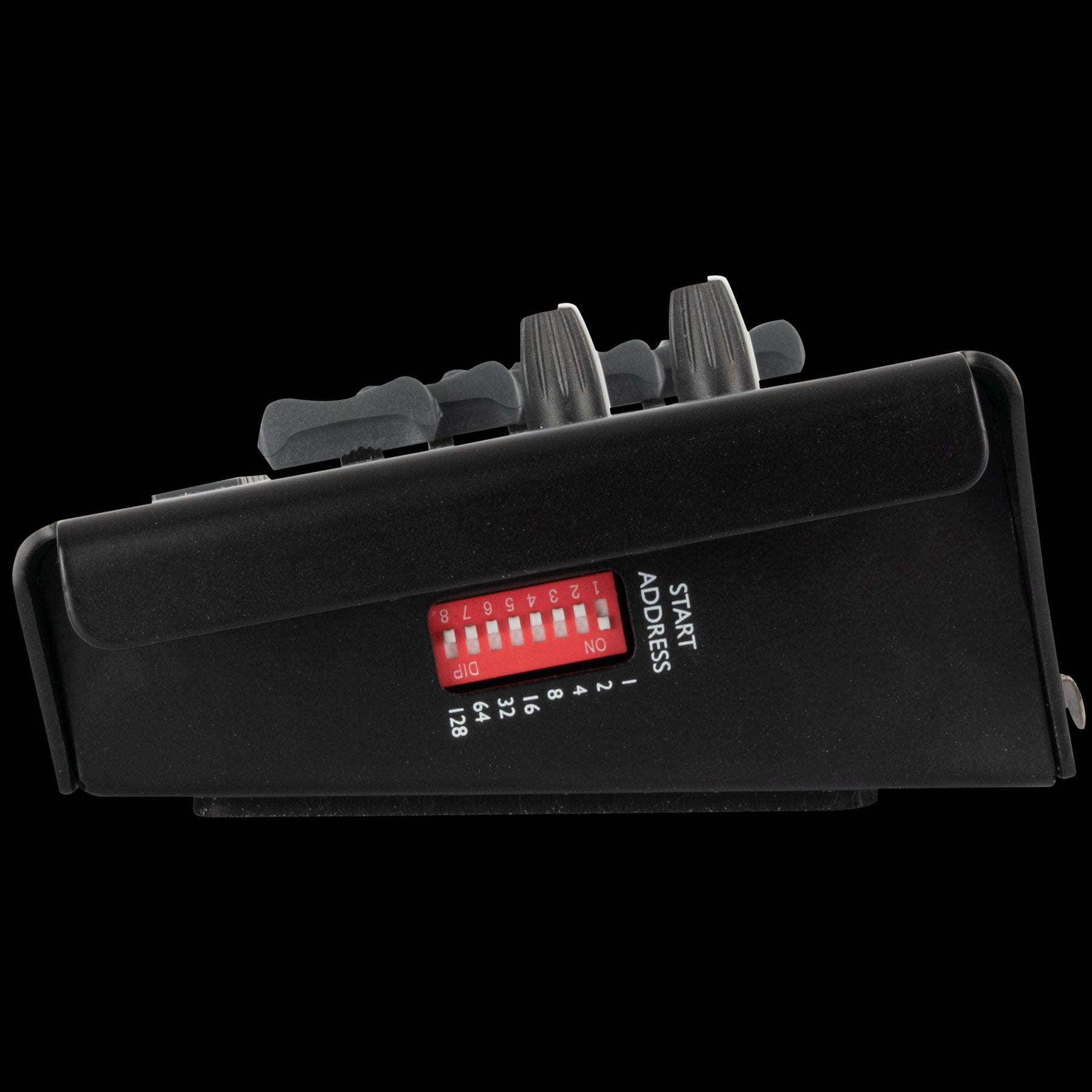

The Showtec Easy 6 is a compact, 6-channel DMX controller with 6 faders, 6 buttons with integrated LEDs, a mode button, a rotary fade knob and a master dimmer knob. It's ideal for situations with simple light setups like exhibitions or small shops, or for stage crews to test DMX equipment. With integrated handles and 2 mounting slots, the Easy 6 can be used in different ways. Scenes can be stored on each of the buttons and the integrated LEDs indicate whether a playback scene is stored on a button or not. In manual mode, the faders set the dimmer values, in playback mode, stored scenes are output when the buttons are pressed and in program mode, pressing a button stores the fader value. The side of the controller has a DIP switch that makes it possible to change the starting address of the 6 channels. The controller can be powered by USB-C or 3 AA batteries.

Features:

6-channel DMX controller
Scene storage x6
Integrated handles
2x mounting slots
USB-C or battery power

Specifications:

Battery
Battery Type AA
Battery Voltage 1.5 V
Runtime @Full 20 h
Runtime Average 40 h
Control and Programming
Control Mode DMX
DMX Channels 6
Faders 6
Memories 6
Playback Buttons 6
Electrical Specifications and Connections
Power Supply 5 V DC
Power Consumption 1 W
Power Connector In USB-C
DMX Connector Out XLR 3P
Mechanical Specifications
Width (mm) 195 mm
Depth (mm) 65 mm
Height (mm) 120 mm
Weight 0.9 kg
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Product Properties LED Indicators
Signal
Thermal Specifications
Maximum Ambient Temperature 40 °C
Minimum Operating Temperature -5 °C
