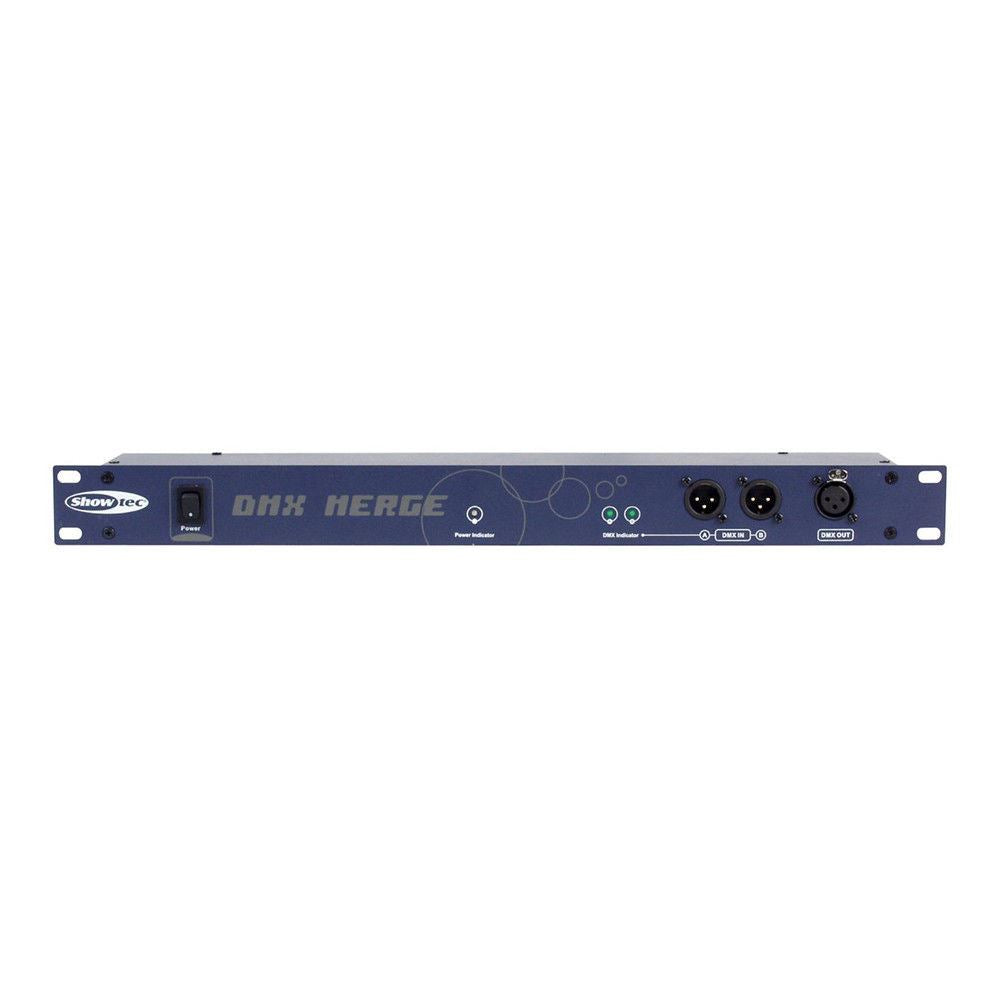

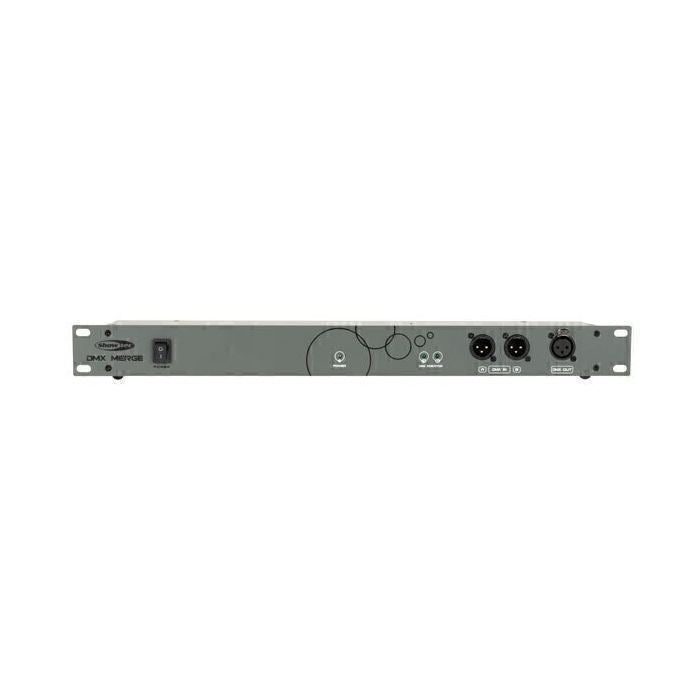

Showtec DMX Merger Rack Dimmer Theatre Converter DMX Backup Unit

Description
The Showtec DMX Merge allows you to combine two DMX controllers to one DMX line or to use a second desk as back-up desk.

The unit has 4 modes:
1) HTP (Highest Take Precedence) In this case you can use two similar desks with the same
addressing on one line. The DMX channel with the highest value has priority.

2) Back-up mode. The unit is connected to two DMX desks. Channel A has priority.
Once channel A fails or has no DMX channel B takes over the show.

3) Merge mode. Two desks can be merged on one line. E.g. you can run a scene setter
and DMX operator on one line. The Scene Setter will operate on channel 1-96 and the
DMX Operator will have the channels 97 and higher.

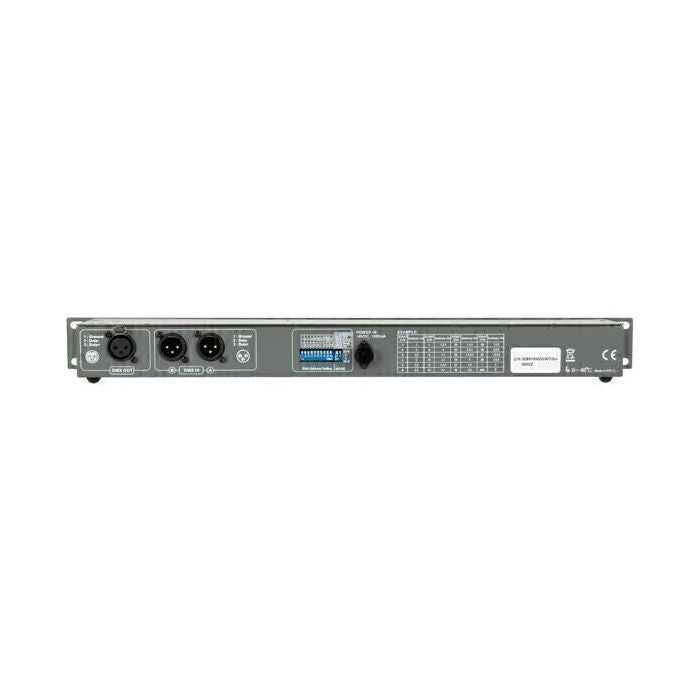

These positions can be freely addressed by the dip-switches.

4) LTP (Latest Take Precedence) In this case you can use two similar desks with the same
addressing on one line. The DMX input with the latest value change has priority.

Features
Merge 2 DMX controllers to one DMX line
HTP / LTP function
Select Back up or merge mode

Specifications
Protocols: DMX
Control Mode: DMX
DMX Channels: 512
DMX Connector out: XLR 3P
DMX Connector: XLR 3P In/Out
Power Connector in: Low Voltage DC plug
Power Consumption: 4,5 W
Power Supply: 9 VDC
DMX Connector in: XLR 3P
Rack Units: 1 U
Colour: Grey
Housing: Aluminum Die-cast
IP Rating: IP20(indoor use only)
Weight: 1,15 kg
Installation Depth (excl. connector): 73 mm
Height: 44.5 mm
Length: 483 mm
Width: 73 mm
LED Indicators: Power, Signal
Maximum Ambient Temperature: 40 °C
Minimum Operating Temperature: 0 °C
Reference Standard: CE
Included Cables: Low voltage DC plug cables
Included Accessories: Adapter
