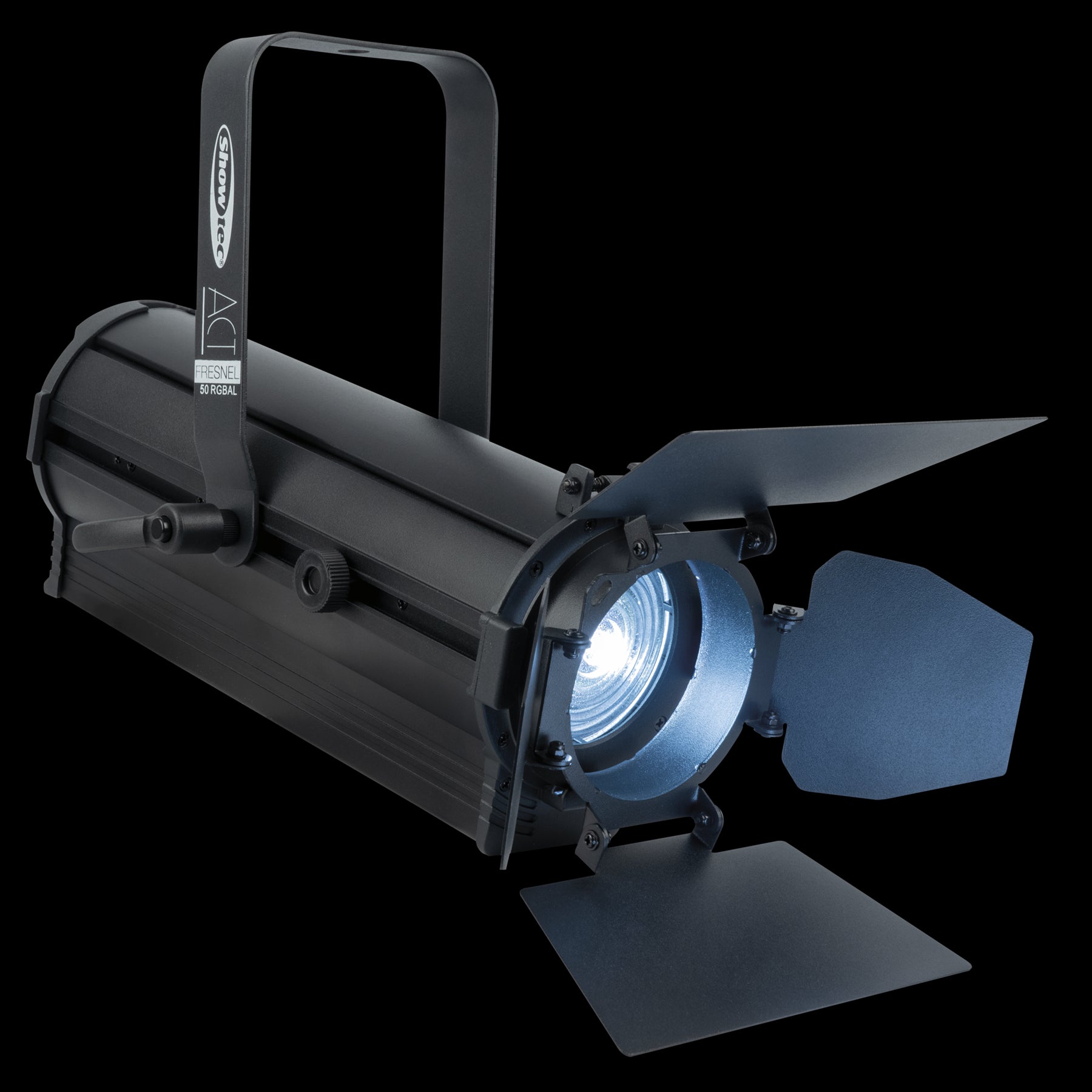

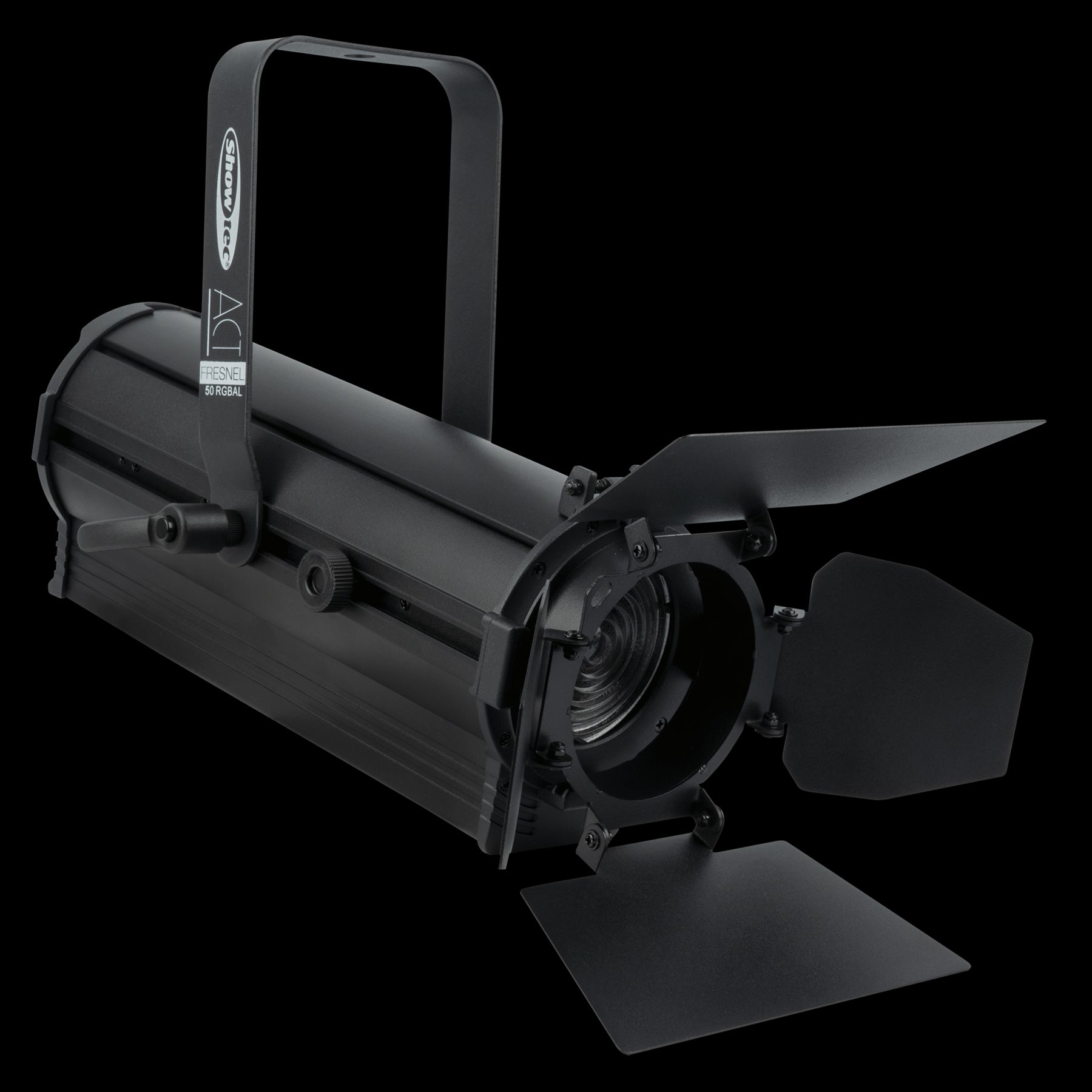

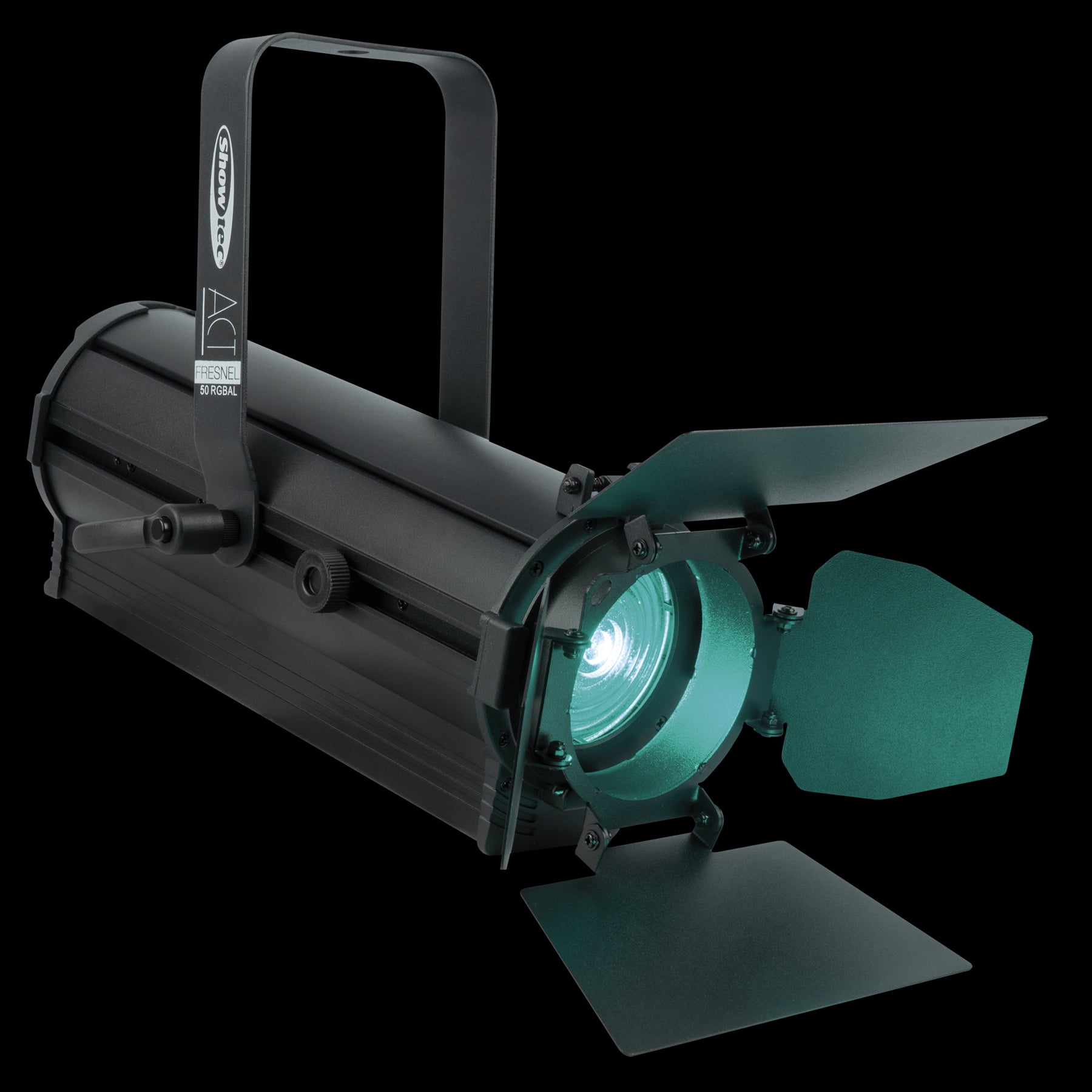

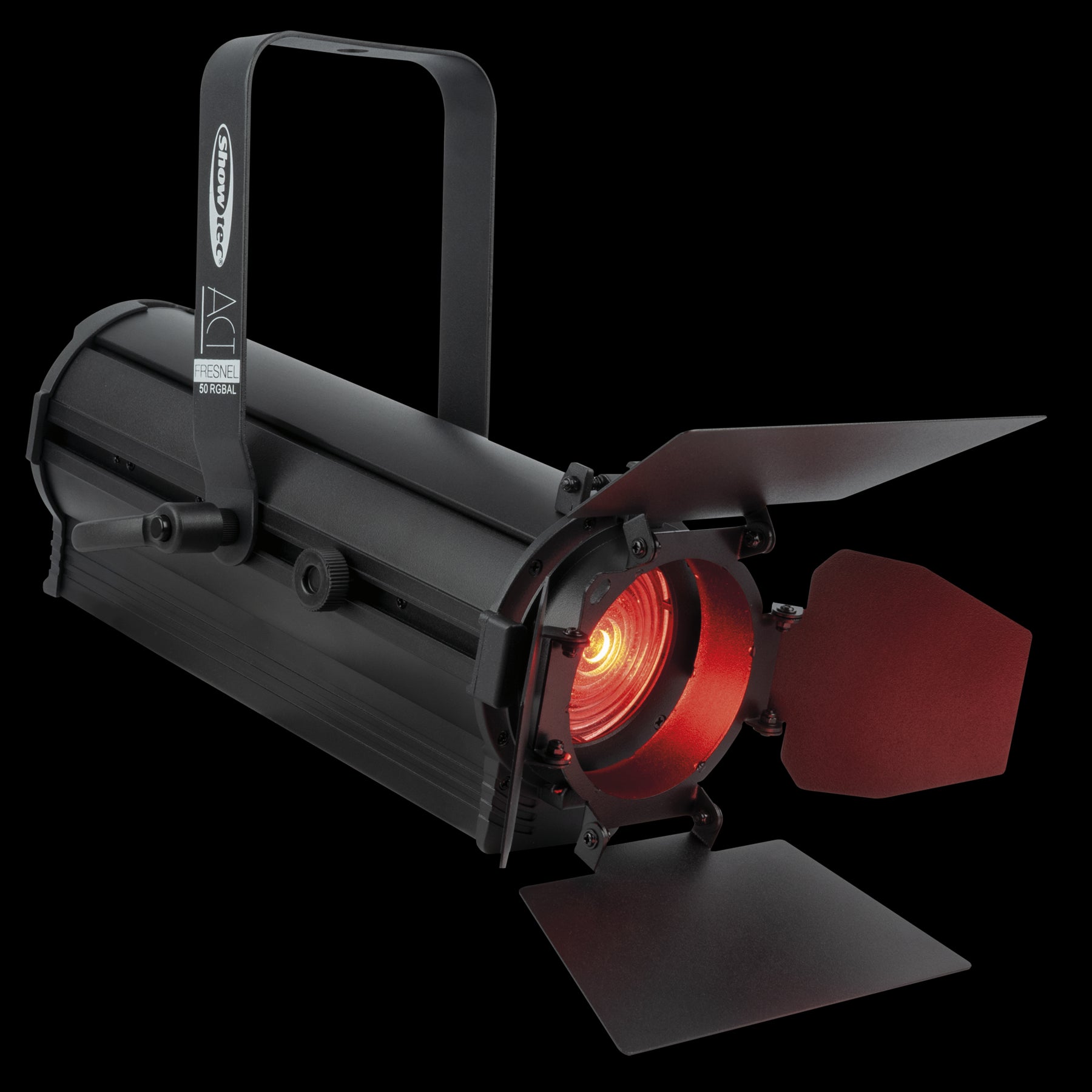

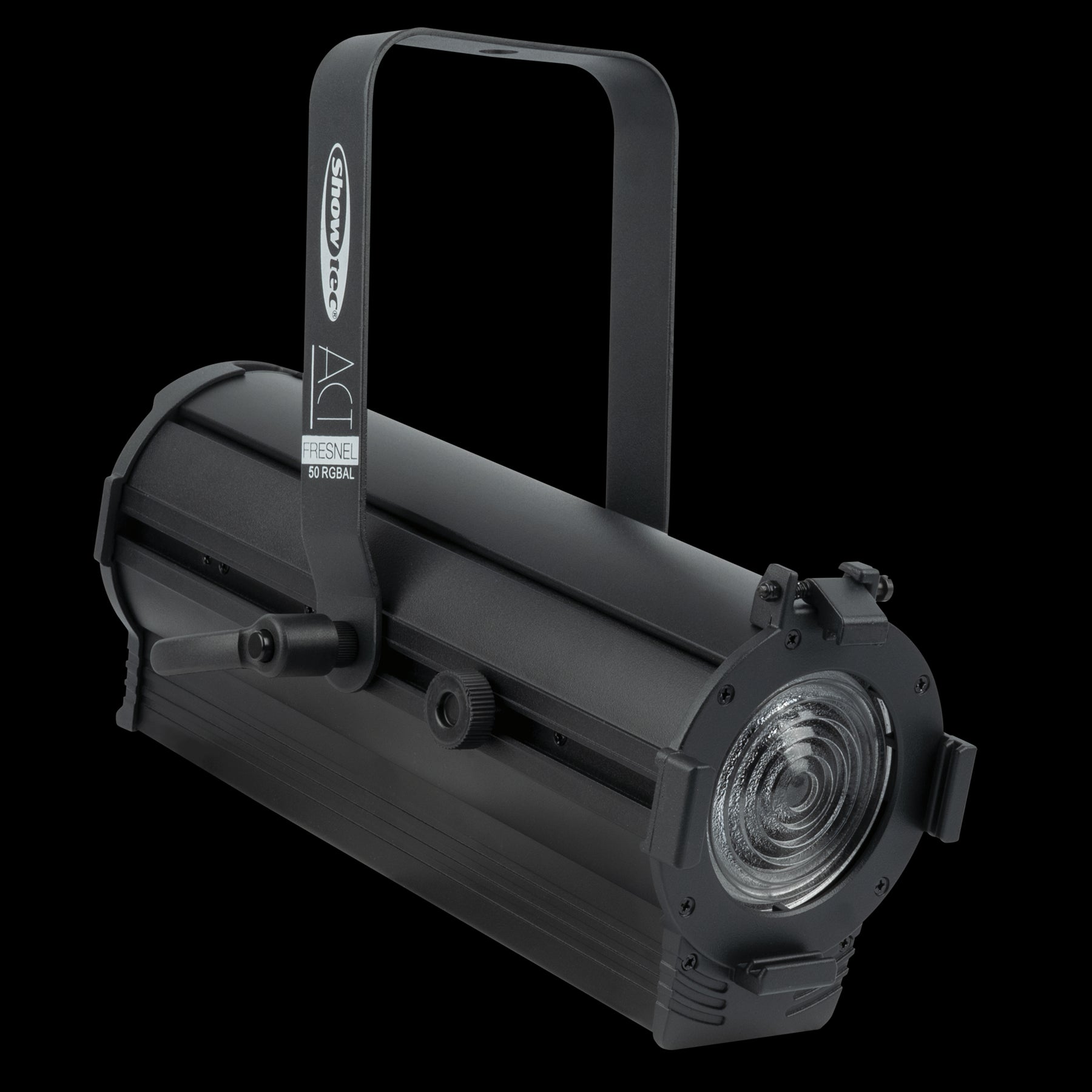

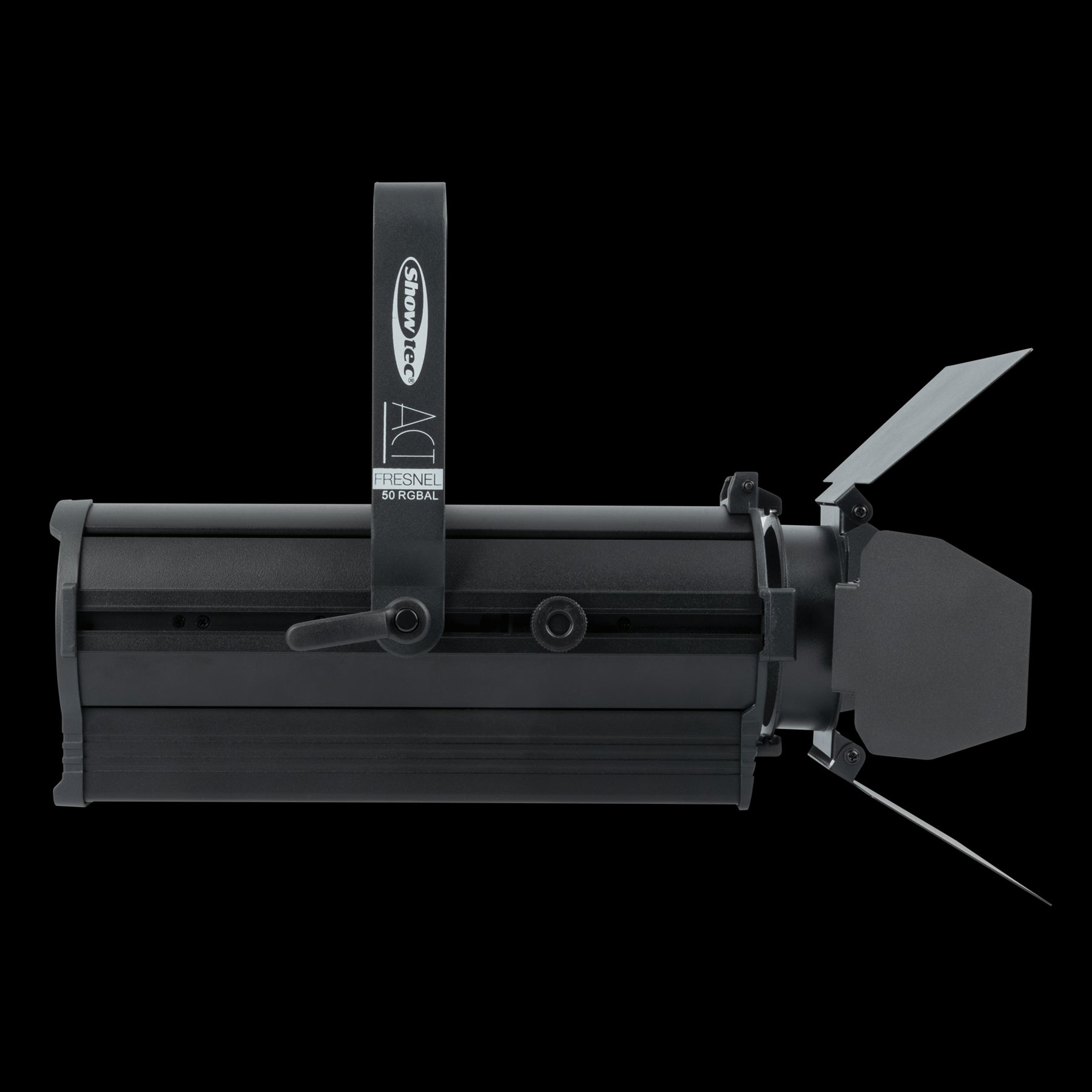

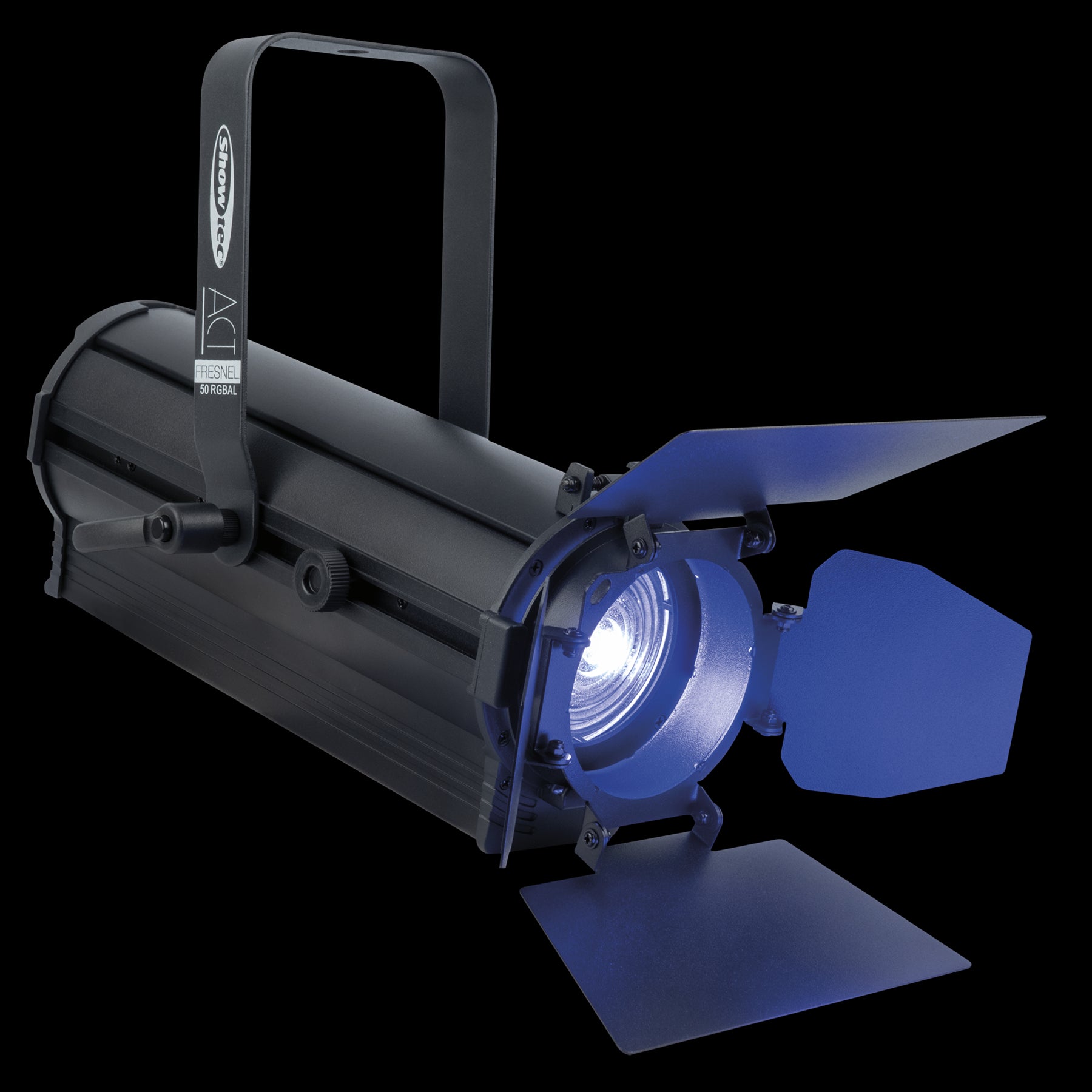

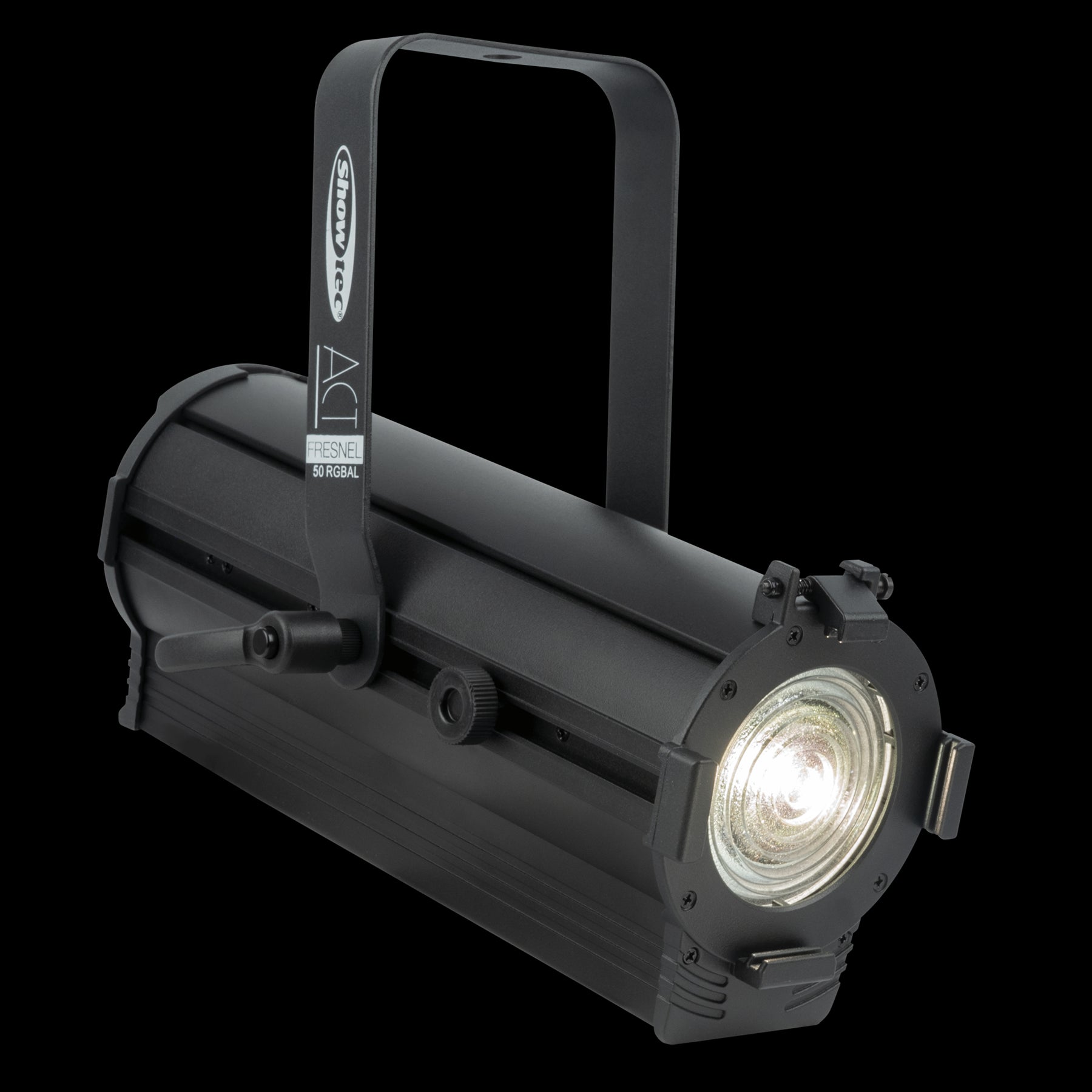

Showtec ACT Fresnel 50 RGBAL Compact 50 W RGBAL Theatre LED Fresnel

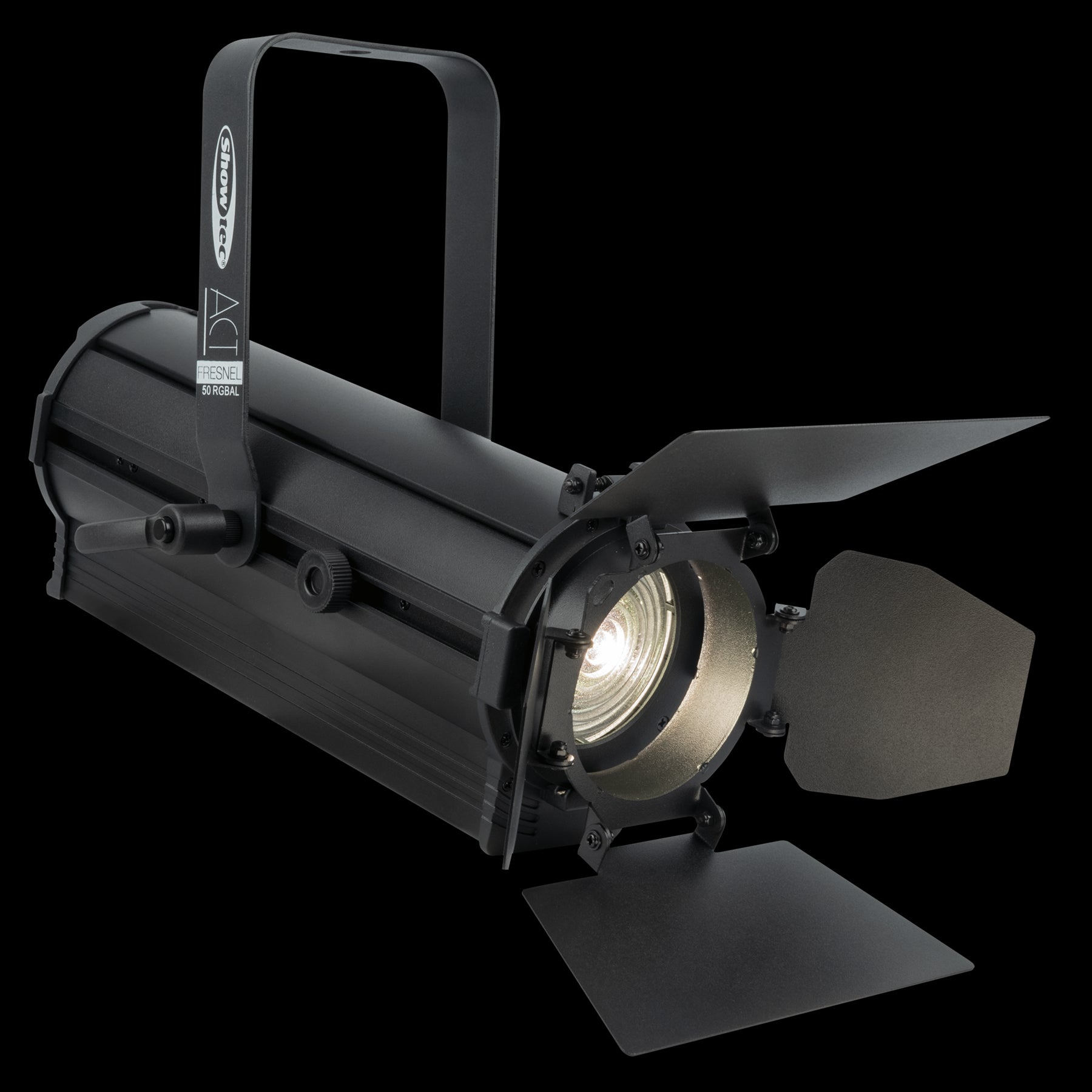

The Showtec ACT Fresnel 50 RGBAL is a compact 50-watt RGBAL COB LED Spot with high CRI (>93) and silent operation, suitable for theatrical applications, museums, and exhibitions. It uses a 150 W RGBAL light source to optimise the colour output, allowing you to create a wide gamut of colours while maintaining a high CRI. It projects a bright, soft beam of light within a wide, manually adjustable zoom range of 15°-35°. The ACT Fresnel 50 RGBAL can be controlled via DMX, RDM, and it is equipped with one knob for manual colour and dimmer control. It is supplied with a barndoor and filter frame, allowing you to shape its output.

Specifications:

Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 150 W
LED Colour Type RGBAL
Light Source System 5in1
Refresh Rate 1200 Hz
Illuminance @ 2 m 1410 lx
Illuminance @ 3 m 627 lx
Illuminance @ 5 m 226 lx
Luminous Flux (Total) 952 lm
Luminous Flux (Red) 504 lm
Luminous Flux (Green) 958 lm
Luminous Flux (Blue) 313 lm
Luminous Flux (Amber) 320 lm
Luminous Flux (Lime) 1024 lm
CRI 92
Minimum CCT 2800 K
Maximum CCT 10000 K
Optical
Beam Angle Minimum (Circular) 15 °
Beam Angle Max. (Circular) 35 °
Field Angle Minimum (Circular) 30 °
Field Angle Max. (Circular) 50 °
Zoom Type Manual
Zoom Ratio 1:2
Zoom Minimum 15 °
Zoom Maximum 35 °
Control and Programming
Control Mode DMX, Manual
DMX Channels 5, 8, 12
Protocols DMX, RDM
Display OLED
Dim Curve Linear, Square, I-Square, S-Curve
Dimmer Resolution 16 bit
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz

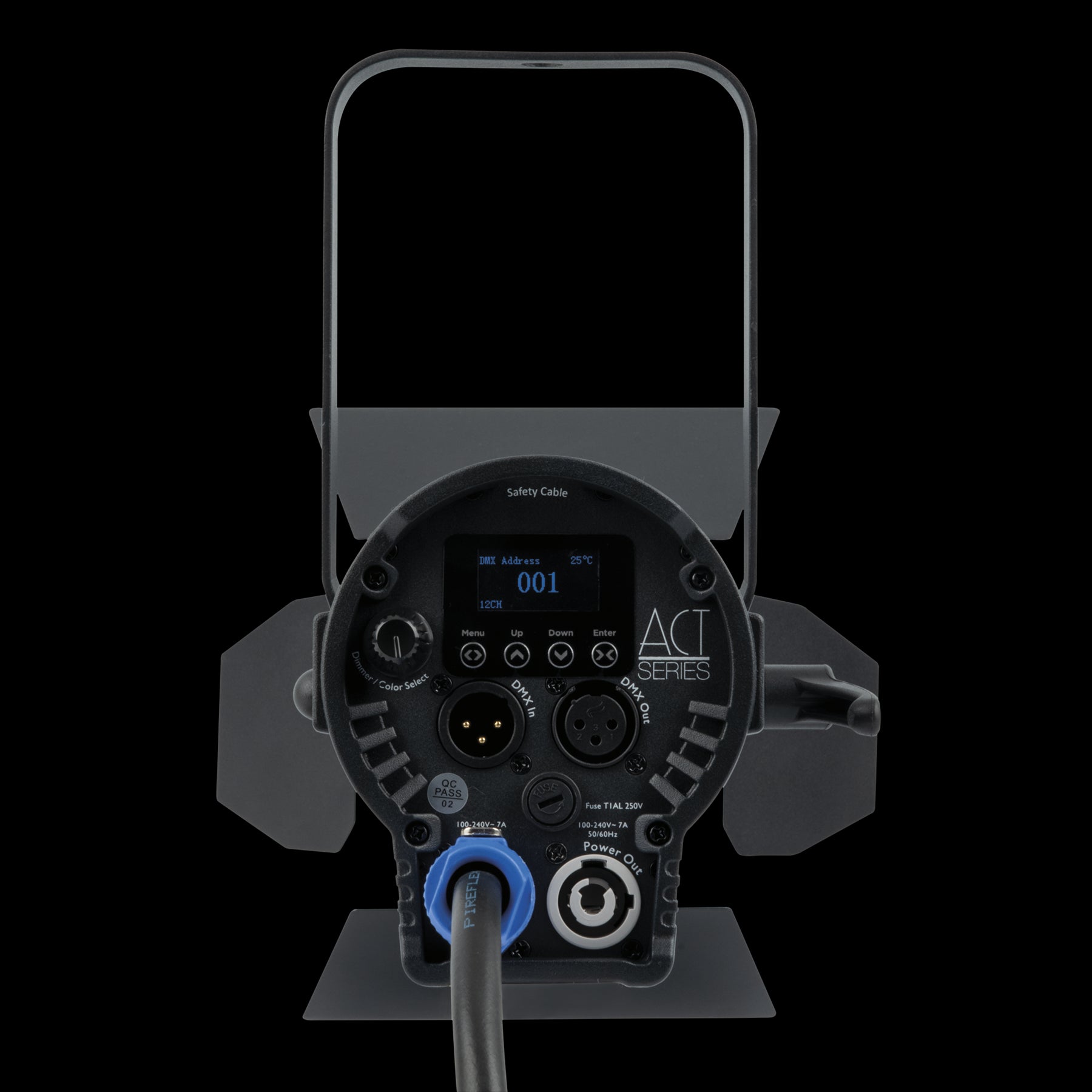

Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 52.5 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 317 mm
Width (mm) 168 mm
Height (mm) 263 mm
Weight 2.9 kg
Noise Level Maximum 363 dB
IP Rating IP20 (indoor use only)
Material ABS, Aluminium
Housing Aluminium
Colour Black
Product Properties
Cooling Forced Convection
Rigging
Mounting Options Bracket
Safety Attachment Yes
Safety Eyes 1
Thermal Specifications
Maximum Ambient Temperature 45 °C
Included Items
Included Cables Power Pro Cable
Included Accessories Barndoor, Filterframe
