Showtec ACT Fresnel 150 RGBAL Compact 150w Theatre LED Fresnel

Description:

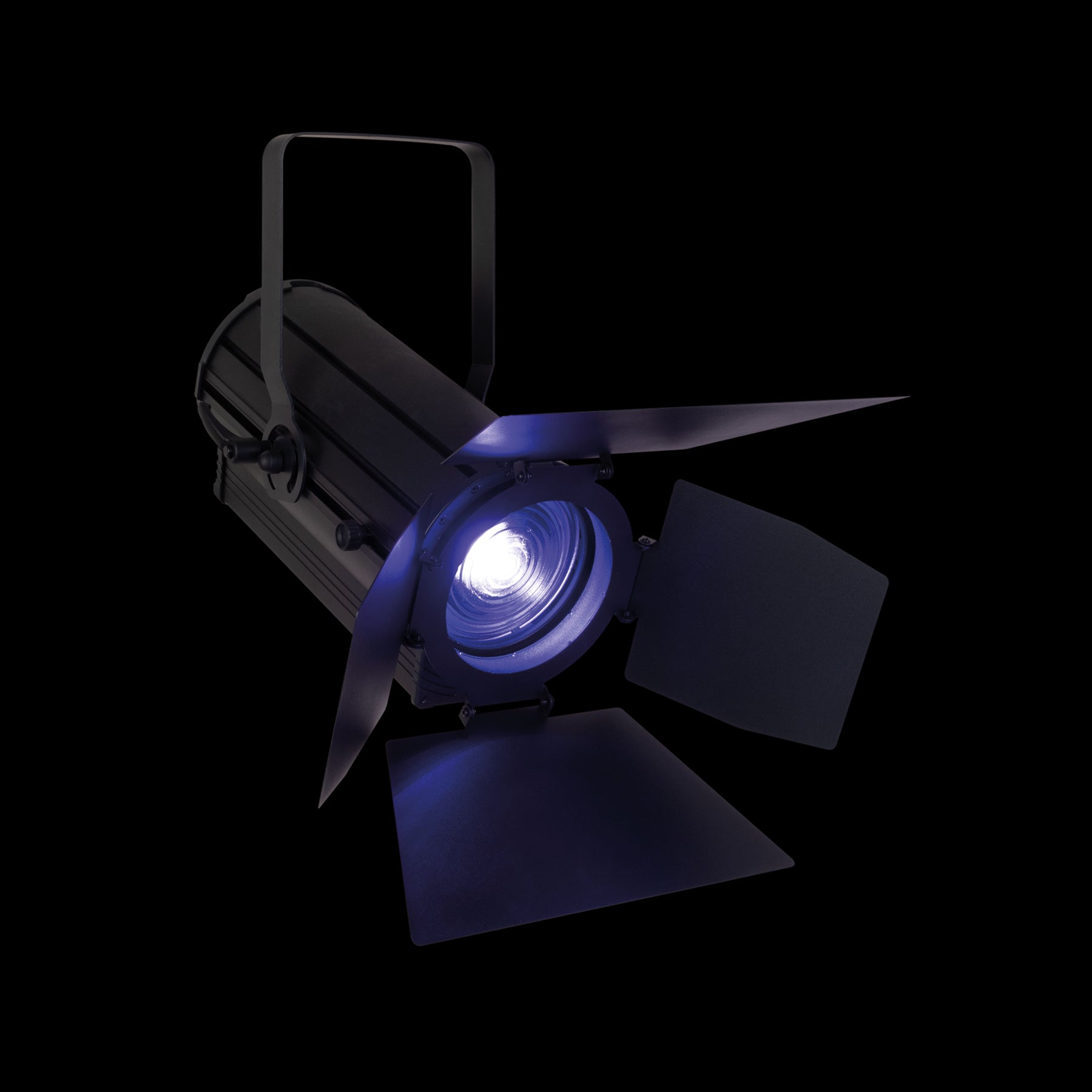

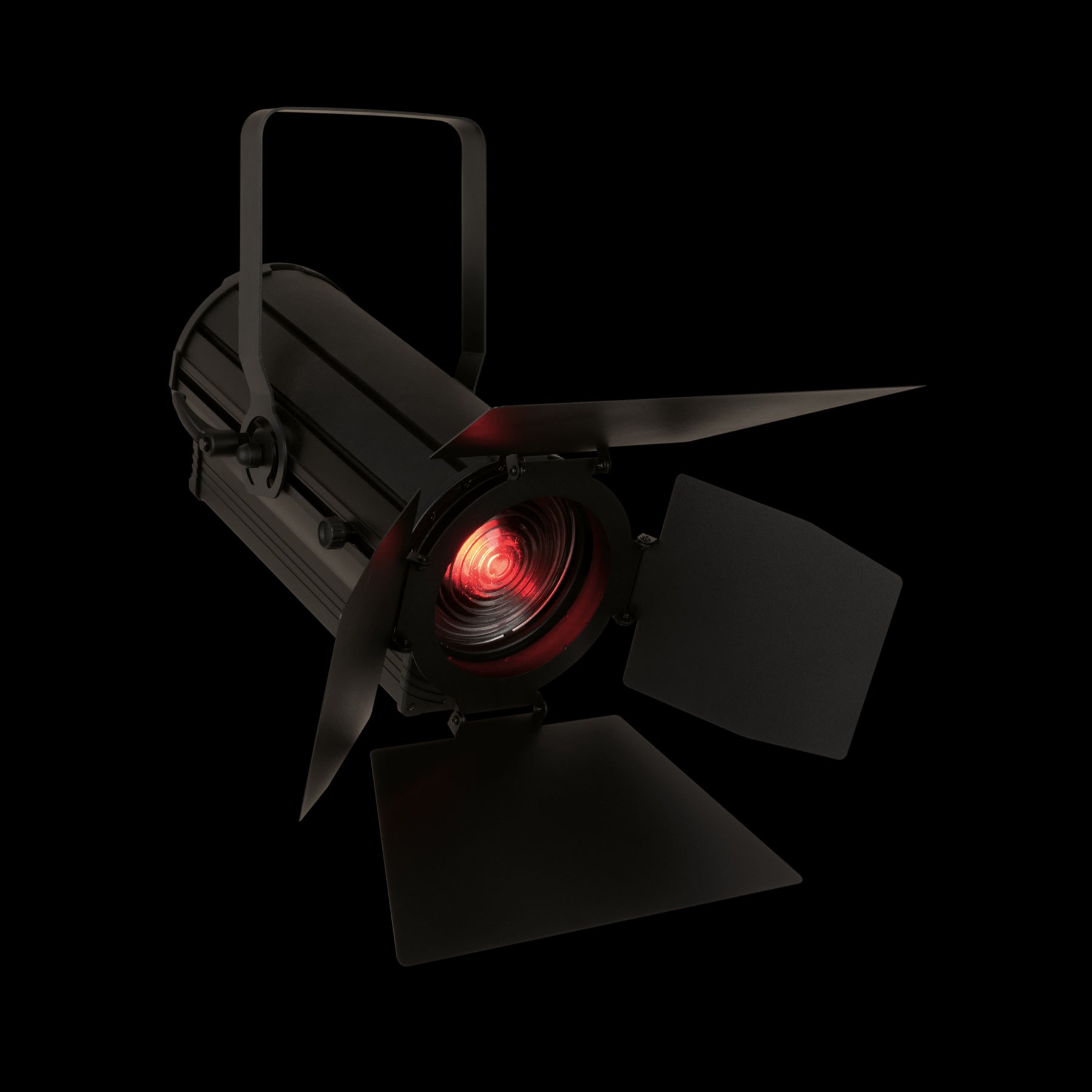

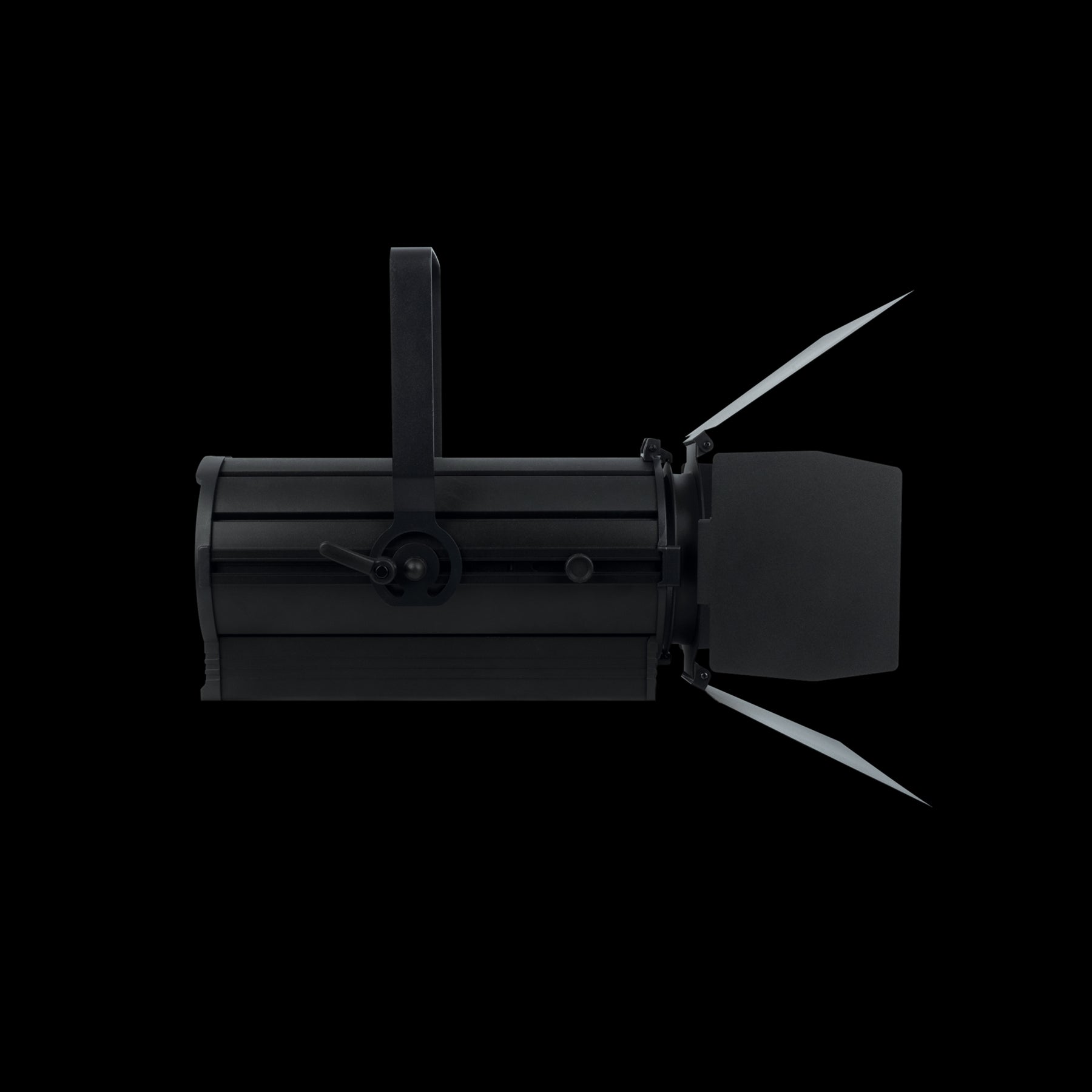

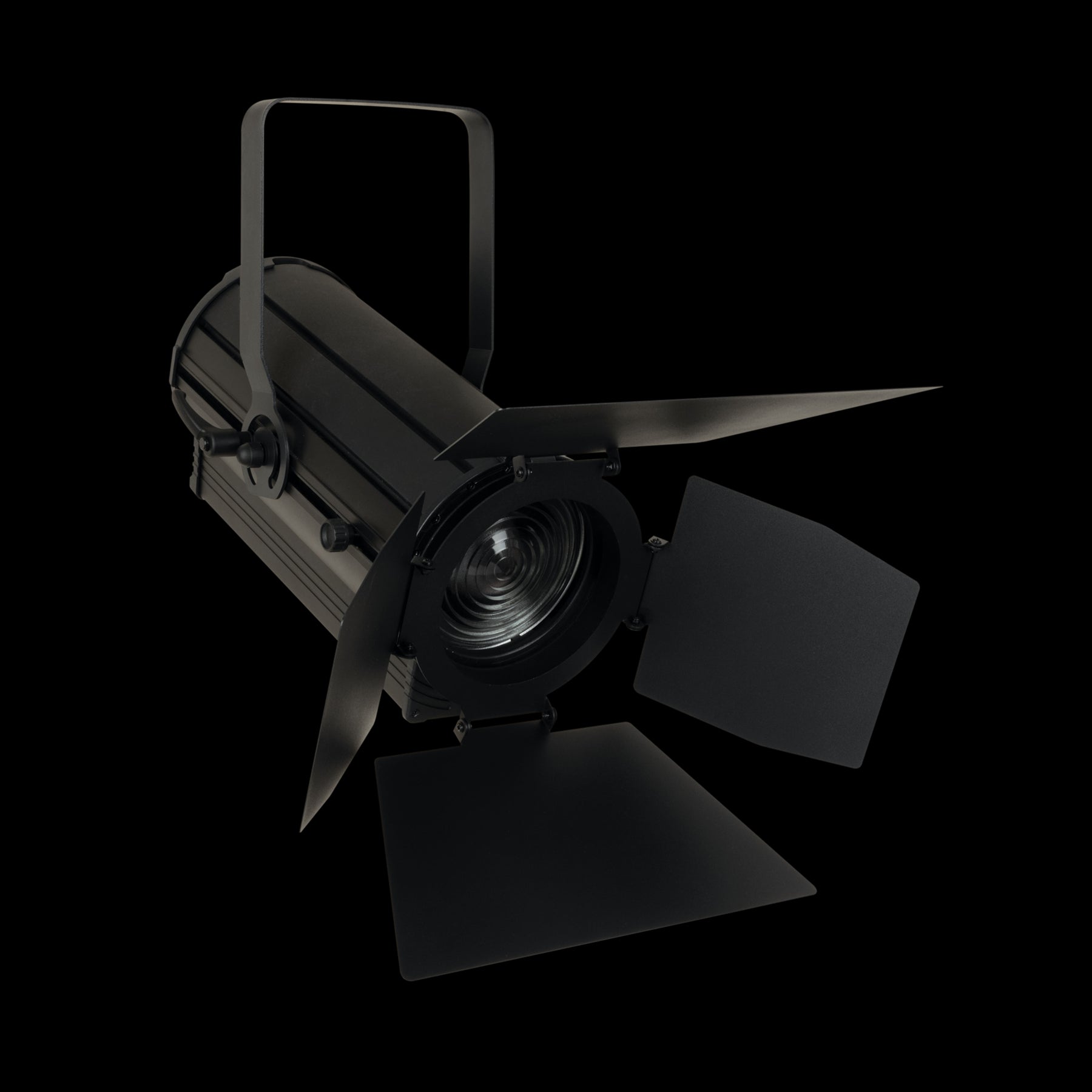

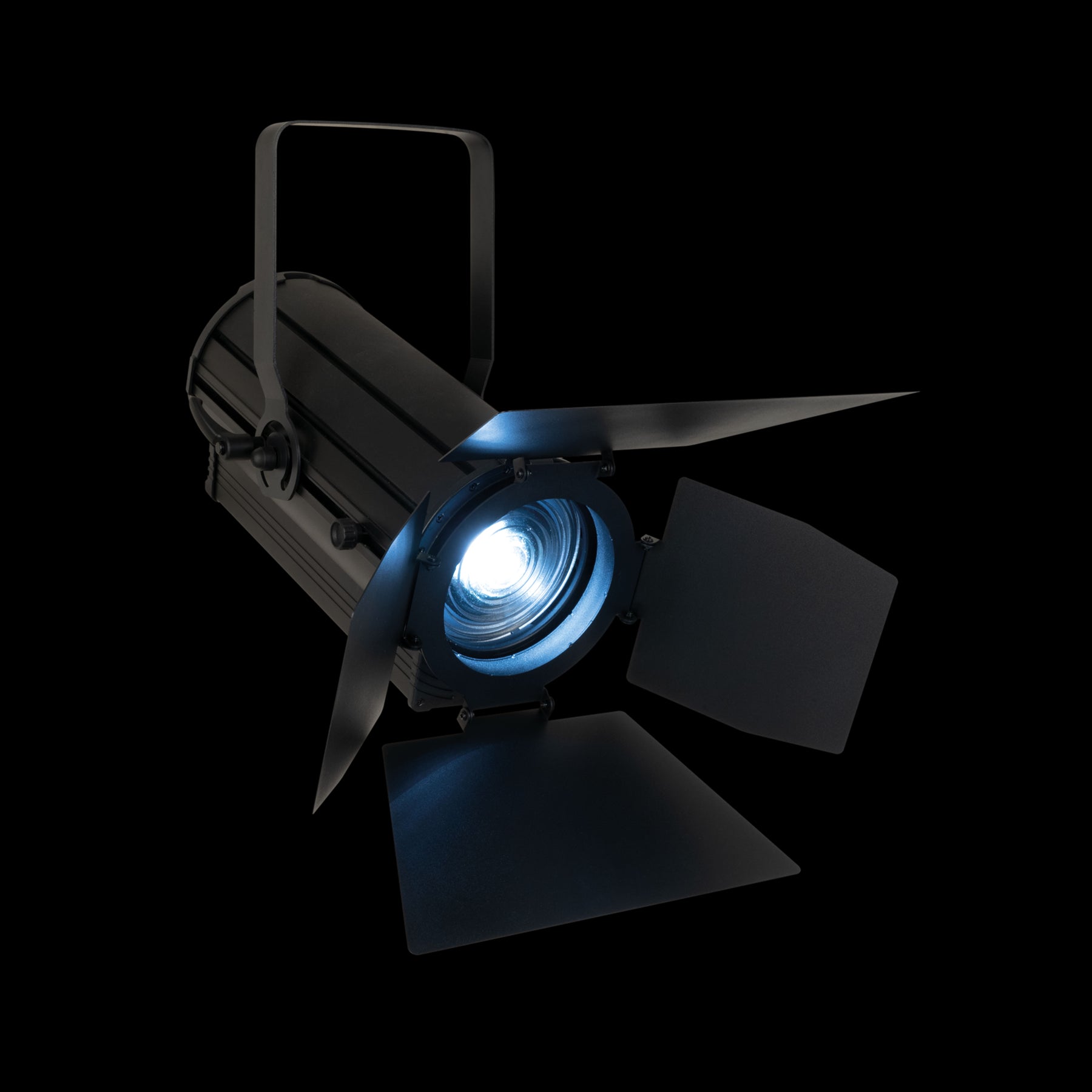

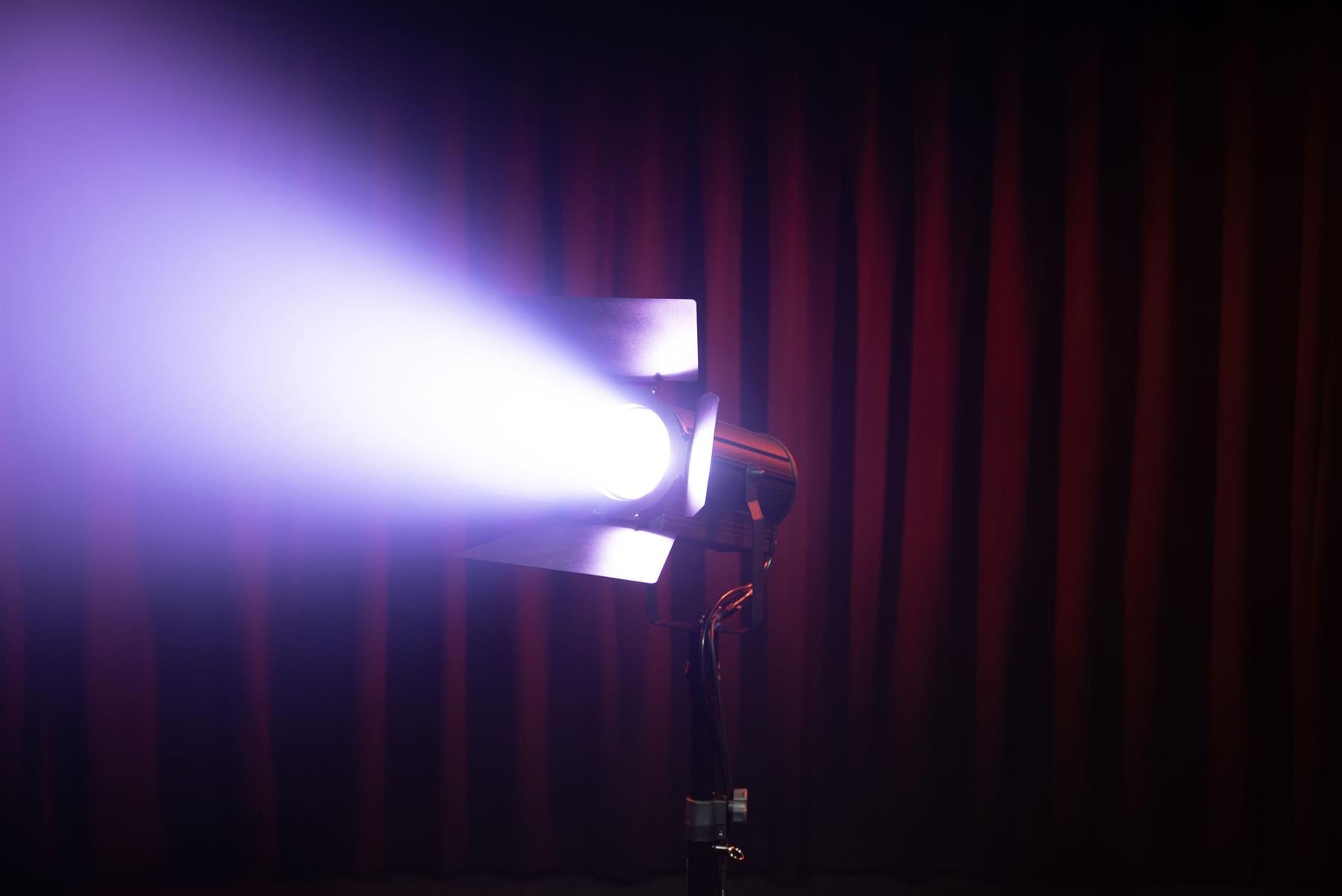

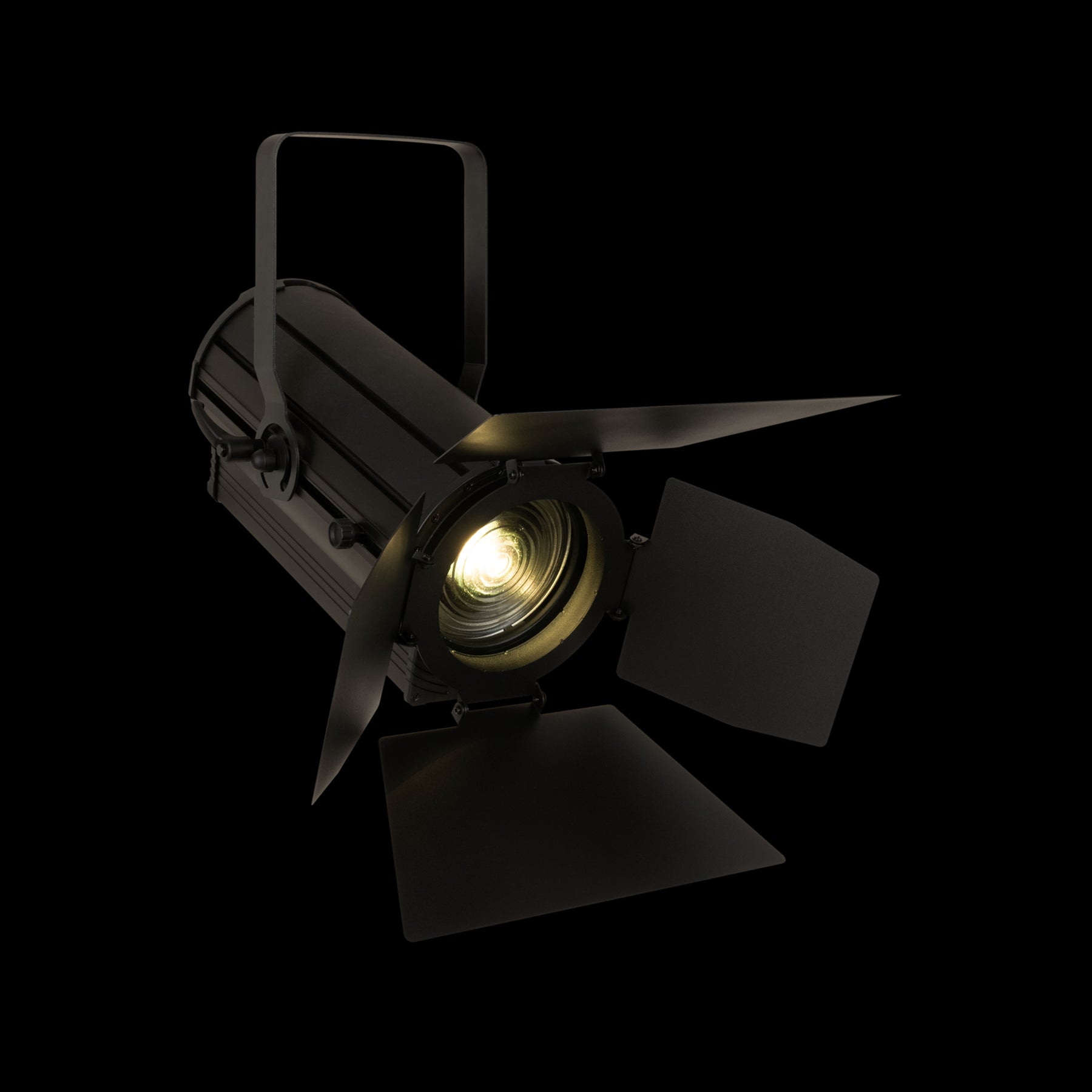

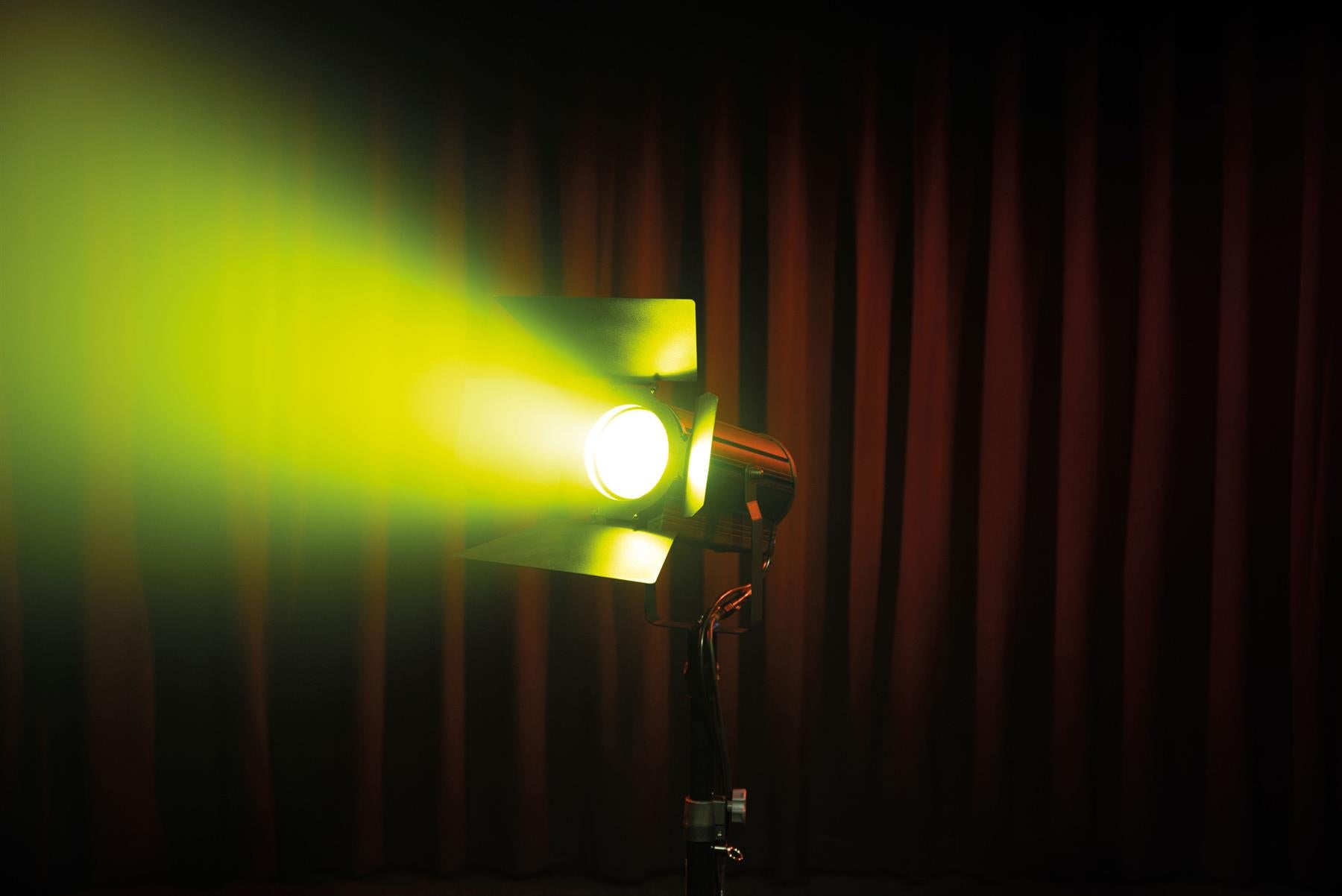

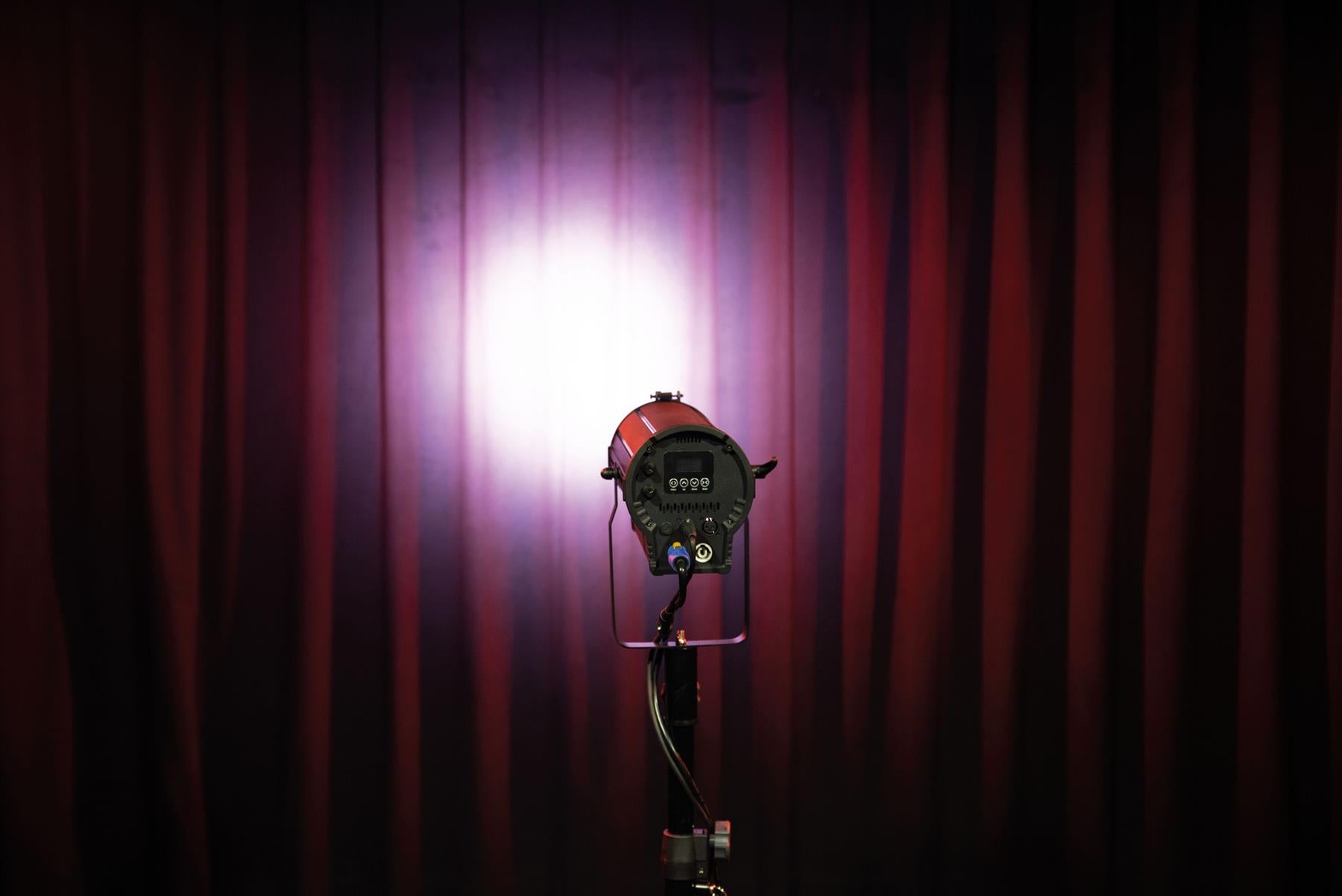

The Showtec ACT Fresnel 150 RGBAL is a compact 150-watt RGBAL COB LED Spot with high CRI (>90) and silent operation, suitable for theatrical applications, museums, and exhibitions. It uses a 280 W RGBAL light source to optimise the colour output, allowing you to create a wide gamut of colours while maintaining a high CRI. It projects a bright, soft beam of light within a wide, manually adjustable zoom range of 14°-36°. The ACT Fresnel 150 RGBAL can be controlled via DMX, RDM, and it is equipped with two knobs for manual colour and dimmer control. It is supplied with a barndoor and filter frame, allowing you to shape its output.

Specifications:

Source Light Source Type
LED
Light Source Quantity 1
Light Source Power 280 W
LED Colour Type RGBAL
Light Source System COB
Illuminance @ 2 m 7665 lx
Illuminance @ 3 m 3407 lx
Illuminance @ 5 m 1226 lx
Luminous Flux (Total) 2355 lm
CRI 93
Minimum CCT 2700 K
Maximum CCT 10000 K
Optical
Field Angle Minimum (Circular) 23 °
Field Angle Max. (Circular) 53°
Zoom Type Manual
Zoom Ratio 1:3
Zoom Minimum 14°
Zoom Maximum 36°
Control and Programming
Control Mode DMX, Manual
DMX Channels 5, 8, 12
Protocols DMX
Display OLED
Dimmer Resolution 16 bit
Dynamic Effects
Dimmer 0-100 %

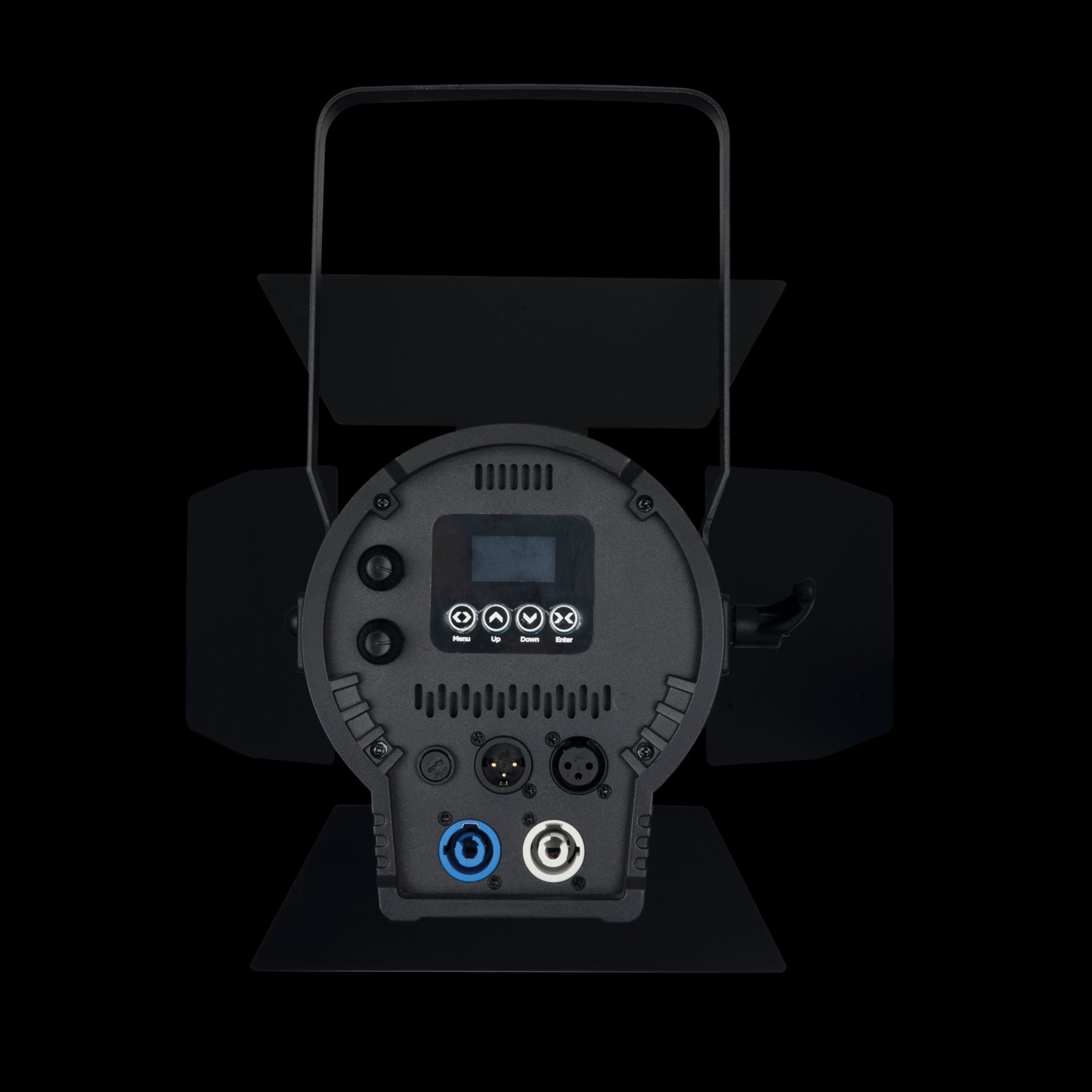

Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 176 W
Fuse 3.15 A

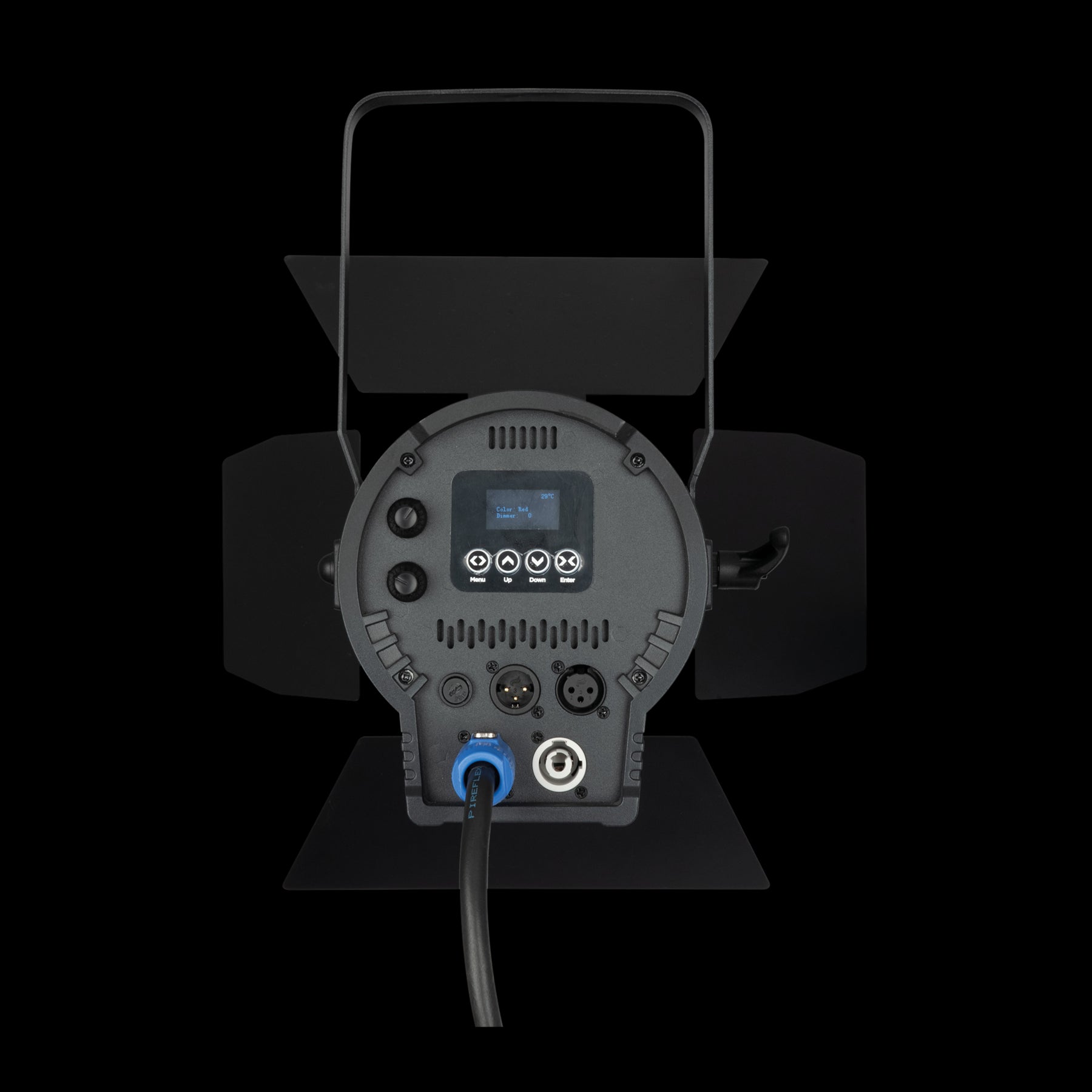

Power Connector In
Power Pro Blue
Power Connector Out
Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 362 mm
Width (mm) 220 mm
Height (mm) 343 mm
Weight 5.9 kg
IP Rating IP20 (indoor use only)
Material Aluminium
Housing Aluminium
Colour Black
Product Properties
Cooling Forced Convection
Rigging Mounting Options
Bracket
Safety Attachment Yes
Safety Eyes 1
Thermal Specifications
Maximum Ambient Temperature 40 °C
Included Items
Included Cables Power Pro Cable
Included Accessories Barndoor, Colour frame
