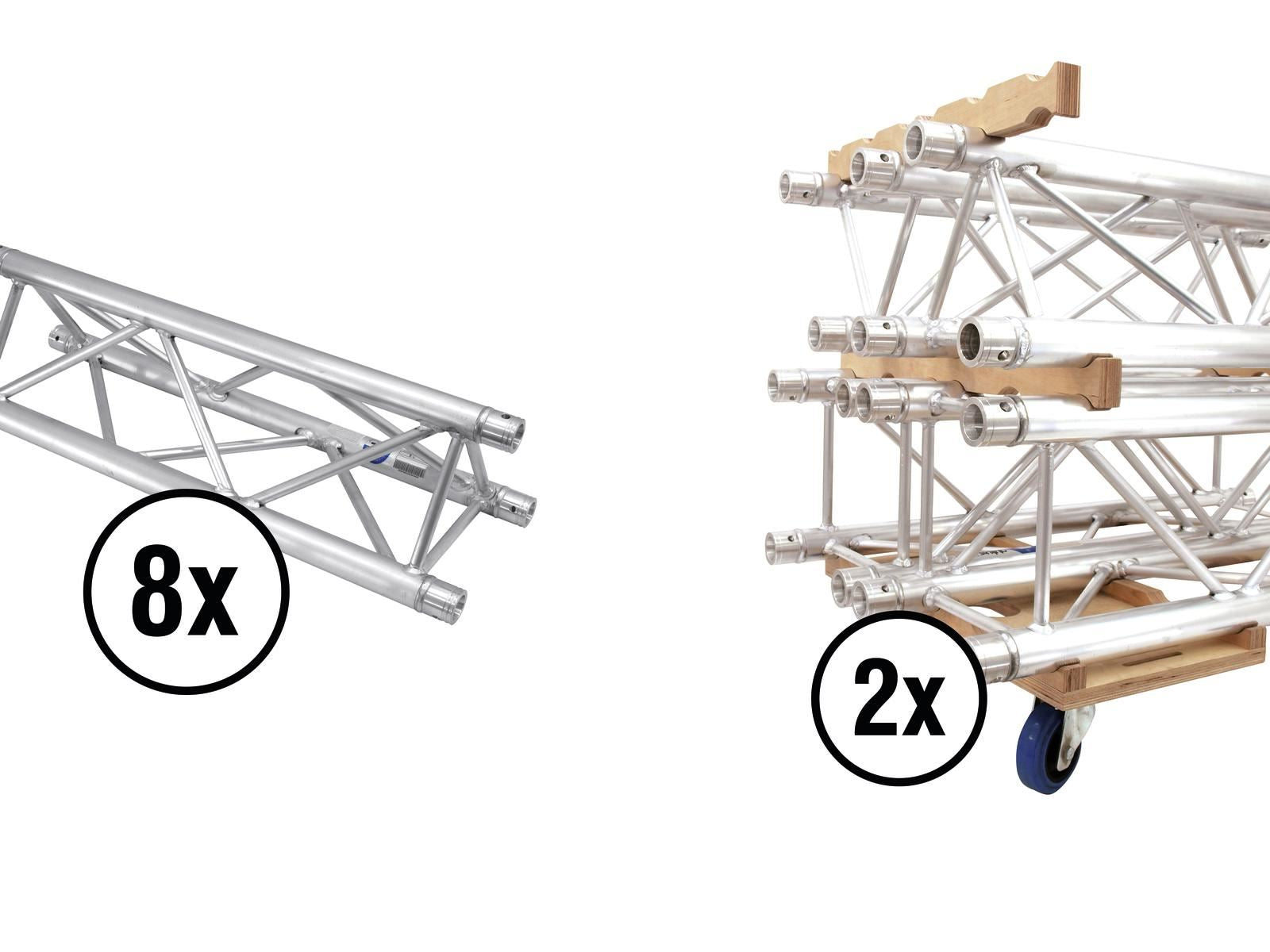

ALUTRUSS Set TRILOCK 6082-2000 + Truss transport board

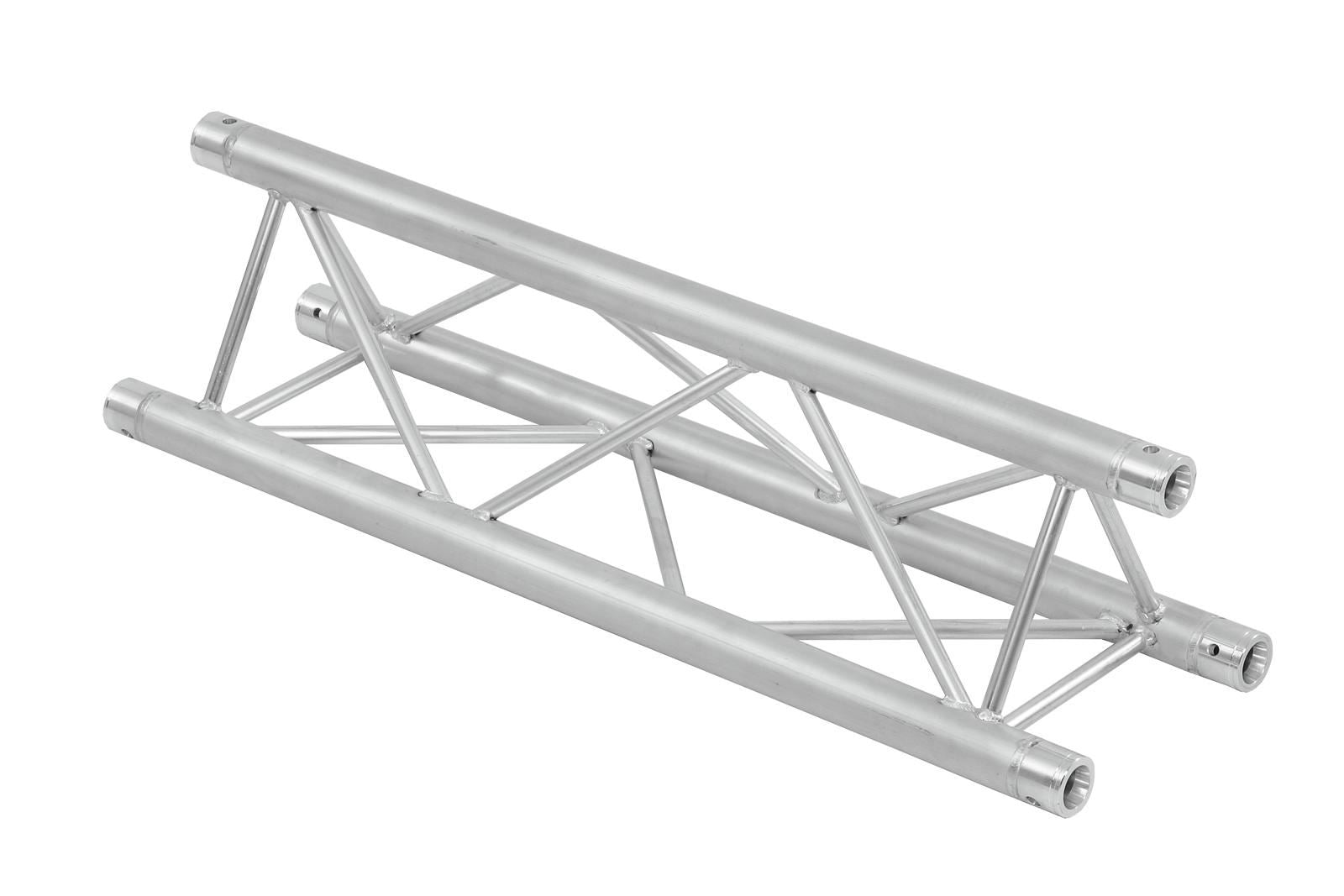

ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam

3-point truss system

• Easy installation
• Low weight
• For exhibition and shop installers, discotheque and theatre installations
• 1 x Connection set included
• Trusspipe: 50 mm
• TÜV Süd certified

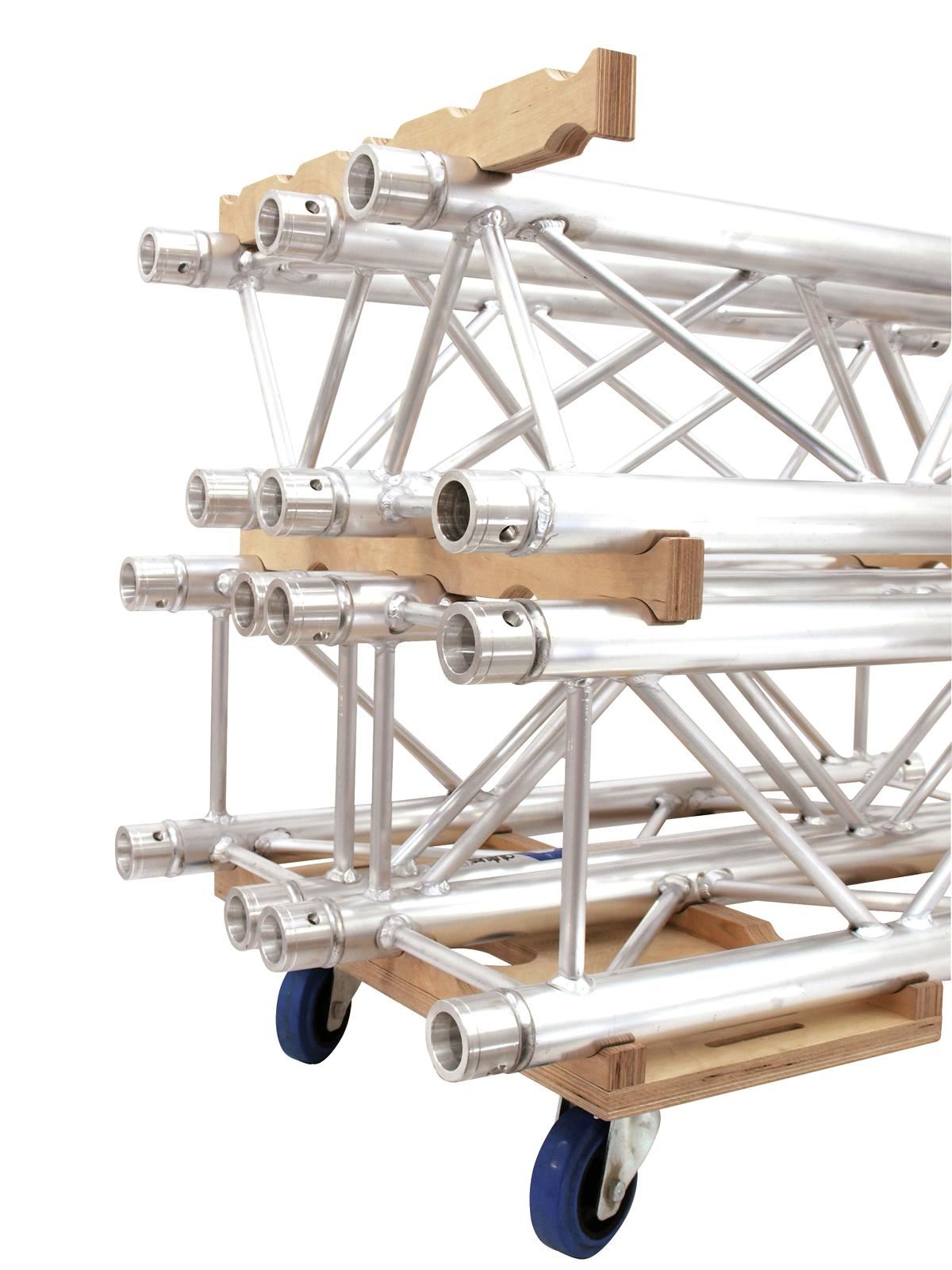

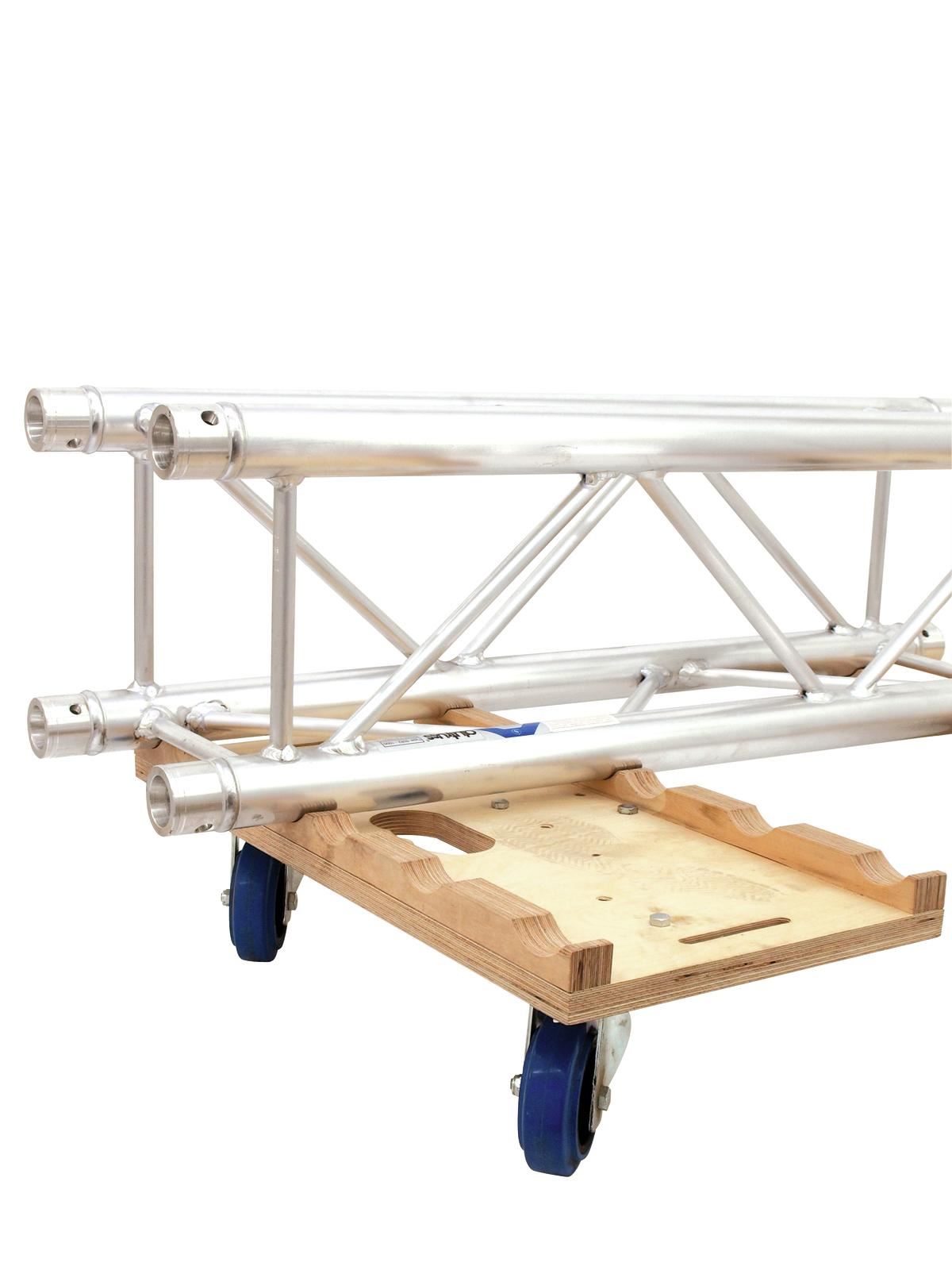

ALUTRUSS Truss Transport Board Combo for 3 Wheels

Transport cart for QUADLOCK and TRILOCK truss elements

• Practical transport cart made of multiplex wood (15 mm)
• Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
• Quick and secure stacking with optional stacking ridges
• Cut-outs for safety bands for safe transport of the truss elements
• Grip hole
• 12 borings for mounting castors (optional)
• The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)
• Made in Germany

ROADINGER Swivel Castor 100mm BLUE WHEEL light blue

100 mm swivel castor

• Double ball race
• Housing made of steel, zinc-plated
• Blue elastic tyre
• Roller race hub bearing
• Replaceable bolt-on wheel
• Height: 128 mm
• Carrying capacity: 450 kg per set (4 castors)
• Made in Germany

ROADINGER Swivel Castor 100mm BLUE WHEEL with brake

100 mm swivel castor

• Double-action brake (wheel and swivel)
• Double ball race
• Housing made of steel, zinc-plated
• Blue elastic tyre
• Roller-race hub bearing
• Replaceable bolt-on wheel
• Height: 128 mm
• Carrying capacity: 450 kg per set (4 castors)
• Made in Germany

ROADINGER Bolt Set for Wheels

Complete set (4 x screw, 4 x nut, 4 x washer)

• Screw: hexagon screw M8 x30 DIN933 galvanized
• Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
• Washer: FormA 8,4 DIN125 galvanized

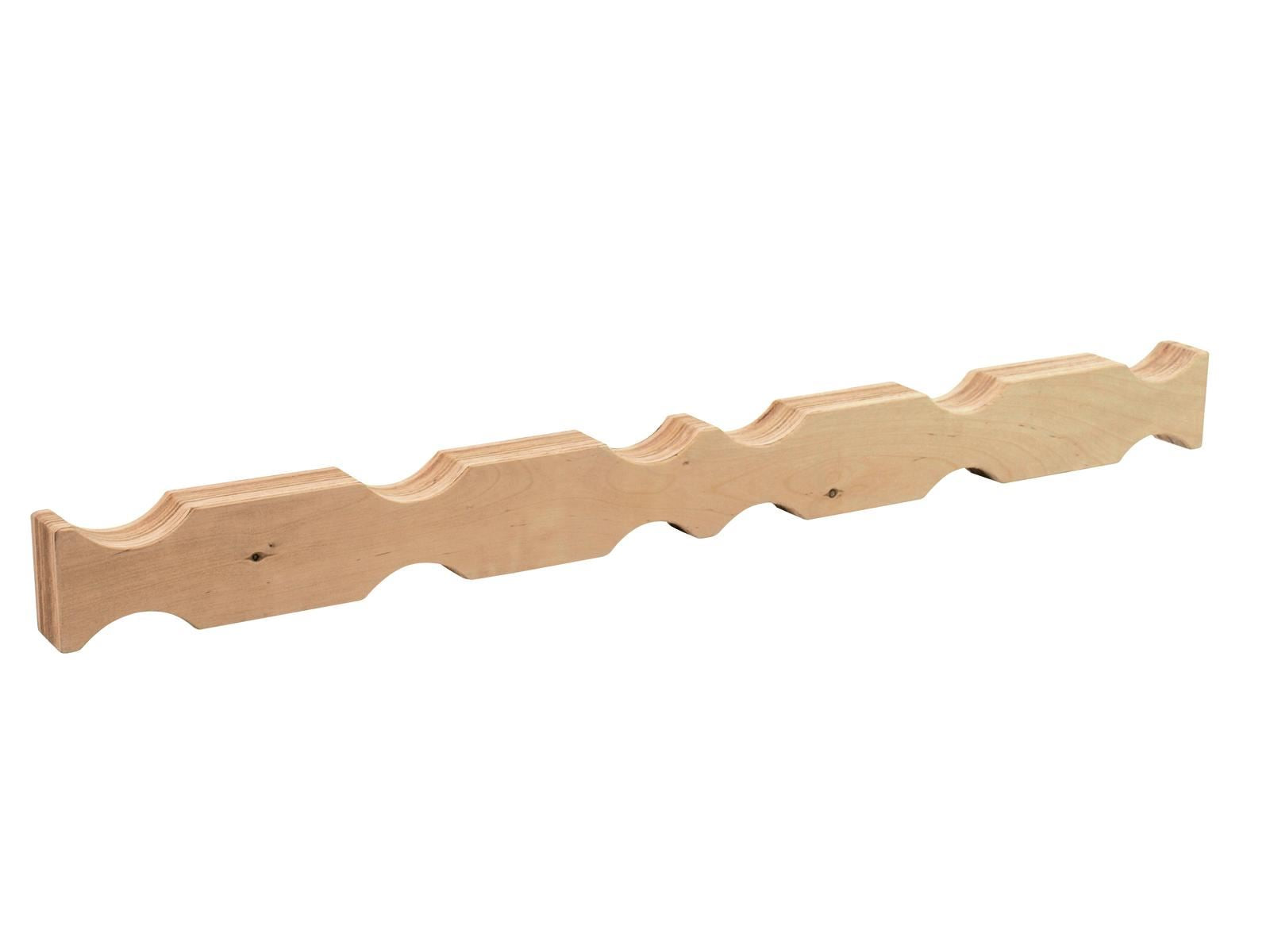

ALUTRUSS Truss Transport Ridge Combo

Stacking rail for QUADLOCK and TRILOCK truss elements

• Stacking ridge for quick and secure stacking of truss elements on matching transport carts
• Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
• Multiplex wood (30 mm)
• Made in Germany

SHZ Clamping Belt S400 Ratchet 5m/25mm black

Clamping belt

• 1-part
• LC400/800daN surroundings
• With ratchet
• Weight: 79,58 kg
• ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam
• Trusspipe: 50 mm x 2 mm
• Welding technique: TIG-welding
• Welding material: AlMg 5
• Color: Alu colored
• Strut diameter x thickness: 16 x 2mm
• Dimensions: Length: 2 m
• Width: 29 cm
• Height: 25,70 cm
• Weight: 8,20 kg
• ALUTRUSS Truss Transport Board Combo for 3 Wheels
• Maximum load: 6 truss systems vertical (height approx. 2.10 m)
• Dimensions: Length: 60 cm
• Width: 30 cm
• Height: 4,10 cm
• Weight: 2,19 kg
• ROADINGER Swivel Castor 100mm BLUE WHEEL light blue
• Color: Light blue
• Dimensions: Diameter: Ø 10 cm
• Weight: 660 g
• ROADINGER Swivel Castor 100mm BLUE WHEEL with brake
• Color: Light blue
• Dimensions: Diameter: Ø 10 cm
• Weight: 930 g
• ROADINGER Bolt Set for Wheels
• Weight: 90 g
• ALUTRUSS Truss Transport Ridge Combo
• Dimensions: Length: 60 cm
• Width: 3 cm
• Depth: 5 cm
• Weight: 500 g
• SHZ Clamping Belt S400 Ratchet 5m/25mm black
• Standard: EN 12195-2,
• Color: Black
• Dimensions: Length: 5 m
• Width: 2,50 cm
• Weight: 300 g
