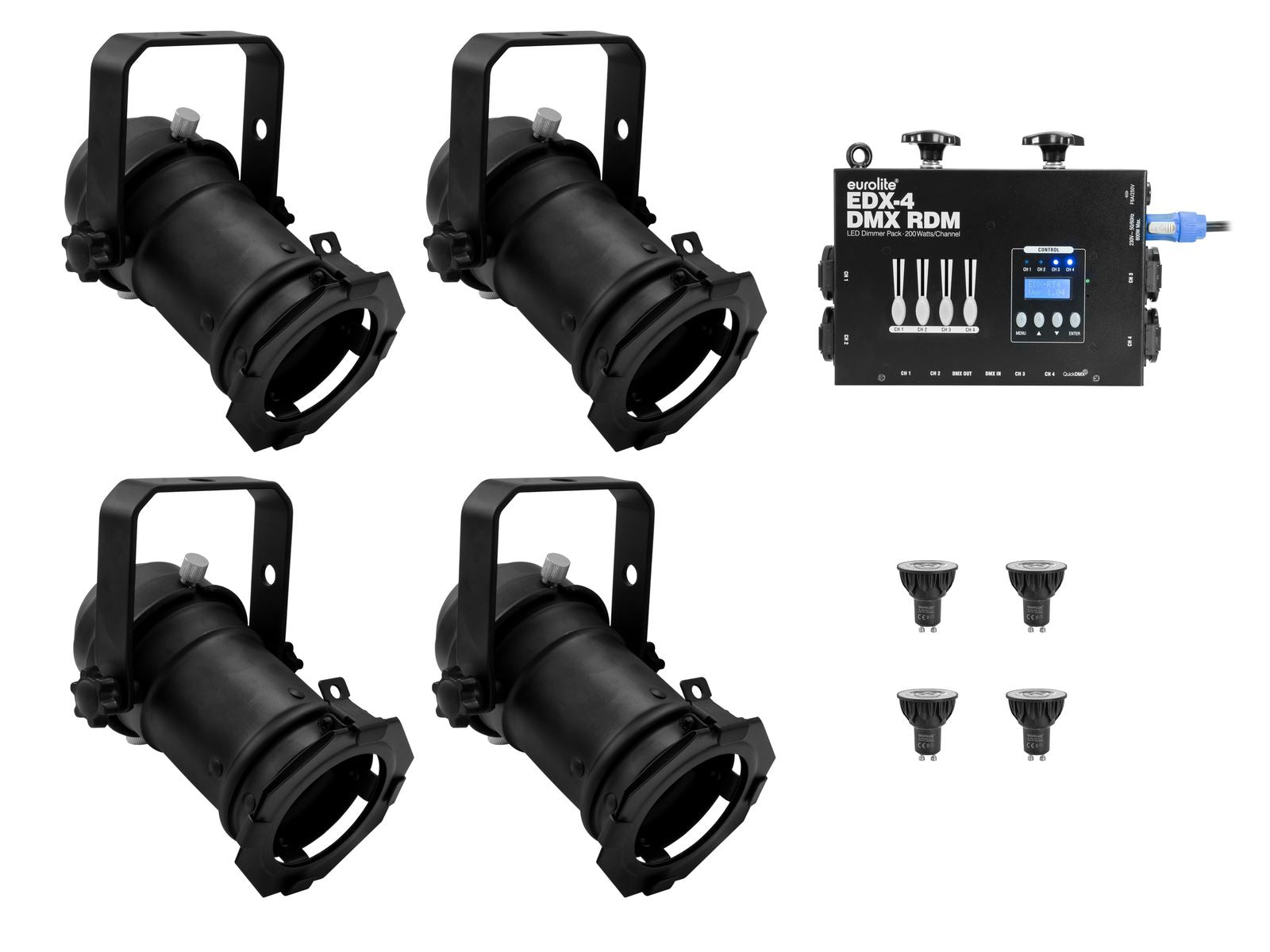

EUROLITE Set 4x PAR-16 Spot bk dim2warm + EDX-4 DMX RDM LED Dimmer pack

EUROLITE PAR-16 Spot GU-10 black

PAR-16 housing with GU-10 socket (with plug + cable)

• Mini-spot for GU-10 lamp
• Length approx. 15 cm
• Operating voltage 230 V - without transformer
• Allowed for a maximum lamp power of 75 W
• Color-filters attachable
• Via color filter frame
• Controlling by plug and play
• For PAR 16

OMNILUX GU-10 230V COB 5W LED 1800-3000K dim2warm

LED lamp with modern dim-to-warm feature

• For GU-10 socket
• Dimming behaviour comparable with incandescent and halogen lamps (dim-to-warm)
• Changes the light color from 3000 K (warm white) to 1800 K (extra warm white) when dimming
• Creates particularly cosy atmospheres
• Easy lamp replacement
• Energy-saving
• Environmentally friendly
• Easy installation
• Very high color rendering index (CRI)

EUROLITE EDX-4 DMX RDM LED Dimmer Pack

4-channel dimmer for LED lights with 230 V operation

• Trailing edge dimmer with 4 channels
• Max. channel load 200 watts
• DMX, automatic and music mode
• Independent DMX addressing per channel possible
• QuickDMX connector for wireless DMX connection
• 16 integrated chaser programs with adjustable speed
• Dimmer or switch operation
• 4 channel faders for control on the device
• Control panel with LC display for easy configuration
• LED status indication for each output channel
• 2 x M10 flying point
• Power input and output for easy power linking
• Can be operated in 1 4 6 CH mode
• Controlling by RDM stand-alone Sound to light via Microphone DMX QuickDMX via USB (optional) W-DMX by wireless solution via USB (optional) CRMX by LumenRadio via USB (optional)
• Weight: 4,01 kg
• Legal specifications
• Energy efficiency class (A - G): F
• EUROLITE PAR-16 Spot GU-10 black
• Power supply: 230 V AC, 50 Hz
• Power consumption: Max. 75 W
• IP classification: IP20
• Protection class: Class I
• Power connection: Fixed power supply cord with safety plug
• Cable length: Approx. 0,4 m
• Base: GU10
• Lamp type: Selectable
• Color generation: Via color filter frame
• Control: Plug and play
• Housing color: Black
• Material: Aluminum, 1 mm
• Slot for spot length: 7,8 cm x 7,8 cm
• Dimensions: Length: 17 cm
• Width: 11 cm
• Height: 13 cm
• Weight: 300 g
• Mounting bracket
• Diameter mounting holes: 2 x 10 mm
• Material: Aluminum, 3 mm
• Filter frame
• Material: Aluminum
• Dimensions: Length: 7,8 cm
• Width: 7,8 cm
• Diameter: Ø 5,3 cm
• Weight: 10 g
• Legal specifications
• Nominal wattage: 50.00 W
• Energy consumption: 50.00 kWh/1000h
• OMNILUX GU-10 230V COB 5W LED 1800-3000K dim2warm
• Operating voltage: 230 V, 220 - 240 V
• Nominal wattage: 5 W
• Base: GU10
• Lamp type: LED lamp
• Lamp specification: Dimmable
• Beam angle: 60°
• Color of light: White
• Color temperature: 1800K - 3000K adjustable
• Color rendering index (CRI) more than: 95 Ra
• Operating temperature max.: 40° C
• Operating temperature min.: 20° C
• Lamp life: 15000 h
• Luminous flux: 400 lm
• Wavelength: 640 nm
• Weight: 40 g
• Legal specifications
• Energy efficiency class (A - G): F
• EUROLITE EDX-4 DMX RDM LED Dimmer Pack
• Power supply: 230 V AC, 50 Hz
• Output power: Max. 200 W per channal
• Max. 800 W
• Power connection: Mains input P-Con (blue), mounting version power supply
• cord with safety plug
• Power output: 4 x Safety contact (F), hinged lid mounting version
• 1 x PowerCON (gray), mounting version Bypass
• DMX channels: 1 4 6
• DMX input: 3-pin XLR (M)
• DMX output: 3-pin XLR (F)
• Control: RDM stand-alone Sound to light via Microphone DMX QuickDMX via
• USB (optional) W-DMX by wireless solution via USB (optional) CRMX by
• LumenRadio via USB (optional)
• Control channels: 4
• Flying points: 2 x M10 thread
• Display type: LCD display
• Color: Black
• Dimensions: Width: 21 cm
• Depth: 29 cm
• Height: 9 cm
• Weight: 2,65 kg
