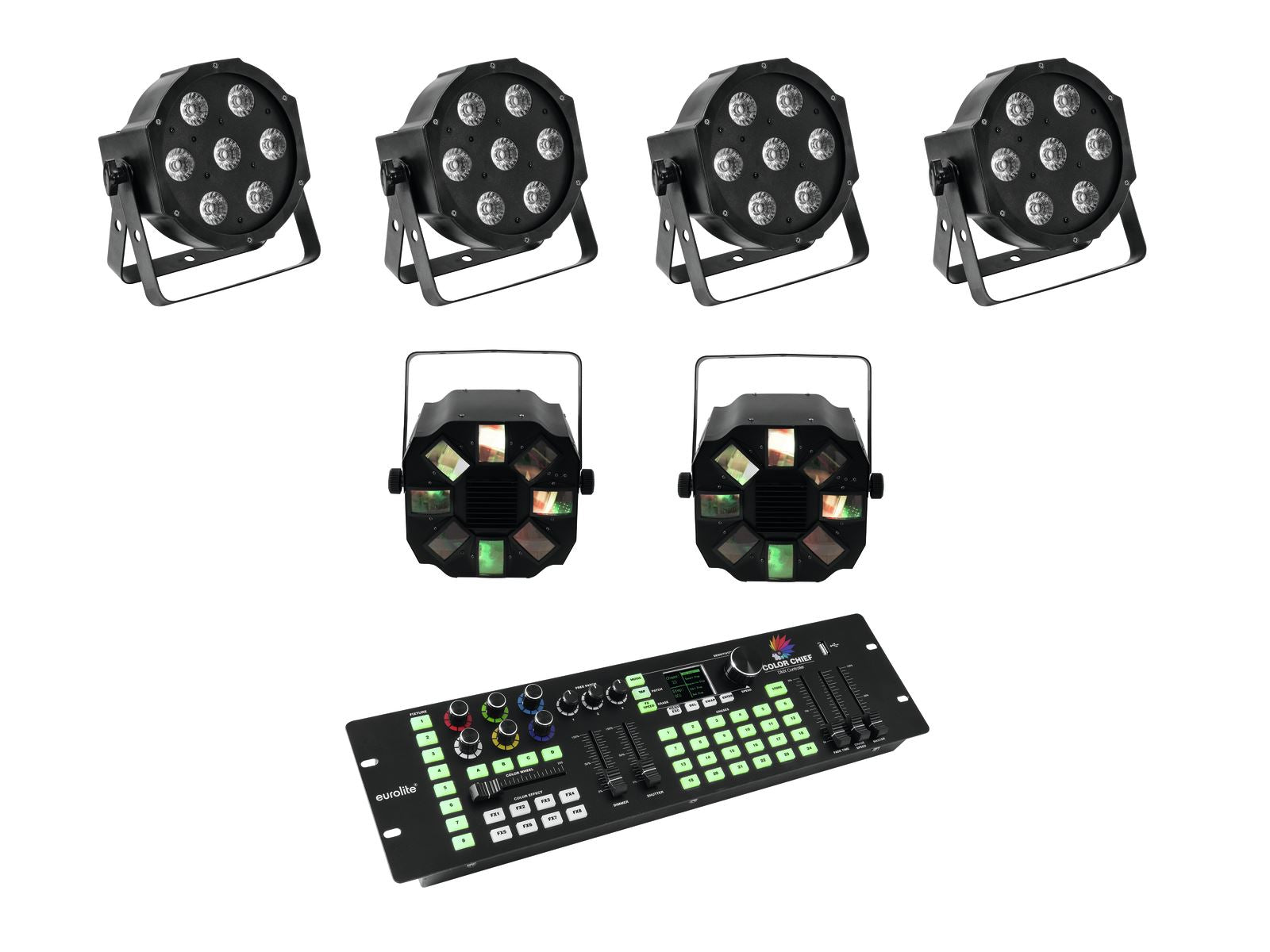

EUROLITE Set 4x LED SLS-7 HCL Floor + 2x LED FE-700 + DMX LED Color Chief Controller

4x LED spotlight, 2x DMX lighting effect with beams including DMX lighting desk

EUROLITE LED SLS-7 HCL Floor

Flat LED spotlight with RGBWA+UV color mixing, incl. IR remote control

• Slim design for space-saving applications
• 7 high-power 10 W RGBAW/UV LEDs (6in1)
• Enjoy perfect solid and pastel colors plus ultra violet thanks to 6-color mixing
• Built-in auto and music show programs
• Direct color selection for 19 preset colors
• Stepless color blend, color change, color fade, dimmer and strobe effect
• Control panel with LED display for easy configuration
• Convenient wireless control via included IR remote control
• Flat, lightweight ABS housing with rubber feet
• Sits flat on the floor or inside a truss
• DMX and power terminals intelligently designed for easy wiring
• Swivel mounting bracket
• Additional bracket for floor use
• Mains input and output for power linking up to 8 units
• Available in white or black
• LED: 7 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
• Can be operated in 2 3 4 6 10 CH mode
• The device is cooled by cooling fan
• Controlling by stand-alone DMX Sound to light via Microphone Master/slave function
• Preprogrammed in Light´J LED PC-Control 512 EASY SHOW LED EASY OPERATOR 4x6 LED EASY OPERATOR DELUXE
• Flicker-free projection
• Effect: Strobe effect UV effect

EUROLITE LED FE-700 Flower Effect

DMX lighting effect with beams in the colors R, G, B, W, A and P, incl. IR remote control

• Precision lenses fill the room with rotating beams in different color combinations
• 6 high-power 3 W LEDs in red, green, blue, amber, white and pink
• Auto, music, master/slave and DMX mode
• 3 built-in auto and music show programs
• Rotation speed variably adjustable
• Direct color selection for 25 preset colors
• Strobe effect
• Control panel with LED display for easy configuration
• Convenient wireless control via included IR remote control
• Swivel mounting bracket
• Mains input and output for power linking up to 8 units
• LED: 6 x high-power 3 W R/G/B/W/A/P
• Can be operated in 3 10 CH mode
• The device is cooled by passive convection
• Controlling by stand-alone DMX IR remote control Sound to light via Microphone Master/slave function
• Preprogrammed in Light´J LED PC-Control 512 EASY SHOW
• Effect: Multi beam effect flower effect

EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already in the library
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases can be run simultaneously
• USB port for storing program data
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Programmable 24 sequencens
• Can transmit up to 240 DMX channels
• Controlling by DMX Sound to light via RCA (F) mounting version Sound to light via Microphone
• (19") 48.3 cm rack installation 3 U
• Weight: 14,77 kg
• EUROLITE LED SLS-7 HCL Floor
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 20 W
• IP classification: IP20
• Power connection: Mains input IEC connector (M) mounting version power
• supply cord with safety plug (provided)
• Power output: 1 x IEC connector (F) mounting version
• Lamp type: LED lamp
• LED: 7 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
• Flash rate: 0 - 20 Hz
• DMX channels: 2 3 4 6 10
• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: Stand-alone DMX Sound to light via Microphone Master/slave
• function Light´J LED PC-Control 512 EASY SHOW LED EASY OPERATOR 4x6
• LED EASY OPERATOR DELUXE
• Beam angle: 17°
• Beam angle (1/2 peak): 17°
• Beam angle (1/10 peak): 39°
• Housing color: Black
• Dimensions: Width: 22 cm
• Depth: 11 cm
• Height: 21 cm
• Weight: 1,38 kg
• Noise classification: Class 1 (very slight noise, suitable for noise-
• sensitiveenvironments)
• Remote control
• Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
• EUROLITE LED FE-700 Flower Effect
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 24 W
• IP classification: IP20
• Power connection: Mains input IEC connector (M) mounting version power
• supply cord with safety plug (provided)
• Power output: 1 x IEC connector (F) mounting version
• Lamp type: LED lamp
• LED: 6 x high-power 3 W R/G/B/W/A/P
• DMX channels: 3 10
• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Passive convection
• Control: Stand-alone DMX IR remote control Sound to light via Microphone
• Master/slave function Light´J LED PC-Control 512 EASY SHOW
• Housing color: Black
• Display type: 4 digits 7-segment LED display
• Dimensions: Width: 30 cm
• Depth: 20 cm
• Height: 31 cm
• Weight: 3,50 kg
• Noise classification: Class 2 (slight noise)
• Remote control
• Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
• Legal specifications
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
• EUROLITE DMX LED Color Chief Controller
• Power supply: 100-240 V AC, 50/60 Hz
• 9 V DC 800 mA
• Power consumption: 10 W
• IP classification: IP20
• Power connection: Mains input Coaxial power connector (M) power supply
• cord with AC adapter (provided)
• Programs: Programmable
• 24 Sequences
• DMX channels: Output 240
• DMX output: 1 x 3-pin XLR (F) mounting version
• Control: DMX Sound to light via RCA (F) mounting version Sound to light via
• Microphone
• Housing color: Black
• Available storage media: USB devices (FAT 32)
• USB port: Typ A
• Color: Black
• Housing design: (19") 48.3 cm rack installation 3 U
• Dimensions: Width: 48,3 cm
• Depth: 13,35 cm
• Height: 8,5 cm
• Weight: 2,25 kg
