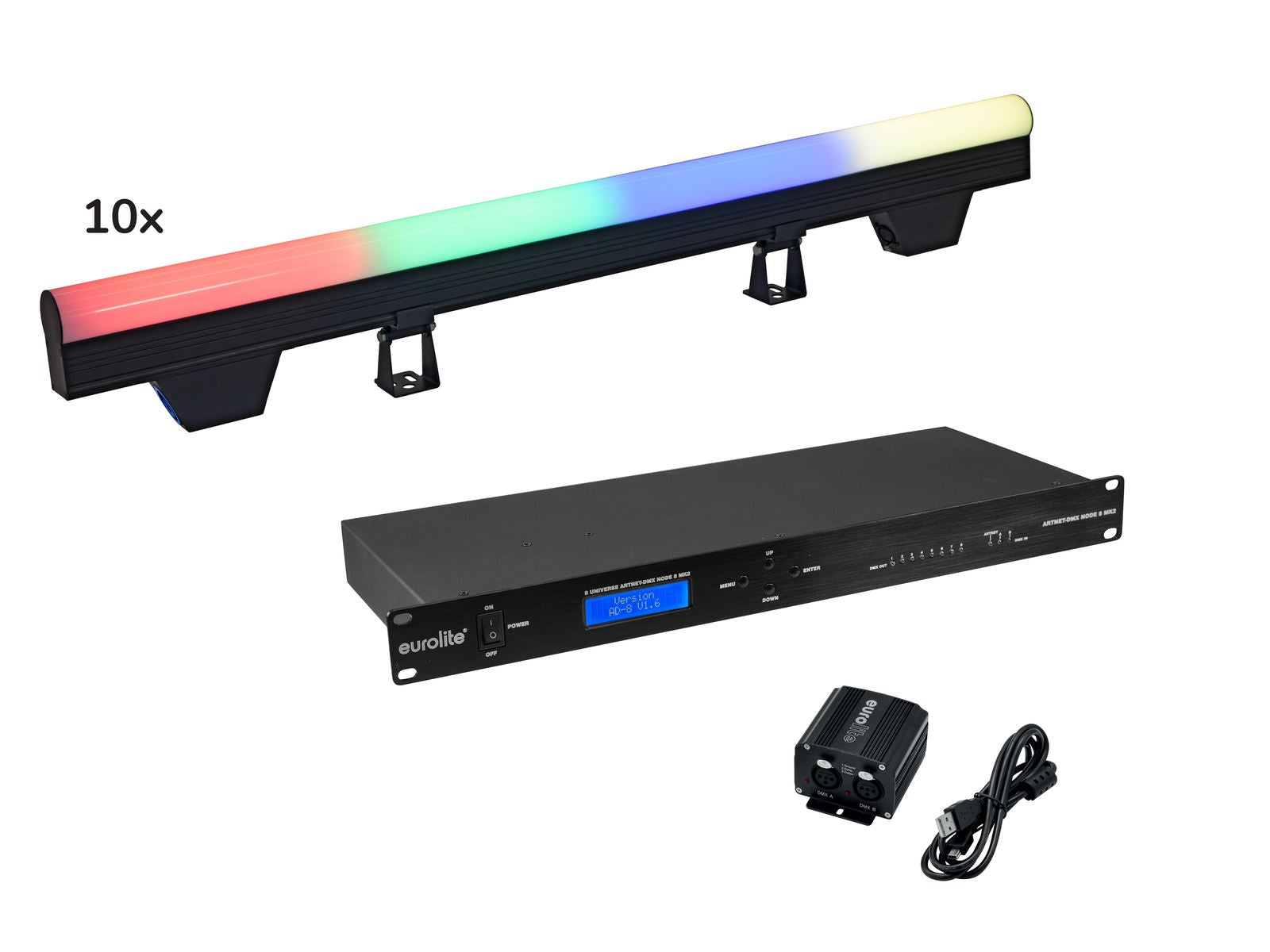

Eurolite Set 10X Led Pt-100/32 Pixel Dmx Tube + Dmx Software

Description

10x DMX-controllable pixel rail with RGB color mixing incl. USB interface and Art-Net interface

51928607 EUROLITE LED PT-100/32 Pixel DMX Tube

DMX-controllable pixel rail with RGB color mixing

• Tube with 96 high-power RGB LEDs (3in1) for washlight effects
• Subdivided into 32 pixels (illumination units ? 3 LEDs) which can be controlled individually by DMX
• Functions: static colors, automatic color change, internal programs with variable speed, dimmer settings
• Built-in auto and music show programs
• Direct color selection for 17 preset colors
• DMX and power terminals intelligently designed for easy wiring
• Addressing and setting via control panel with 4-digit LED display
• Metal housing with swivel mounting brackets
• P-Con terminals for power linking up to 8 units
• Switch-mode power supply for operation between 100 and 240 volts
• LED: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
• Can be operated in 3; 5; 8; 48; 96 CH mode
• The device is cooled by passive convection
• Controlling by Stand-alone; DMX; Sound to light via Microphone; Master/slave function
• Is in EUROLITE LED PC-Control 512 software already preprogrammed
• Flicker-free projection

51860171 EUROLITE USB Interface 2x512 DMX/Artnet incl. 64x DMX512 Control Software

USB interface for 2 DMX universes with 3 lighting control softwares

• USB interface for 2 DMX universes (1024 channels) Pixel Control
• Incl. 3 x lighting control software for different applications (download)
• LED PC Control (architectural lighting)
• DMX Control (show lighting)
• Pixel Control (pixel mapping and video mixing)
• Compatible with Windows and Mac OS X (requires Open GL 4.0 at least)
• Suitable for all RGB and RGBW LED fixtures and LED panels
• 64 Art-Net universes with 512 channels each on Ethernet
• 32,768 individual channels or 10,922 RGB pixels
• High DVI resolution output (1280 x 1024 pixels)
• Supports touch screen controls
• Minimum configuration required: Windows / Mac OS, 2 GHz CPU, 8 GB RAM memory, 2 GB RAM graphic card, 500 MB hard disk, 1 USB port (interface dongle), 1 Ethernet port (Art-Net out)
• Software available for free download at www.eurolite.de
• Can transmit up to 1024 DMX channels
• Controlling by DMX
• The device can be connected via USB to the PC

70064843 EUROLITE Art-Net/DMX Node 8 MK2

Art-Net interface distributes 8 universes to XLR

• Distributes Art-Net data to 8 DMX512 universes (4096 channels)
• Parallel DMX input possible (1024 channels)
• 8 optically isolated XLR plugs (3-pin) for DMX output
• 2 XLR jacks (3-pin) for DMX input
• Variable data routing capabilities for all DMX outputs
• 2 x Ethernet in/through port
• Serial connection possible
• User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
• LED indication for functions
• Splitter operation possible
• Rack installation 1 U
• Controlling by ArtNet
• The device can be connected via RJ45 (F) mounting version to the PC
• (19") 48.3 cm rack installation
