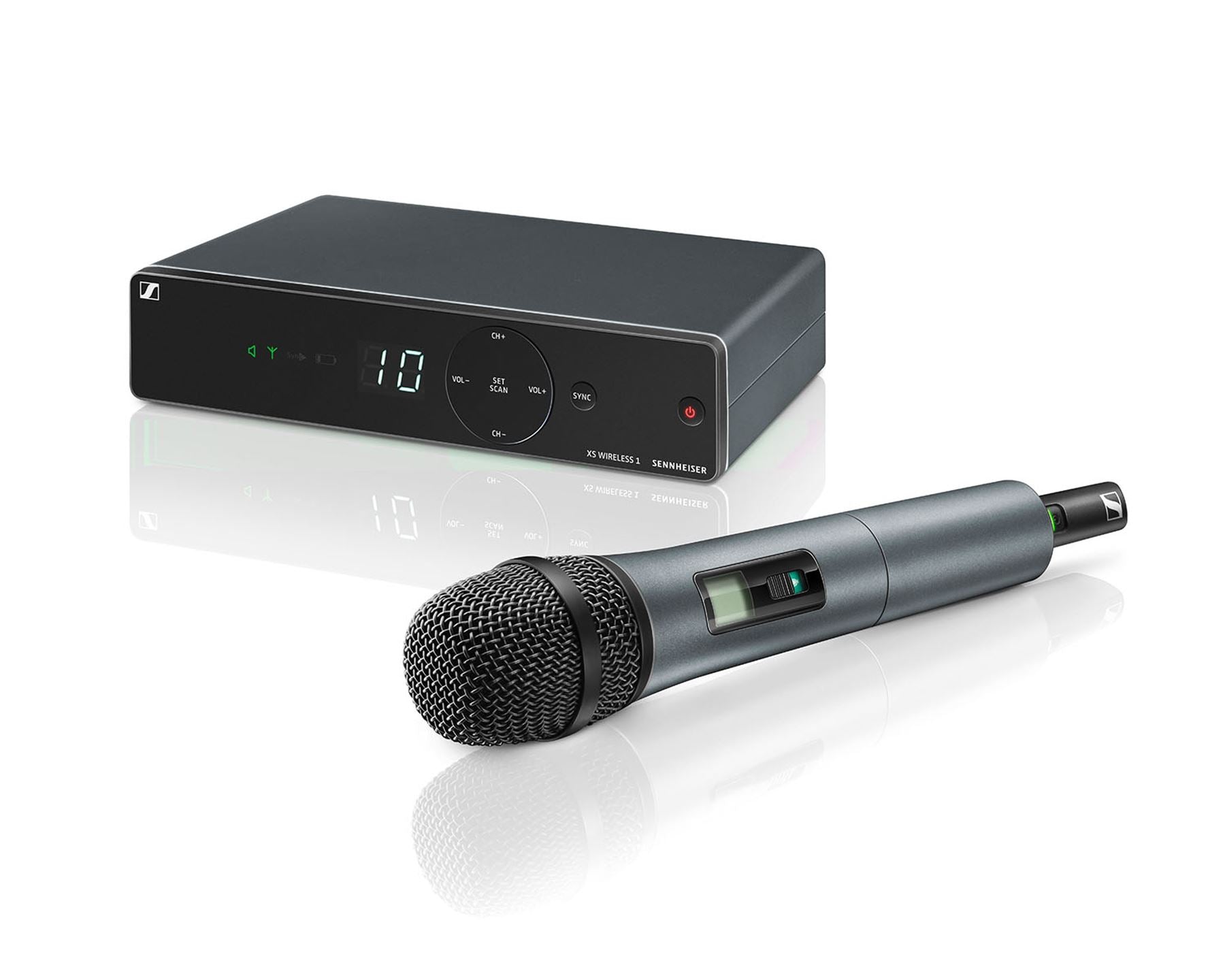

Sennheiser XSW1-825-E Handheld Wireless Microphone System *B-Stock

Raise your voice. Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

Specifications:

General
THD, total harmonic distortion: ≤ 0.9%
Pick-up pattern: cardioid
Signal-to-noise ratio: ≥ 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: wideband FM
Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: rugged ABS housing
Dynamic range: dynamic
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range: A: 548-572 MHz, GB: 606-630 MHz / B: 614-638 MHz / C: 766-790 MHz / D: 794-806 MHz / E: 821-832 MHz, 863-865 MHz / K: 925-937.5 MHz
Sensitivity: < 3 μV at 52 dB(A)rms S/N
Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas

Receivers
Power supply: 12 V DC nom. / 300 mA
AF frequency response: 50 to 16,000 Hz (–3 dB)

Microphone
Power supply: 2 AA size batteries, 1.5 V
AF frequency response: SKM 825: 80-14,000 Hz / SKM 835: 80-16,000 Hz

Dimensions
200 x 42 x 127 mm

Weight
All: 0.585 kg
Receiver: 0.340 kg
Microphone: 0.245 kg
