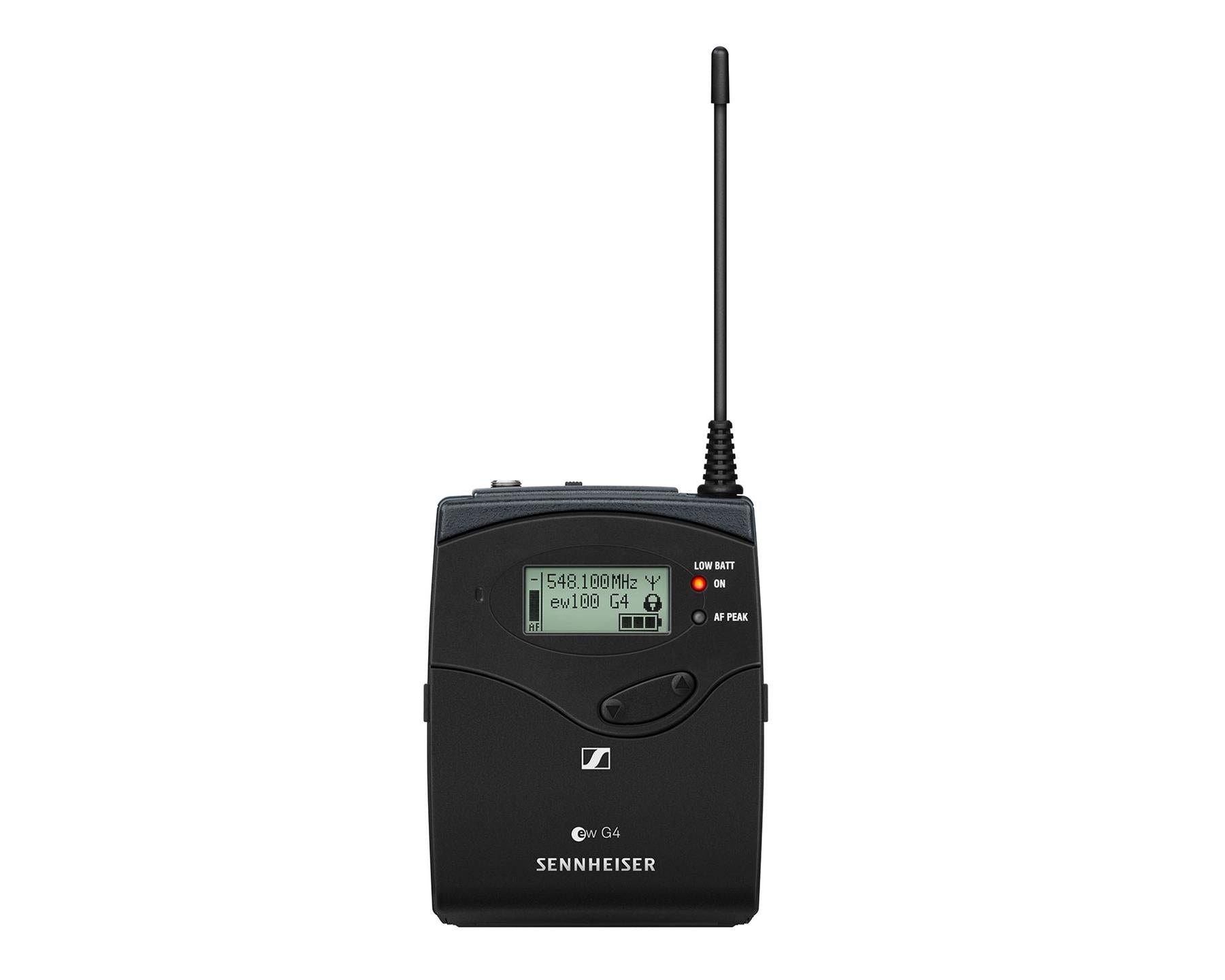

Sennheiser SK100 G4-GB 100-Series Bodypack Transmitter 3.5mm CH38

Description:

Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems.

Features:

Robust bodypack transmitter for daily use on stage
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

Specifications:

General
Modulation: Wideband FM
Frequency ranges: A1: 470 - 516 MHz
A: 516 - 558 MHz
AS: 520 - 558 MHz
G: 566 - 608 MHz
GB: 606 - 648 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
1G8: 1785 - 1800 MHz
Transmission frequencies:Max. 1680 receiving frequencies, adjustable in 25  kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching bandwidth: up to 42 MHz
Nominal/peak: deviation ±24 kHz / ±48 kHz
Frequency: stability ≤ ±15 ppm
RF output power at 50 Ω: Max. 30 mW
Pilot tone squelch: Can be switched off
Compander system: Sennheiser HDX
AF frequency response: Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
Total harmonic distortion (THD): ≤ 0.9 %
Max. microphone/line input voltage: 3 Veff
Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
Input capacitance: Switchable
Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
Temperature range: > -10 °C to +55 °C
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage: 3 V battery / 2.4 V rechargeable battery
Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
Operating time: Typically 8 h

Physical & Dimensions
Height: 82mm
Width: 64mm
Depth: 24mm
Weight: 160g
