Robolights Black Smart Socket Set for Single D Type (SSS/1XLR/B)

Description

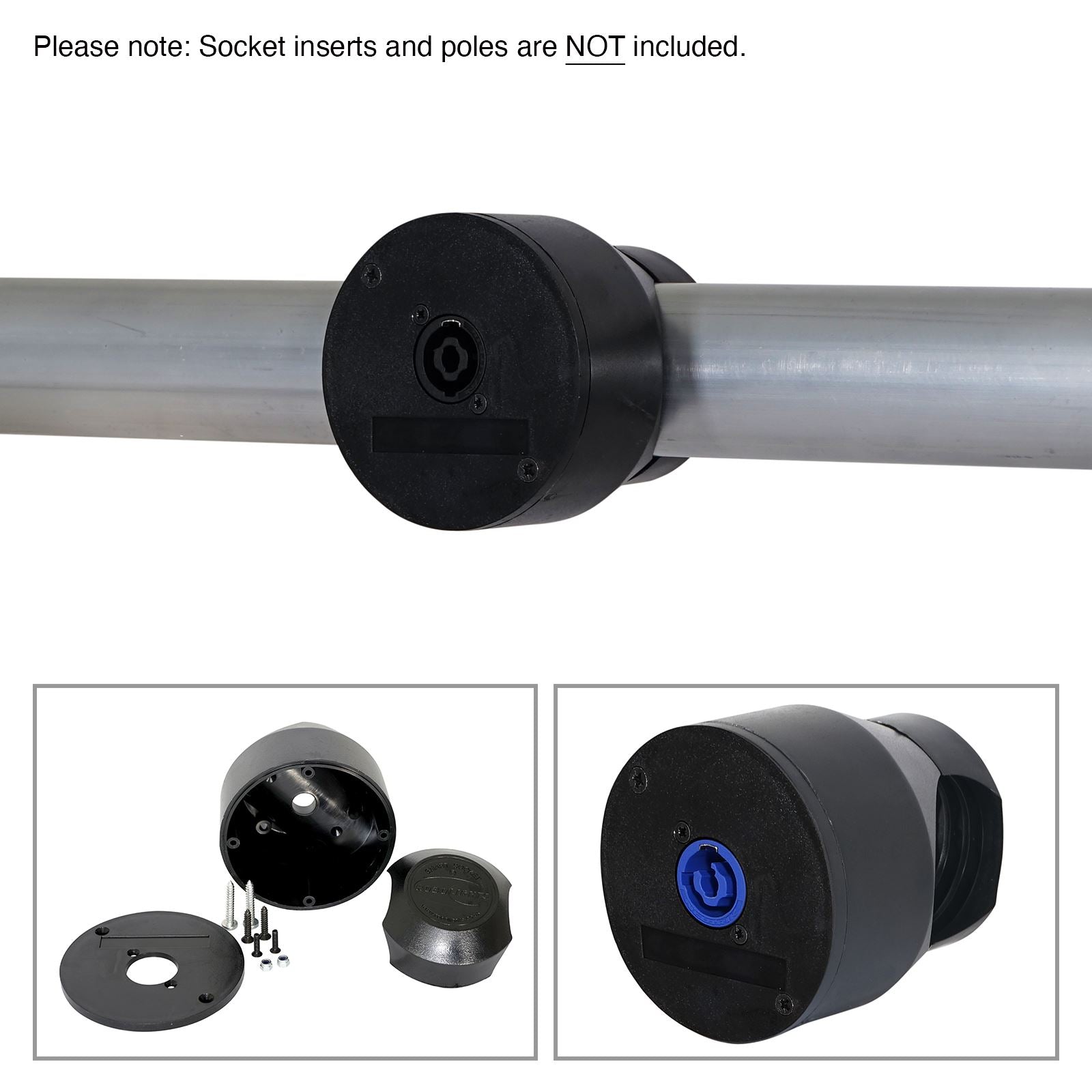

This Smart Socket kit includes a front lid that takes a single Neutrik D series connector or equivalent. Typical applications are for the provision of control data outlets on a lighting bar using 3 or 5 pin XLR or CAT5/6 Ethernet connectors. Alternatively, 3 pin XLR and SpeakON connectors can be fitted to provide audio inputs and outputs. Kits are shipped with all the necessary screws to assemble them along with full fitting instructions; to fit them you only need to drill a single 16mm hole in one wall of the tube. Then, simply press the Smart Socket into place and tighten the 2 self tapping screws; you can then install the wiring for your lighting bar.

Specifications

• Designed for 48.3mm outside diameter aluminium scaffold tubing, Shipped all the necessary screws and full fitting instructions
• Requires DType panel mount connector (available separately)
• Injection moulded in tough, resilient ABS and comprise of 3 parts, the body, lid and clamp
• Note: The Robolights SmartSocket should only be installed by a suitably qualified person
• The installer must also ensure that the final assembly conforms to and is in accordance with, all regional electrical wiring regulations prevailing at any time
• When using this Smart Socket, be sure to check that there is enough space inside the Smart Socket for the connector you are going to use
