RELACART PM-160 Diversity In-Ear-Monitor System

The PM-160 is a sturdy in-ear monitoring system delivering outstanding sound for live music, theatre and voice applications. Diversity technology guarantees optimum reception quality without interference or dropouts. The system can be operated in mono and stereo mode. The bodypack receiver is 190 g light and offers perfect wearing comfort.

In-ear stereo system with diversity technology, 823-832 MHz, 863-865 MHz

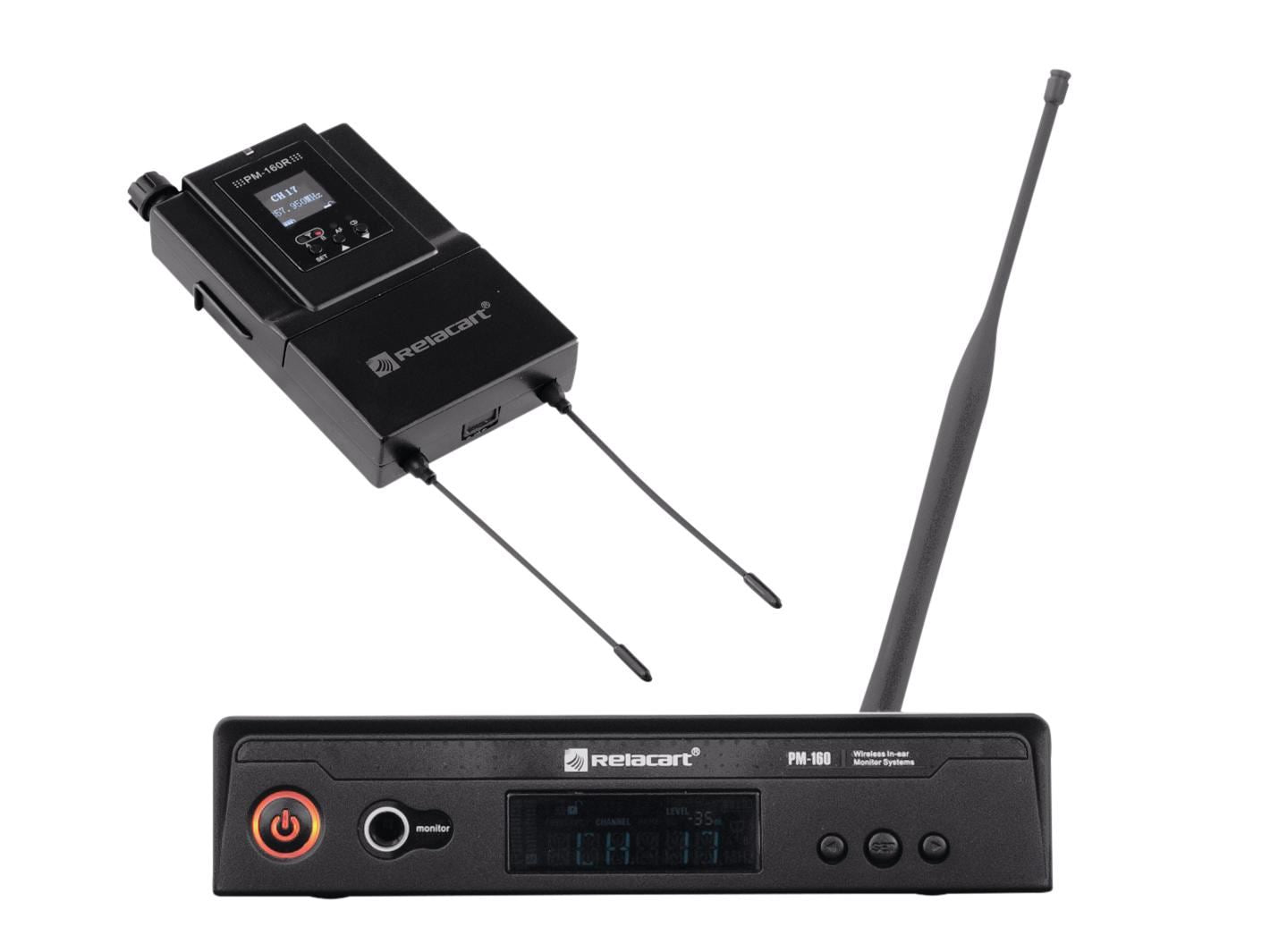

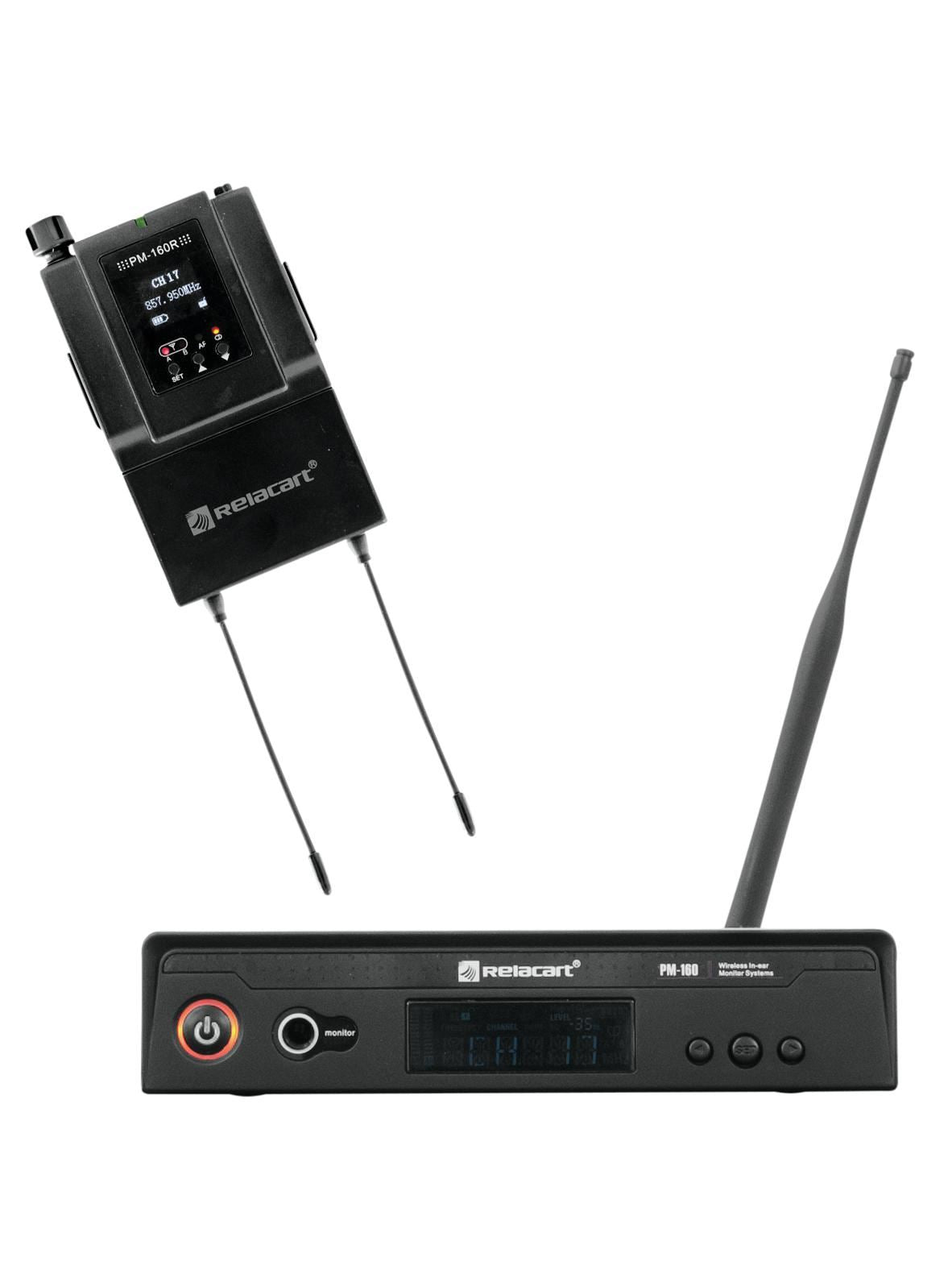

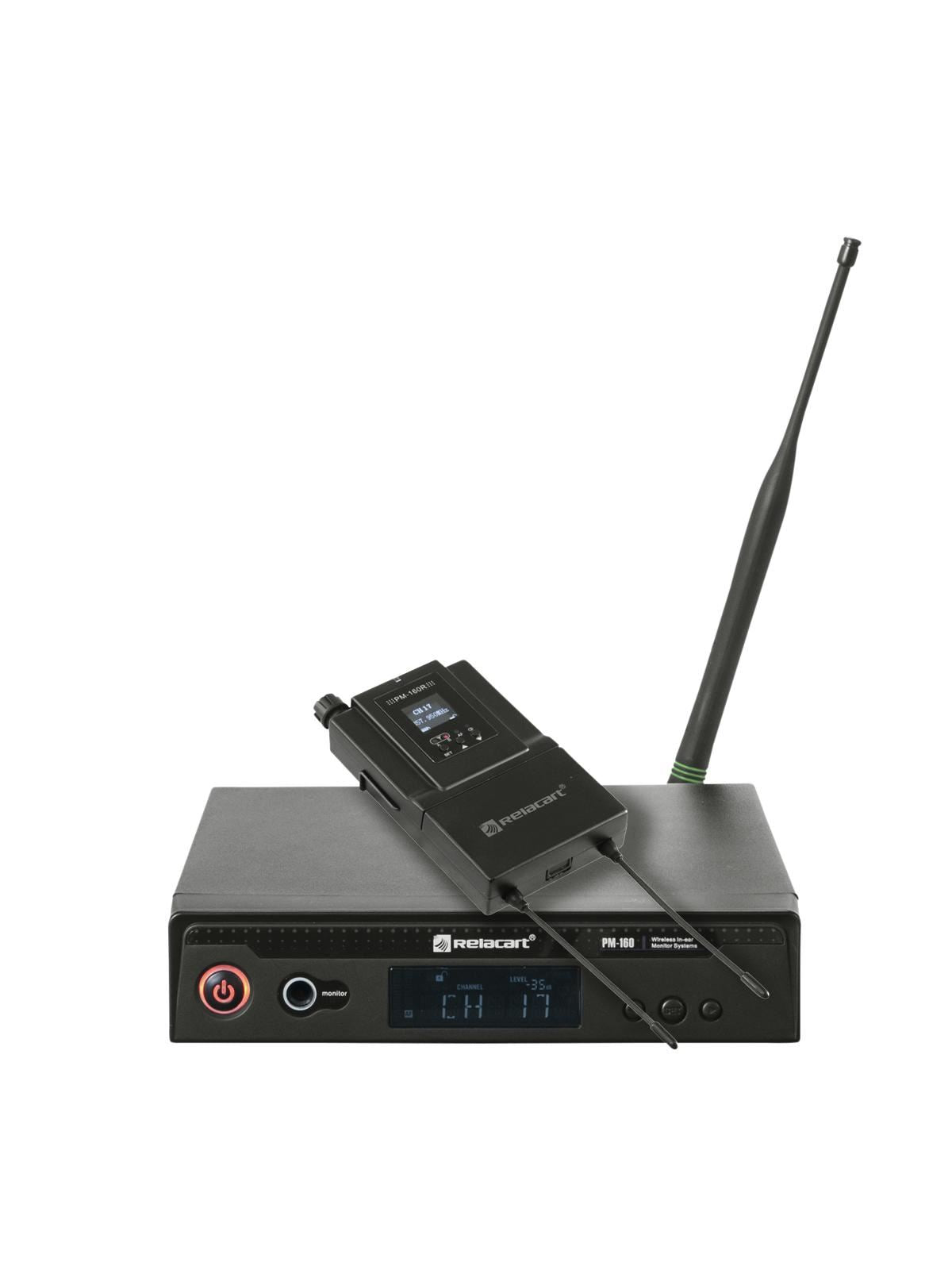

• Set includes a stationary stereo transmitter and a portable pocket receiver with earphones in a practical transport case
• Diversity technology for high reception quality
• Transmitter with LCD, 2 line inputs (XLR/6.3 mm jack) and 2 feed-through outputs (loop)
• Receiver in sturdy all-metal housing with 2 antennas, soft-touch controls and OLED display
• Applicable for touring
• Transmitter and receiver also available separately
• Can also be used as audio transmission system with extremely low latency

RELACART PM-160 Diversity In-Ear Transmitter

In-ear stereo wireless transmitter with pilot tone technology (PLL)

• Wireless stereo transmitter with 32 preset channels for in-ear monitoring with practical transport bag
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• Parallel operation of up to 9 monitor ways is possible without any interference
• Pilot tone technology (PLL) for interference-free operation
• LCD for channel/frequency, AF audio level and user-definable name
• Stereo or mono/mix mode
• Lock function for prevents undesired changes to settings
• RF output power Hi/Low adjustable
• 2 line inputs via balanced combo mounting jacks XLR/6.3 mm
• 2 feed-through outputs (loop)
• Adjustable headphones output
• 2 jack cables and power unit included
• 483 mm rack installation possible with supplied mounting brackets
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• Use a operating range up to 100m with line of sight
• Desktop console housing 1 U (19") 48.3 cm rack installation (provided)

RELACART PM-160R Diversity In-Ear Receiver

In-ear stereo wireless receiver with diversity technology

• Stereo pocket receiver with 32 preset channels for in-ear monitoring
• Incl. earphones
• Extension for the matching in-ear monitoring system PM-160
• Sturdy all-metal housing with soft-touch controls, applicable for touring
• Diversity technology for high reception quality
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• Pilot tone technology (PLL) and noise squelch for interference-free operation
• OLED display for battery status, frequency and channel
• LEDs for antenna A/B, AF signal and stereo operation
• Stereo or mono/mix mode
• Balance (left, right) adjustable
• Lock function for prevents undesired changes to settings
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• Use a operating range up to 80m with line of sight
• Weight: 2,18 kg
• RELACART PM-160 Diversity In-Ear Transmitter
• Type: In-ear Monitor
• Power supply: 100-240 V AC, 50/60 Hz
• 12 V DC 500 mA
• Power consumption: 5 W
• Power connection: Mains input Coaxial power connector (M) power supply
• cord with AC adapter (provided)
• Number of channels: 1
• Frequency range: 45 - 18000 Hz
• S/N ratio: >105 dB
• Display type: Monochrome LCD display
• Control elements: Menu, navigation keys, Transmitter power switch (high-
• low)
• Connections: Antenna via 1 x BNC (F)
• Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting
• version)
• Output: line via 2 x 6.3 mm jack socket (stereo) mounting version
• Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
• Frequency band: UHF 863 - 865 MHz UHF 823 - 832 MHz
• Frequency selection: 32 Switchable frequencys
• Modulation: FM, stereo
• RF power output: 10 mW
• Frequency stability: ± 0,0005 %
• Range: 100 m with line of sight
• Switching bandwidth: 11 MHz
• Switch: On/off switch
• Material: Metal
• Color: Black
• Housing design: Desktop console housing 1 U
• (19") 48.3 cm rack installation (provided)
• Dimensions: Width: 20 cm
• Depth: 26 cm
• Height: 4,3 cm
• Weight: 2,02 kg
• RELACART PM-160R Diversity In-Ear Receiver
• Type: In-ear Monitor
• Power consumption: 0,525 W
• Power connection: Battery/battery pack (not included)
• Battery: 2 x Mignon (AA) (not included)
• Number of channels: 1
• Frequency range: 45 - 18000 Hz
• S/N ratio: >105 dB
• Connections: Input: line via 1 x 3.5 mm jack (stereo) mounting version
• Frequency band: UHF 823 - 832 MHz UHF 863 - 865 MHz
• Frequency selection: 32 Switchable frequencys
• Modulation: FM, stereo
• Frequency stability: ± 0,0005 %
• Range: 80 m with line of sight
• Switching bandwidth: 11 MHz
• Switch: On/off switch
• Diversity: Antenna diversity
• Material: Aluminum
• Dimensions: Width: 6,6 cm
• Depth: 2,2 cm
• Height: 11,8 cm
• Weight: 160 g
