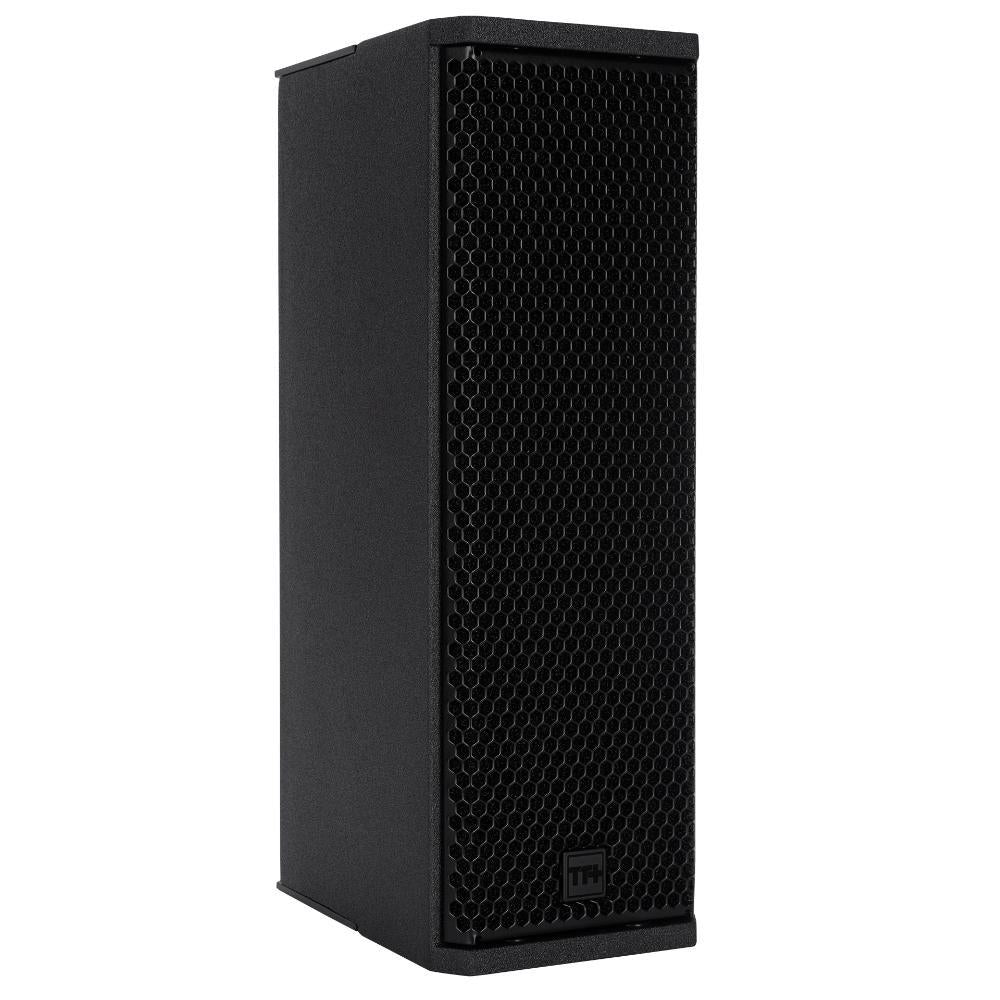

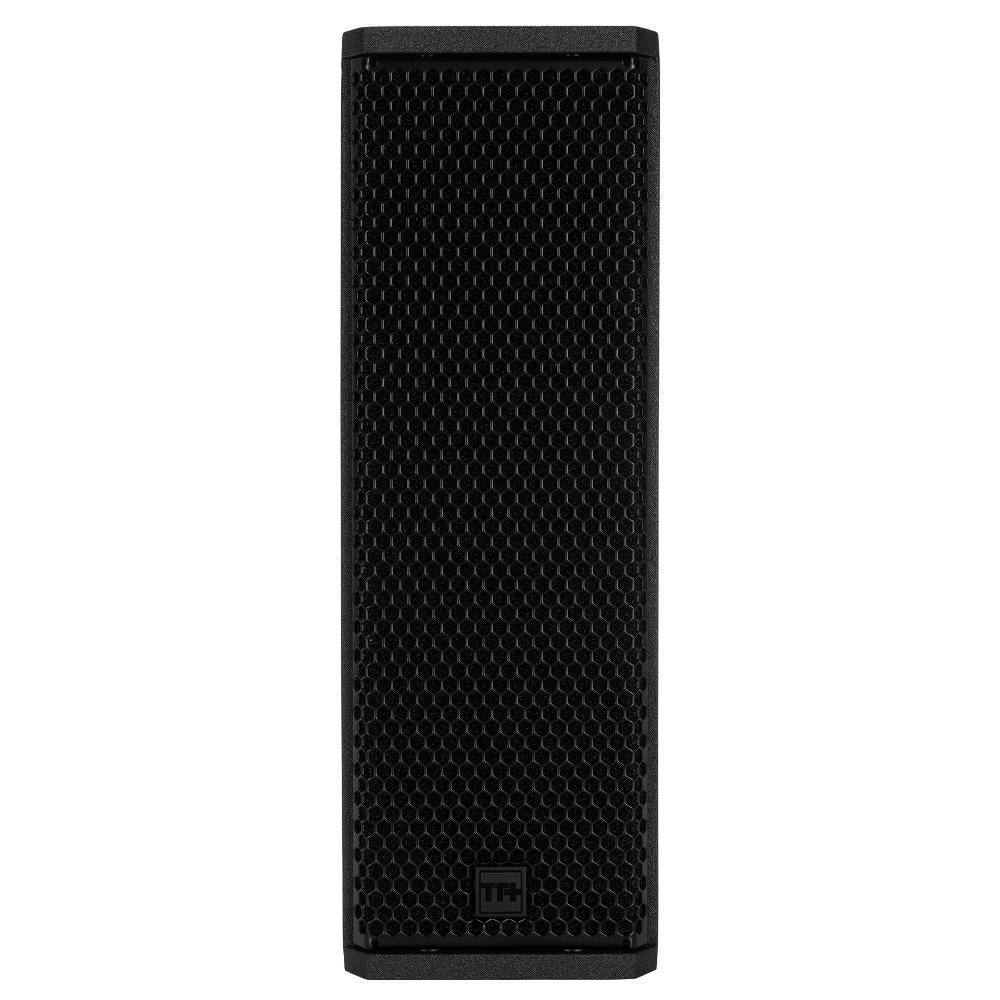

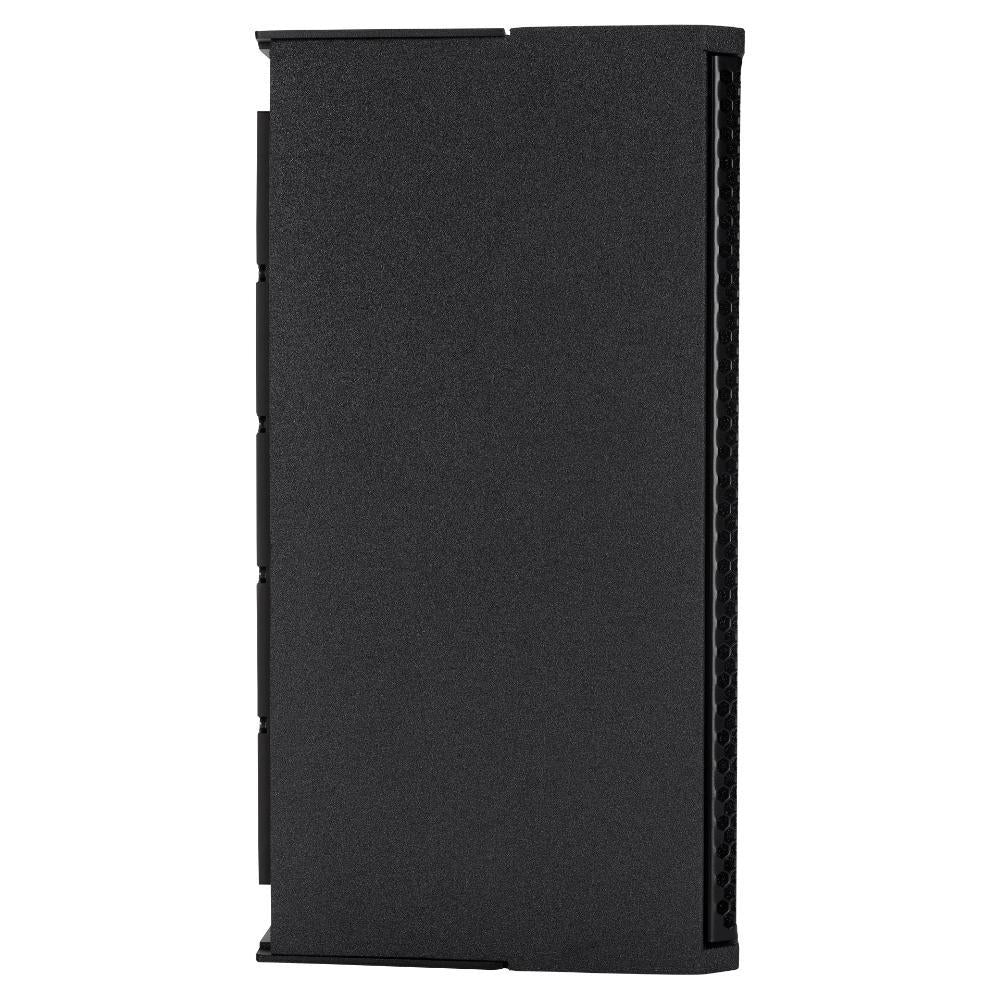

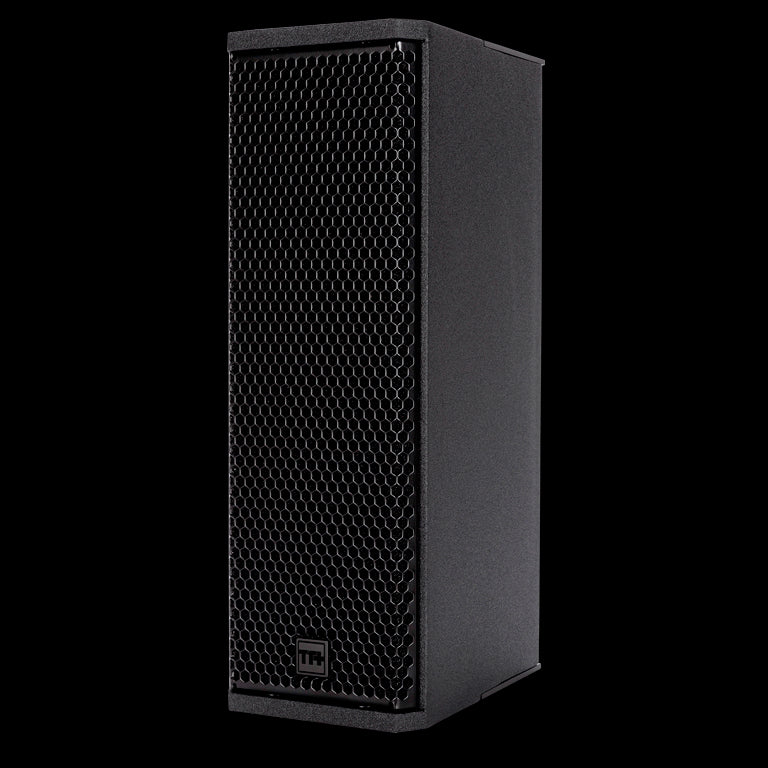

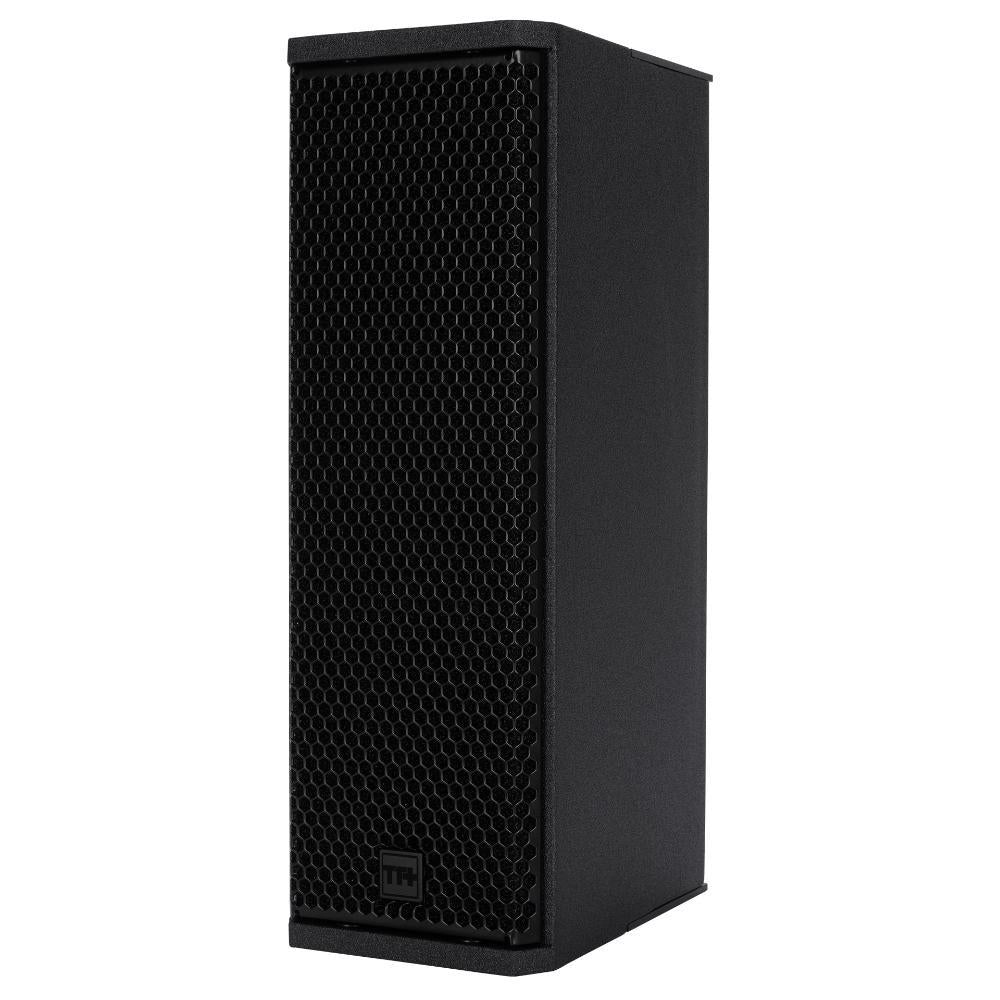

RCF TT 515-A 2x 5" 2-Way High Output Active Speaker 1000W
- £1,599.00
- £1,599.00
- Unit price
- per
Flexibility, power, and compactness make the TT 515-A ideal for installed and portable professional applications where size and weight are critical factors.
iFrame
Description:
- 127 dB max SPL
- 100° x 70° coverage
- LF 2 x 5" neodymium woofer, 2” voice coil
- HF 1.75” titanium comp. driver
- 2 x Class-D amplifiers, 1000 Watts RMS total power
- 70 – 20.000 Hz frequency range
- RDNet on board
- FiRPHASE and Bass Motion Control
Flexibility, power, and compactness make the TT 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of TT+ technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, TT 515-A is quick to deploy and fast to tune.
A 2000 watt speaker that can fit in your palm
The two-channel 2000 W (1000 W RMS) amplifier is small, ultra-silent, and fanless.
Producing a Max SPL of 127 dB, is perfect for 3D/immersive sound, nearfield systems, and productions that demand extreme sound quality.
The rotatable 100x70 degree pattern reaches a wide area, perfectly matching the directivity of the woofers.
The internal DSP has a whole range of protections for the transducers and includes special FiRPHASE and BMC processing to achieve coherent distribution of sound without phase distortion and deep, tight bass at any volume.
Producing a Max SPL of 127 dB, is perfect for 3D/immersive sound, nearfield systems, and productions that demand extreme sound quality.
The rotatable 100x70 degree pattern reaches a wide area, perfectly matching the directivity of the woofers.
The internal DSP has a whole range of protections for the transducers and includes special FiRPHASE and BMC processing to achieve coherent distribution of sound without phase distortion and deep, tight bass at any volume.
A little box with superpowers

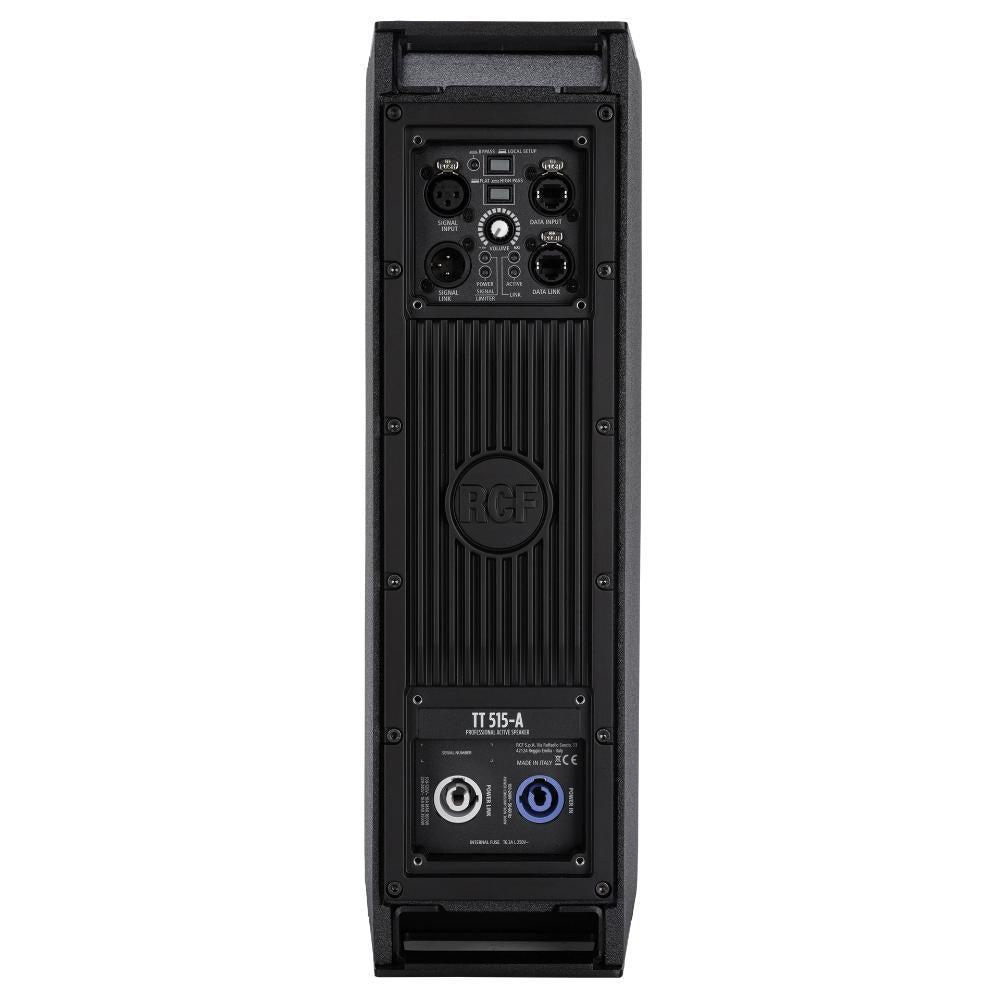

The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle soft clipping limiters, RMS limits, polarity, amplitude, timing, and equalization. All the settings, monitoring, and more advanced features are available inside the RDNet Networked Management software. The available control panel on the back adjusts volume, high-pass, and bypass. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier is housed in a unique Vibrostop floating aluminum panel for extra protection during transportation.
Built for everyday use
Use it as a compact and powerful main system or to supplement a larger system. The waterproof cabinet is built in high-strength baltic birch plywood coated with black, robust, and scratch-resistant polyurea paint. Attached to a solid machined aluminum structure at the back, the amplifier heat dissipation is efficient and the cabinet is sturdy and stiff. A strong powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.
Rig it anywhere
The only limit is your imagination. With multiple rigging accessories and the unobtrusive form factor of the cabinet, TT 515-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting— at any angle in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.

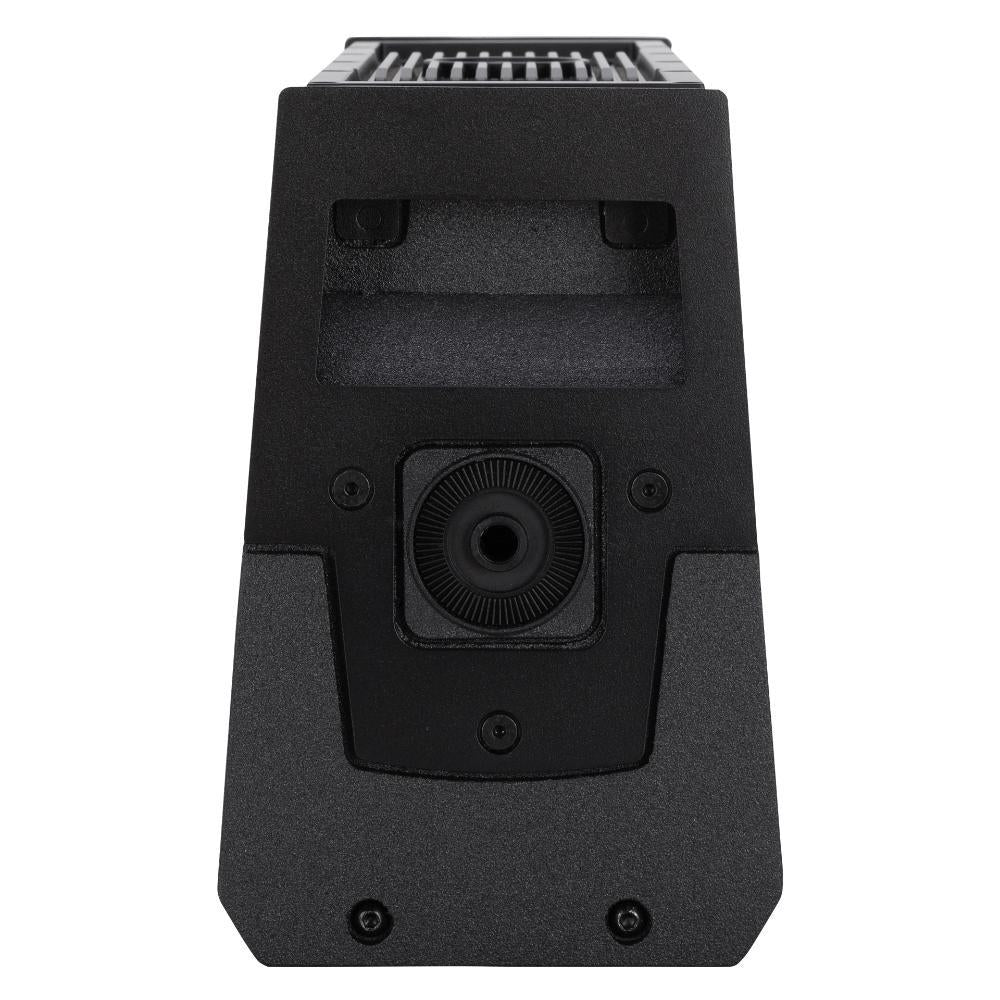

The speaker’s rigging is fast and easy using the practical Quick Fit socket to easily install accessories such as the clamp mount, pole mount, horizontal brackets, or using the two M10 threads on top and bottom of the cabinet. You will always find a place for TT 515-A.
The speaker’s rigging is fast and easy using the practical Quick Fit socket to easily install accessories such as the clamp mount, pole mount, horizontal brackets, or using the two M10 threads on top and bottom of the cabinet. You will always find a place for TT 515-A.
Specifications:
Frequency Response: 70 Hz ÷ 20000 Hz
Max SPL @ 1m: 127 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 70°

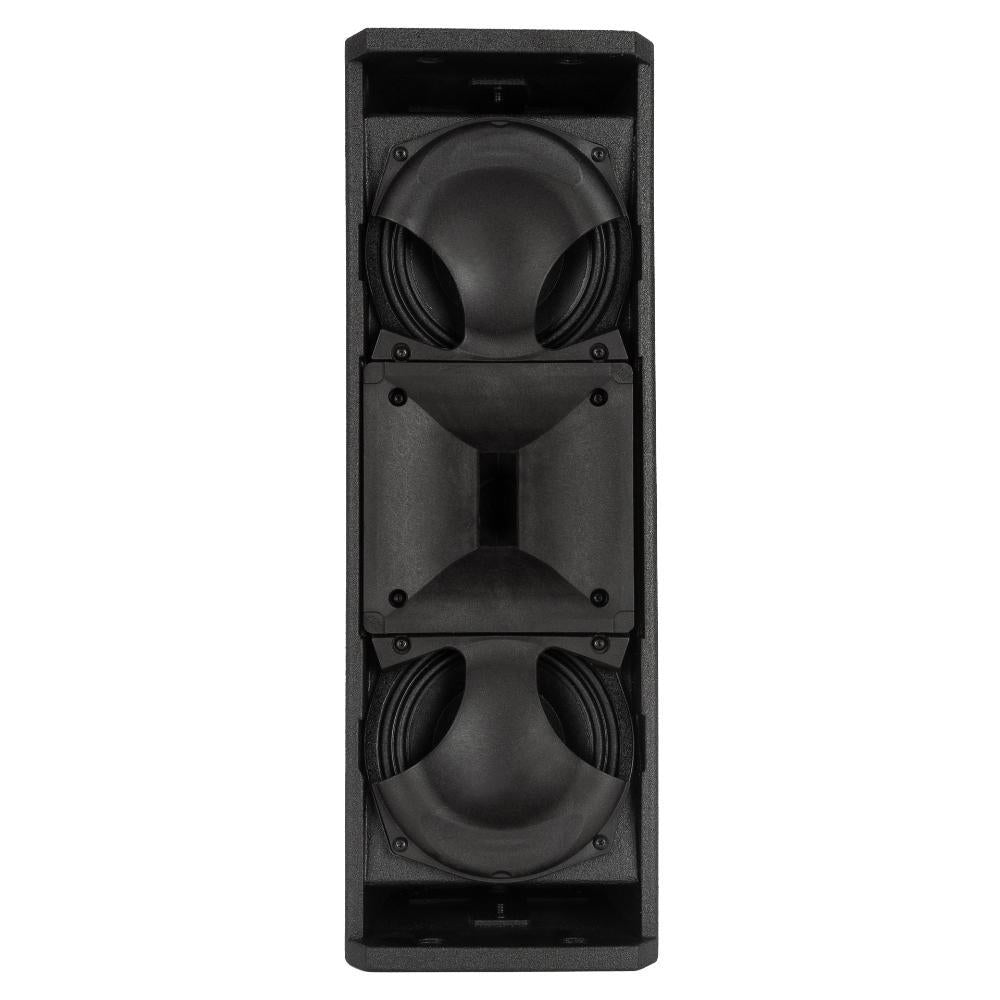

Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
Woofer: 2 x 5.0'' neo, 2.0'' v.c
Woofer: 2 x 5.0'' neo, 2.0'' v.c
Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu
Crossover Frequencies:1200
Protections: Excurs.
Limiter: Fast Limiter
Controls: Bypass, Linear/High Pass, Volume, RDnet on board
RDNet: Yes
Total Power: 2000 W Peak, 1000 W RMS
High frequencies: 600 W Peak, 300 W RMS
Low frequencies:1400 W Peak, 700 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Cabinet/Case Material: Baltic birch plywood
Hardware: 2X M10 TOP AND BOTTOM 2X PIN D.10
Handles: 2 TOP AND BOTTOM
Grille: Steel
Color: Black
Height: 456 mm / 17.95 inches
Width: 154 mm / 6.06 inches
Depth: 237.5 mm / 9.35 inches
Weight: 9.8 kg / 21.61 lbs
Width: 154 mm / 6.06 inches
Depth: 237.5 mm / 9.35 inches
Weight: 9.8 kg / 21.61 lbs
