RCF P 6215 Weatherproof Coaxial Two-Way Speaker

Description:

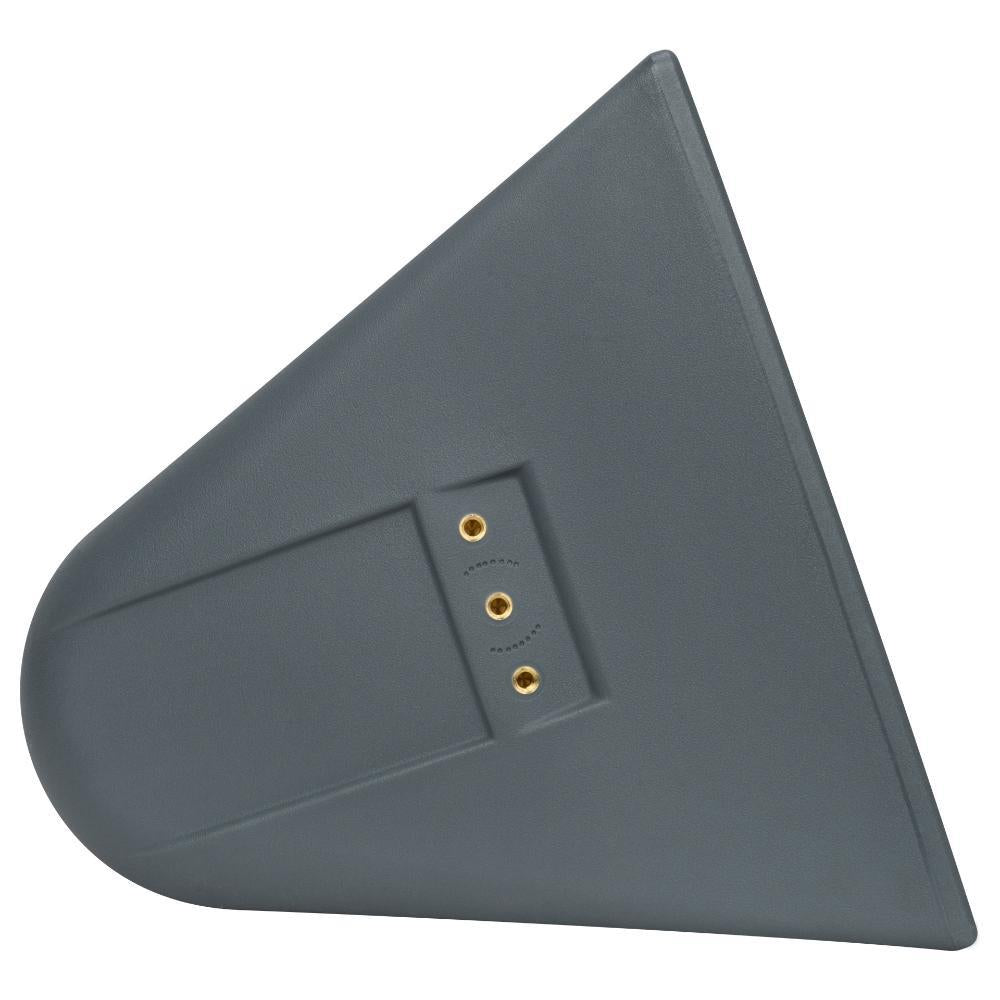

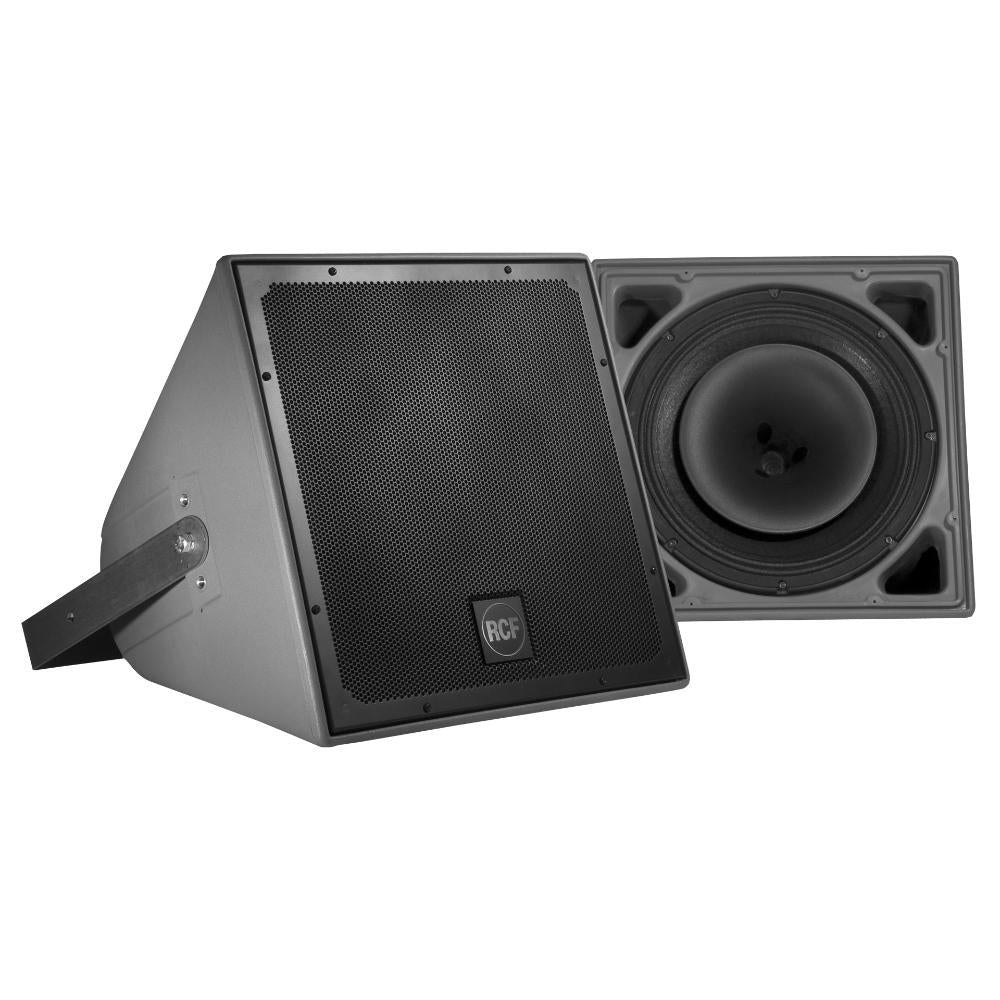

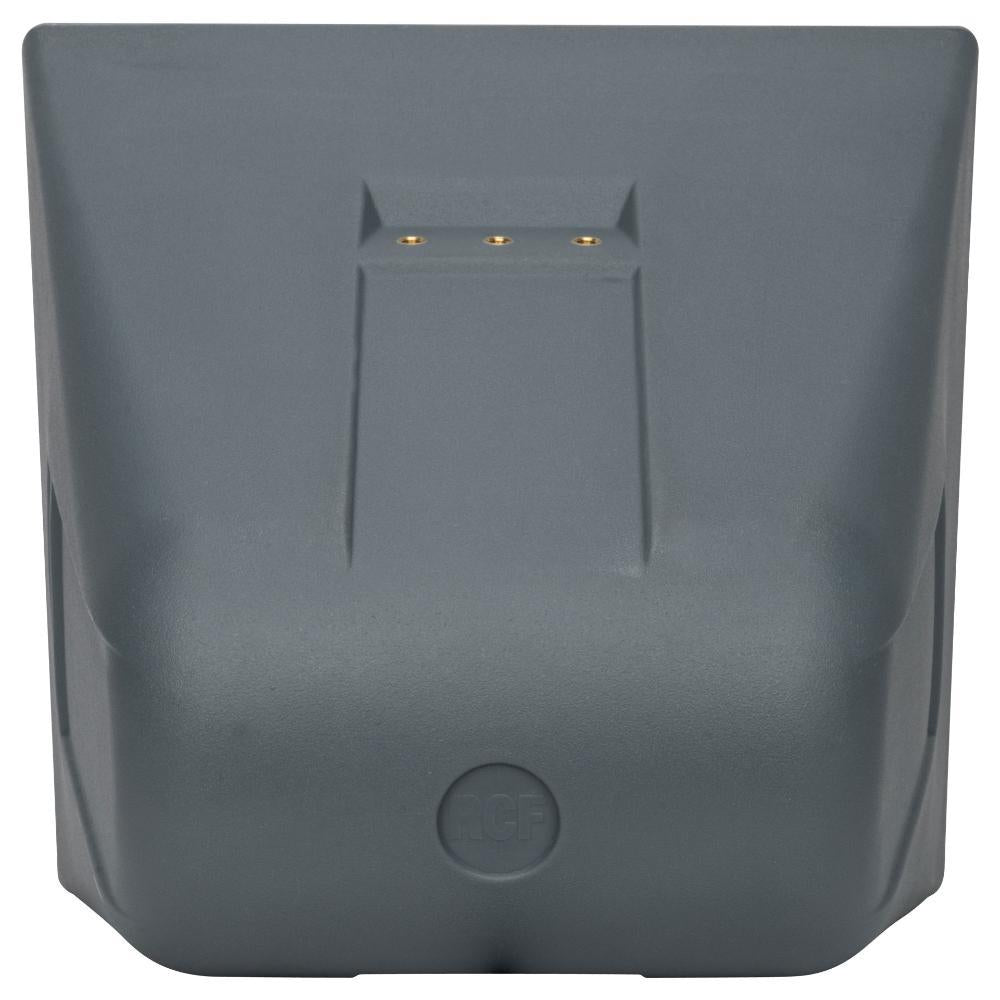

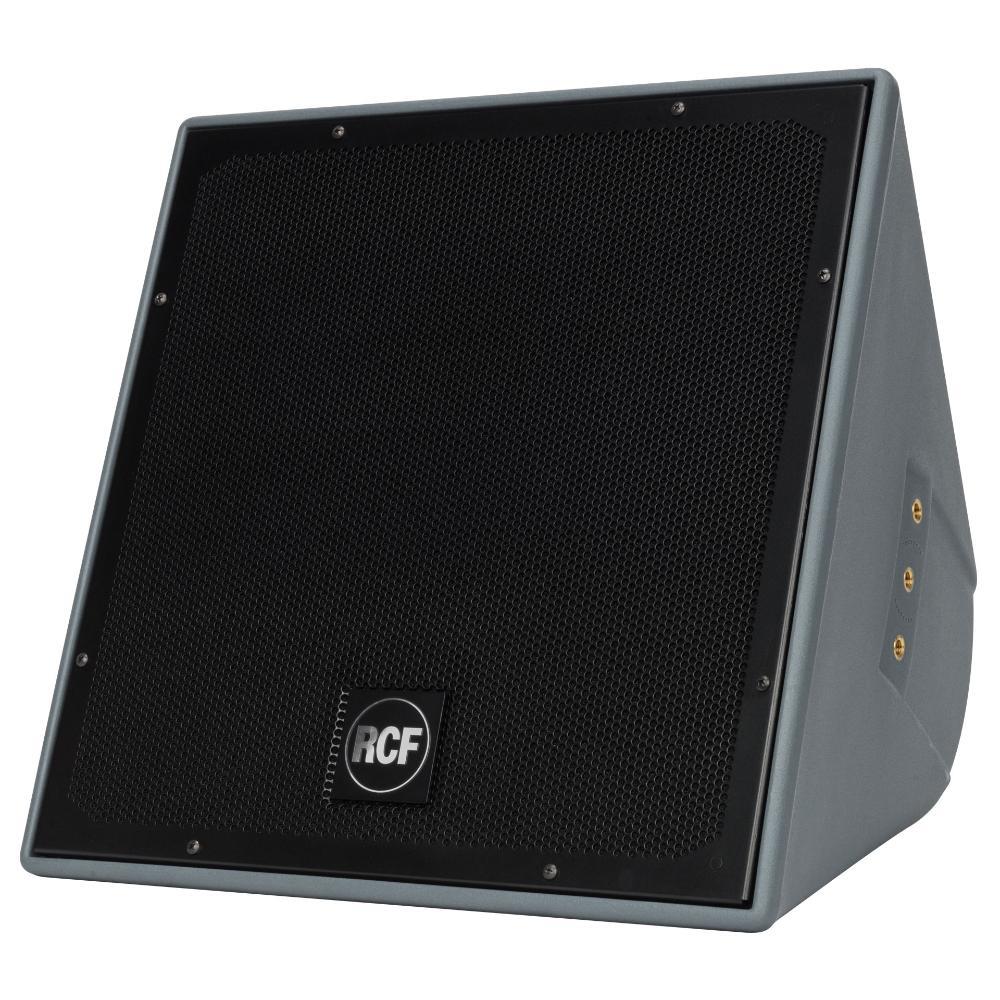

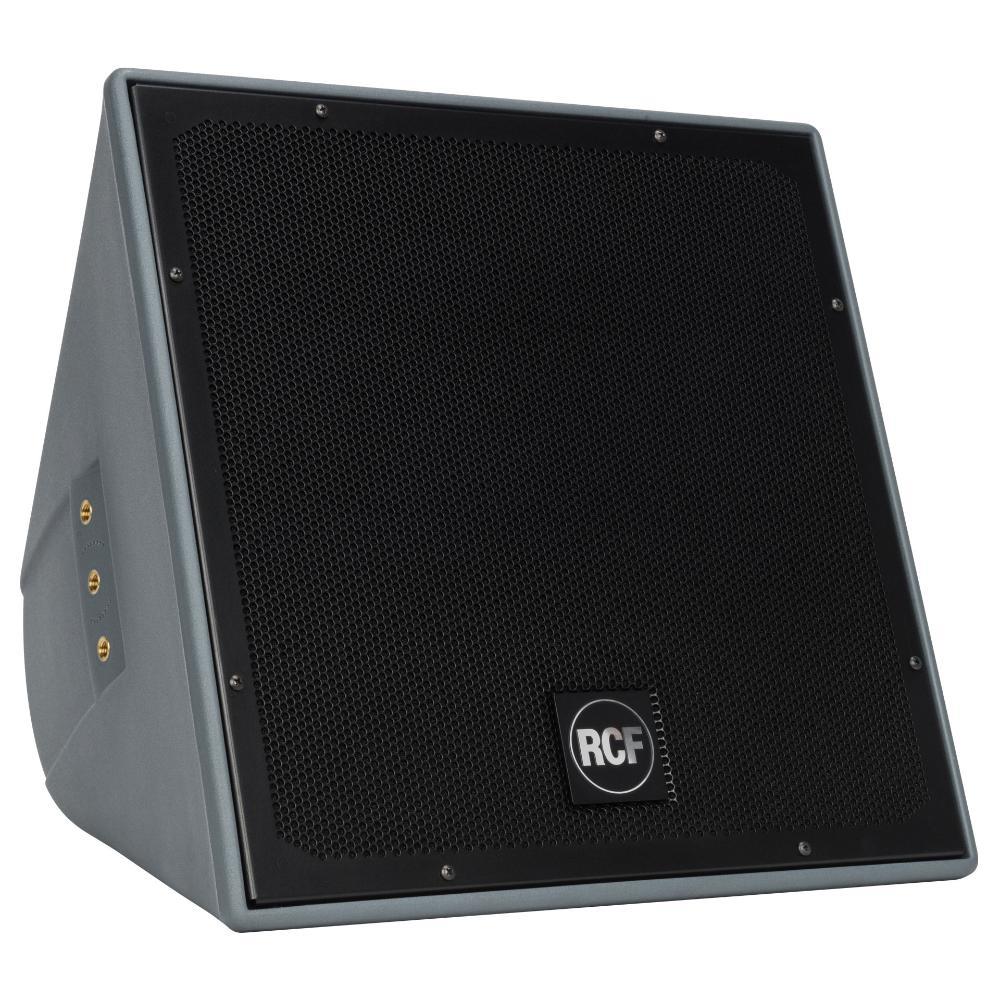

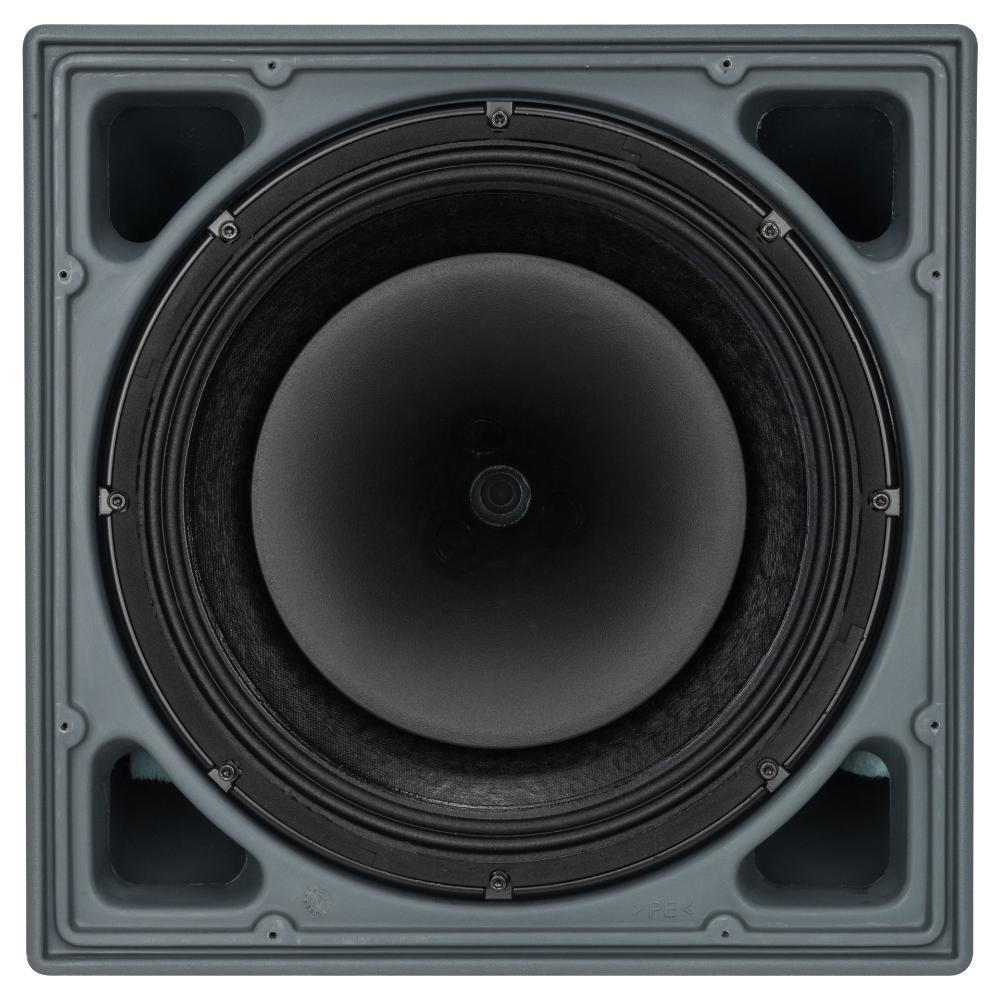

The P 6215 is a weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system for very high output and long-throw applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 15” neodymium woofer, the high-frequency section combines a 1.3” neodymium RCF Precision compression driver with a 2.5” diaphragm assembly centrally mounted in the throat of the LF driver and loaded on a constant directivity CMD horn for smooth, wide dispersion. Internal circuit provides low crossover frequency for accurate vocal intelligibility and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements, equipped with M10 brass inserts (12x), and one durable and corrosion-resistant 316P stainless steel U-Bracket with f spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.

All-weather performance

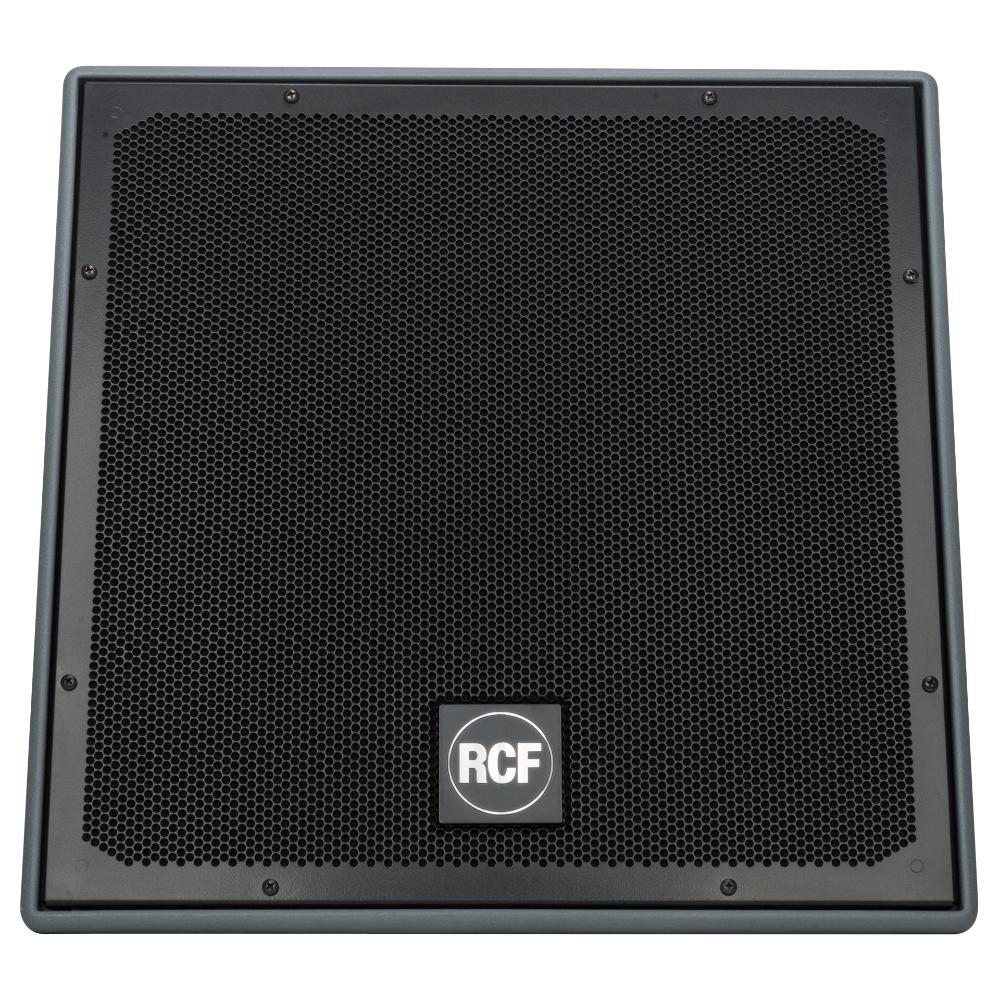

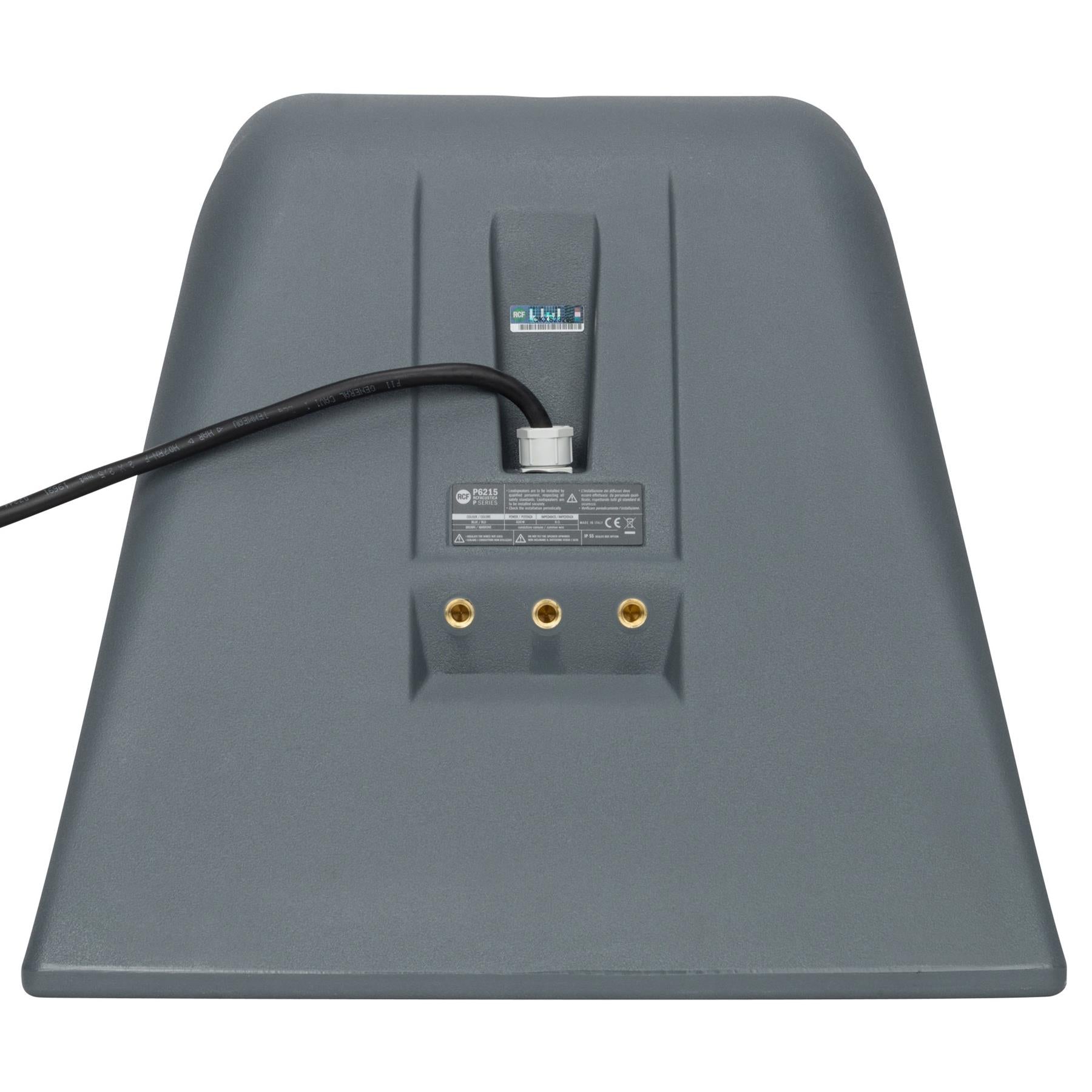

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.
Versatility for any application
Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.

LICC - Low Impedance Compensated Crossover
The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.
CMD - Coverage Matching Design
RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity. The horn can be rotated, allowing to install the loudspeaker either vertically or horizontally.

Customization without boundaries
Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.

Features:

600 W RMS power handling
134 dB max SPL
75 Hz ÷ 20000 Hz frequency range
15" neodymium woofer, 3.0" v.c.
2.5" v.c. neodymium compression driver
60° x 60° constant directivity
Weatherproof IP55 cabinet with UV protection
Aluminum grille

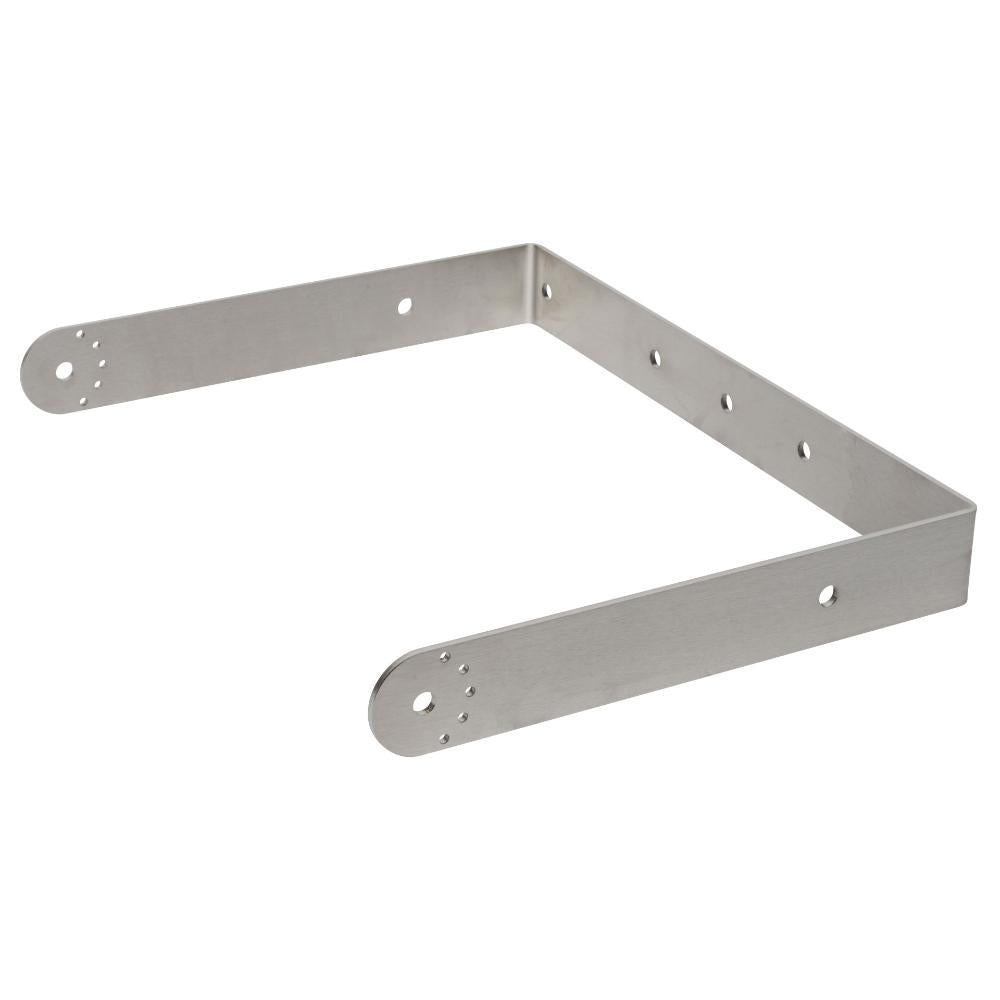

AISI 316L stainless steel bracket
12 suspension points (M10)

Specifications:

ACOUSTICAL SPECIFICATIONS
Frequency Response (-10dB): 75 Hz ÷ 20000 Hz
Max SPL @ 1m: 134 dB
Horizontal coverage angle: 60°
Vertical coverage angle: 60°
Directivity index Q: 13
System Sensitivity: 100 dB
POWER SECTION
Amplification: Full Range
Nominal Impedance: 8 ohm
Power Handling: 600 W
Peak Power Handling: 2400 W PEAK
Recommended Amplifier: 1200 W
Protections: Dynamic active mosfet
Crossover Frequencies: 1100 Hz
TRANSDUCERS
Compression Driver: 1.3'' neo, 2.5'' v.c
Woofer: Coaxial 15'' neo, 3.0'' v.c
INPUT/OUTPUT SECTION
Input connectors: Neoprene Cable
STANDARD COMPLIANCE
IP protection grade: IP 55
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material: PE Low Density
Hardware: 12 x M10 + U-Bracket and Pair of spacers
Grille: Aluminum with waterproof clothing
Color: Grey, White - RAL 9003
SIZE
Height: 463 mm / 18.23 inches
Width: 463 mm / 18.23 inches
Depth: 433 mm / 17.05 inches
Weight: 17 kg / 37.48 lbs
SHIPPING INFORMATION
Package Height: 519 mm / 20.43 inches
Package Width: 489 mm / 19.25 inches
Package Depth: 489 mm / 19.25 inches
Package Weight: 21.4 kg / 47.18 lbs
