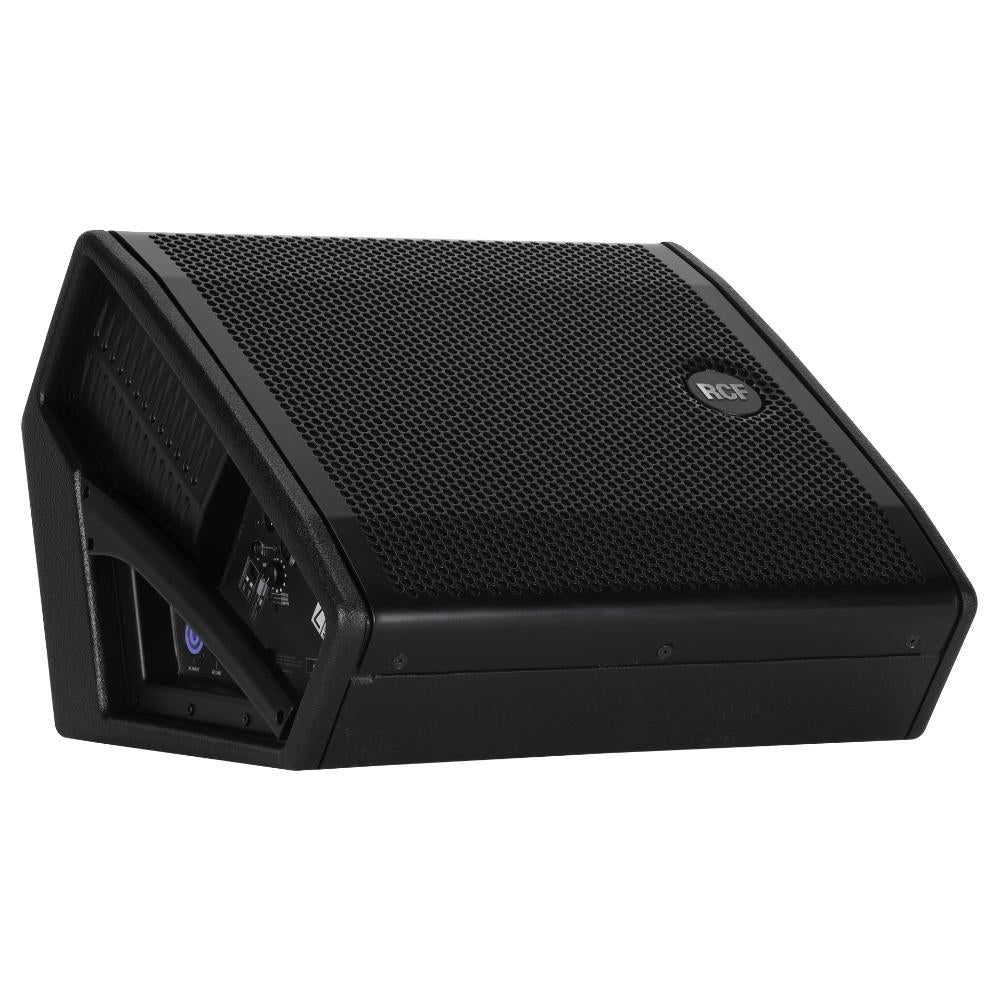

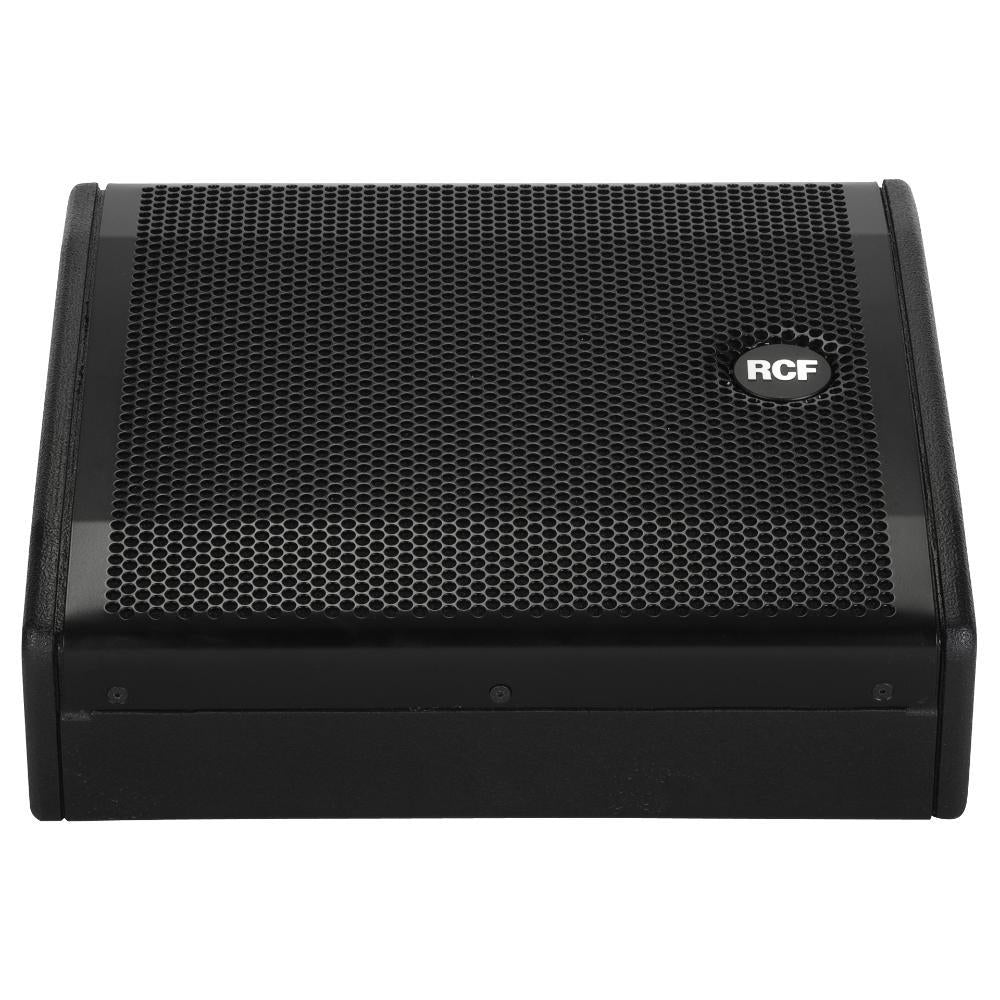

RCF NX10SMA 10" Active Coaxial Stage Monitor 400W Wedge

Description:

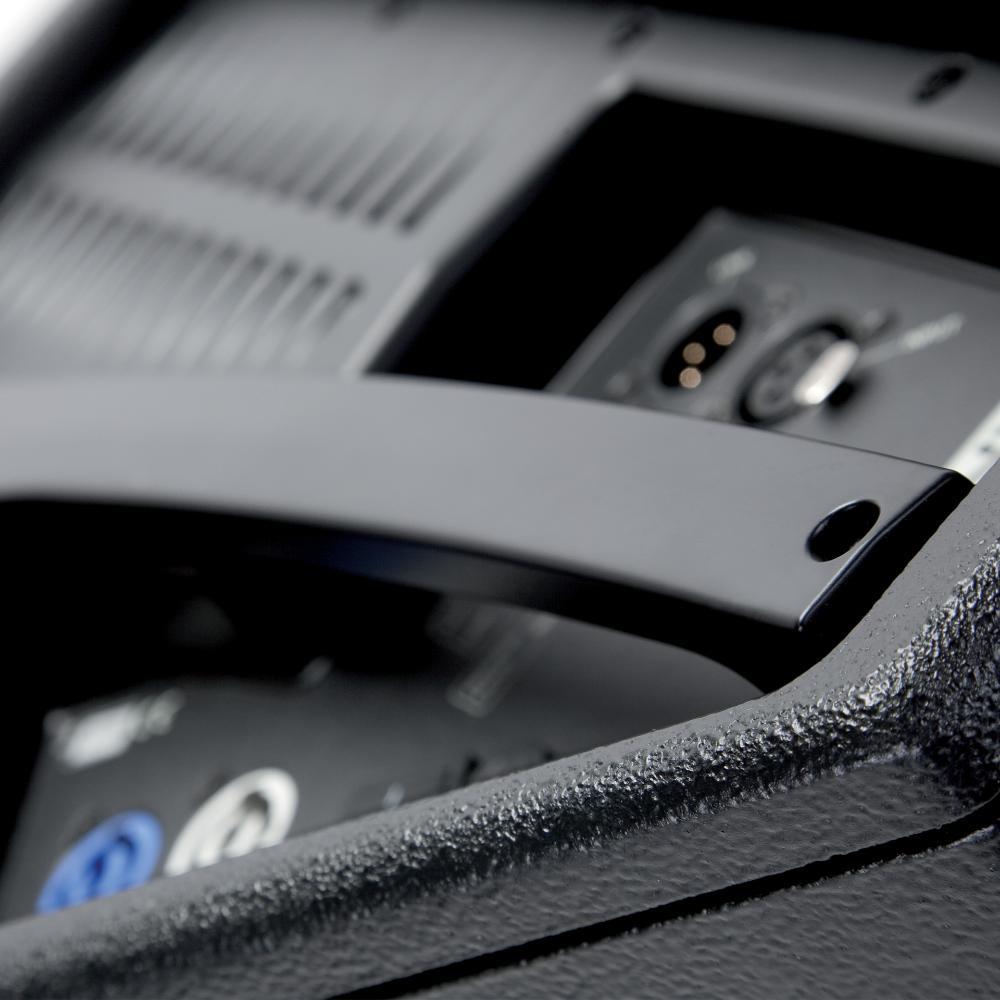

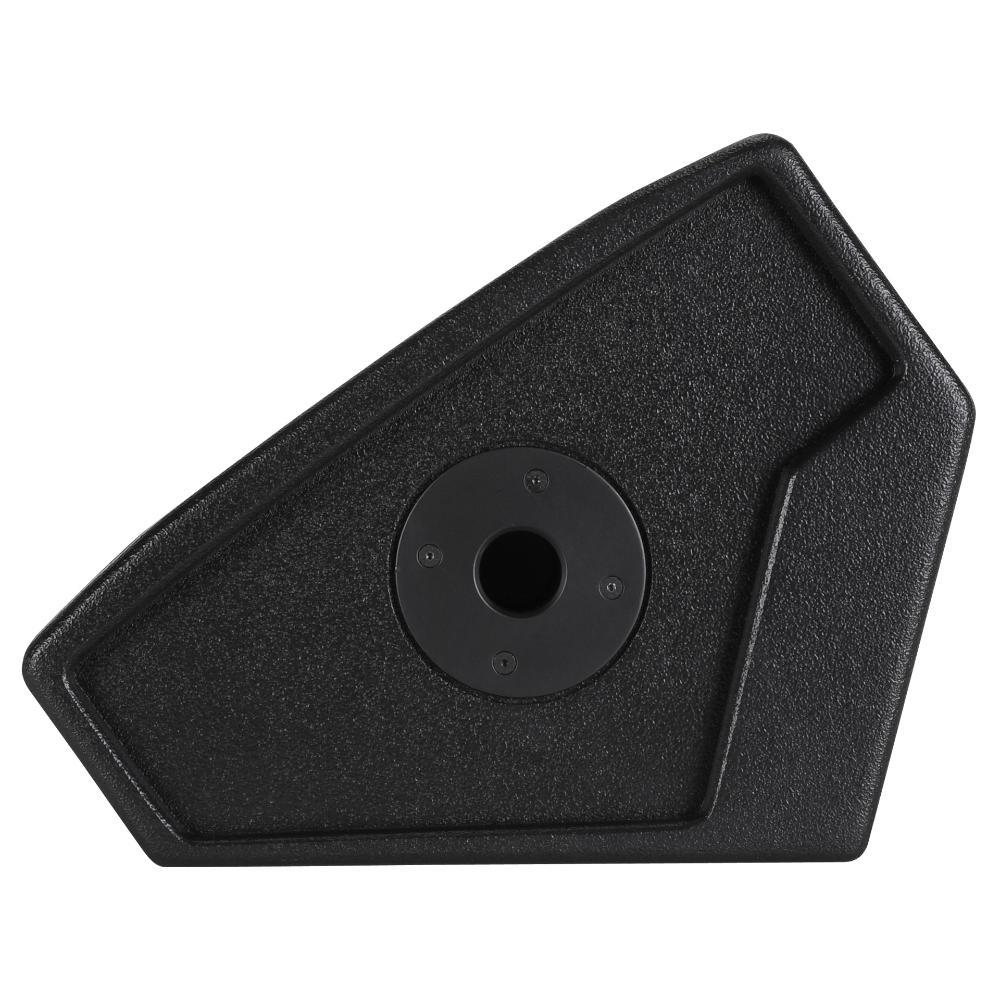

The NX 10-SMA is equipped with new high power 400 W digital amplifier and a newly designed 10 " coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system. The NX 10-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: - Floor, for stage monitoring; - Free Field, for the use of the speakers as a stand-alone PA system. Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.

Features:

800 Watt Peak, 400 Watt RMS digital bi-amplification
127 dB max spl

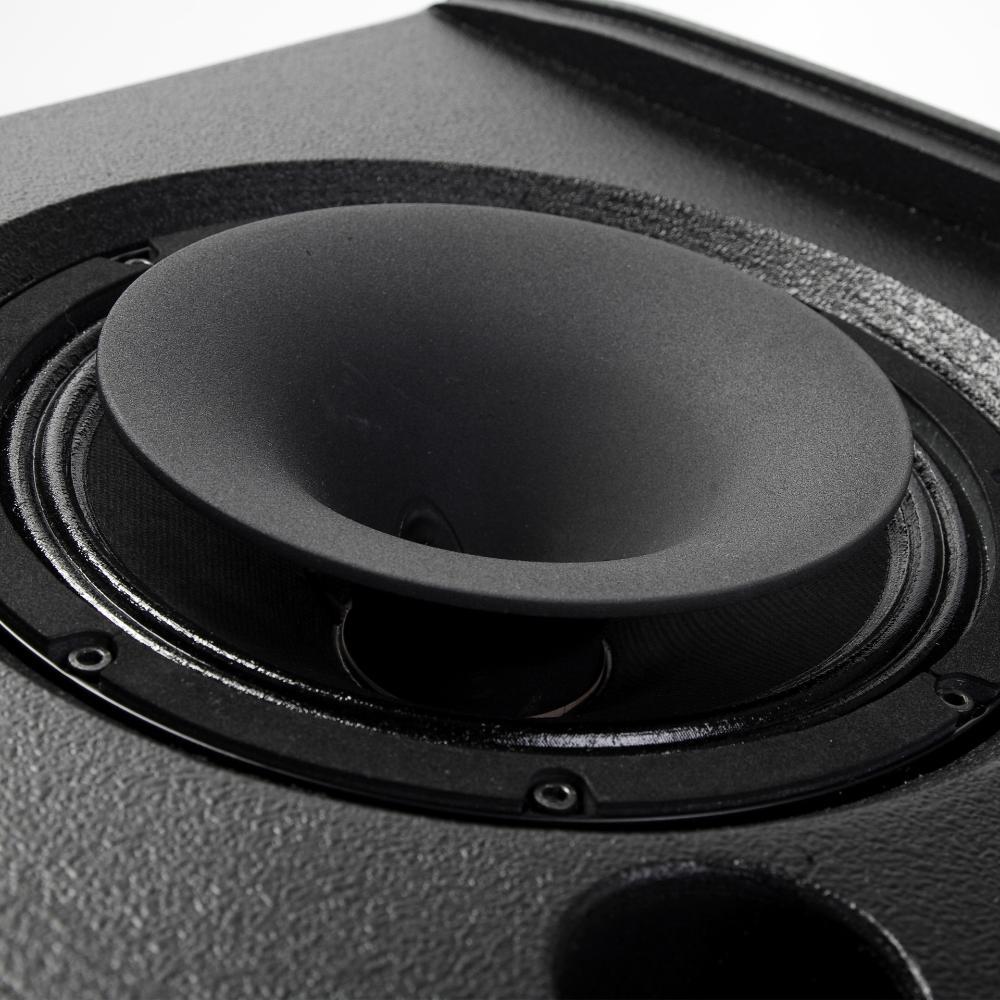

60° x 60° constant directivity horn

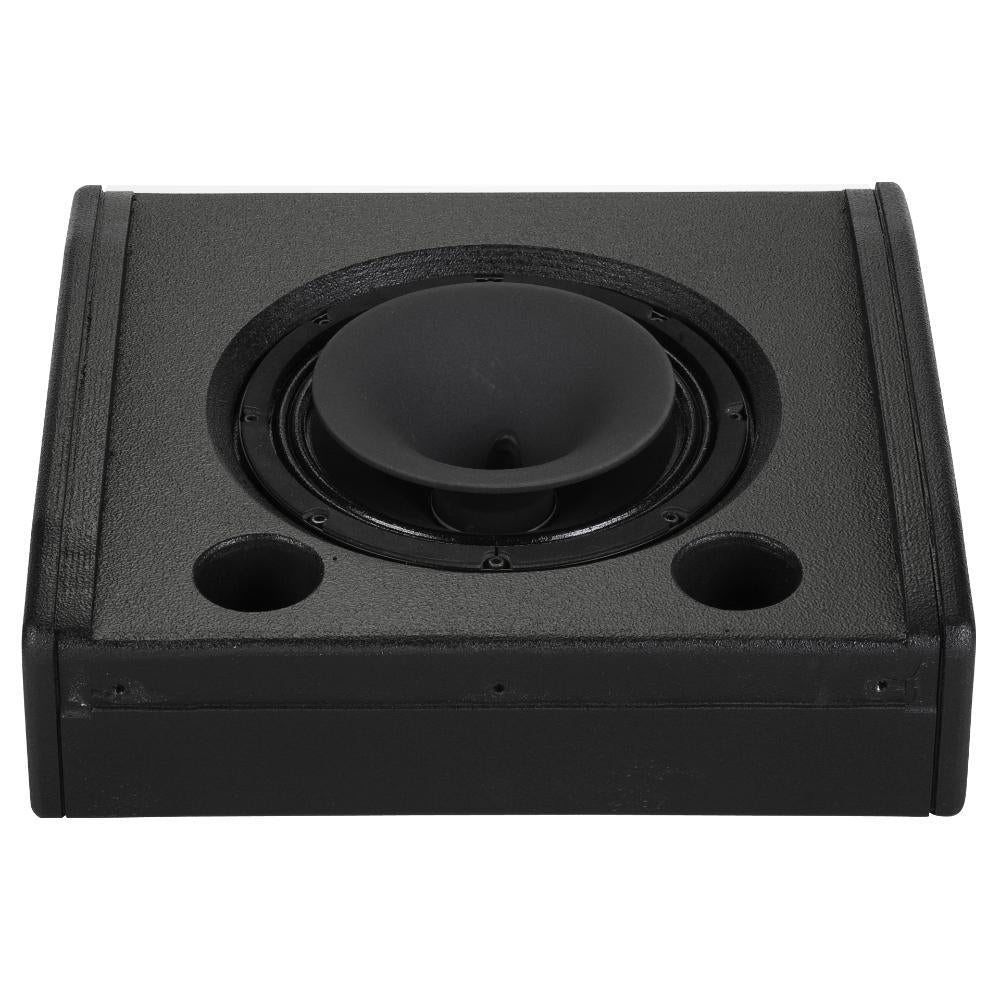

10" High power neodymium woofer, 2.5" voice coil
1.7 kapton dome, 1" exit, neodymium high frequency driver
DSP processing, floor - fre field equalization, soft limiter and protection

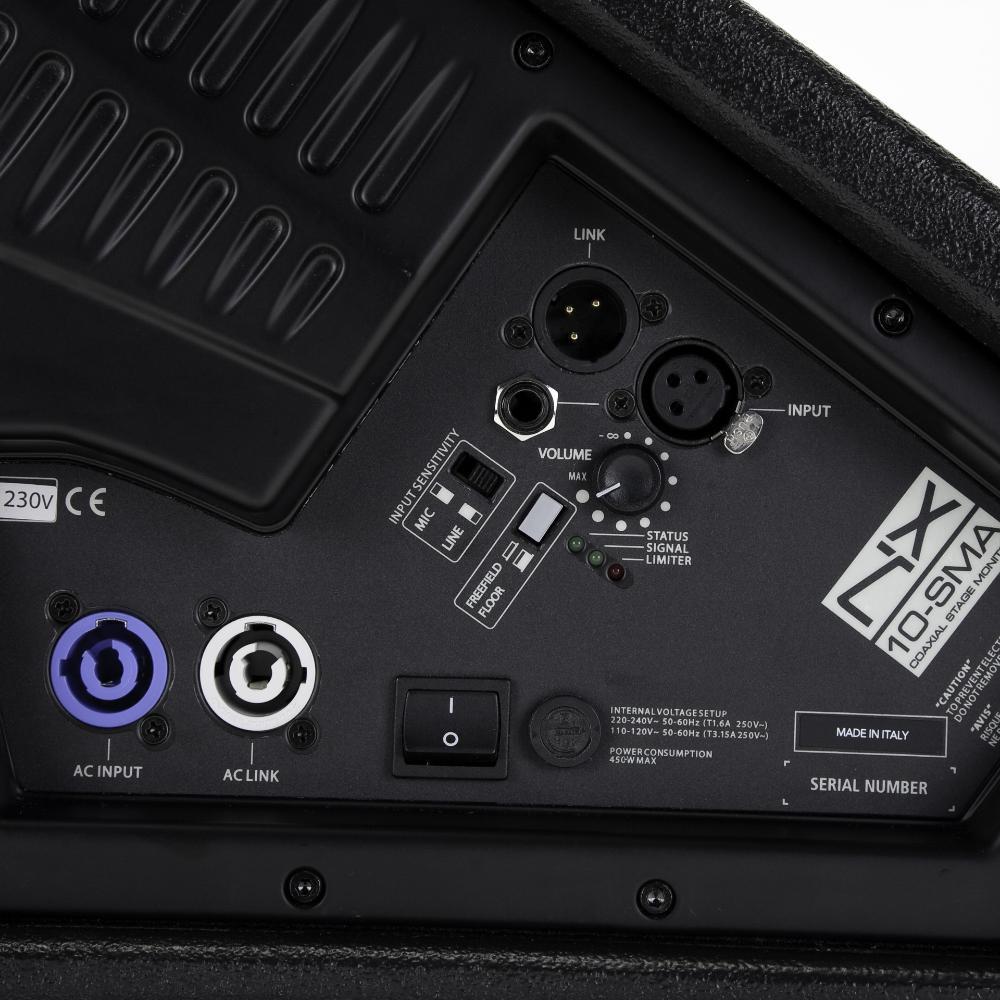

Combo xlr/jack input, xlr signal output

Specifications:
ACOUSTICAL SPECIFICATIONS
Frequency Response: 60 Hz ÷ 20000 Hz
Max SPL @ 1m: 127 dB
Horizontal coverage angle: 60°
Vertical coverage angle: 60°
TRANSDUCERS
Compression Driver: Coaxial 1.0'' neo, 1.75'' v.c
Woofer: 10'' neo, 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: XRL, Jack
Output connectors: XLR
Input sensitivity: +4 dBu
PROCESSOR SECTION
Protections: RMS, HF
Limiter: Soft Limiter
Controls: Freefield, Floor
POWER SECTION
Total Power: 800 W Peak, 400 W RMS
High frequencies: 200 W Peak, 100 W RMS
Low frequencies: 600 W Peak, 300 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Baltic birch plywood

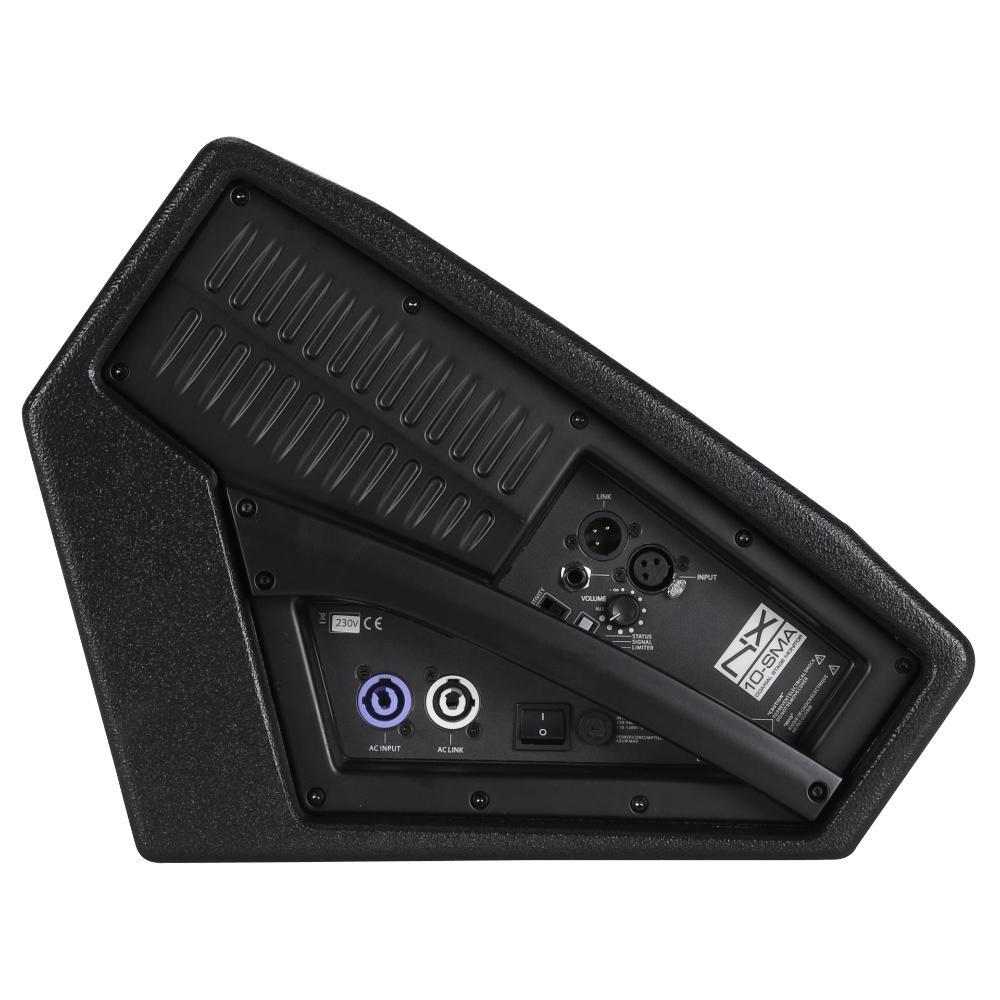

Handles: 1 on side

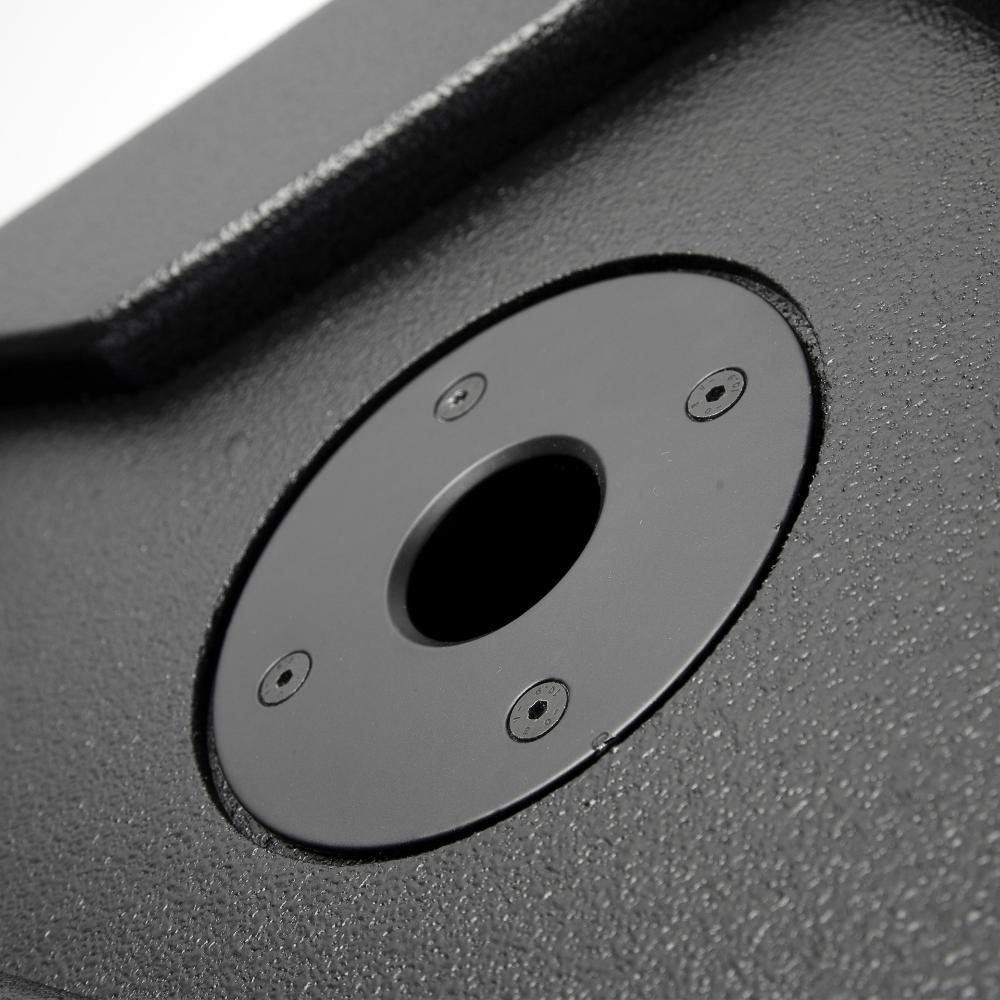

Pole mount/Cap: Yes
Grille: Steel
Color: Black
SIZE
Height: 324 mm / 12.76 inches
Width: 450 mm / 17.72 inches
Depth: 417 mm / 16.42 inches
Weight: 14.3 kg / 31.53 lbs
SHIPPING INFORMATION
Package Height: 504 mm / 19.84 inches
Package Width: 504 mm / 19.84 inches
Package Depth: 404 mm / 15.91 inches
Package Weight: 17.4 kg / 38.36 lbs
