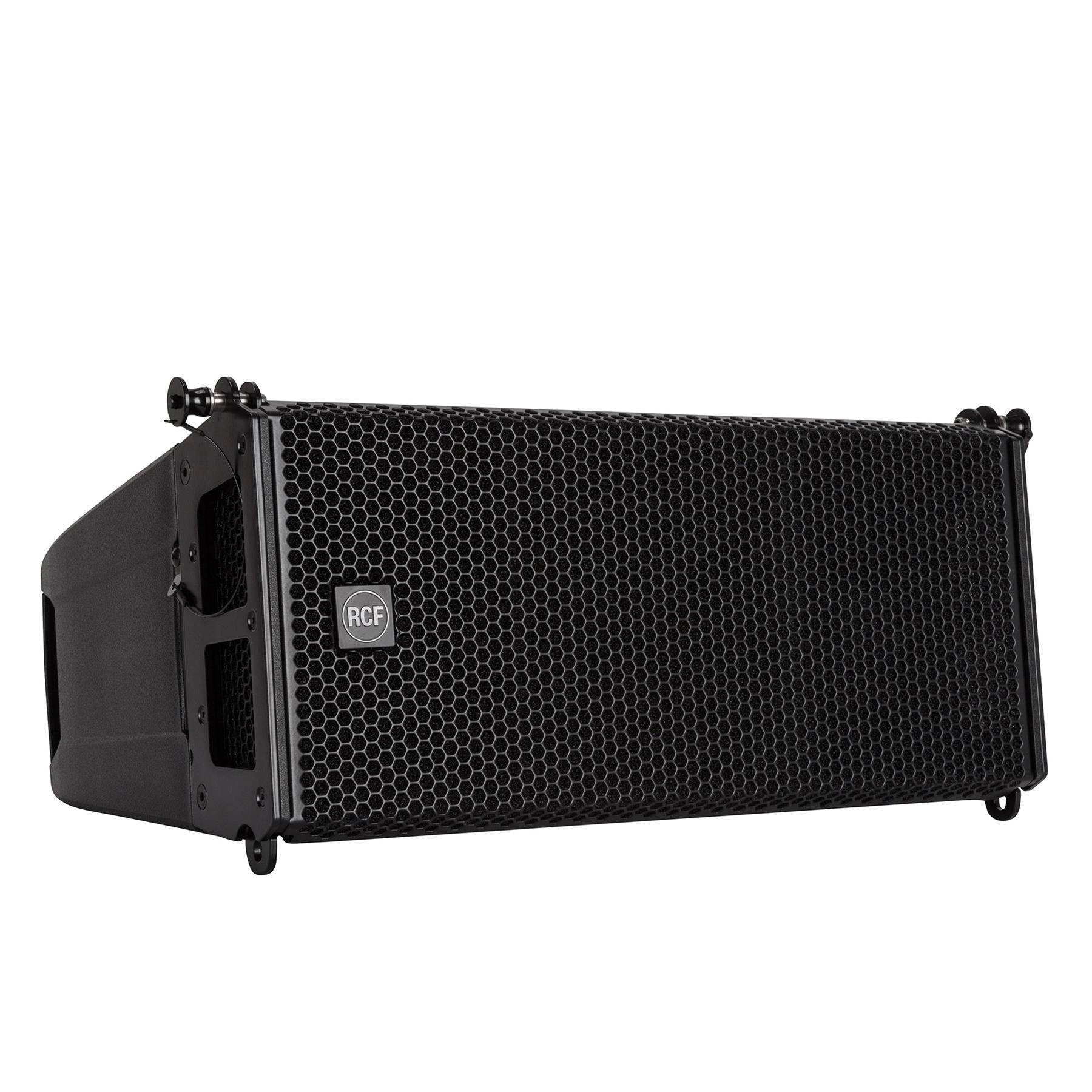

RCF HDL6A ACTIVE LINE ARRAY MODULE 1400W Speaker

The HDL6-A is the ideal choice when line-array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.

Specifications
1400 W, two-way amplification
131 dB max SPL
1.7" voice coil neodymium compression driver
2 x high power neodymium 6.0" woofers
48 kHz, 32-bit floating-point DSP processing
Symmetrical design
Extremely low weight
FiRPHASE processing
Acoustical specifications
FREQUENCY RESPONSE:
65 Hz ÷ 20000 Hz

MAX SPL @ 1M:
131 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
10°
Transducers
COMPRESSION DRIVER:
1 x 1.0'' neo, 1.75'' v.c

WOOFER:
2 x 6.0'' neo, 2.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
+4 dBu
Processor section
CROSSOVER FREQUENCIES:
900 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
HF correction
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

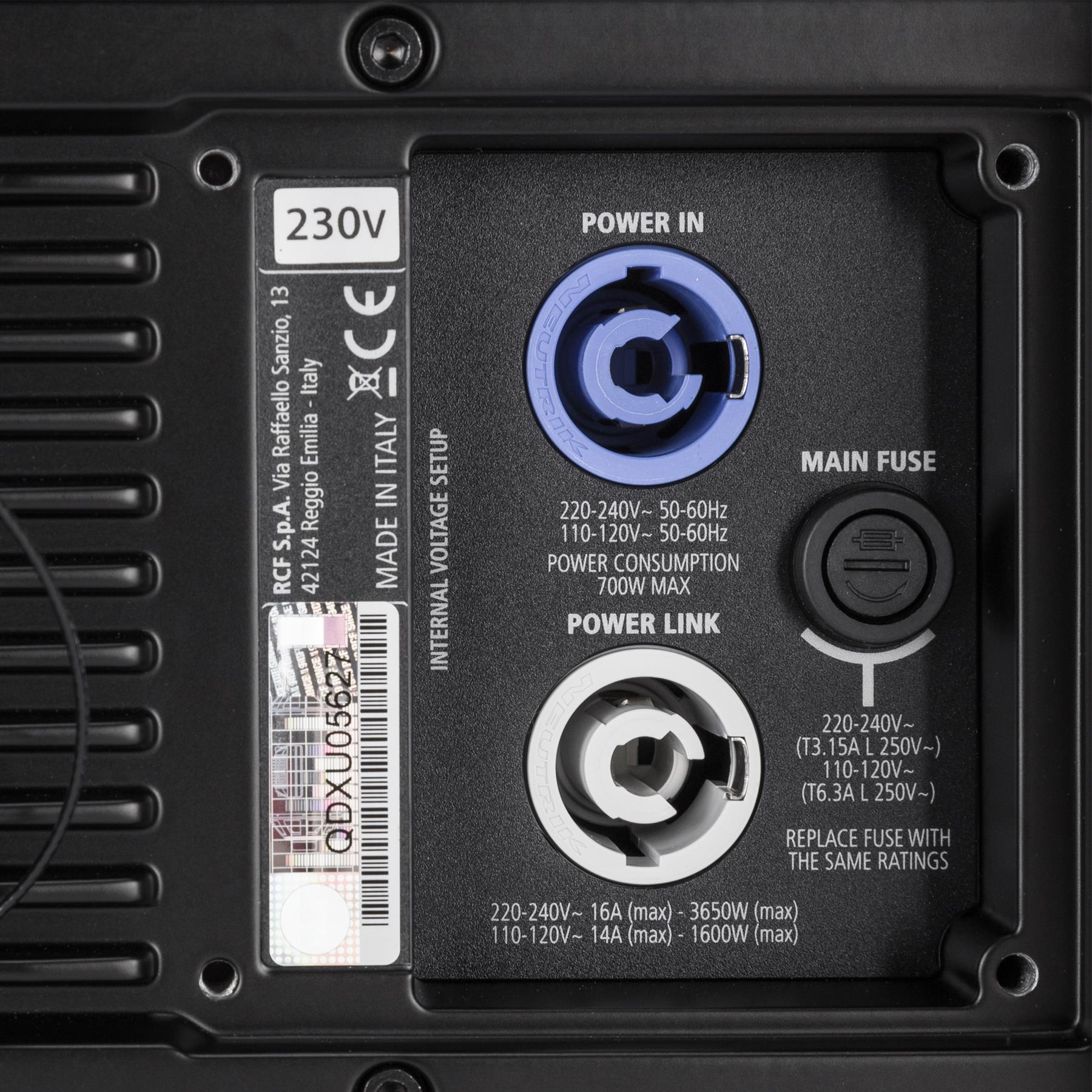

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:

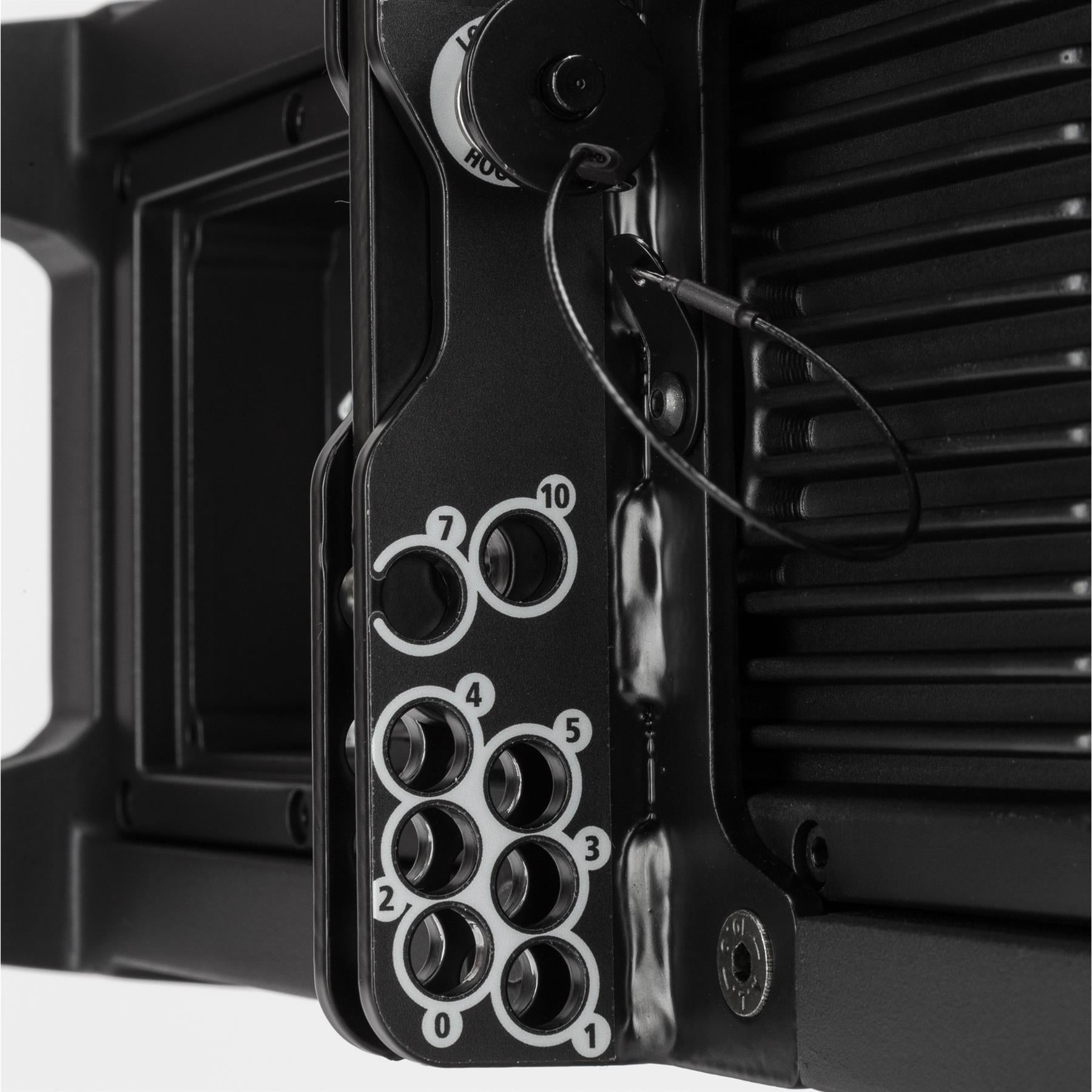

Array fittings

HANDLES:
2 Back

GRILLE:
Steel

COLOUR:
Black

Dimensions
237 x 377 x 470mm

Weight
11.6kg
