RCF DMA 162P Business Music Digital Power Amplifer 2x 160W Background Music

Description

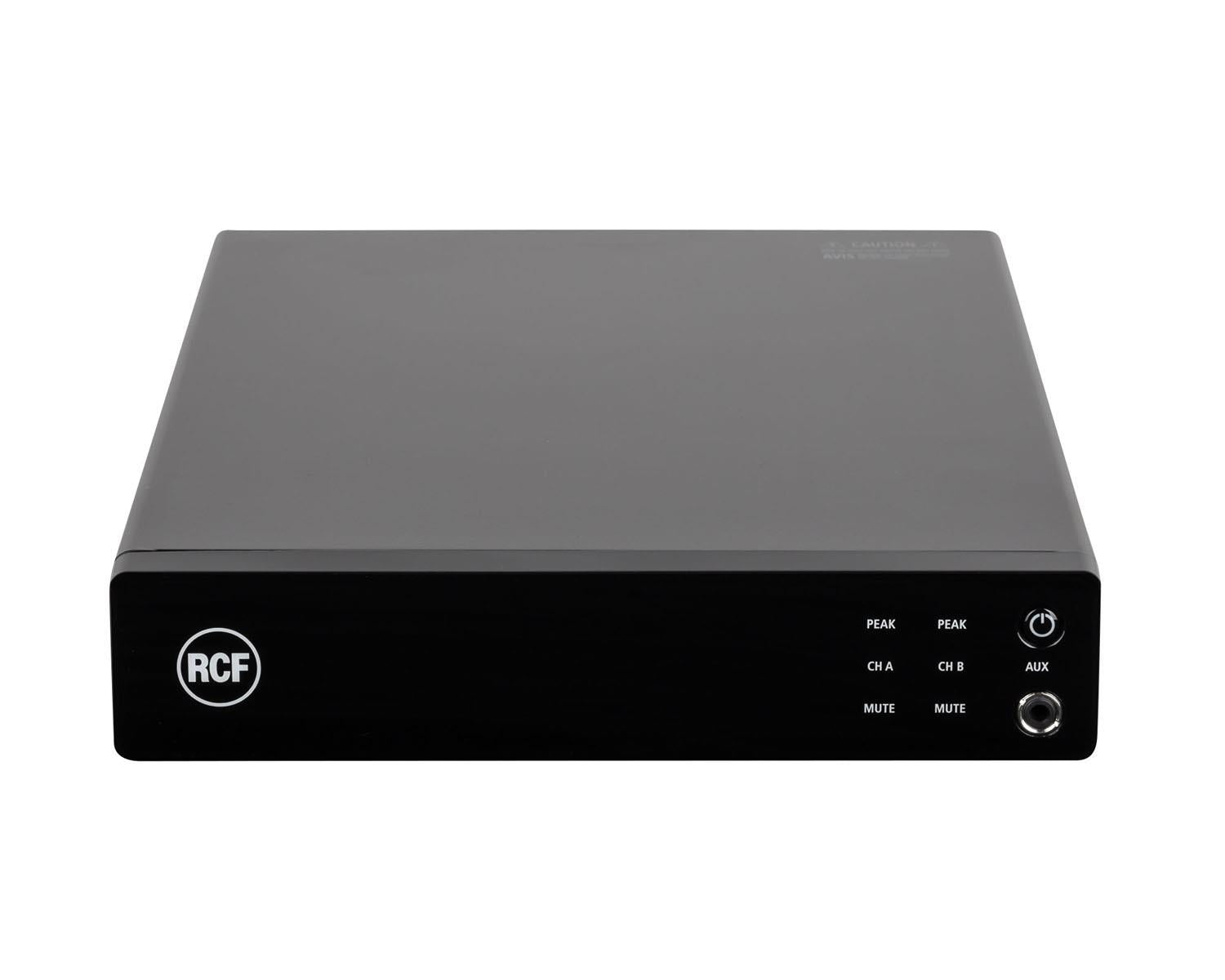

DMA 162P is a two-channel Class-D power amplifier, equipped with a powerful DSP platform. Its natural use is in combination with a DMA unit, in order to increase installed power and implement multi-room architectures for Commercial Audio systems. However, its adaptability, control tools, and available inputs allow using it as a stand-alone amplifier. Thanks to the extremely compact size, accurate design, and robustness, it is ideal for a wide range of business music applications.

Features
2 x 160 W Class-D power amplifier
20 ÷ 20000 Hz frequency range
Full on-board processing
RCF speakers’ presets
Proprietary bass enhancer algorithm
FiRPHASE linear phase filters
Flexible and scalable multi-room architecture
Suitable for desktop or rack installation
RDNet ready for networked management

Specifications
AMPLIFIER
Amplifier Class: D
Number of channels: 2
Power output per channel (@ 4 ohm): 160 W RMS
Power output (bridged @ 4 ohm): 320 W RMS
Power output (@ 100 V): 320 W RMS
Frequency Response (-3dB): 20 Hz ÷ 20000 kHz
Signal/noise rate (”A” weighted) >93 dB dB
Distortion (THD+N) @ 1 kHz nominal power: <0.01 %%
INPUT
Total number of inputs: 5
Balanced: 4
Unbalanced: 1
Mono: 4
Stereo: 1
Line inputs: 5
Line connectors: RCA, RJ45
General Purpose Inputs (GPI): 2
OUTPUT
Signal output number: 1
Signal output connectors: RCA
Power output connectors: Euroblock
PROCESSING
DSP: Yes
EQ Filters: Yes
FIR: Yes
Compressors: Yes
Tone controls: Yes
High-pass filter: 80 ÷ 200 Hz
CONTROLS
Configuration: DIP switch, PC Software
PROTECTIONS
Cooling: Forced
Short circuit: Yes
Thermal: Yes
DC: Yes
Fuses: Yes
VHF (Very High Frequencies): Yes
POWER
Operating voltage: 90-240 V~ 50/60HzV ~ Hz
Power consumption (MAX): 400 W
COMPLIANCE
CE marking: Yes
Energy Star: Yes
