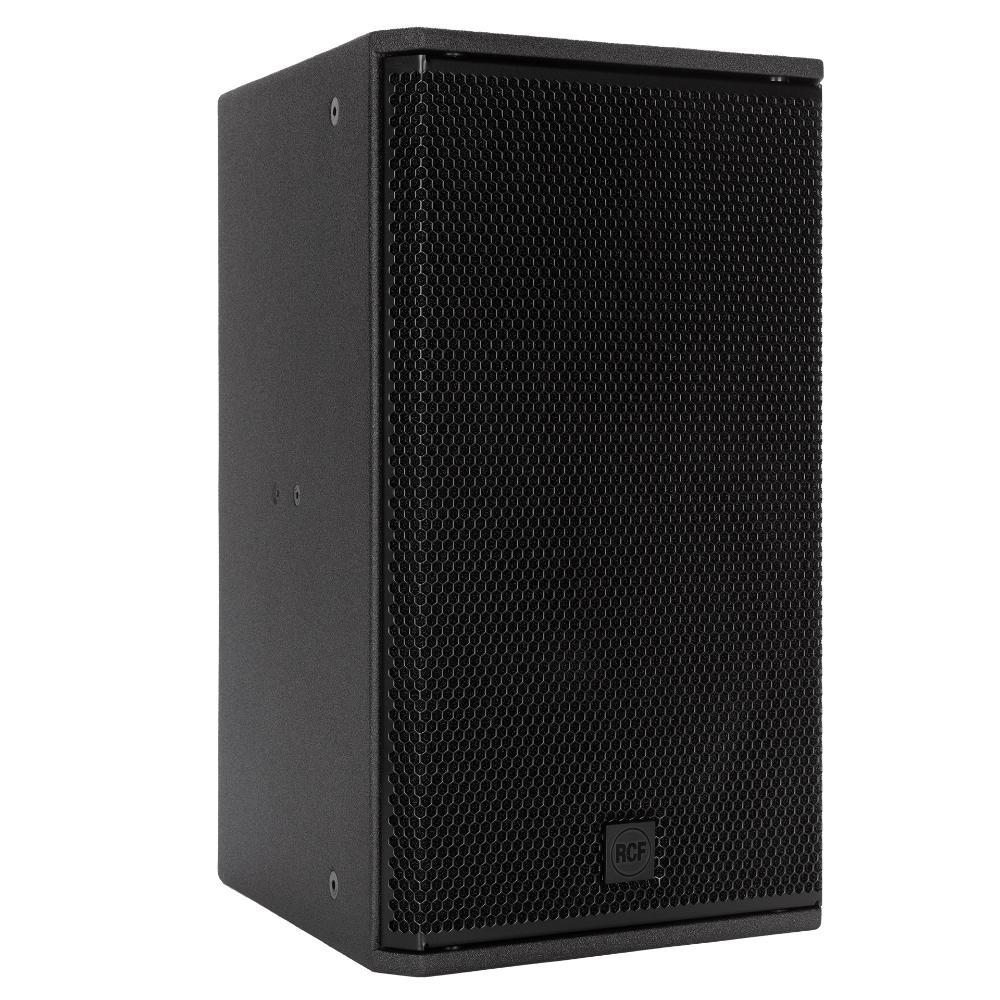

RCF Compact C 32 Speaker 2 Way 12" Install Speaker

Description:

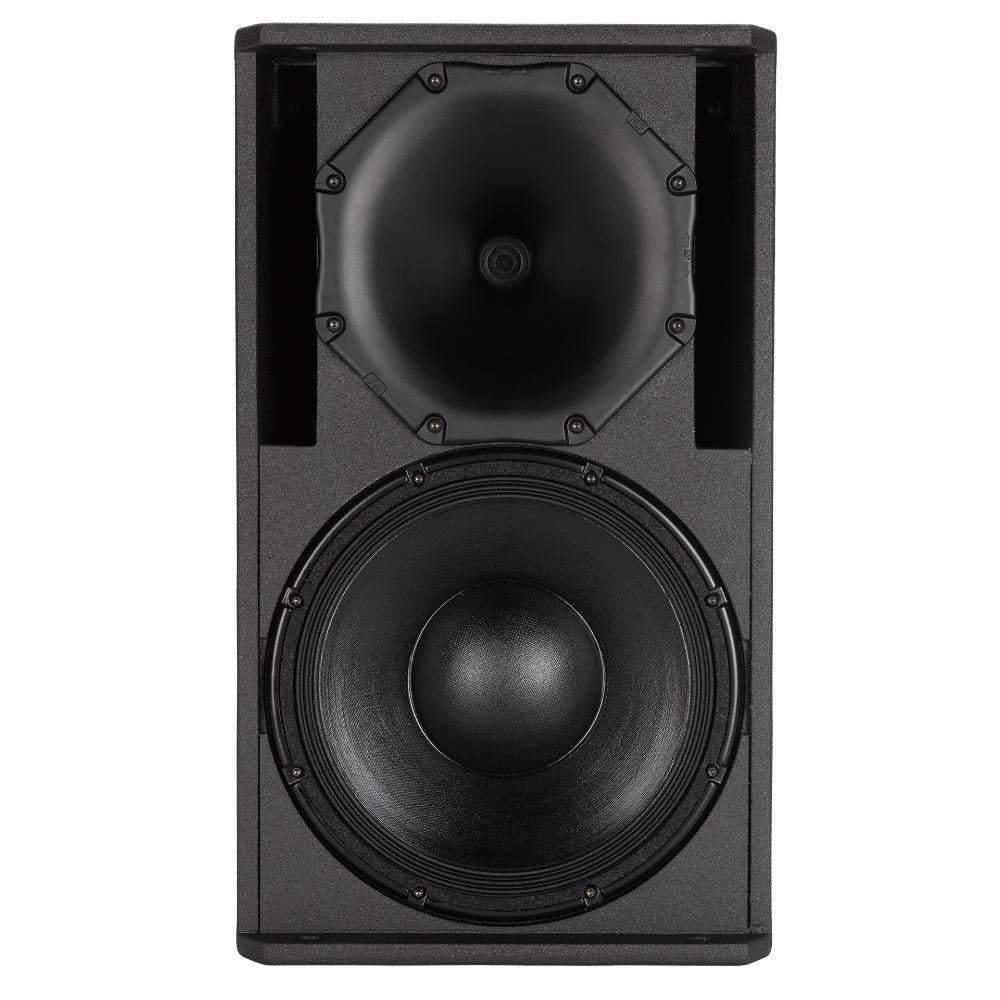

COMPACT C 32 is a multipurpose two-way point source speaker, suitable for a wide range of near and mid-distance applications. The combination of a 3" neodymium compression driver, a 12" neodymium woofer, and a constant directivity rotatable waveguide produces coherent 100° x 50° coverage for the listening area with high SPL, and distortion-free sound. The sleek and lightweight wood cabinet uses a special polyurea coating and a robust powder-coated grille with protective foam. Optional mounting accessories allow for wall or ceiling installation.

HF
The compression driver with voice coil and titanium dome delivers an extremely natural sound reproduction with high resilience and a long service life. This allows a lower crossover frequency to be selected than usual, ensuring perfect reproduction of speech and vocals in the mid-range and improving interaction with the woofer.
LF
The special woofer design ensures that the system runs more stably under heavy loads, has less distortion and does not overheat as quickly. RCF takes quality control very seriously. Our woofers are tested for over 200 hours using a continuous signal to subject the transducers to intense high levels.

Constant Directivity Waveguide
The special design of the waveguide ensures precise coverage control when using the COMPACT C loudspeakers. Speech intelligibility is significantly improved in acoustically problematic environments. In addition, the speaker has a rotatable constant directivity waveguide with a 100° x 50° radiation angle. With the optional HN-KIT COMPACT C 32 C 45 accessory, the horn can be swapped with two alternative horns to change the beam angle to 100° x 25° or 60° x 25°.
Impressively powerful

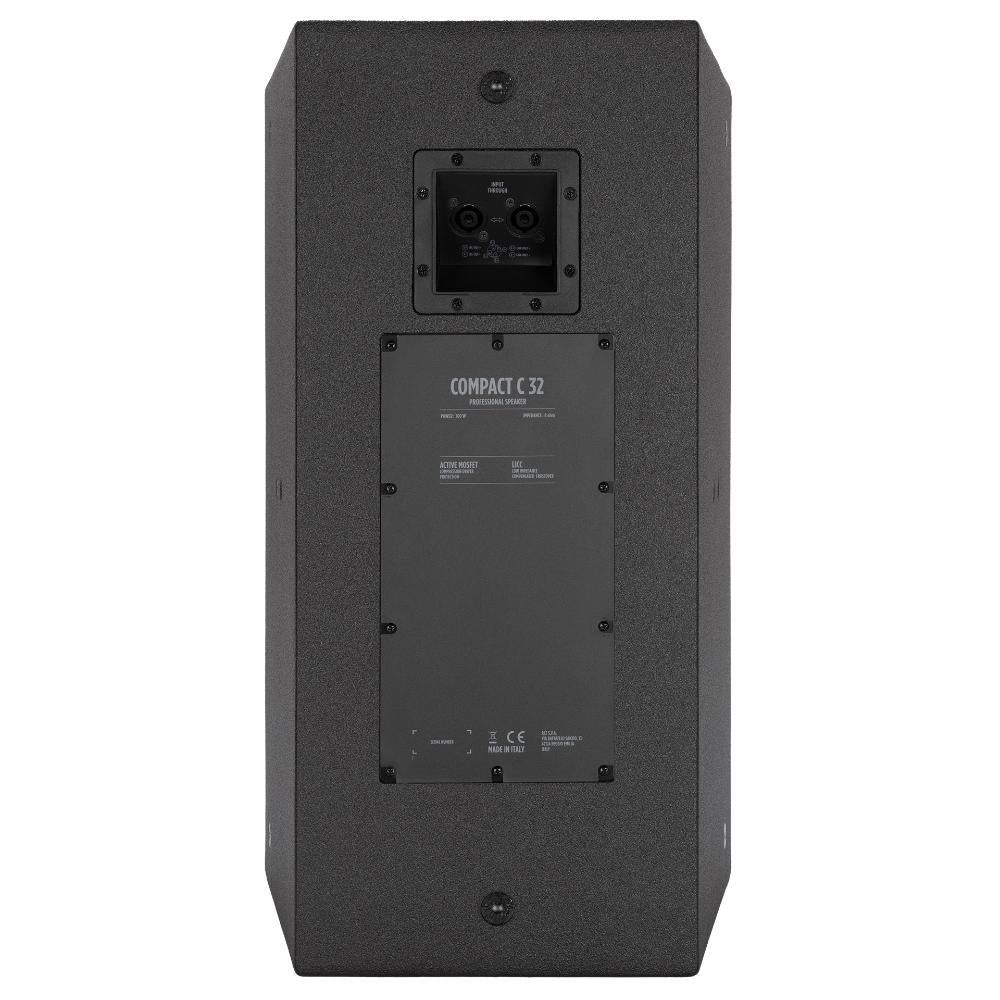

Because of its flexibility, the COMPACT C series is the perfect choice for a variety of applications. The loudspeakers combine high-quality birch multiplex housing with a rotatable 100° x 50° constant directivity waveguide and can be installed horizontally or vertically. The sleek body is finished in a durable polyurea coating and can be flown, wall or truss mounted with multiple built-in attachment points and optional accessories. On the back are two 4-pin Neutrik SpeakON NL4 connectors.

Compact C Series
The Compact C series are 2-way loudspeakers for use as point sources for high-performance applications over short to medium distances. Each model combines compact size with high performance for accurate voice and music reproduction. All housings are made of high-quality birch multiplex and are equipped with a neodymium woofer with a titanium/neodymium compression driver and a rotatable constant directivity horn with a 100° x 50° radiation angle. The speakers can be installed horizontally or vertically and can be wall or ceiling mounted with optional accessories.

Features:
600W power handling (RMS)
137dB max SPL
54 ÷ 20000 Hz frequency range
100° x 50° constant directivity coverage angle
1 x 12" high power neodymium woofer
1 x 3.0" vc neodymium compression driver
High quality birch plywood cabinet
Steel front grille with clothing
Installation points available on top, bottom, rear and side panels
SPEAKON in/out connectors

Specifications:
Frequency Response (-10dB): 54Hz ÷ 20000Hz
Max SPL @ 1m: 137dB
Horizontal beam angle: 100°
Vertical beam angle: 50°
Directivity index Q:10
System Sensitivity: 97dB
POWER SECTION
Amplification: full range
Nominal Impedance: 8 ohms
Power Consumption: 600W RMS
Pack Power: 2400W PEAK
Recommended amplifier: 1200W
Protection circuits: Dynamic Active Mosfet
crossover frequency: 1100Hz
SOUND TRANSDUCER
Compression driver: 1 x 1.4'' neo, 3.0'' vc
woofers: 12'' neo, 3.5'' vc
INPUT/OUTPUT SECTION
Input jacks: speakon
Output Connections: speakon
STANDARD COMPLIANCE
Safety agency: CE compliant
PHYSICAL DATA
Housing material:
Birch plywood
Hardware: 4xM8, 14xM10
Grid: Steel with clothing
Colour: Black - RAL 9005
SIZE
Height: 620mm / 24.41 inches
Broad: 361.8mm / 14.24 inches
Depth: 404mm / 15.91 inches
Weight: 23.5kg / 51.81lbs
SHIPPING INFORMATION
Packing height: 665mm / 26.18 inches
Packing width: 442mm / 17.4 inches
Packing depth: 400mm / 15.75 inches
Packing weight: 25.5kg / 56.22lbs
