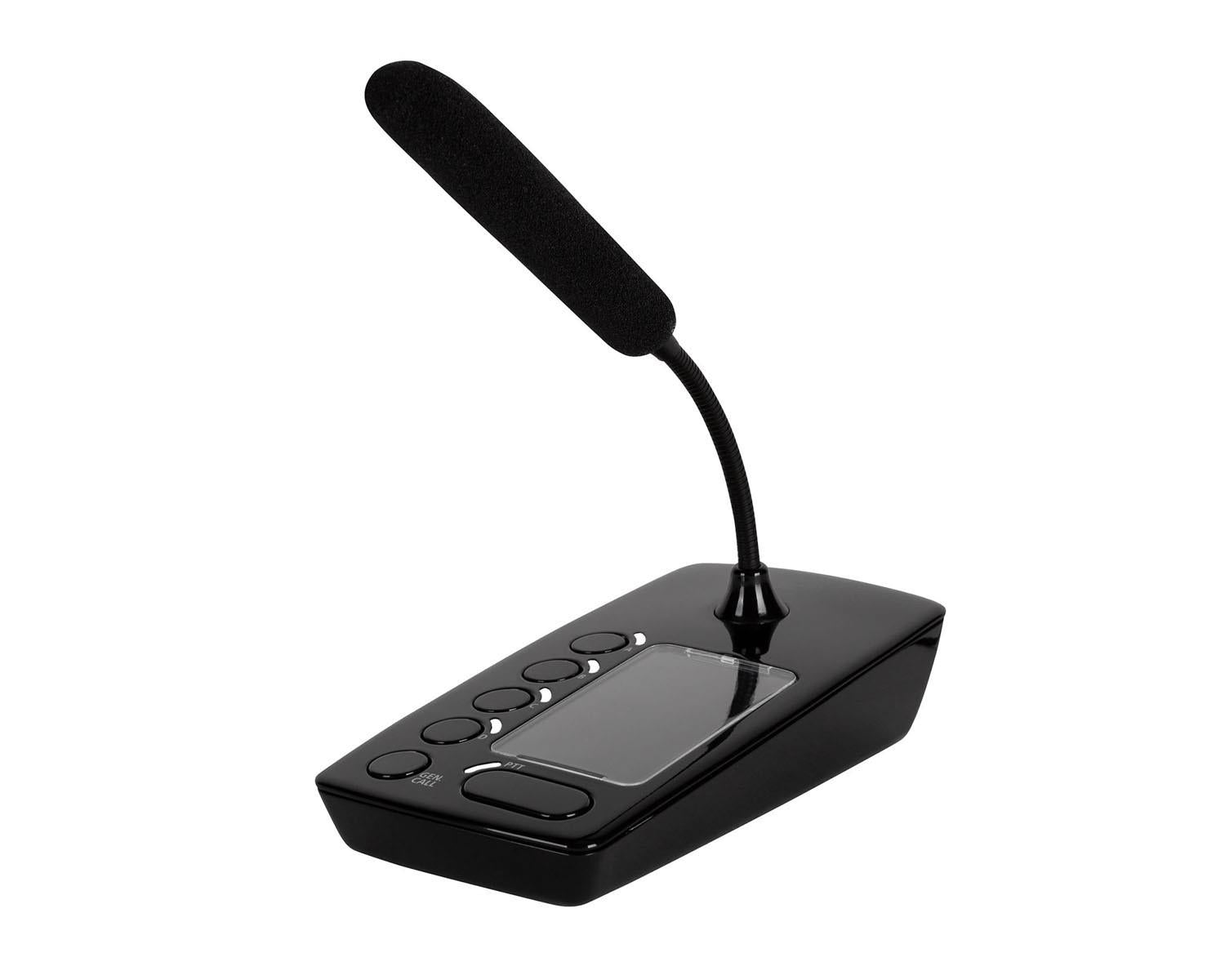

RCF BM 404 Desktop Paging Microphone for DMA Business Music Amplifier

Description
The desktop paging console BM 404 allows to make selective calls to 4 zones, and it is the ideal complement for business music systems that use RCF amplifiers DMA 82 and DMA 162. It is made of a shock-resistant plastic body and uses a microphone with a high-quality electret capsule, a 230mm long gooseneck and a polyurethane foam windscreen. Up to 4 consoles can be connected on a single chain (interlocked) to each amplifier unit and the connection can be done with a CAT5 cable (included). Each zone can be selected by a dedicated button with LED, and microphone activation as well. Chime tone is selectable with an on/off switch. BM 404 is ready to use and does not require any configuration.

Features
Shock-resistant plastic body
Microphone with a high-quality electret capsule and 230 mm long gooseneck
Zones selection and mic activation dedicated buttons with LED
5 m amplifier connection cable included
Power supply included

Specifications
MICROPHONE
Type: Electret
Directivity: Hypercardioid
Sensitivity: -55 dB
Frequency Response (-3dB): 50 Hz 20 Hz
Output impedance (ohm): 250.00 ohm
CONSOLE
Console Type: Paging
Working with DMA 82 and DMA 162
General call: Yes
Selective call: Yes
Number of zones: 4
Preamplified: Yes
LED indicators: Yes
POWER REQUIREMENT
Operating voltage: 24.00V ~ Hz
CONNECTIONS
Connectors: RJ45
Cable: FTP CAT 5
Daisy-chain: Yes
Max number in daisy-chain: 4
Interlock: Yes
FUNCTIONALITIES
Priority: Yes
Chime tone generator: Yes
Automatic Gain Control (ACG): Yes
ACCESSORIES
Cable included: Yes
Cable length (m): 5
COMPLIANCE
CE marking: Yes
Physical specifications
Cabinet/Case Material: Plastic
Colour: Black - RAL 9005
SIZE
Height: 40 mm
Width: 181 mm
Depth: 89 mm
Weight: 0.45 kg
