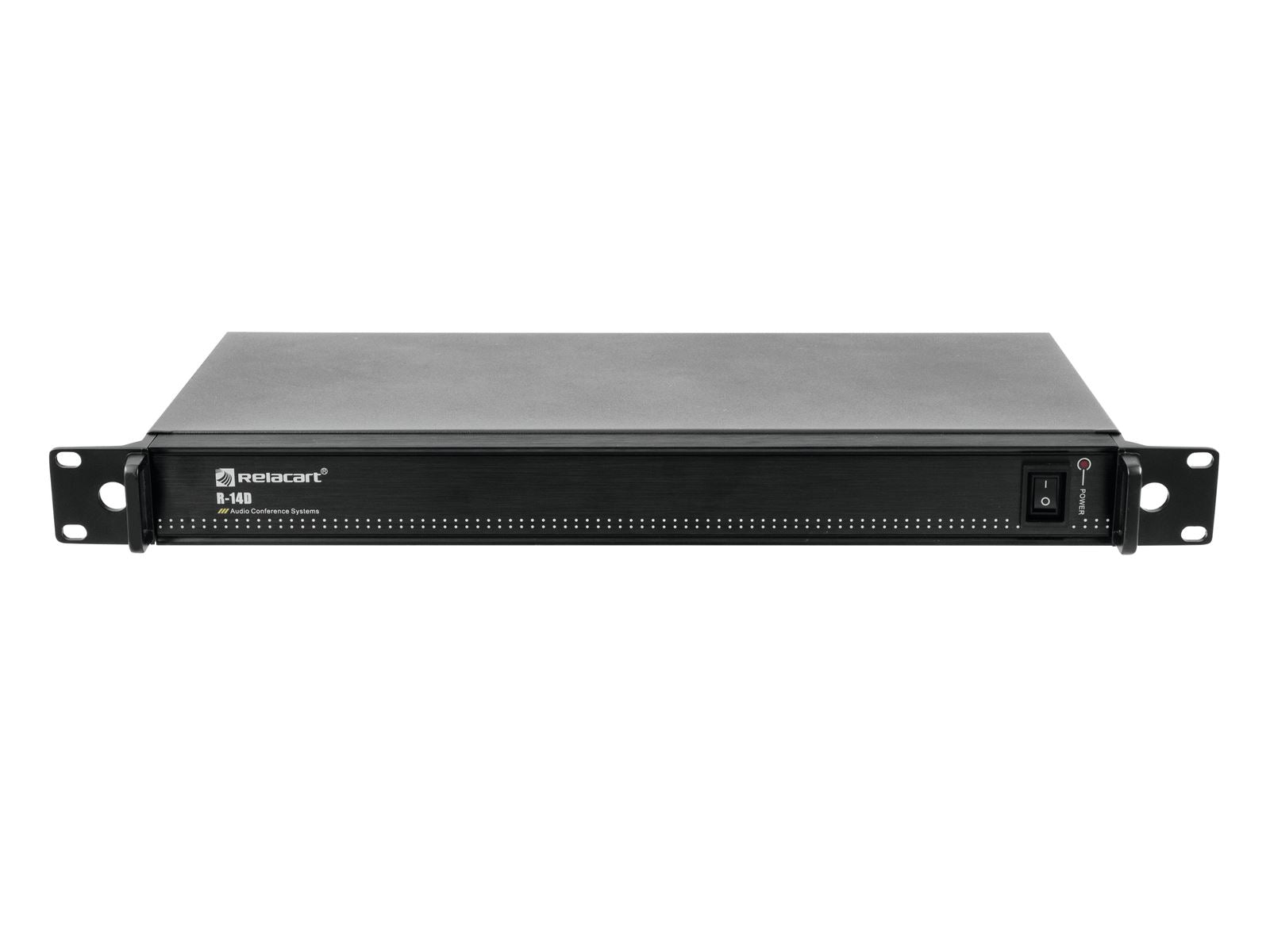

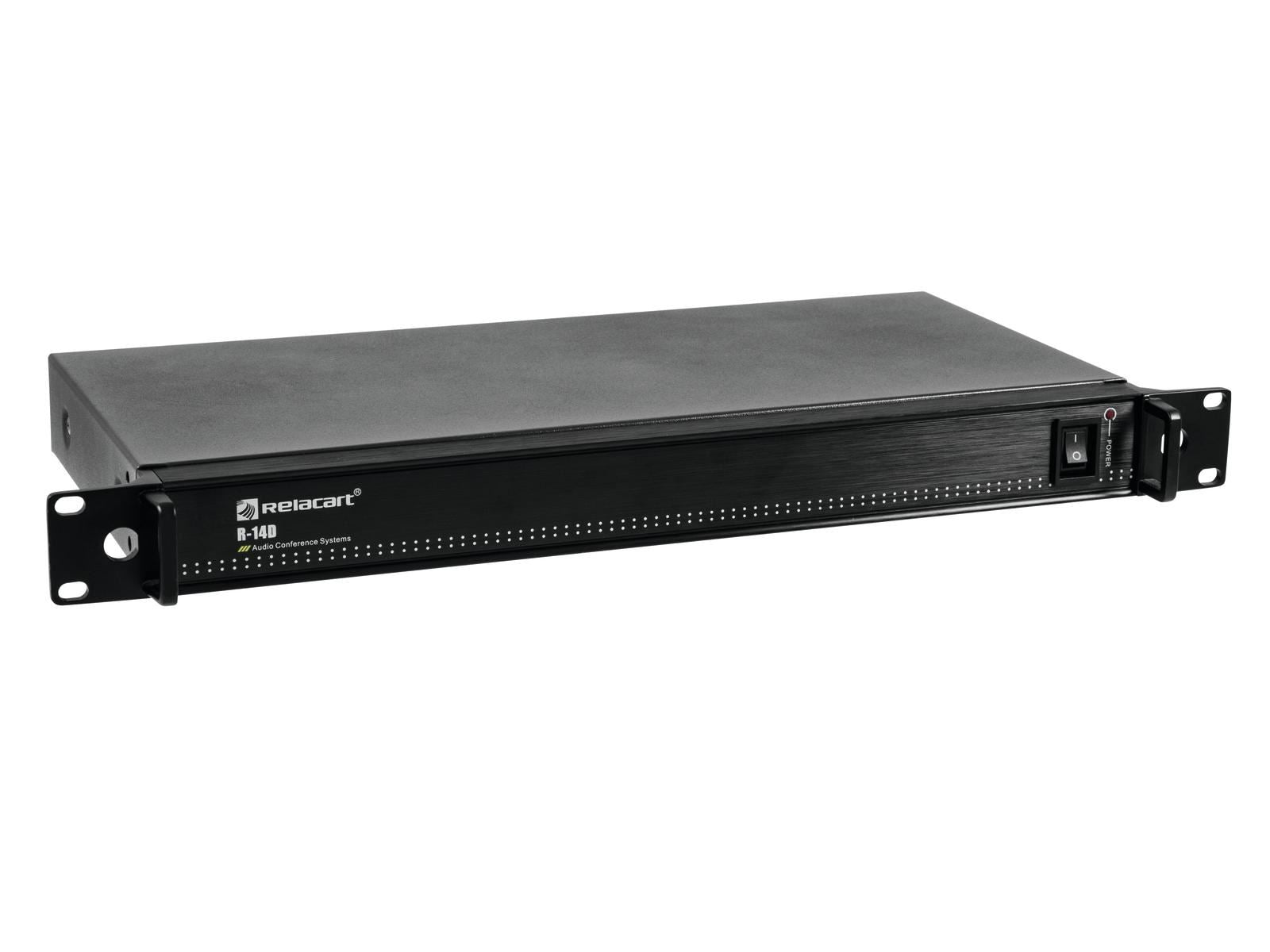

Relacart R-14D Antenna Distribution System

£459.00
£459.00
Antenna distributor (470 - 900 MHz)
Vendor: Relacart
SKU: 154-13055194
Icon In Stock In Stock
Icon Delivery Time
iFrame
×

Description


Antenna distributor (470 - 900 MHz)

  • Active antenna distributor for operating up to four true diversity UHF receivers on one pair of multi-antennas
  • Improves the interference safety and enlarges the range
  • Replaces the respective antennas and PSUs of the individual receivers
  • Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
  • Low-voltage outputs for supplying four UHF receivers, incl. matching DC-connection cables
  • Use in the entire UHF frequency range (470 - 900 MHz)
  • All antenna connections via BNC jacks, incl. 10 x BNC cable
  • Rack installation with 1 unit
  • (19") 48.3 cm rack installation


Type: Antennas and distributors
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 60 W
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Impedance: 50 Ohm
Output voltage: 4 x 12 V DC

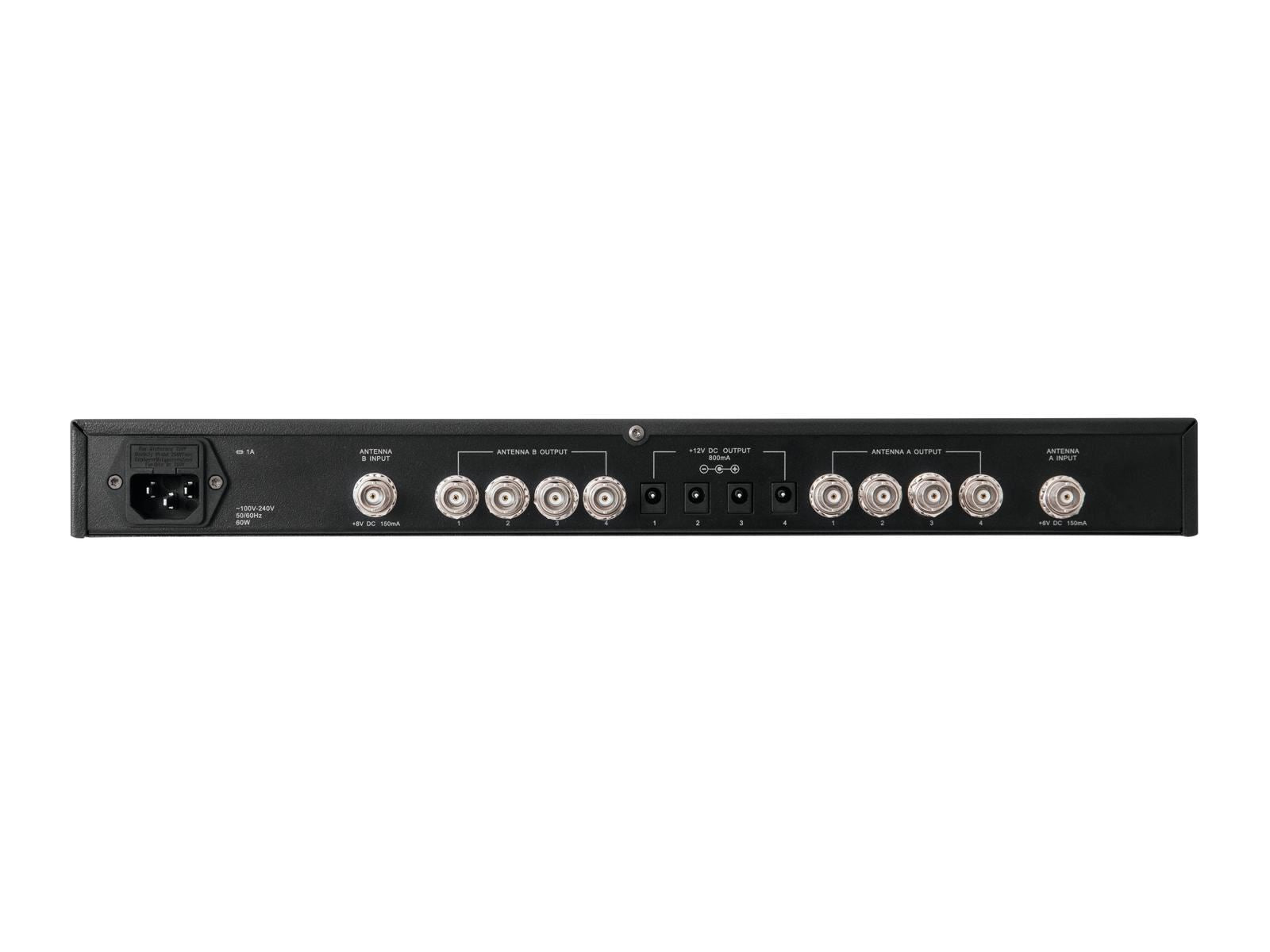

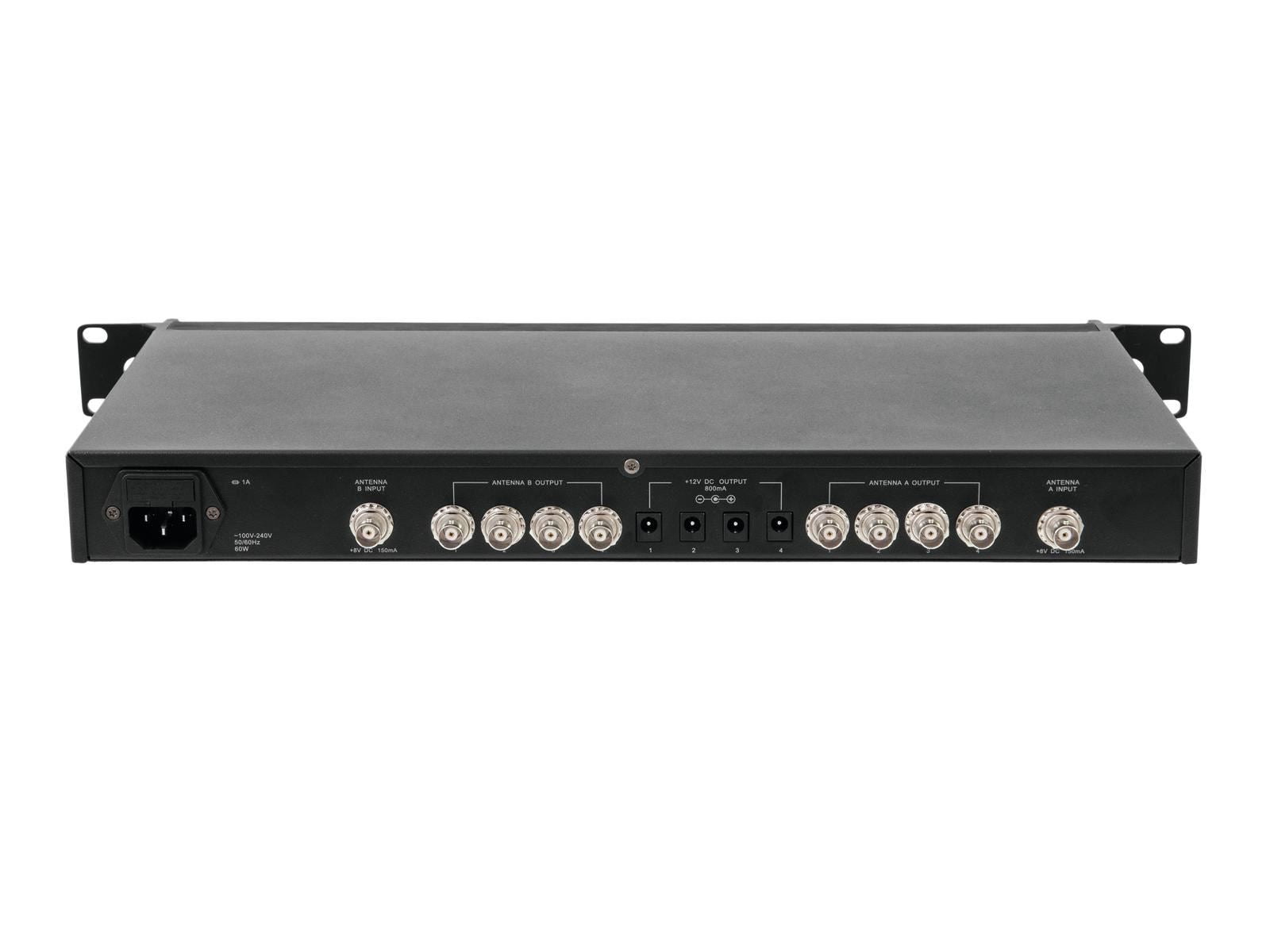

Connections: Input: 2 x antenna via BNC (F)
Output: 8 x antenna via BNC (F)
Frequency band: UHF 470 - 900MHz
Switch: On/off switch
Material: Metal
Color: Black
Housing design: (19") 48.3 cm rack installation
Dimension: Width: 48.3 cm
Depth: 24.2 cm
Height: 4.45 cm
Weight: 2.90 kg
