QTX Suitcase PA System

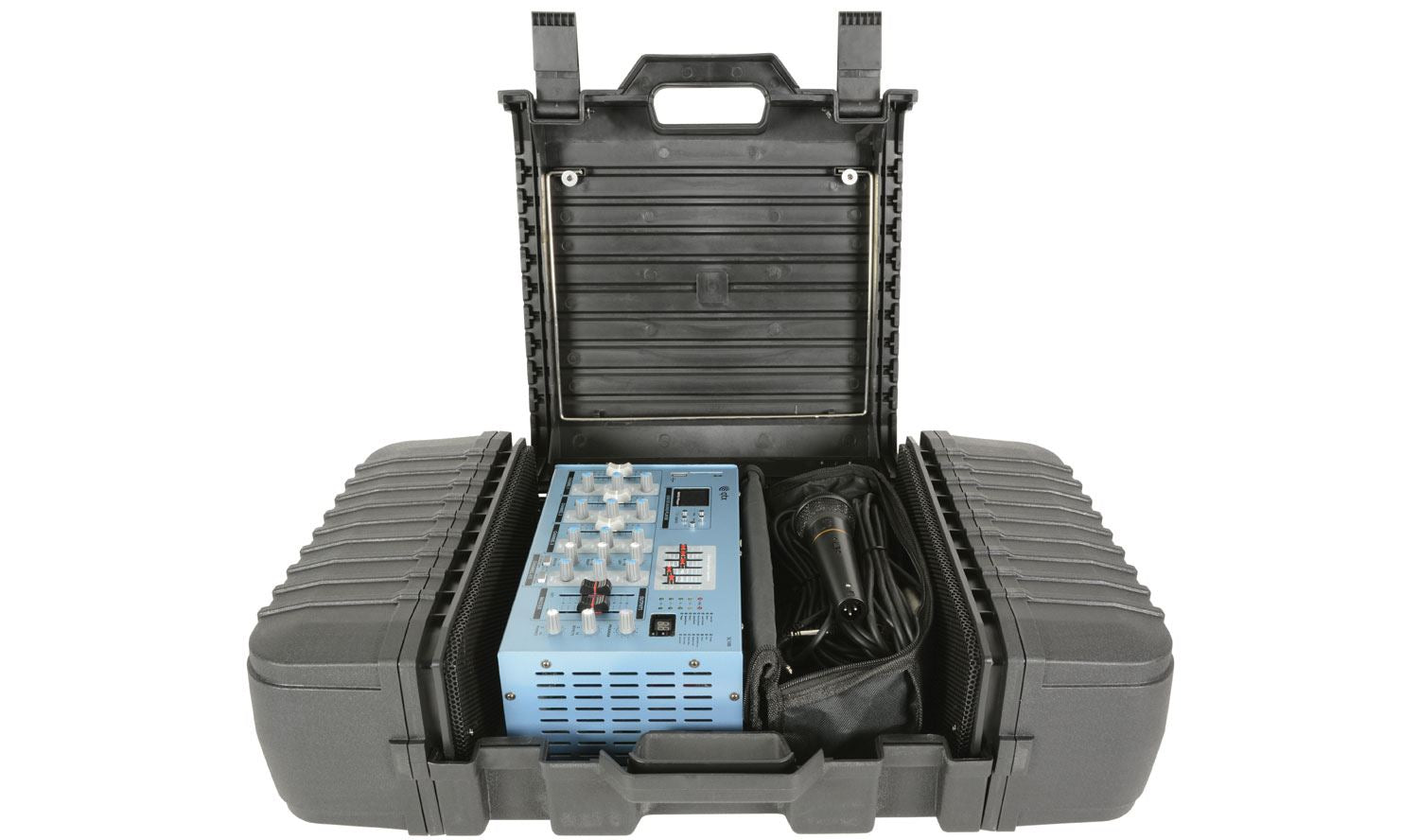

A suitcase style PA set comprising a powered mixer and 2 speakers with tripod stands. The case opens to reveal the mixer and amplifier section, which has 2 balanced microphone inputs, 1 unbalanced mic/line input and a stereo line input channel. There are stereo or mono line outputs and a headphone output in addition to left & right jack speaker outputs. An internal player section is provided for playback of audio files stored on USB or SD media. A DSP section takes care of vocal or musical effects with 16 preset programs. Each side of the case forms a speaker cabinet, which slide out and can be mounted to the 2 included speaker stands. A portable and compact solution for performers, teachers and small meetings.

Complete all-in-one package
16 program DSP effects
5-band graphic EQ
USB/SD audio player
2 x 50W output
Supplied with wired microphone & lead
Supplied with 2 x speaker leads
Supplied with 2 x speaker stands & bag

Specifications
Power supply: 100-240Vac, 50/60Hz (IEC)
Fuse: T1.6AL / 250V
Power consumption: max. 200W
Output power: 2 x 50Wrms @ 4 Ohms
Mic/line inputs: 2 x balanced XLR/jack, 1 x unbalanced jack
Stereo input: L+R RCA
LF drivers: 2 x 112mmØ (4") per speaker
HF drivers: 25mmØ (1") silk dome tweeter per speaker
Speaker impedance: 4 Ohms
Line output: L+R RCA and mono 6.3mm jack
Headphone output: Stereo 6.3mm jack
Effects: 16 preset DSP effects
Frequency response: amplifier 40Hz - 25kHz
THD: <0.8% @ rated output
S/N ratio: 85dB
Speaker outputs: L+R 6.3mm jack

Dimensions
630 x 412 x 170 mm

Weight
14 kg
