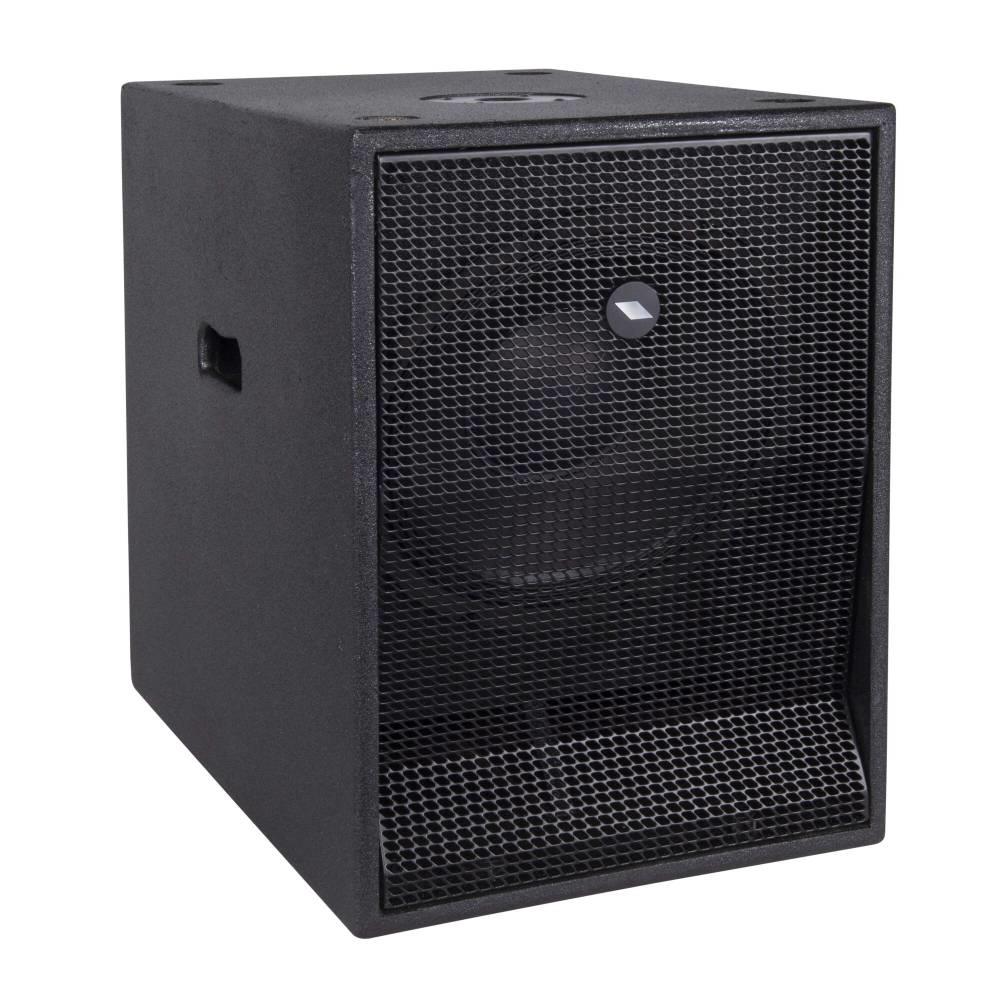

Proel S12A 12" Active Subwoofer 600w

Description:

PROEL introduces the S Series, a new range of compact and powerful sub-woofers designed to complement PROEL full-range speakers. The variety of size, power and SPL offered by the four active S models provides, at an unbeatable price point, the perfect low extension solution for any speaker model available in the PROEL range.
All the S models feature high-excursion woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub-woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.
The new CLASS D amplifier modules with SMPS (Switch Mode Power Supply) can generate a massive amount of continuous power in a compact, lightweight and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch.
The cabinets are built with 15/18mm plywood and finished with extra-durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).

Compact active HBP sub-woofer
12” woofer with 3” VC for a deep and extended response
1200 W peak power
STEREO input, link and output
SPL MAX 128 dB
Frequency response 43 Hz - 160 Hz

Specifications:

System type
Hybrid Band Pass subwoofer
Loudspeaker
12" woofer with 3" VC
Amplifier Continuous Power
600 W
Frequency Response
43 Hz - 160 Hz
Max SPL
127dB

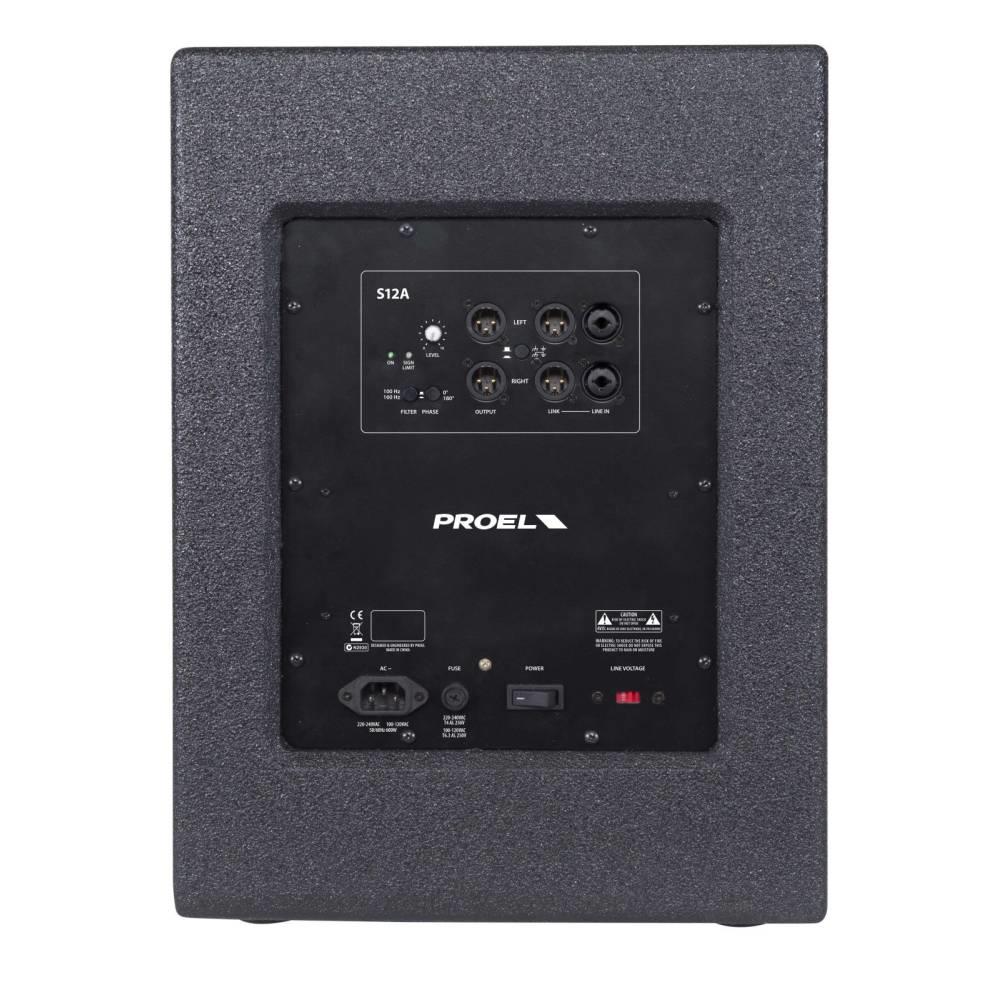

Connectors
IN: 2 x NEUTRIK COMBO
OUT: 2 x NEUTRIK XLR-M
LINK: 2 x NEUTRIK XLR-M
Controls
Volume, GND lift
X-over Frequency, Phase
Power Supply
230 VAC or 120 VAC 50/60 Hz
Weight
19 kg (41.9 lb)
Cabinet
15/18 mm plywood
Black anti-scratch paint
1.5 mm metal grille
2 handles
1 x pole socket
Dimensions (W x H x D)
360x500x520 mm
