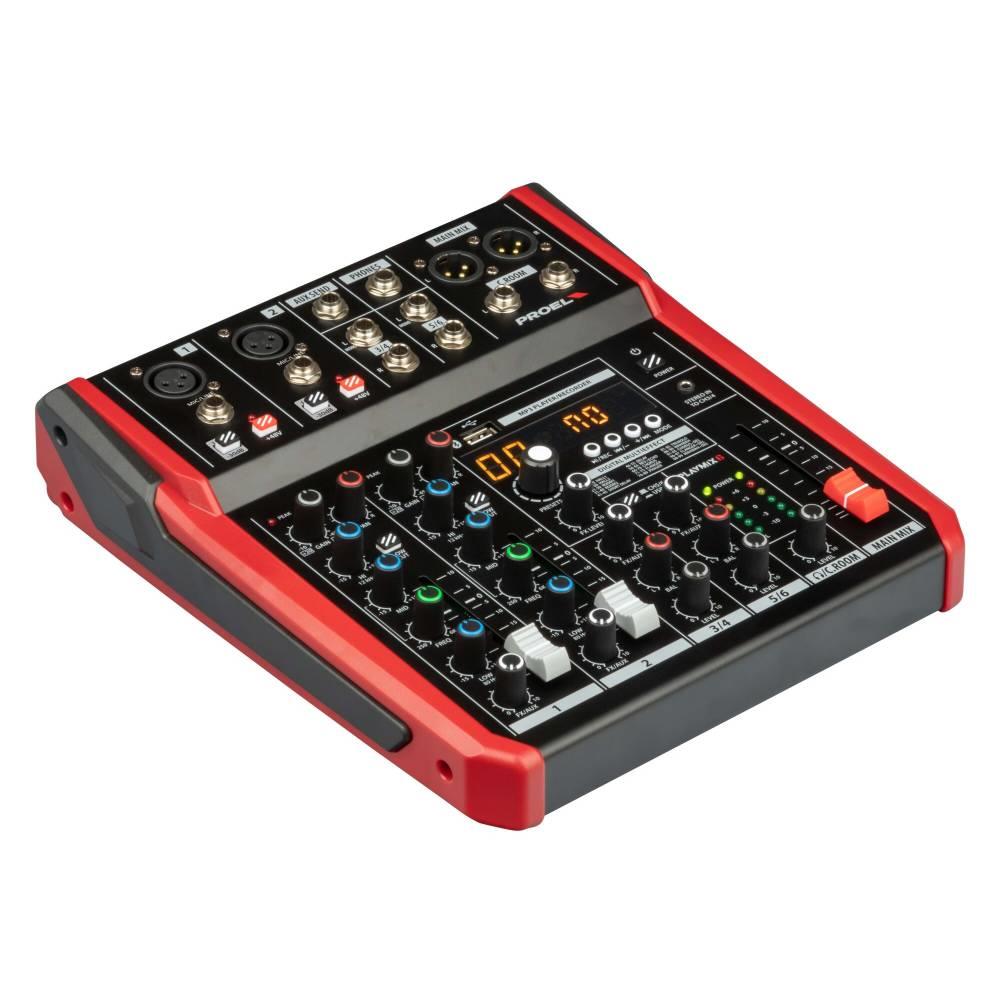

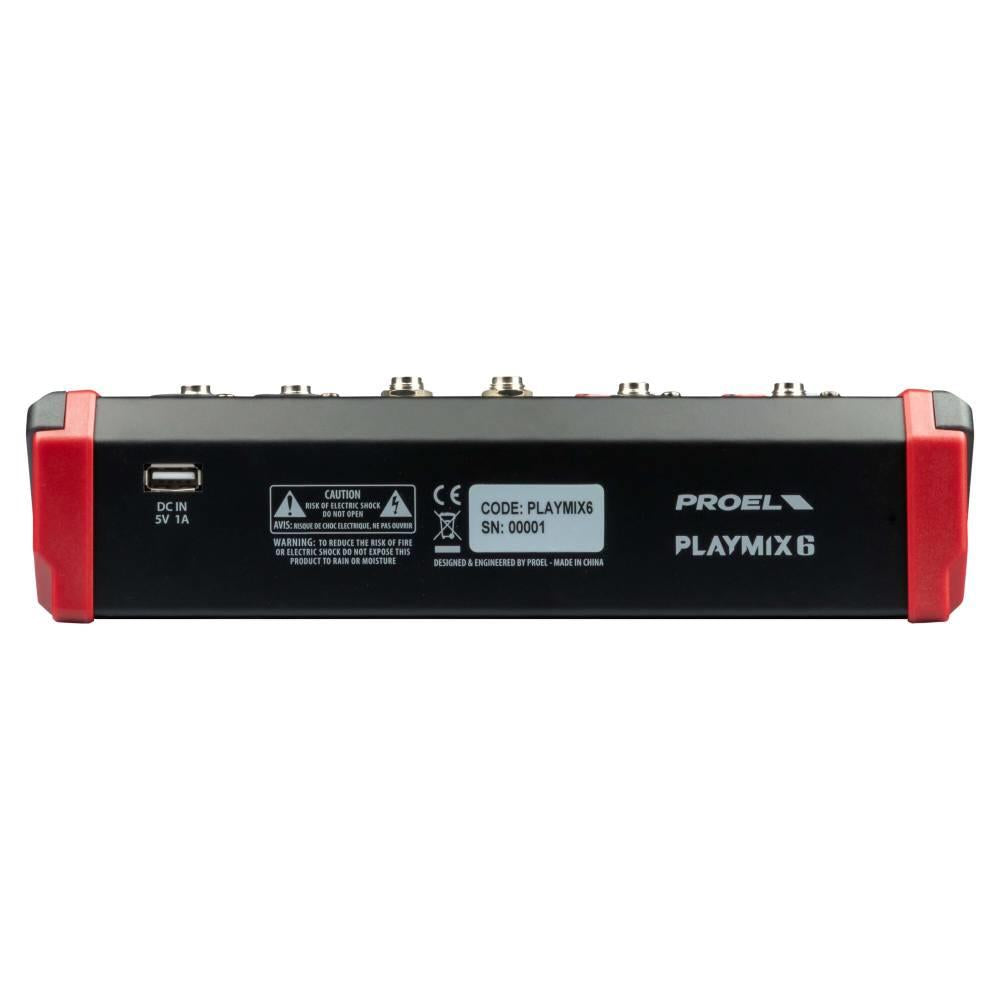

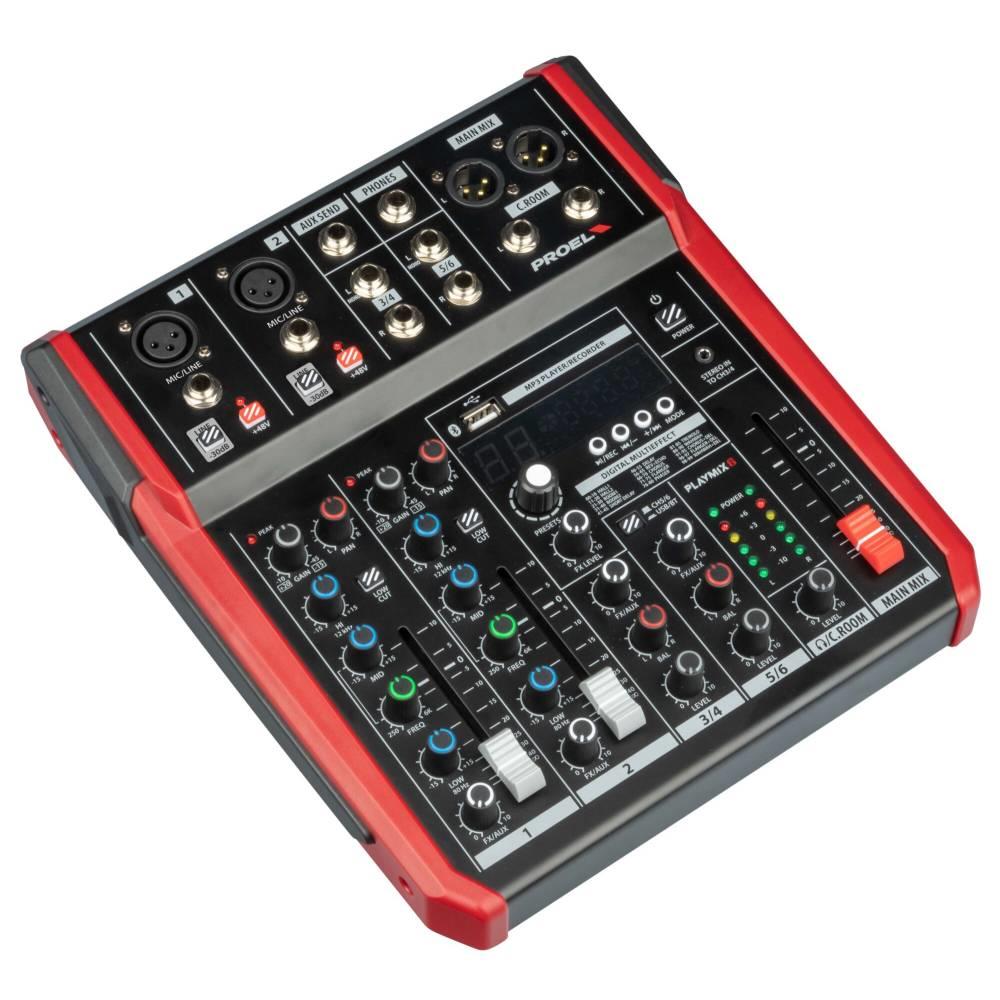

Proel PLAYMIX6 6 IN Compact Mixer

Description:

PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.

PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.

All models feature an advanced DIGITAL section with LCD display, including:

- A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)

- A 48KHz stereo USB audio interface for playing/recording thru PC connection

- A built-in MP3 player from USB memory key or BLUETOOTH interface

- On-the-go stereo recording on USB memory key

Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.

Features:

6 IN Compact Mixer - 24bit FX DSP. - 2 MONO MIC/LINE IN with 3 band EQ , -20 dB PAD and PHANTOM power. - 2 Low Noise MIC Preamplifiers. - 2 STEREO LINE IN. - Balanced MAIN outputs with XLR-M connectors - Bluetooth - MP3 Player/Recorder Applictions: home recording, education, personal mixer

Model:PLAYMIX6
Weight:2.10Kg
EAN:8032496914570
Warranty Extension:4 Years
This product has a minimum quantity of 1

Specifications:

MONO INPUT CHANNEL
Mic Input
sensitivity
from -10 to -45 dB
Balanced XLR-F

impedance 1 Kohm

Line Input
sensitivity from +20 to -15 dB
Balanced JACK

impedance 20 Kohm

Lo cut 80Hz, 6dB/oct.

EQ
HIGH (shelving) ±15 dB @ 12K Hz


MID (peaking) ±12 dB @ 250-6K Hz


LOW (shelving) ±15 dB @ 80 Hz

STEREO INPUT CHANNEL
Line Input
sensitivity from +12 to -15 dB
Balanced JACK

impedance 20 Kohm
Stereo Mini JACK
MASTER SECTION
MAIN MIX
nom. out level  +4 dBu
Unbalanced XLR-M
C. ROOM output
nom. out level +4 dBu
Unbalanced JACK
SEND output
nom. out level +4 dBu
Unbalanced JACK
HEADPHONES
min. impedance 64 ohm
Stereo JACK Bluetooth

Version 5.0, Audio Streaming

USB Audio Interface

Stereo IN/OUT, 16-bit converter, 44.1 KHz sample rate
Type A

DIGITAL EFFECT PROCESSOR
Effects 100 presets

A/D and D/A converters 24 bit

DSP resolution 24 bit

Controls 2-DIGIT display, DIAL, LEVEL

GENERAL SPECIFICATIONS
Maximum level all outputs +15 dBu

Crosstalk meas. at 1 KHz> 75 dB

HUM & Noise
unweighted < 90 dB

THD + Noise at +4dB, 1kHz < 0,009 %

Dimensions (WxHxD) 247 x 274 x 61 mm

Weight 1,80 kg

POWER REQUIREMENTS
Supply use only supplied AC/DC ADAPTER 5VDC 1A

Mains Supply Voltage 100-240 VAC (±10%)  50/60 Hz

Consumption 15 W
