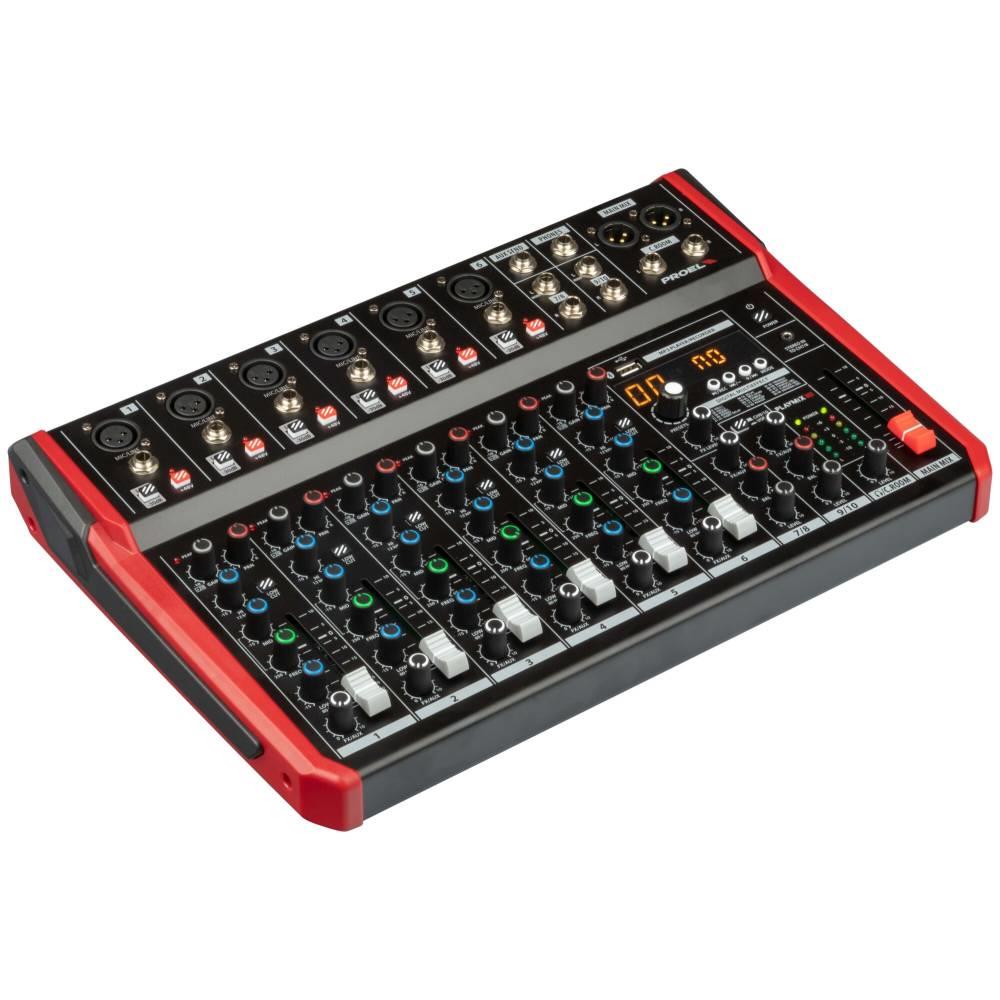

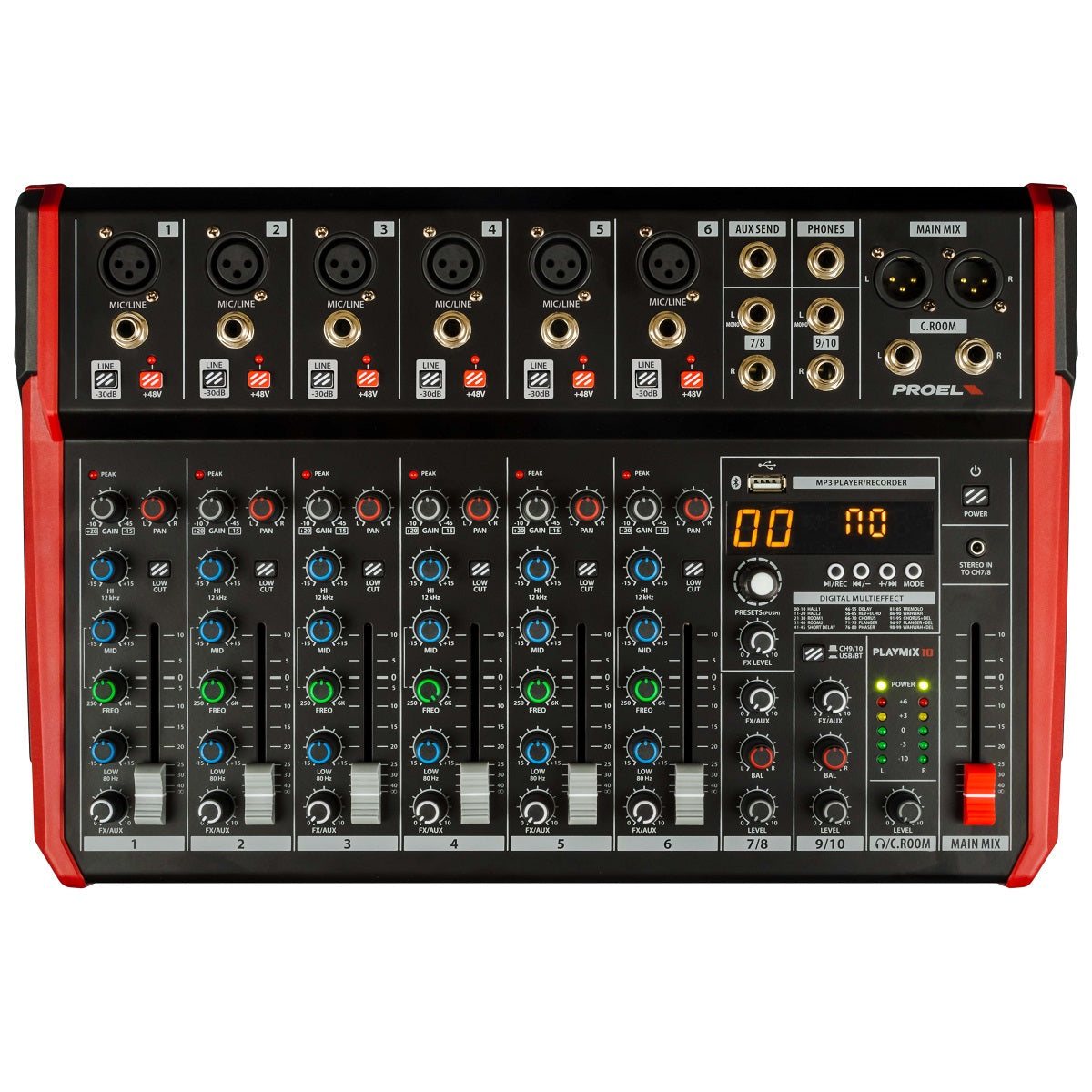

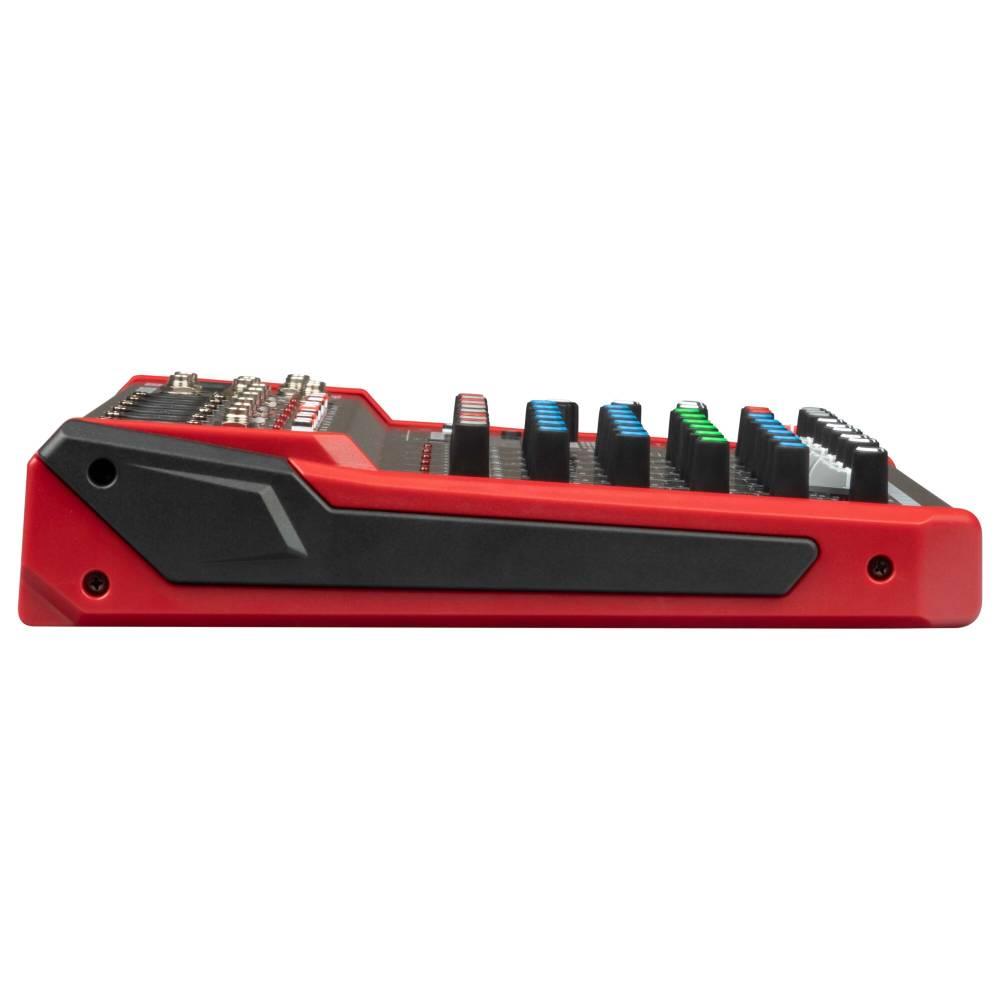

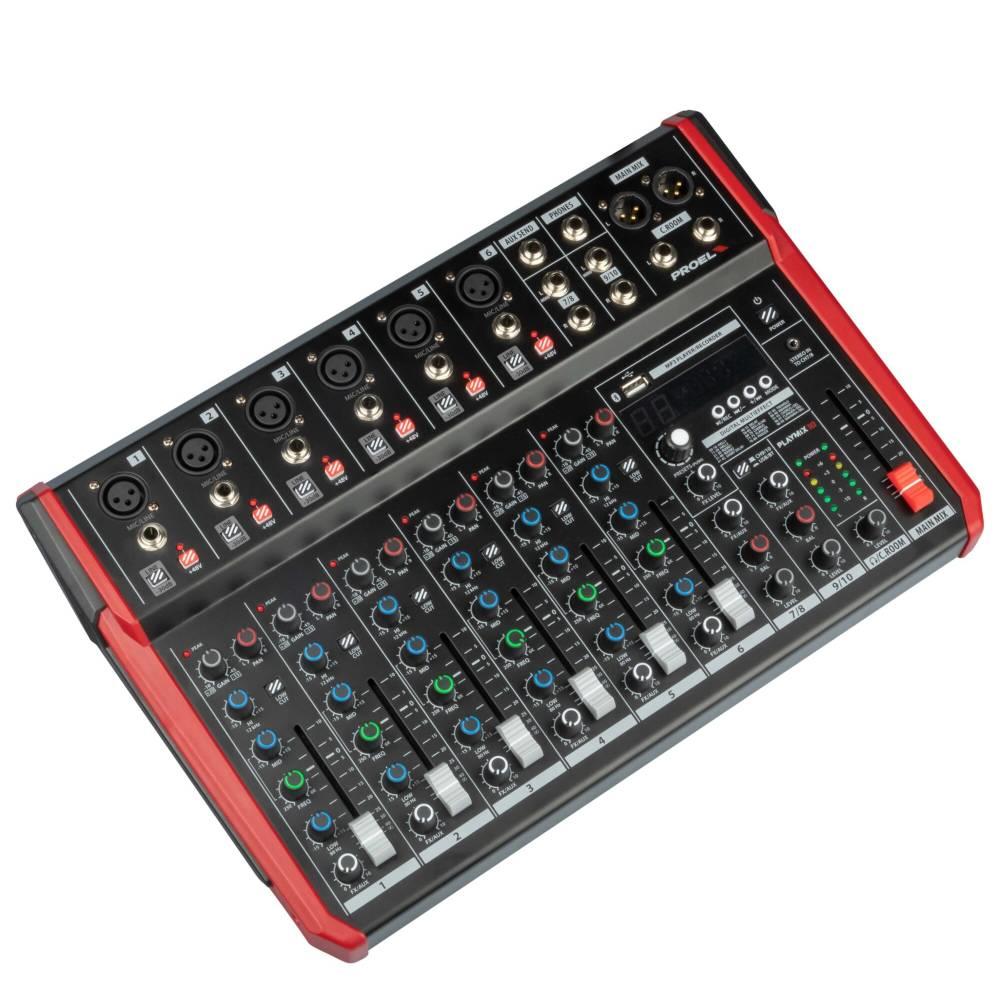

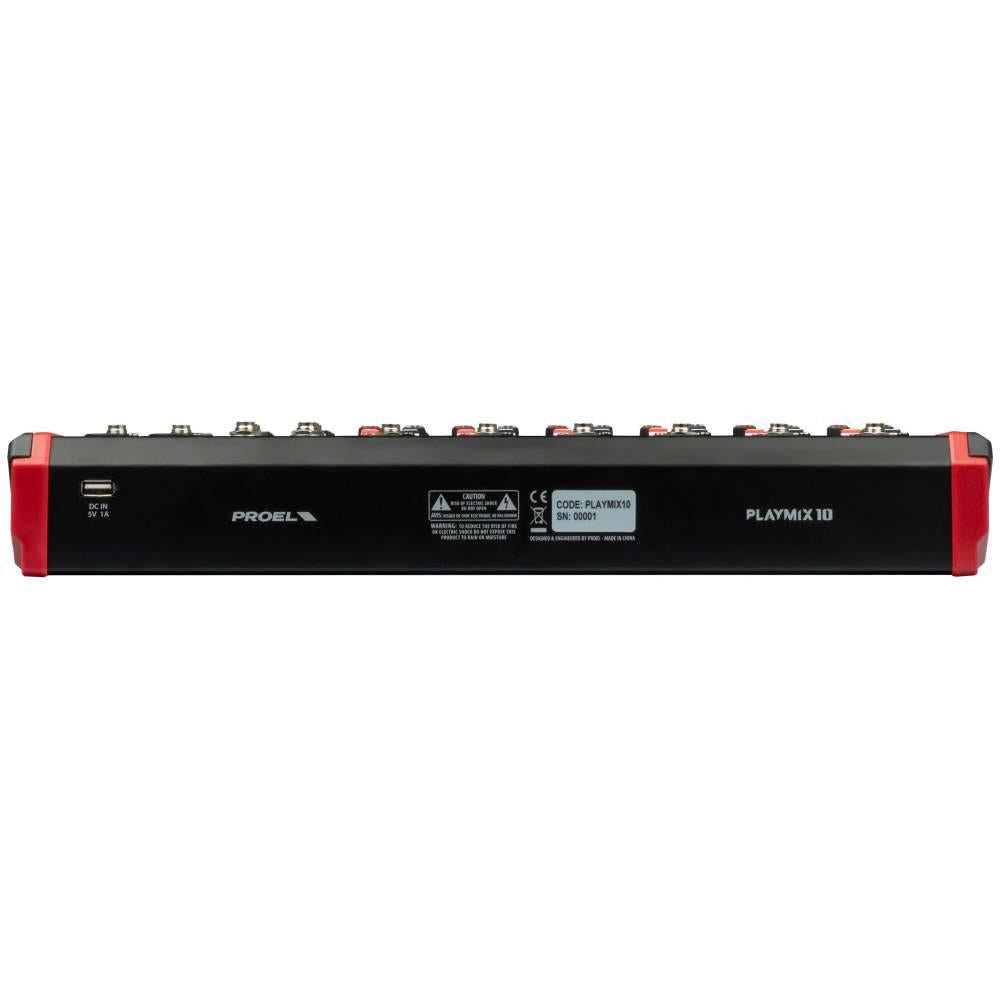

Proel PLAYMIX10 10 IN Compact Mixer

Description:

PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.

PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.

All models feature an advanced DIGITAL section with LCD display, including:

A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)

A 48KHz stereo USB audio interface for playing/recording thru PC connection

A built-in MP3 player from USB memory key or BLUETOOTH interface

On-the-go stereo recording on USB memory key

Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.

Specifications:

MONO INPUT CHANNEL
Mic Input
sensitivity
from -10 to -45 dB
Balanced XLR-F

impedance
1 Kohm

Line Input
sensitivity
from +20 to -15 dB
Balanced JACK

impedance
20 Kohm

Lo cut

80Hz, 6dB/oct.

EQ
HIGH (shelving)
±15 dB @ 12K Hz


MID (peaking)
±12 dB @ 250-6K Hz


LOW (shelving)
±15 dB @ 80 Hz

STEREO INPUT CHANNEL
Line Input
sensitivity
from +12 to -15 dB
Balanced JACK

impedance
20 Kohm
Stereo Mini JACK
MASTER SECTION
MAIN MIX
nom. out level
 +4 dBu
Unbalanced XLR-M
C. ROOM output
nom. out level
+4 dBu
Unbalanced JACK
SEND output
nom. out level
+4 dBu
Unbalanced JACK
HEADPHONES
min. impedance
64 ohm
Stereo JACK
Bluetooth

Version 5.0, Audio Streaming

USB Audio Interface

Stereo IN/OUT, 16-bit converter, 44.1 KHz sample rate
Type A
DIGITAL EFFECT PROCESSOR
Effects

100 presets

A/D and D/A converters

24 bit

DSP resolution

24 bit

Controls

2-DIGIT display, DIAL, LEVEL

GENERAL SPECIFICATIONS
Maximum level
all outputs
+15 dBu

Crosstalk
meas. at 1 KHz
> 75 dB

HUM & Noise
unweighted
< 90 dB

THD + Noise
at +4dB, 1kHz
< 0,009 %

Dimensions (WxHxD)

247 x 274 x 61 mm

Weight

1,80 kg

POWER REQUIREMENTS
Supply

use only supplied AC/DC ADAPTER 5VDC 1A

Mains Supply Voltage

100-240 VAC (±10%)  50/60 Hz

Consumption

15 W
