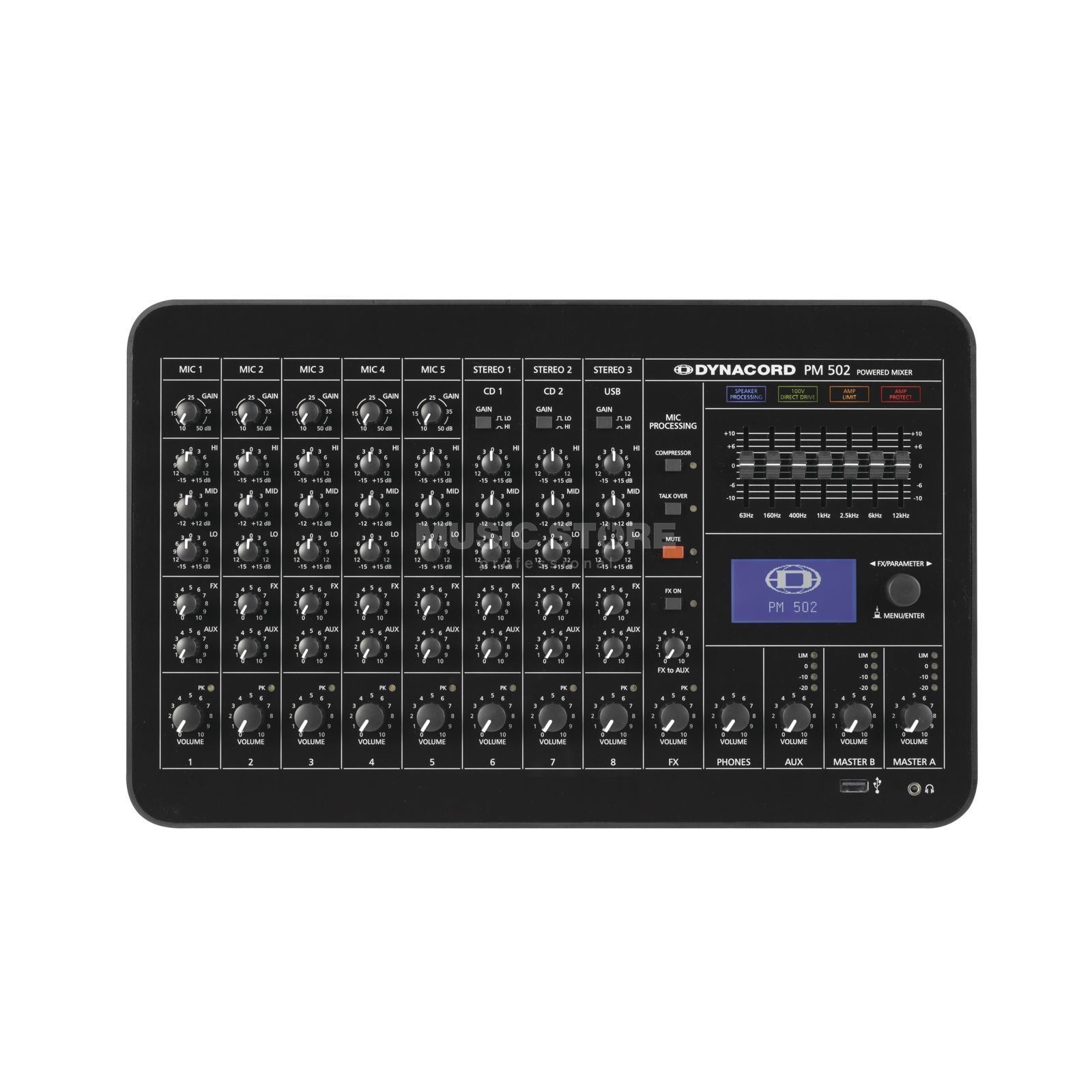

Dynacord PM 502 8 Channel Compact Powered Mixer 2 x 600W USB Effects Mixing Desk

PM502 comes in a very modern and user‑friendly design. It combines finest analogue input circuitry and operating surface with the advantages of its digital master and amplifier section, made for a new dimension of flexibility in its class.

The input structure, along with the entire feature package and connectivity, positions this mixer at the heart of many installations ranging from Bistros, small clubs, boutiques, hotel bars to churches, mosques and a wide range of similar applications. Further the PM 502 is an extremely versatile tool for a multitude of live applications. It will be the ideal choice for entertainers, DJs and small bands looking for a compact and light‑weight solution for live applications or rehearsal venues. The onboard MP3‑Player on the front, allows the user to easily play pre‑recorded music from a USB stick or a hard drive. The additional digital USB interface on the rear also allows for basic recording with a PC.

Its feature package includes: 5 MIC/LINE input channels with compressor/limiter and automated talk‑over function, 3 Stereo Inputs including Jack, RCA and USB connectors, onboard player for MP3 or WAV audio files, high quality effects section with 32 editable presets, 3 Master outputs with 7‑band EQ each and flexible signal routing options, delay line for Master‑B (150 msec / 50 m), headphones control, LPN speaker processing, class‑D amplifier with 2 x 600 W / 4 Ohms IHF‑A (2 x 450W continuous), auto range power supply (100V — 240V), Direct‑Drive option for 100V speaker lines, comprehensive protection package, live and install connectivity, and an optional rack mount kit.

8 input channels with 5 Mic/Line- and 3 Stereo-Line inputs
2 x 600 Watts max output power, 100V Direct Drive Option
High-Quality FX processors, 32 editable presets
USB interface, file player for MP3 and WAV files
3 Master outputs with 7-band EQ each and delay for Master B

Specifications
Channels (mono + stereo) 5 + 3
Microphone inputs 5 x XLR/Jack socket
Auxiliaries (FX, AUX) 1 Post, 1 Pre
Max. single channel output power, dynamic headroom, IHF-A
into 4 Ω 640 W
into 8 Ω 350 W
Max. dual channel output power, dynamic headroom, IHF-A
into 4 Ω 2 x 600 W
into 8 Ω 2 x 340 W
Max. single channel output power, continuous, 1 kHz, THD = 1%
into 4 Ω 500 W
into 8 Ω 280 W
Max. midband output power, 1 kHz, THD = 1%, dual channel
into 4 Ω 2 x 450 W
into 8 Ω 2 x 270 W
Rated output power, 20-20000 Hz, THD < 0.5%, one channel loaded
into 4 Ω 400 W
into 8 Ω 240 W
Max. output power, Direct Drive mode (bridge configuration),
continuous, 1 kHz, THD = 1%
into 12 Ω 680 W
Max. output voltage, power amplifier, 1 kHz, no load
Dual channel mode 52 Vrms
Direct Drive mode 100 Vrms
THD, at 1 kHz, MBW = 22 kHz
MIC input to master A L/R
outputs, +10 dBu, typical < 0.015%
MIC input to speaker
output < 0.15%
DIM 30, MIC input to speaker
output, 3.15 kHz, 15 kHz < 0.05%
IMD-SMPTE, MIC input to speaker
outputs, 60 Hz, 7 kHz < 0.15%
Frequency response, -3 dB, ref. 1 kHz
Any input to any Mixer
output 15–22000 Hz
Any input to Speaker
outpu 15–22000 Hz
Crosstalk, 1 kHz
Amplifier Ch1/Ch2 < -85 dB
Channel to channel < -78 dB
Microphone mute switch attenuation > 100 dB
Channel VOL and FX/AUX send
attenuation > 85 dB
CMRR, MIC input, 1 kHz > 80 dB
Input sensitivity, all level controls in max. position
MIC -65 dBu (435 µV)
LINE (mono) -45 dBu (4.35 mV)
LINE (stereo) HI: -27 dBu (34.6 mV), LO: -11
dBu (218 mV)
CD (stereo) -27 dBu (34.6 mV)
Max. level, mixing desk, input VOL down, output VOL up
MIC inputs, GAIN at min.
position +11 dBu
Mono line inputs, GAIN at
min. position +30 dBu
Stereo line inputs +26 dBu
PHONES output +21 dBu
MASTER A, B, AUX outputs +11 dBu
MIC 2 kΩ
CD 10 kΩ
All other inputs > 15 kΩ
PHONES 47 Ω
All other outputs
(impedance balanced) 150 Ω
Noise, channel inputs to MASTER A L/R outputs, MBW = 22 kHz, A-
weighted
MASTER VOLUME down -99 dBu
MASTER VOLUME center,
all channel volume down -90 dBu
MASTER VOLUME center,
all channel volume center -85 dBu
Signal-to-noise ratio, power
amplifier, A-weighted, 450 W, 4
Ω 104 dB
Output stage topology, amplifier Class D
Low shelving filter ±15 dB / 60 H
Mid peak filter ±12 dB / 2.4 kHz
High shelving filter ±15 dB / 12 kHz
Master EQ 7-band (63, 160,
400, 1k, 2.5k, 6k, 12k Hz) ±10 dB / Q = 1.5
Low-cut filter, microphone
processing (switchable)
80 Hz, 18 dB/oct. or 150 Hz,
12 dB/oct.
Low-cut filter, amplifier
(engaged in Direct Drive
mode) 50 Hz or 70 Hz, 18 dB/oct.
Speaker processing LPN, switchable
Delay MASTER B, selectable 0–145 ms (0–50 m)
Type Stereo 24/48-bit multi effects
processor
Effect presets 32 factory presets, user editable
Remote control Footswitch
Display 128 x 64 pixels, LCD
Audio player (USB at front panel)
Switching mode power
supply (µC controlled) FAT 32
Supported audio file
formats MP3, WAV
Interface USB2.0, female type A
USB power supply, max.
rated current (short
circuit proof) 5 V, 500 mA
Digital audio interface (USB at rear panel)
Channels 2 in, 2 out
AD/DA conversion 16-bit, delta-sigma
Sampling rate 32/44.1/48 kHz
PC interface USB2.0, female type B
MASTER A, B, AUX
outputs Adjustable peak limiters, -10 –
+11 dBu
Amplifier Audio limiters, high temperature,
DC, HF, short circuit, peak
current limiters, turn-on delay,
back EMF
Switching mode power
supply (µC controlled) Inrush current limiters, mains
over/undervoltage, mains over
current, high temperature
Cooling Continuous speed controlled fan
Phantom power, switchable 48 V DC
AC power input 100–240 V AC, 50–60 Hz
Power consumption, at 1/8
maximum output power, 4 Ω 180 W
Safety class I
Operating temperature 5° to 40° C (40° to 105° F)

Dimensions
395 x 244 x 241 mm
Rack-mount: 483 x 223 x 310.3 mm (7 HU)

Weight
Net weight 4.9 kg
Shipping weight 6.4 kg
