Palmer PAN 48 Phantom Power Supply 2 Channel

£152.00; £152.00
Unit price: per

Phantom Power Supply 2 Channel

Vendor: Palmer

SKU: 101-PAN48

Out Of Stock

Quantity:

I agree with

iFrame

DETAILS
DELIVERY AND RETURNS

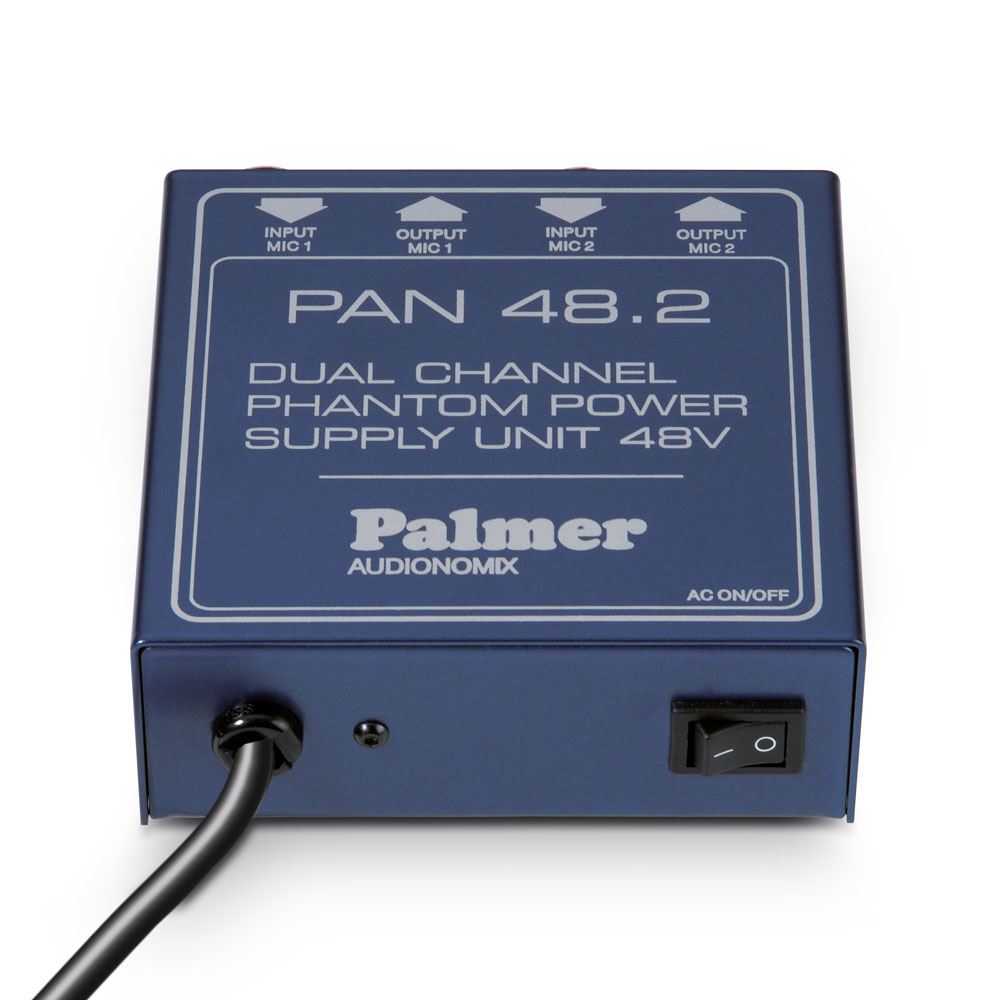

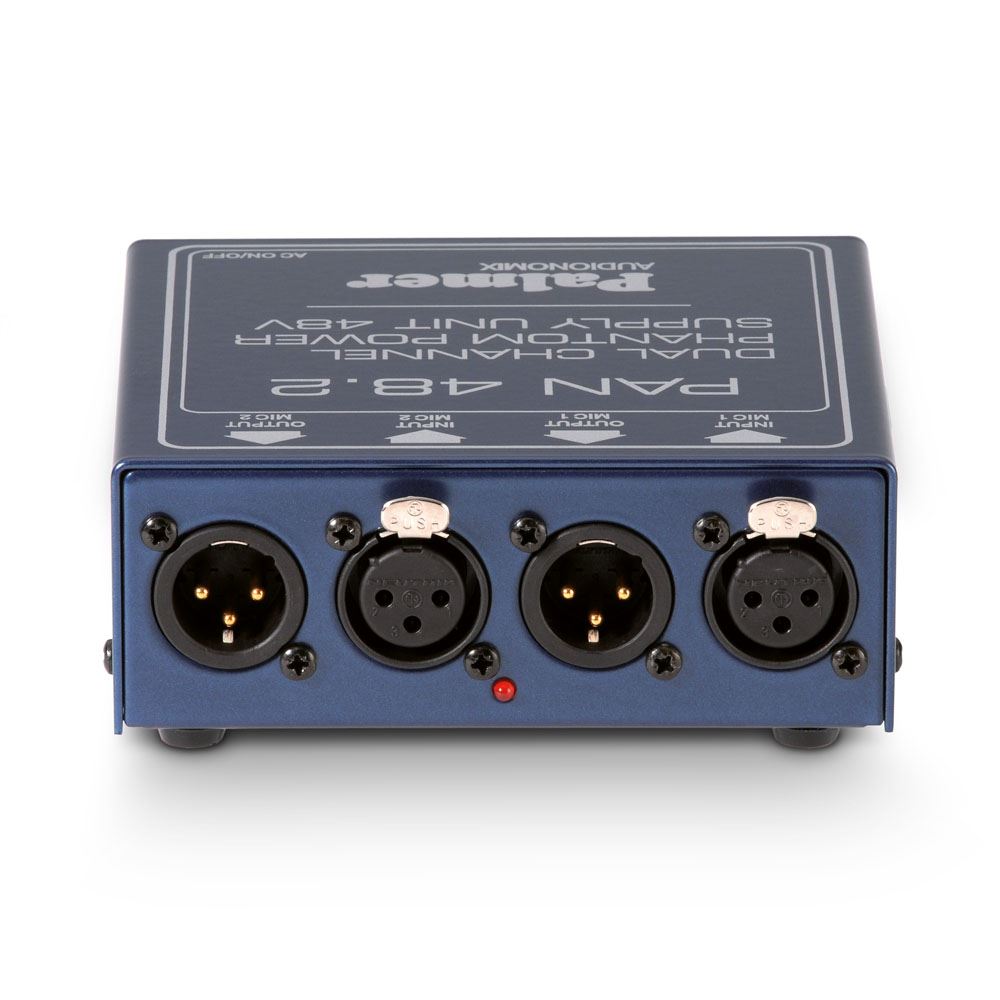

Palmer Pan 48 is a unit for the external power supply of phantom powered appliances. Due to the high current level of a maximum of 20mA, the application is not just limited to condenser microphones. PAN 48 is excellent for supplying phantom powered active DI-boxes. The box has two channels. Specifications: 2 channels, each channel: Microphone input: XLR/f Pin 2 & 3 +48VDC, Pin 1 Ground Output: XLR/m no DC voltage Ground lift switch Phantom power stabilized ±5%. Low ripple, low noise Max. current 20mA totally. LED control. Metal casing

Specifications
Product type: Microphone Accessories
Type: 48 V
Input connector: XLR (3-pin)
Gender of input connector: female
Output connector: XLR (3-pin)
Gender of output connector: male
Material: metal
Operating voltage: fixed power cord, 90 V AC - 240 V AC, 50 - 60 Hz
Controls: mains switch (on/off), Switches
Indicators: Power
Width: 120 mm
Height: 115 mm
Depth: 45 mm
Weight: 0,68 kg
Accessories (included): Power supply
