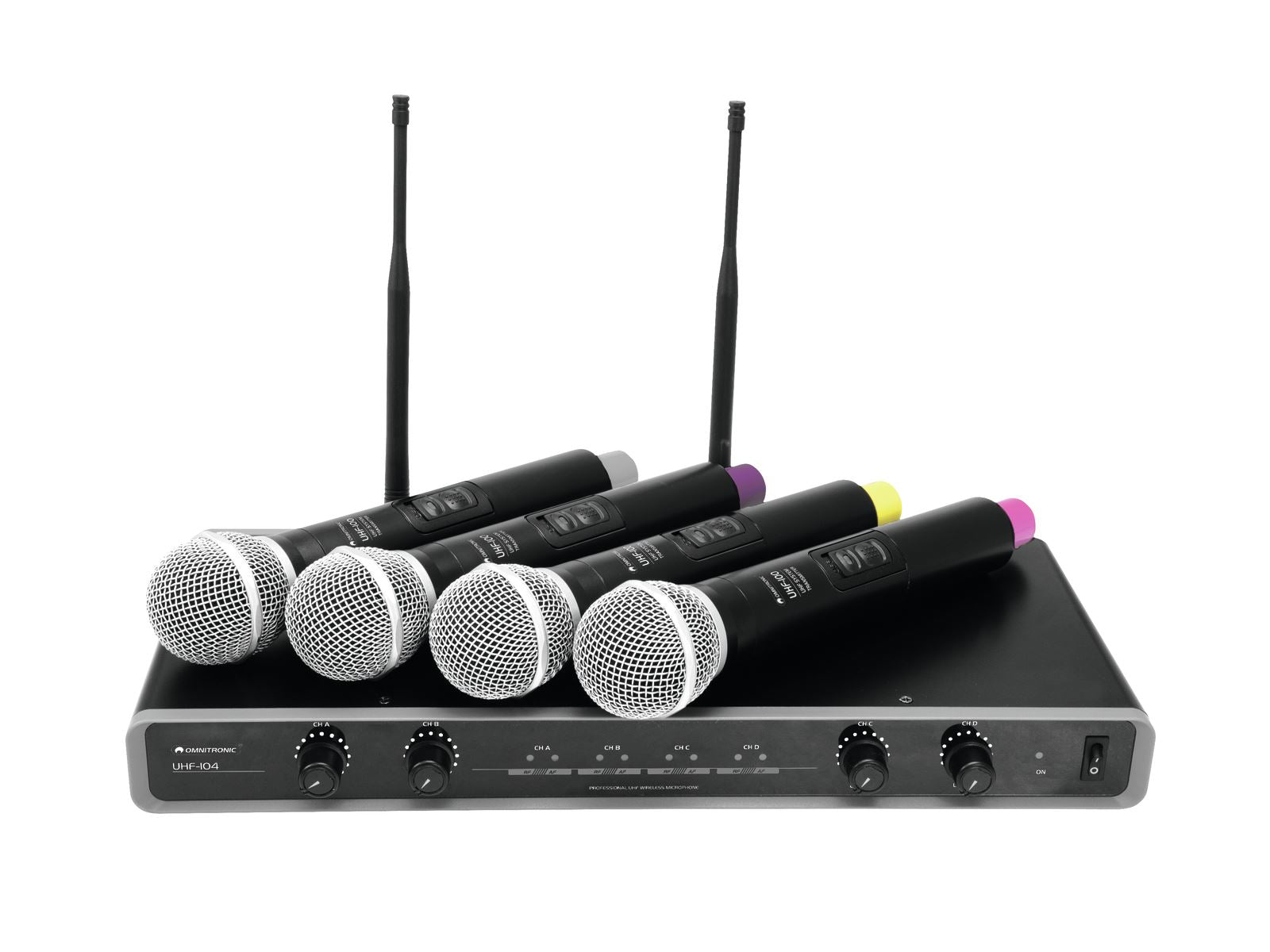

Omnitronic UHF-104 Quad Handheld Radio Mic System

Complete 4-channel UHF PLL microphone system
4-channel receiver unit and 4 hand-held microphones with UHF PLL technology
Available in the license-free frequency ranges 823-832 MHz and 863-865 MHz
Parallel operation of up to 8 transmission channels is possible without any interference
4 separate channels with volume controls and LEDs for power supply, carrier signal and audio signal
Balanced XLR output per channel
6.3 mm jack for mixed signal output
Jack cable included
Microphones with colour indication
Matching pocket transmitters can be ordered separately
Receiver unit in a rugged metal housing
Removable antennas (BNC connection)
483 mm rack installation possible with optional mounting brackets
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)

Specifications
System: Non-diversity, 4 channels
Carrier frequency: 823.500 MHz, 825.300 MHz, 863.100 MHz, 864.100 MHz
Coverage: 60 m (with line-of-sight)
RF power output: 10 mW
Modulation method: F3F
Frequency range: 40-18000 Hz
S/N ratio: >105 dB
Selectivity: >85 dB
T.H.D.: <0.5 % at 1 kHz
Audio outputs: 400 mV, 2.2 kohms (XLR, bal.) / 200 mV, 2.2 kohms (6.3 mm jack, unbal.)
Receiver: 100-240 V AC, 50/60 Hz via supplied power unit
Power consumption: <10 W
Microphone: 2 x 1.5 V battery, type AA
Battery life: approx. 10 hours

Dimensions
Receiver: 225 x 410 x 51 mm
Microphones: 50 x 260 mm

Weight
Receiver: 3 kg
Microphones: 175 g (each)
