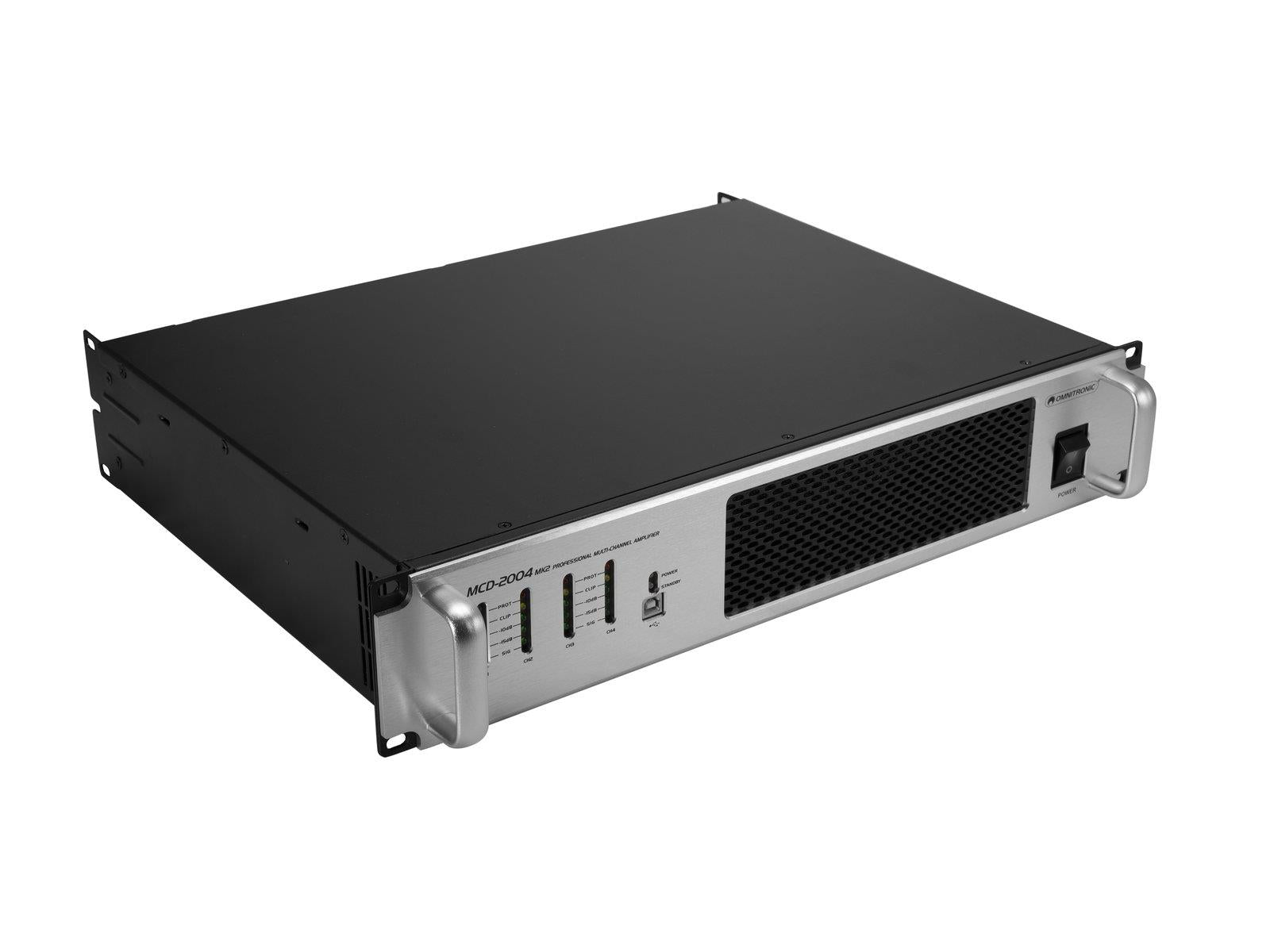

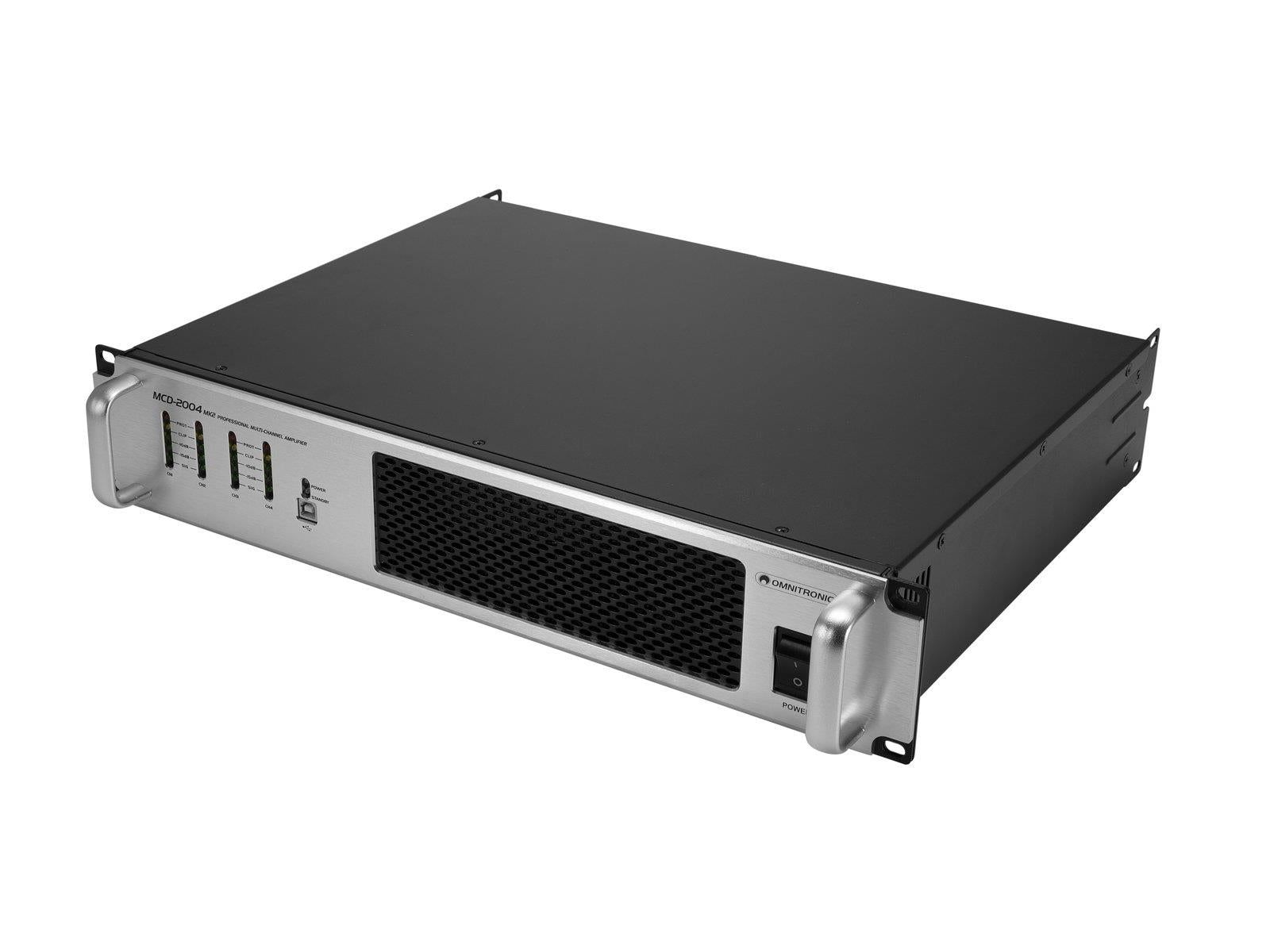

OMNITRONIC MCD-2004 MK2 4ch 2000W Installation Amplifier

Description:

4-channel PA amplifier with SMPS, 4 ohms: 4 x 500 W, 8 ohms: 4 x 250 W

PA amplifier with integrated limiter for multi-zone applications
Signal inputs via balanced XLR mounting jacks and terminal blocks
Speaker connection via terminal blocks
Tamper-proof level adjustment on the rear panel
3-fold output meter with clip LED per channel
Speaker switch-on delay
Rugged steel chassis with aluminum front panel
Complete protection set
Airflow from front to rear
The device is cooled by 1x cooling fan
(19") 48.3 cm rack installation 2 U

Package contents

1 x Amplifier, 1 x Power cord, 4 x Screw terminal, 4 x Feet, 4 x Screw, 1 x User manual

Power supply:
230 V AC, 50 Hz
Power consumption:
350 W 1/8 power
Output power:
4 x 250 W RMS (8 ohms)
4 x 500 W RMS (4 ohms)
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:
22 - 25000 Hz
S/N ratio:
>120 dB
THD:
<0,003 % at 1 kHz
Cooling:
1 x cooling fan , Air flow from front to rear
Impedance:
Input 22 kOhm , bal.
Input 12 kOhm , unbal.
Gain:
26 dB
Circuitry:
Class D
Slew rate:
>10 V/µs
Damping factor:
>500

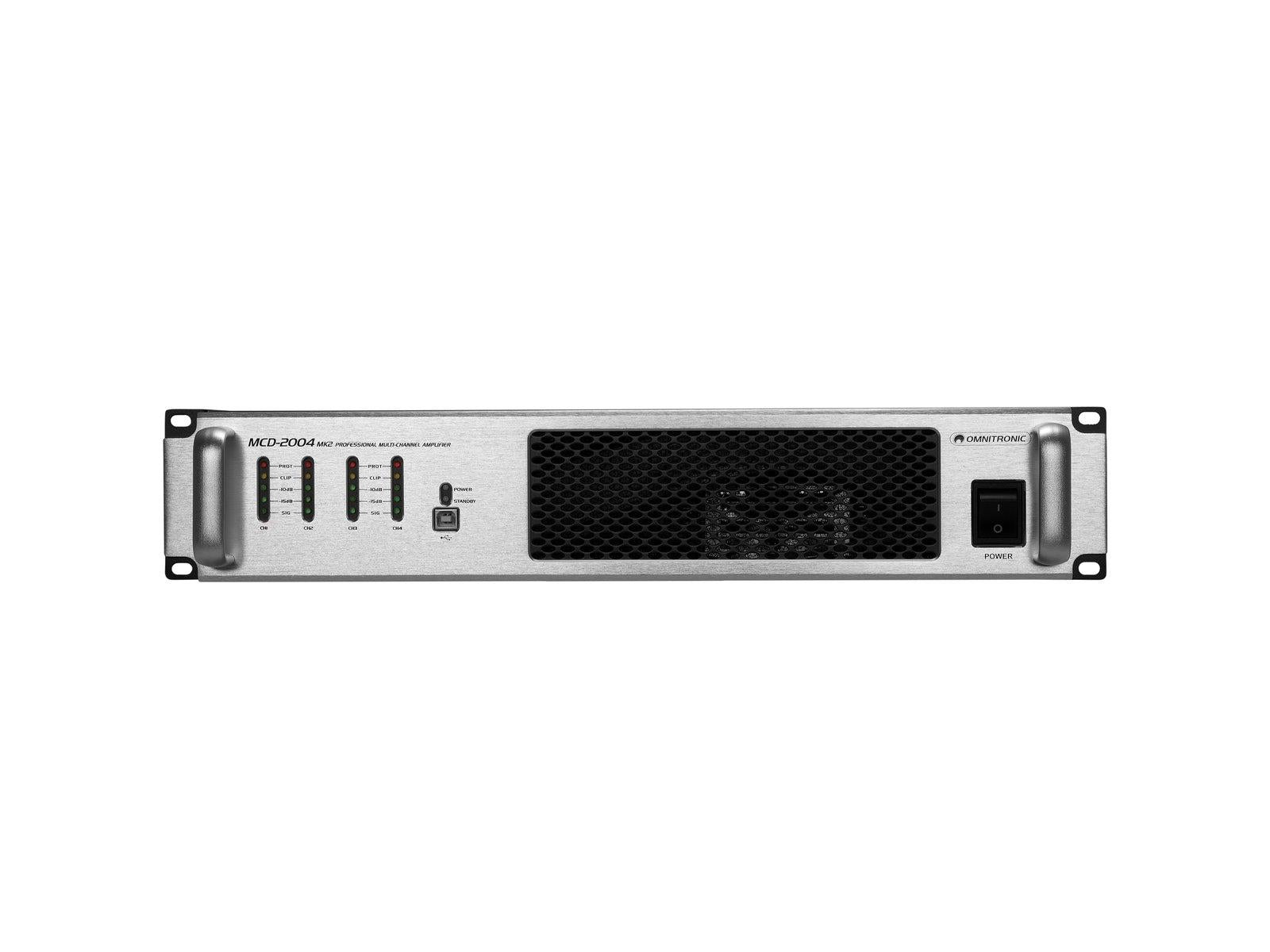

Control elements:
Power switch, level control per channel
Controls:
Overheat; short-circuit; softstart; overload; DC voltage; power on/off transient
Status LED:
Power, level meter, clip, protect

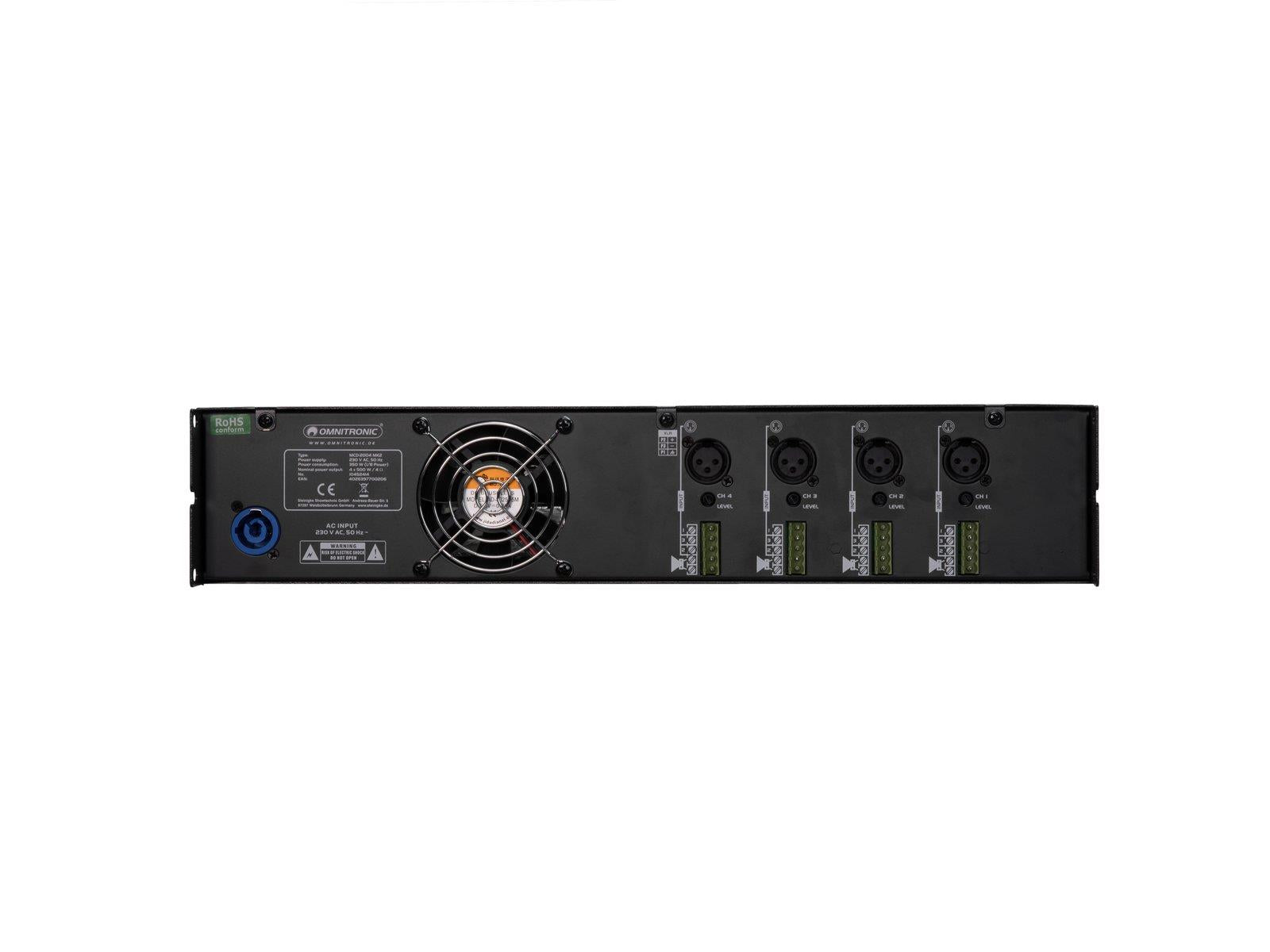

Connections:
Input: line via 4 x 3-pin XLR
Input: line via 4 x screw terminal
Output: speaker via 4 x screw terminal
Housing design:
(19") 48.3 cm rack installation 2u
Width: 48,3 cm
Depth: 38,8 cm
Height: 8,9 cm
Weight: 7,45 kg
