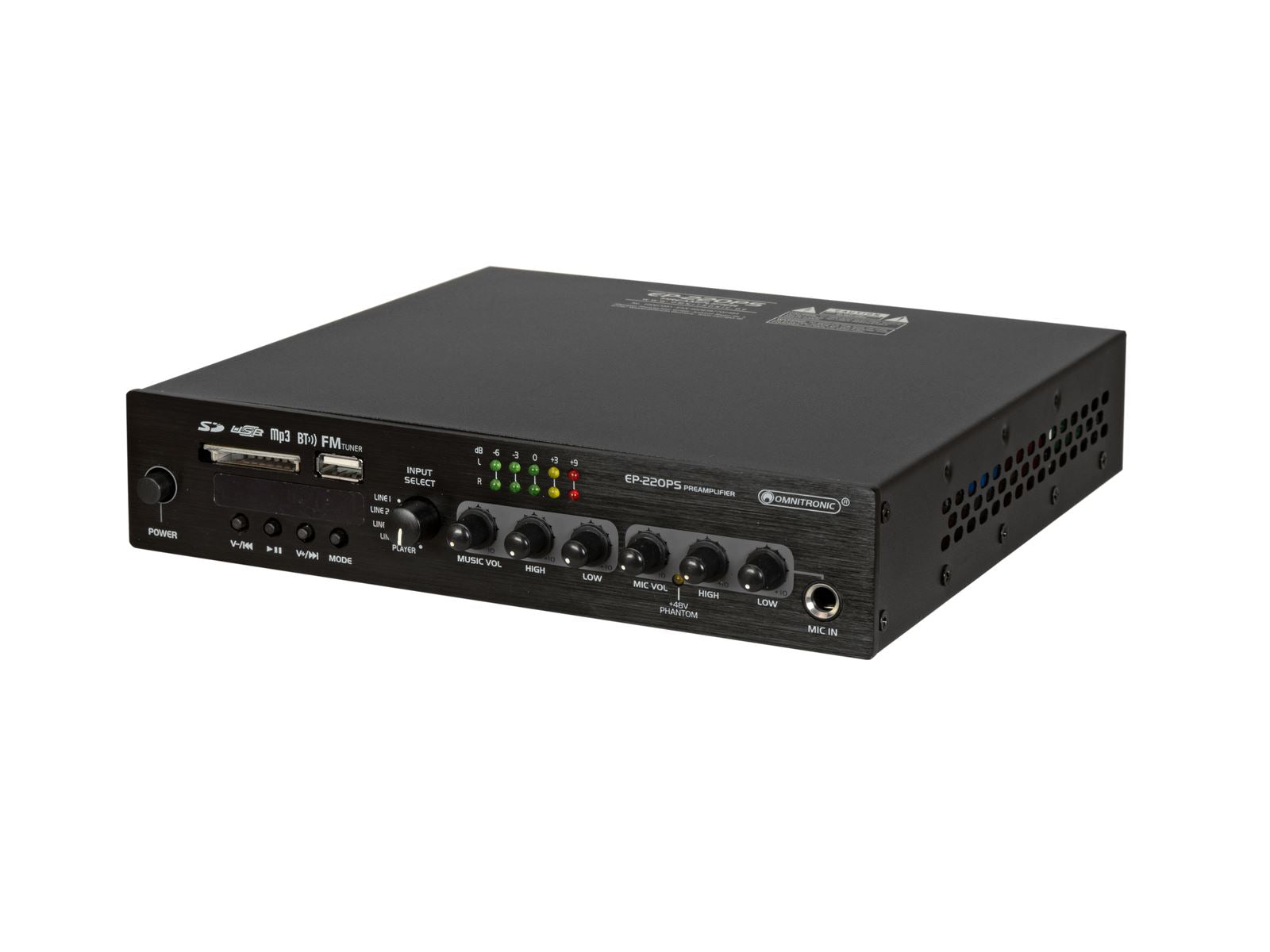

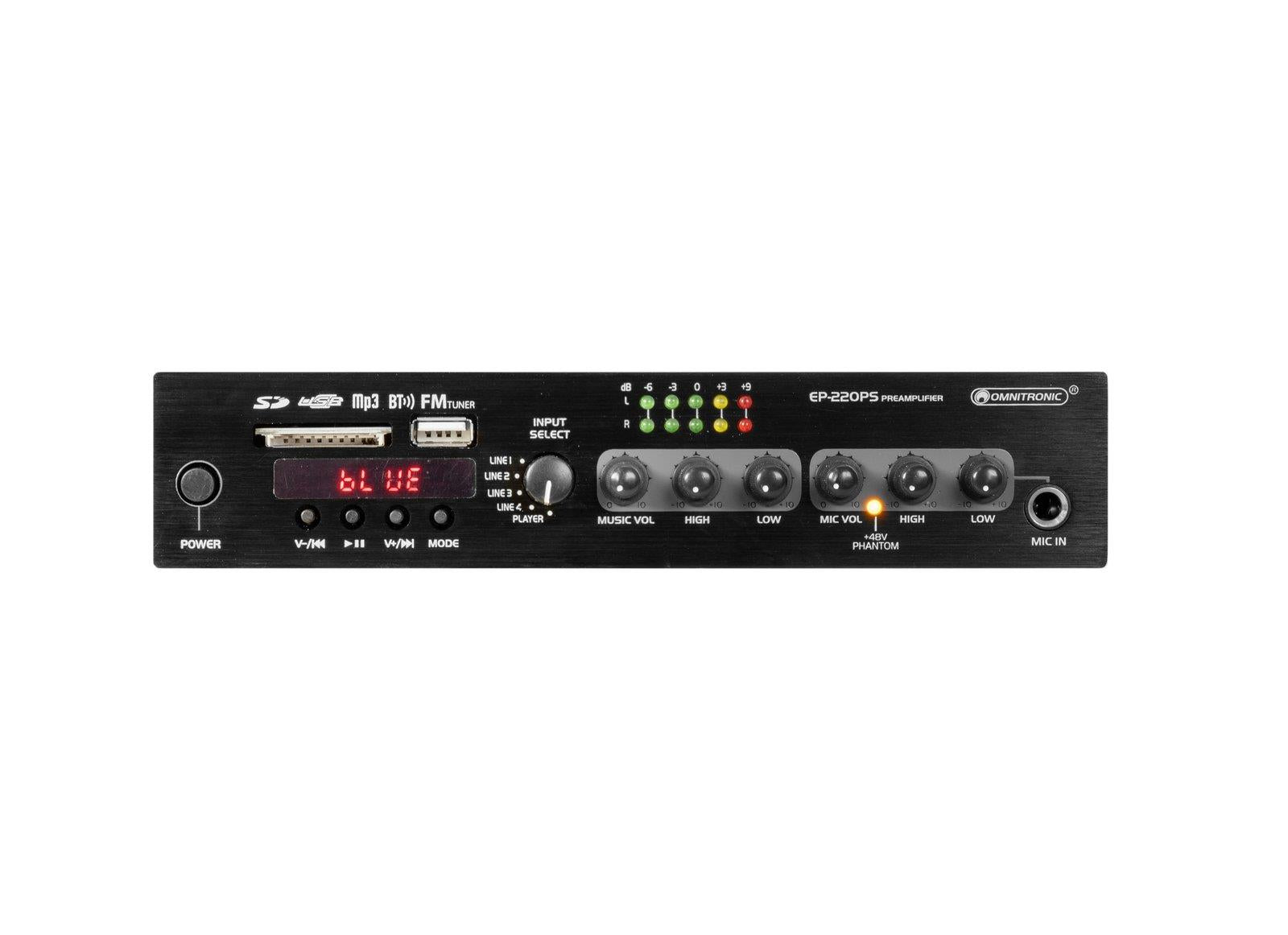

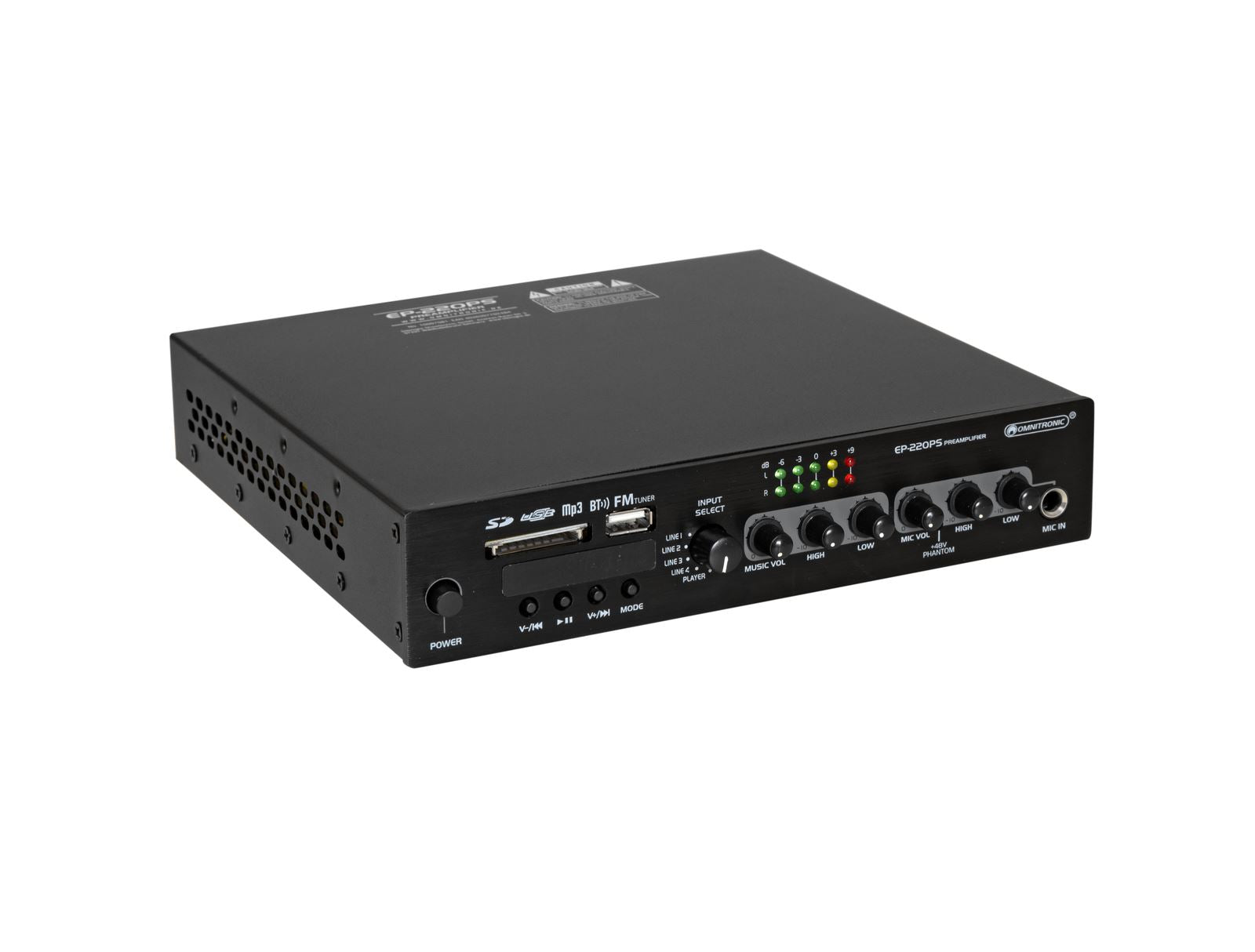

OMNITRONIC EP-220PS Preamplifier with MP3 Player, Bluetooth and FM Radio 9.5"

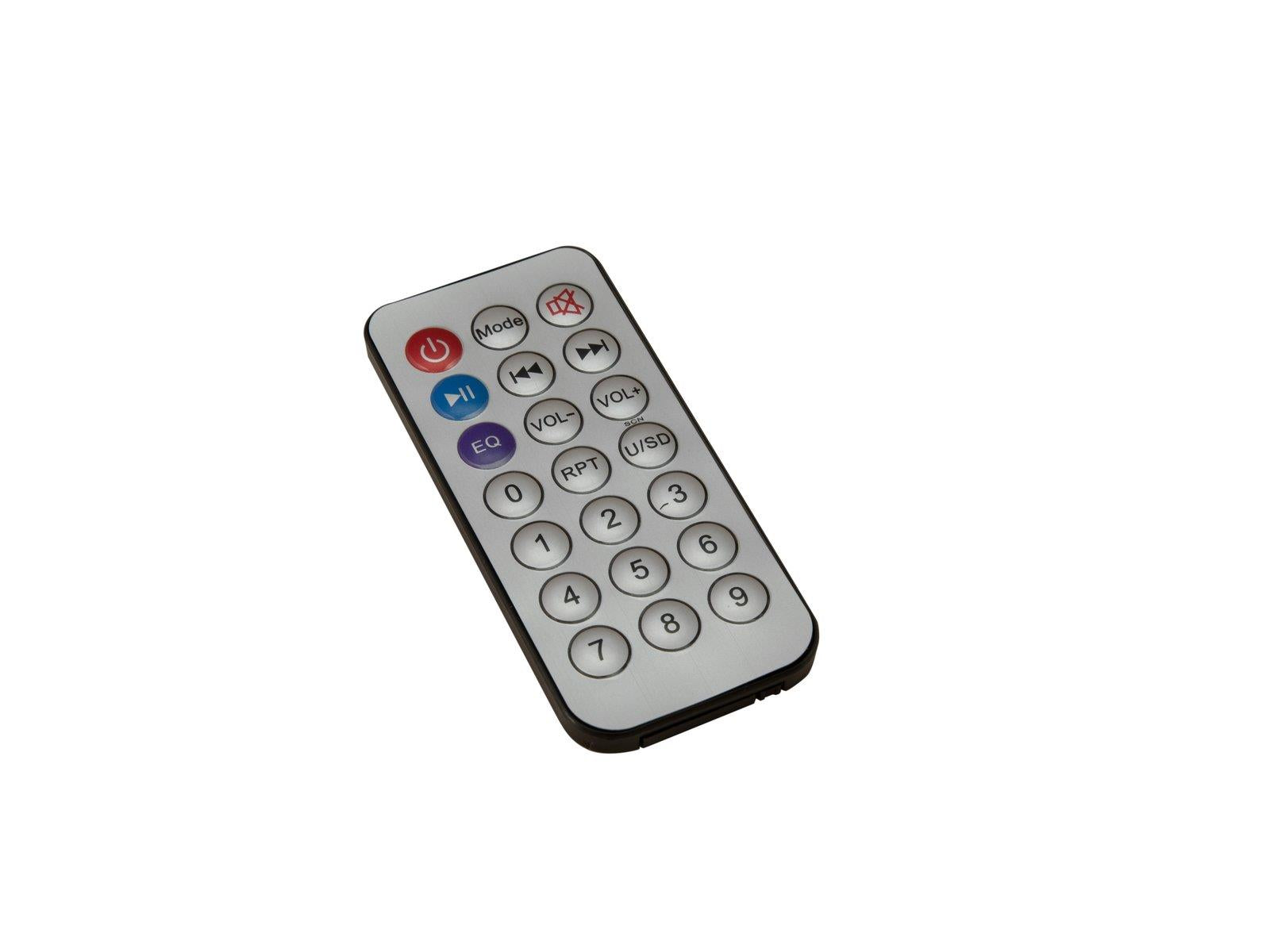

The EP-220PS is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It features 2-way tone control and offers four inputs for audio units with line signal level (e.g. CD player, tuner, mixer). Stream your music wirelessly from your smartphone, tablet or computer via Bluetooth to the built-in audio player, which also offers an FM tuner and slots for USB storage devices and SD(HC) memory cards. A remote control is included for convenient control of the audio player. Via the input selector one of the sources can be selected for playback. The preamplifier is also provided with an adjustable microphone input. For better intelligibility of an announcement, a priority function can be activated. Thanks to its separate master outputs the EP-220PS can be directly connected to active speakers or amplifiers.

Universal 9.5" preamplifier with audio player, Bluetooth and FM radio

• Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
• USB 2.0 input and SD card slot
• FM tuner with auto scan
• 4 stereo line inputs
• 1 microphone input with controls for volume, bass and treble
• Phantom power and priority circuit switchable for the microphone input
• Controls for overall volume, bass and treble
• Audio source selector
• 5-fold LED level display
• 2 stereo master outputs
• 9.5" desktop console
• Controlling by IR remote control; Bluetooth
• For application areas such as: Trade fair and shop fitting; sports centres/gyms; restaurants, bars and hotels
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 8 W
• Power connection: Mains input via IEC connector (M) mounting
• version power supply cord with safety plug (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: >100 dB
• THD: <0,1 % at 1 kHz
• Impedance: Input 10 kOhm , unbal.
• Input 20 kOhm , bal.
• Control: IR remote control; Bluetooth
• Control elements: Source selector, level control, EQ controls
• Equalizer: Master: 1 x 2-band tone control stereo
• Status LED: Level meter, phantom power

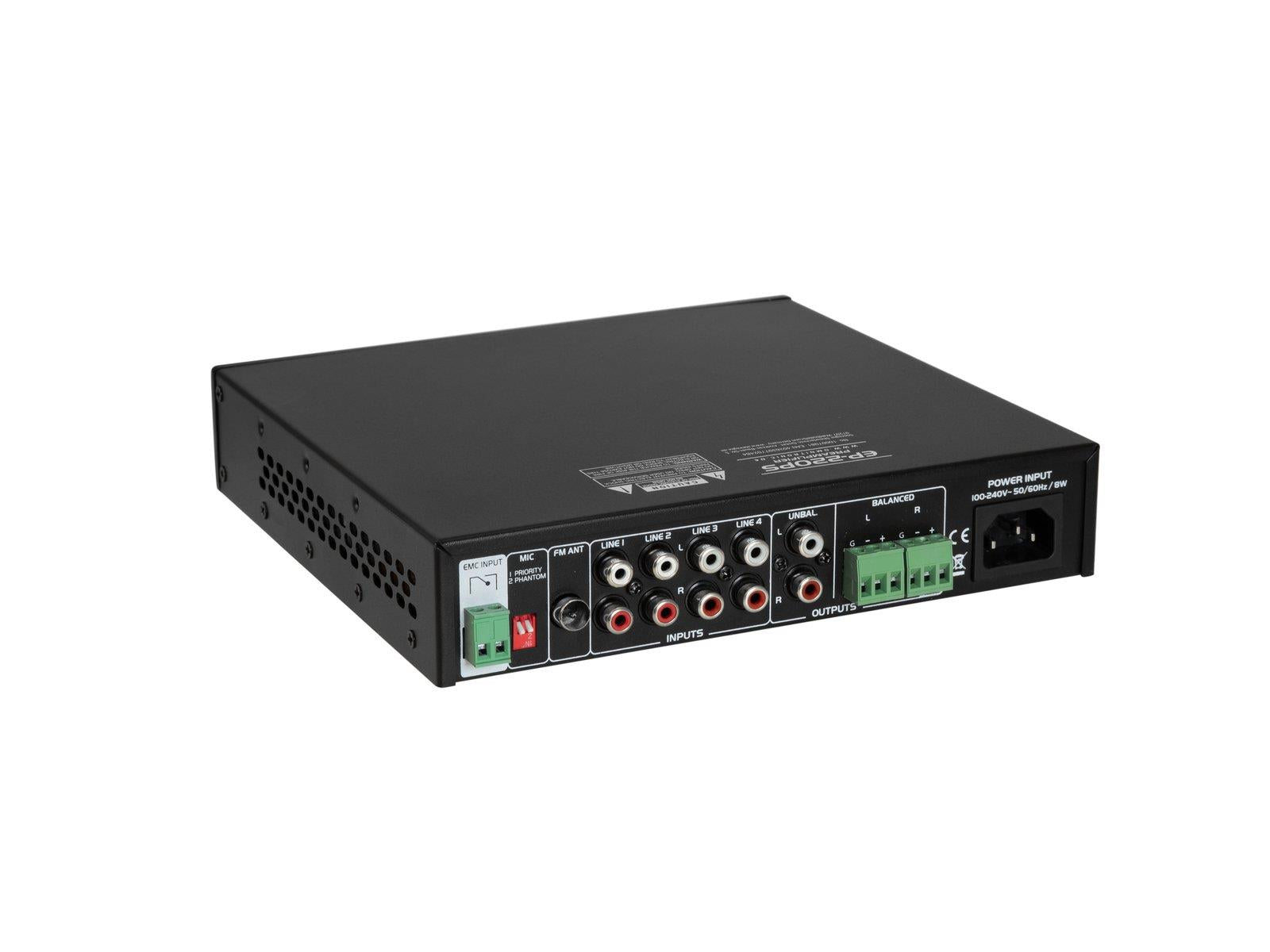

• Connections: Input: line via 4 x RCA (F) mounting version
• Input: Microphone via 1 x 6,3-mm-jack (bal.)
• Output: line via 1 x stereo RCA
• Output: line via 2 x screw terminal
• Input sensitivity: 1 V
• Dimensions: Width: 21,5 cm
• Depth: 24 cm
• Height: 4,4 cm
• Weight: 1,30 kg
• Audio player
• Audio player: USB + SD + Bluetooth + FM Radio
• Format: WAV; MP3; WMA
• Carrier frequency: 2,4 GHz
• Available storage media: USB devices/SD cards max. 32GB (FAT
• 16/32)
