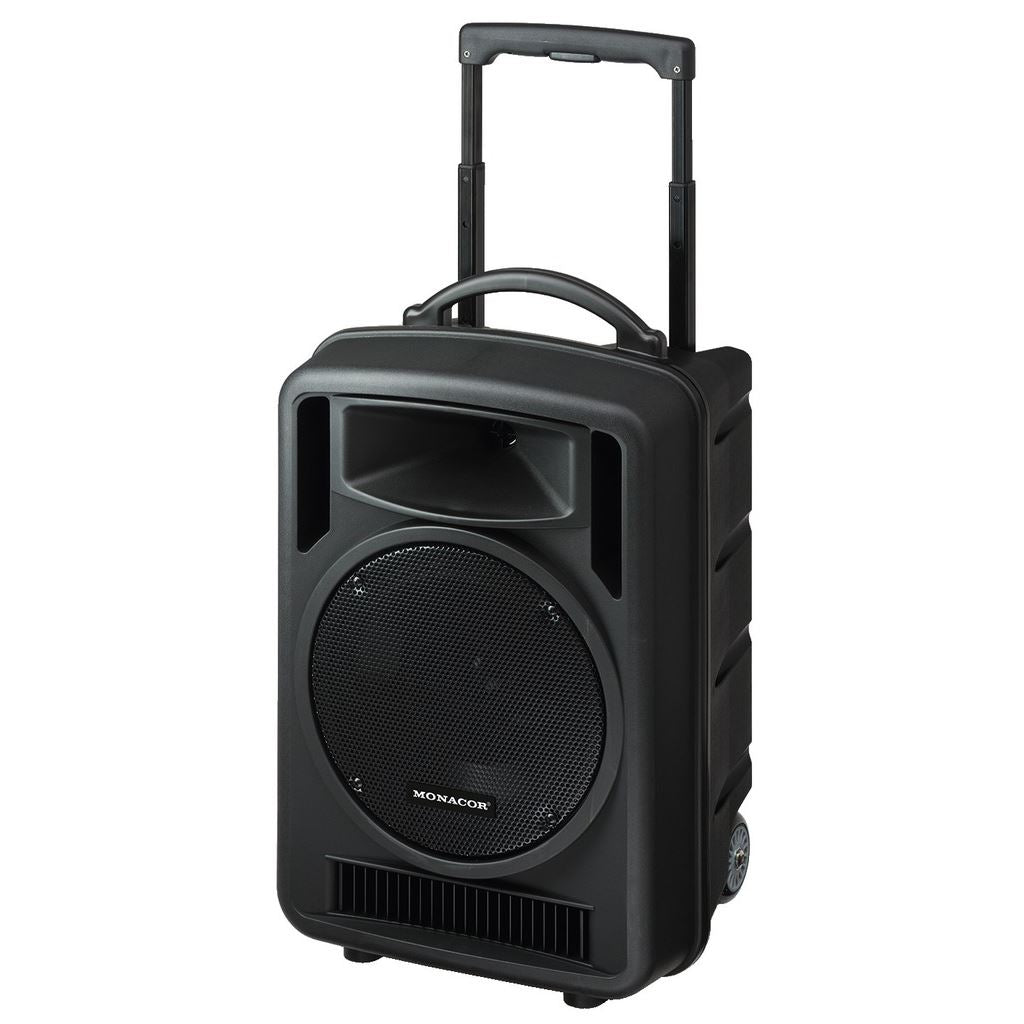

Monacor TXA-1022CD Portable Sound System Battery Bluetooth inc CD Player Linkable

Portable high-power amplifier systems, with integrated adjustable 2-channel multifrequency receiver unit with UHF PLL technology and Bluetooth receiver.

High-performance class D version 120 W, with optimum efficiency
Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 4 hours), integrated automatic battery charging with charging status indication, deep discharge protection
For mobile applications, e.g. sales events, lectures
2 x 16 selectable UHF frequencies (863.1-864.9 MHz) with diversity system
2-way speaker system of high power capability with a 25 cm (10") bass speaker
1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
Common master control, 2-way tone control
1 stereo line output (RCA), 1 aux output (3.5 mm jack)
Switchable microphone priority circuit
Due to an extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
Stand sleeve

Amplifier system with 2-channel wireless receiver
CD player with anti-shock system, MP3 reproduction and slot-in mechanism, pitch control function
SD card reader, USB interface
1 wireless transmitter for wireless audio link operation of several TXA-1020 systems
Supplied with remote control for CD player
The integrated wireless transmitter of the TXA-1022CD transmits audio signals to one or several TXA-1020 systems. Ideally suited for larger indoor PA applications where a consistent sound radiation is required.

Specifications
Output power: 170 WMAX/120 WRMS
Frequency range: 20-20,000 Hz
Carrier frequency: 863.1-864.9 MHz
Operating range: approx. 30 m
Mic inputs: 6 mV
Line inputs: 300 mV (incl. aux)
Link: wireless
Equalizer, bass: ±10 dB/100 Hz
Equalizer, treble: ±10 dB/10 kHz
Power supply: 230 V˜/50 Hz/170 VA, rech. battery: 2 x 12 V/4.5 Ah
Admiss. ambient temp.: 0-40
Connections: 1 x XLR/6.3 mm jack (mic), 1 x 6.3 mm jack (mic), 1 x RCA L/R (line in), 1 x 3.5 mm jack (line in), 1 x RCA L/R (line out), 1 x 3.5 mm jack (line out)

Dimensions
360 x 580 x 320 mm

Weight
19.2 kg
