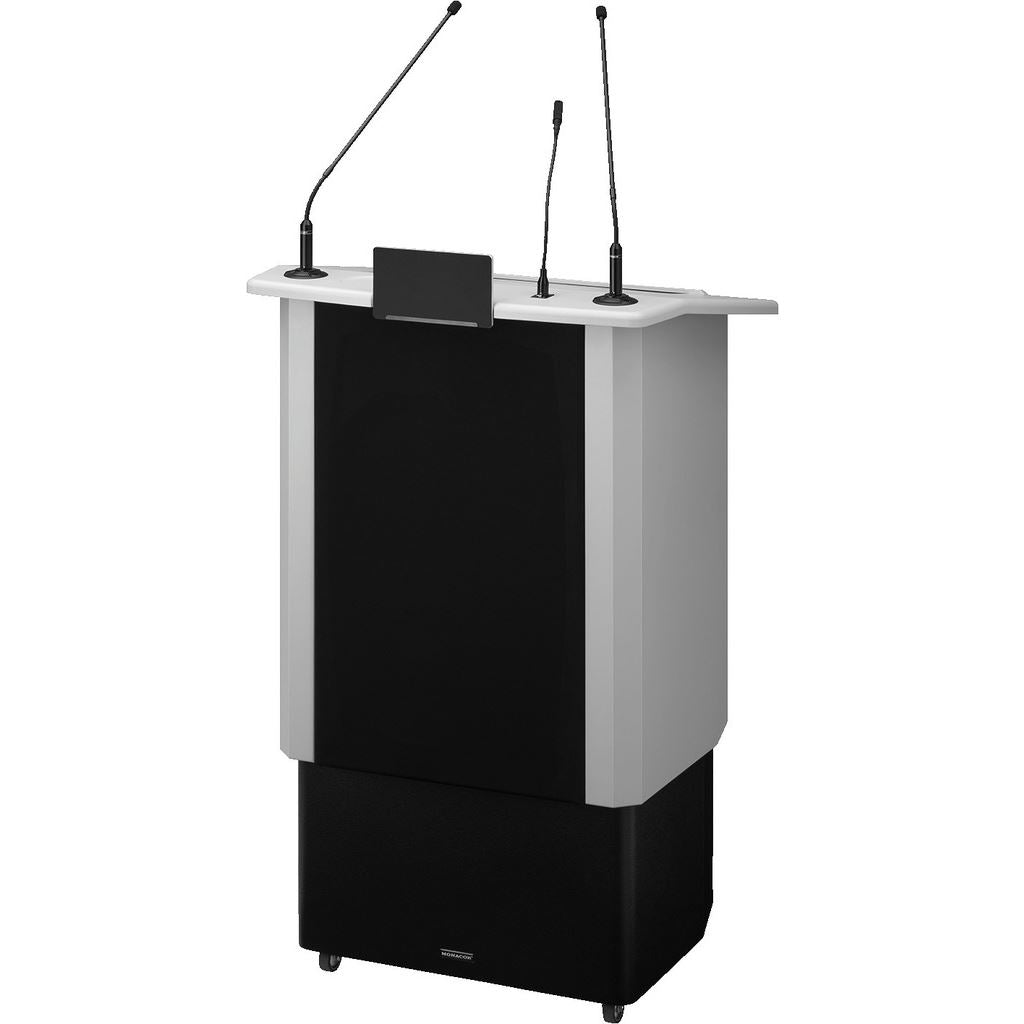

Monacor Lectern with Speech-500 Wireless Amplifier System

Professional lectern with electric height adjustment and integrated wireless amplifier system which is equipped with innovative technology and suitable for music transmissions of high requirements. The lectern features a variable electric height adjustment. A laptop can space-savingly be accommodated underneath the transparent glass plate on the top part of the lectern in a 2-step illuminated compartment which has especially been designed for this purpose. The built-in audio system, as well as the UHF PLL wireless technology with transmitter module and receiver module, perfectly meet every requirement. In audio link operation, this allows for a wireless control of further active speaker systems which are equipped with respective wireless receivers, e.g. TXA-800 and TXA-1000 series.

Built-in 4-channel mixing amplifier with limiter, 50 W
Variable electric height adjustment of the lectern, 85-125 cm
Top part of the lectern with a transparent safety glass plate and illuminated compartment for a laptop
Built-in UHF PLL receiver (TXA-802MR) with 16 selectable frequencies (863.1-864.9 MHz) with diversity system, matching transmitters are available at option, e.g. TXA-
00HSE or TXA-800HT
Built-in UHF PLL transmitter (TXA-802MT) with 16 selectable frequencies (863.1-864.9 MHz) for setting up audio link transmission
3 inputs via comb. jack mic (XLR)/line (6.3 mm jack), stereo line input (RCA), gain controls, 3-way equalizer for the comb. inputs
2 shock-absorbing XLR jacks on the top part of the lectern for 2 optional gooseneck microphones (each one uses a microphone input), matching microphone EMG-650P
is available at option
Additional XLR jack for LED gooseneck light (e.g. GNL-304, available at option)
12 V phantom power for mic input 1 and 2
1 stereo line output via RCA jacks
30 cm (12") full range speaker of high power capability providing a powerful sound
High-quality wooden cabinet, wood and lacquer combination
Standard wood decor: grey lacquered
Holder for name of speaker to be mounted with terminal screw
3 additional storage compartments for documents and other utensils
2 swivel casters with brakes, 2 fixed casters

In addition to the standard wood decor grey lacquered, you can choose your individual colour or desired wood decor from 20 other design options:
Maple, Dark Apple, Beech, Dark Beech, Italian Oak, Red Oak, Rustic Oak, Alder, Cherry, Dark Cherry, Light Cherry, Tobacco Acacia, Dark Walnut, Light Walnut, Wenge, Plum, Apricot, Pigeon Blue, Vanilla, grey (standard) and white.
Information on delivery times and extra charges upon request.

Specifications
Power rating (PRMS): 50 W
Peak music power output (PMAX): 100 W
Frequency range: 50-20,000 Hz
Carrier frequency: 63.1-864.9 MHz
Operating range: ≈ 30 m

Inputs
2 mV (mic 1)
4.5 mV (mic 2-3)
150 mV (line 1-3)
400 mV (line)

Equalizer, bass: ±12 dB/60 Hz
Equalizer, midrange: ±7 dB/1 kHz
Equalizer, treble: ±12 dB/15 kHz
Power supply: ˜ 230 V/50 Hz/135 VA
Admiss. ambient temp.: 0-40 °C

Connections
3 x XLR (mic)
3 x 6.3 mm jack (line)
1 x RCA L/R (line in)
1 x RCA L/R (line out)

Dimensions
800 x 1250 x 570 mm

Weight
45 kg
